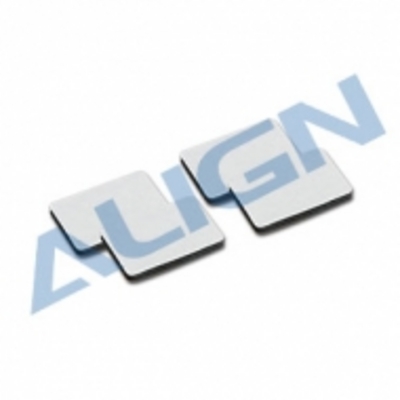

Align 150 Receiver Double sided tape

Suitable for the 150 MRS 3 in 1 Controller.

Specs:
150 Receiver Double sided tape x 4(26x18x2.5mm)

Want one more wonderful product to match the above stated product?

150 Tail Boom Red

Usage for T-REX 150.

Specs:
150 Tail boom-Red x 2(3.5x3.5x140mm)
150 Tail motor mount x 2
Socket button head self screw x 2(T1.5x3mm)
Socket button head screw x 2(#0-80x3mm)

Want one more wonderful product to match the above stated product?

150MT Tail Motor Assembly

Usage for T-REX 150.

Specs:
KV value: 8000KV
Input voltage: 2S
Stator Arms: 9
Magnet Poles: 6
Measurement: 1.4x13.2x18.1mm
Weight: 3.3g

Accessories:
150M Tail Motor x 1
150 Motor Wire Socket x 1
Strap x 2(1.6x71mm)
Socket Button Head Screw x 1(#0-80x3mm)

This is a fantastic addition to the product currently being talked about.

DS150/155 Servo Gear Set

Usage for ALIGN DS150/155 Servo.

Specs:
DS150/155 gear G1x1
DS150/155 gear G2x1
DS150/155 gear G3x1
DS150/155 gear G4x1
DS150/155 Servo rudder piece x 1
Socket button head self tapping scre x 1(T1.5x3mm)

Many others have purchased this product along with the product that you are currently reading about.

150 Landing Skid

Usage for T-REX 150.

Specs:
Landing Skid x 2
Landing Skid nut x 8(Φ1.5xΦ3x2mm)
Socket button head self tapping screw x 4(T1.5x3mm)

Many others have purchased this product along with the product that you are currently reading about.

150 Main Shaft

Usage for T-REX 150.

Specs:
Main Shaft x 2(Φ1.6xΦ3x45.8mm)
Socket button head screw x 2(M2x4mm)

Right here is a wonderful product that several others have purchased the same time.

DS150 Digital Servo

Suitable for T-Rex 150

Guidelines:
4g digital micro servos are unique design for T-REX 150 DFC, includes to increase micro helicopter control speed and precision, let the micro/indoor helicopter has same flight performance as large/outdoor helicopter.

Specs:
Stall torque:0.8kg．cm(5V)
Motion speed:0.06 sec/60?(5V)
Score voltage:DC 4.8-6V
Measurement:19.8x8.4x23.3mm
Weight:4.3g
1520μs conventional band

Accessories:
DS150/155 Servo rudder piece x 1
Socket button head self tapping scre x 1(T1.5x3mm)

The listed below product likewise pairs truly well with the product being talked about.

2S1P 7.4V 250mAh/30C

Usage for T-REX 150.

Instruction::
Max Continuous Discharge: 30C. Typical operating temperature level is approx. 40-65?C(within 80% of ranked discharge). Max. temperature level: 80?C.
Recommend to discharge the battery within 80% of ranked discharge, keep 95% capability when over 100 cycles, keep 90% capability when over 150 cycles.(The cycle life and efficiency will decrease due to high current, high temperature level and over-discharge)

NOTE::
When utilizing high energy Li-poly Battery, please do not over-discharge, over-charge batteries, or result over-high temperature level. Discharging capability can't go beyond 80% of limit capability after complete crediting ensure an excellent cycle performance.Recommend to complete charge a brand brand-new battery prior to utilizing and just discharge the battery 50% for first 5 times to make an excellent efficiency of the battery. Please make it a practice to constantly count time for flight, or please set a low voltage security on ESC (Cell voltage after stopping utilizing can not decrease than 3.4V). Do not utilize the battery at insufficient of voltage.

Do not expose batteries to sunlight or shop/ charge batteries at the temperature level up to 35℃ in a airtight automobile. The environment high temperature level might trigger the damage or the threat of burst. If the battery ends up being hot while high current discharging or flying, please do not charge the battery right away. Wait to cool down(about 20 mins), then inspect to charge. If against follow the original factory utilizing guidelines, possibly trigger the battery to inflate or any dangerous accident occurs.
Do not leave the charger is running ignored as it might trigger a fire.

Specifications:
Output:7.4V250mAh (2S1P)
Measurement:47x21.5x12mm
Weight:15g
