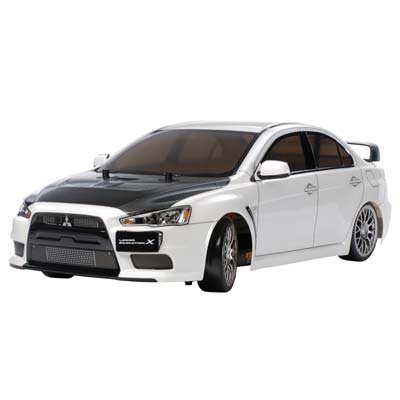

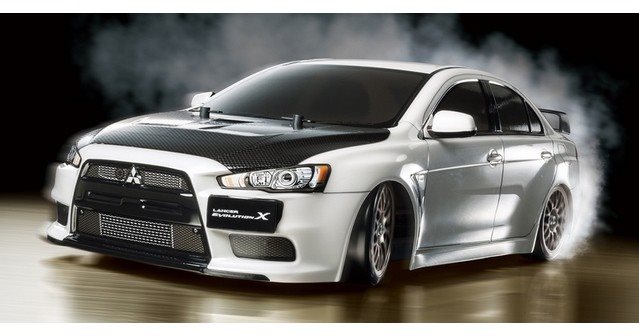

Tamiya Mitsubishi Lancer Evo.X Drift Spec

This is the 1/10 scale, electric powered, radio managed,
Tamiya TT02D Drift Specification Set with the Mitsubishi Lancer Evo.X Body.

FEATURES:
Chassis: Plastic, bathtub type with skid shaped underside to
    lessen contact with the road surface
Own: Four wheel, shaft driven
Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE-02S
LED Lights: LED head and tail lights with TLU-01 controller
Differential: Equipment type
Tires: Slick rubber construction, Super Driftech 0.94" (24mm) wide
Wheels: Silver colored mesh type, 1.9" size (48.2mm), 0.94"
    (24mm) wide, 12mm hex, +2° balanced out
Ball Bearings: Protected
Suspension: Completely independent double wishbone
Shocks: CVA Super Mini oil-filled plastic body
Camber: Non-adjustable, camber refers to the angle of the tops of the
    tires from vertical when viewed from front or behind automobile
Caster: Adjustable, caster/toe-in refers to the angle of the front
    suspension when viewed from the side of the automobile in relation to the
    chassis
Steering: Bellcrank type
Body: Clear untrimmed Mitsubishi Lancer Evo.X with decals and
    window masks
Bumper: Front, foam

CONSISTS OF:
Tamiya TT02D Drift Specification Chassis, with 540 Brushed Motor, Drift Tires,
    Clear Body, 70 tooth Spur Equipment, 22 tooth Pinion, ESC, Decals,
    Window Masks, LED Lights and Controller, Instructions and Wheels

NEEDS:
Radio: 2-channel with high speed guiding servo
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track devices

SPECS:
Specifications such as completed size and weight of automobile not offered
    by maker
    Body
Length: 18.1" (460mm)
Width: 6.9" (176mm) behind front wheels, largest point
7.5" (190mm) at rear wheels, largest point
Height: 4.2" (106mm)

REMARKS:
For replacement, Ball Bearings usage:
    Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Equipment 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Back Diff Assembly 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Back Uprights 1 DTXC1535
