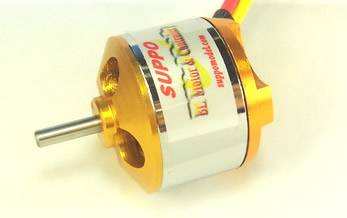

Suppo Model A2212-6 2200Kv Brushless Outrunner Motor, 3.17 mm Shaft, 3.5mm B

Specifications

Cells: 5-7 Nimh 2-3 Lipo
RPM/V: 2200Kv
Max Performance: 14-22 A
No Load Current: 1.4 A
Current Capability: 28A/60s
Shaft Size: 3mm
Weight: 47 g
Measurements: 27.5mm x 30 mm

Recomended Model Weight: 300-1000g
Recomended Prop; 2s Lipo 7 x 5 - 3s Lipo 5 x 5

This product compliments the main item here.




Features



Full-range DSMX® receiverAntenna is magnified for greater signal clarity4-channel—throttle, elevator, aileron and rudder channels for park flyers, fitness instructors and a lot of sport planesFlight log and telemetry compatible2048 resolution1-Year Restricted Warranty




Overview


The full-range Spektrum™ AR400 receiver is easily one of the very best receiver values in RC. It integrates the speed and precision of DSMX® control with the signal security of an active magnified antenna. This antenna makes it possible for the AR400 receiver to "see around" reflective products on a design and prevent antenna polarization blind areas. It likewise allows the AR400 receiver to pick out its transmitter's signal with amazing clearness in the noisiest 2.4GHz environments. All this is complemented by SmartSafe™ failsafe protection and the security of Spektrum QuickConnect™ innovation that offers lightning-fast reconnection in the event of a low-voltage brownout.

NOTE: The AR400 receiver is not suitable with the initial DX6 DSM park flyer radios, not to be puzzled with the newer DX6 DSMX complete variety radios.

Always purchase products from a Horizon Pastime, Inc. authorized dealer to ensure genuine high-quality Spektrum product. Horizon Pastime, Inc. disclaims all assistance and service warranty with concerns, however not restricted to, compatibility and efficiency of fake products or products claiming compatibility with DSM2®, DSMX or Spektrum products.

Attention: Horizon Pastime has verified that Spektrum Products being offered by KoKo Innovation are fake. We consider it a danger to use these products, waive all liability and will not support any service warranty or service in concerns to them.

This product is not planned for usage by kids under 14 years of age without direct adult supervision.







Specifications


Type: Full-range DSMX® aircraft receiver
# of Channels: 4
Modulation: DSM2®/DSMX
Band: 2.4GHz
Length: 1.2 in (31mm)
Width: 0.7 in (17mm)
Height: 0.4 in (11mm)
Weight: 0.2 oz (5.6 g)
Voltage Range: 3.5–9.6V
Antenna Length: 190mm





Media Gallery




 AR400 Receiver (WMV)

Want one more fantastic product to enhance the above stated product?



This is the Thunderbird 36 Brushless Airplane Speed Control.
Not advised for usage in helicopters.
Castle Creations advises their Phoenix series of ESCs for heli use.

** Futaba users may need to reverse throttle instructions.**
**Please consult radio manual on ways to make this change.**

FEATURES:
Easy to use
Advanced automatic software application functions
Rugged Surface area Mount Innovation hardware
Simplified shows steps
Auto-LiPo and No Brake for 3D action right from the plan
Universal Rx port
Programmimg functions: Brake ON/OFF
LiPo, NiMH, NiCd and cutoff
Motor Reversing
One year service warranty

CONSISTS OF:
One Thunderbird 36 Brushless Speed Control

NEEDS:
Linking to motor, battery and receiver

SPECS:
Max amps: 36A
Max volts: 15V, 3S LiPo, 10 NiCd/NiMH
BEC: Linear regulator, 3A max
Length: 1.5" (38mm)
Width: 1" (25.4mm)
Height: .35" (9mm)
Weight: .7oz (20g)
Brake: ON/OFF
