Features

High Voltage (HV) capable (6.0-8.4v input range)

Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)

Resilient and lasting brushless motor

Low wear and securely fit together all metal gear train

Double bearing supported drive train helps take full advantage of smooth operation

Aluminum servo case helps keep operating temperatures low

Soft start helps avoid element and airframe damage throughout un-intentional initializations

Over Present and Temperature level defense

Helpful initialization start tone lets pilot know when the servo is prepared

Integrated servo failsafe holds last recognized position if signal is lost and power is preserved

Running Frequency: 200hz to 333hz





A6350 Ultra Torque High Speed Brushless MG HV Servo
The Spektrum™ A6350 Ultra-Torque / High Speed Brushless HV Servo is the next development in the broadening line of leading-edge efficiency servos from Spektrum". Created with the extraordinarily strong and reputable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's prepared for the needs of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is likewise a great option for any application that needs high efficiency, high speed, and supreme power.



Specifications

Bearing: Double BB

Bushing Or Bearing: Bearing

Equipment Type: Metal

Input Voltage: 6.0V to 8.4V

Product: Aluminium

Optimum Servo Torque: 500+ oz-in

Motor Type: Brushless

Overload Defense: Yes

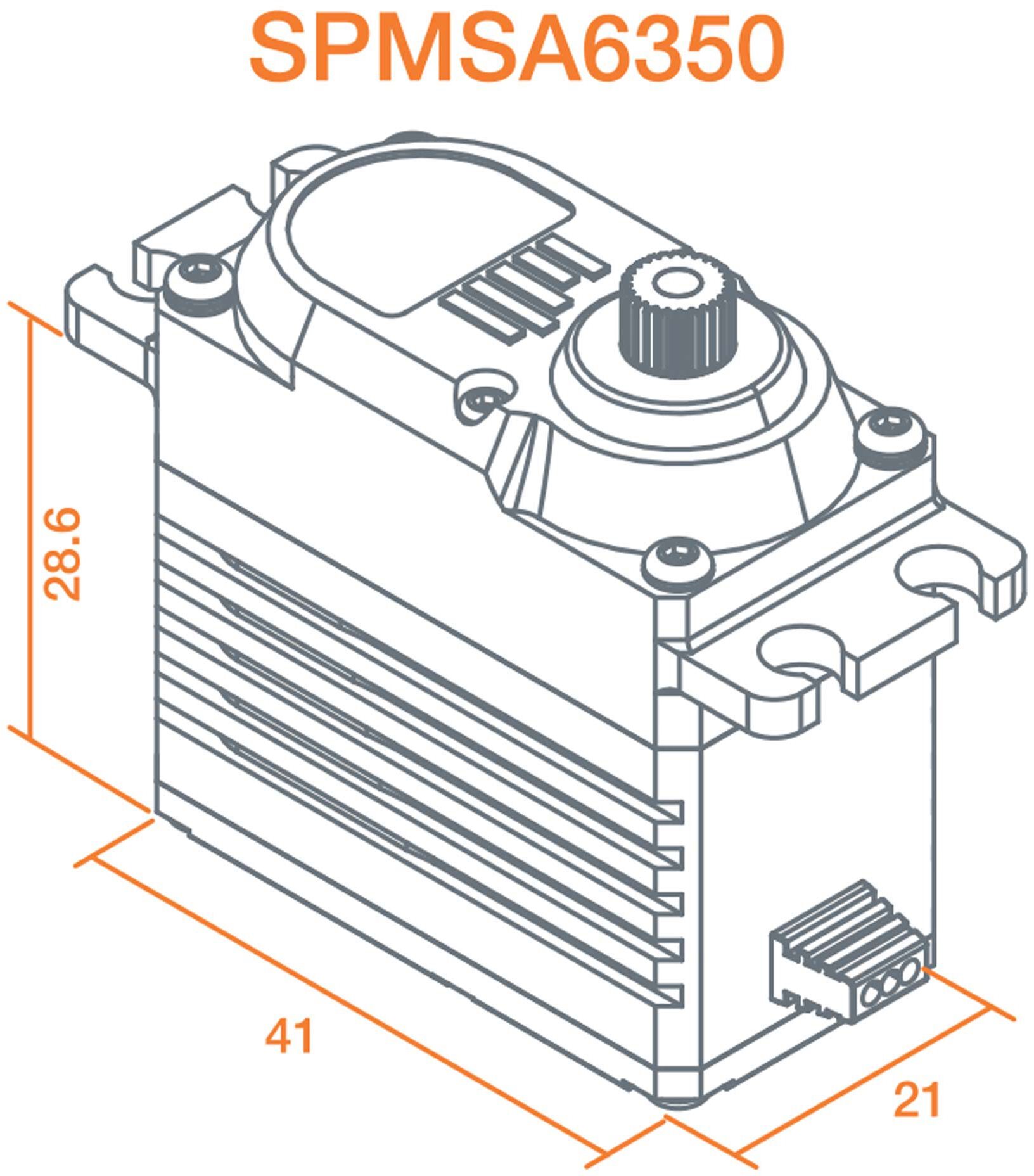

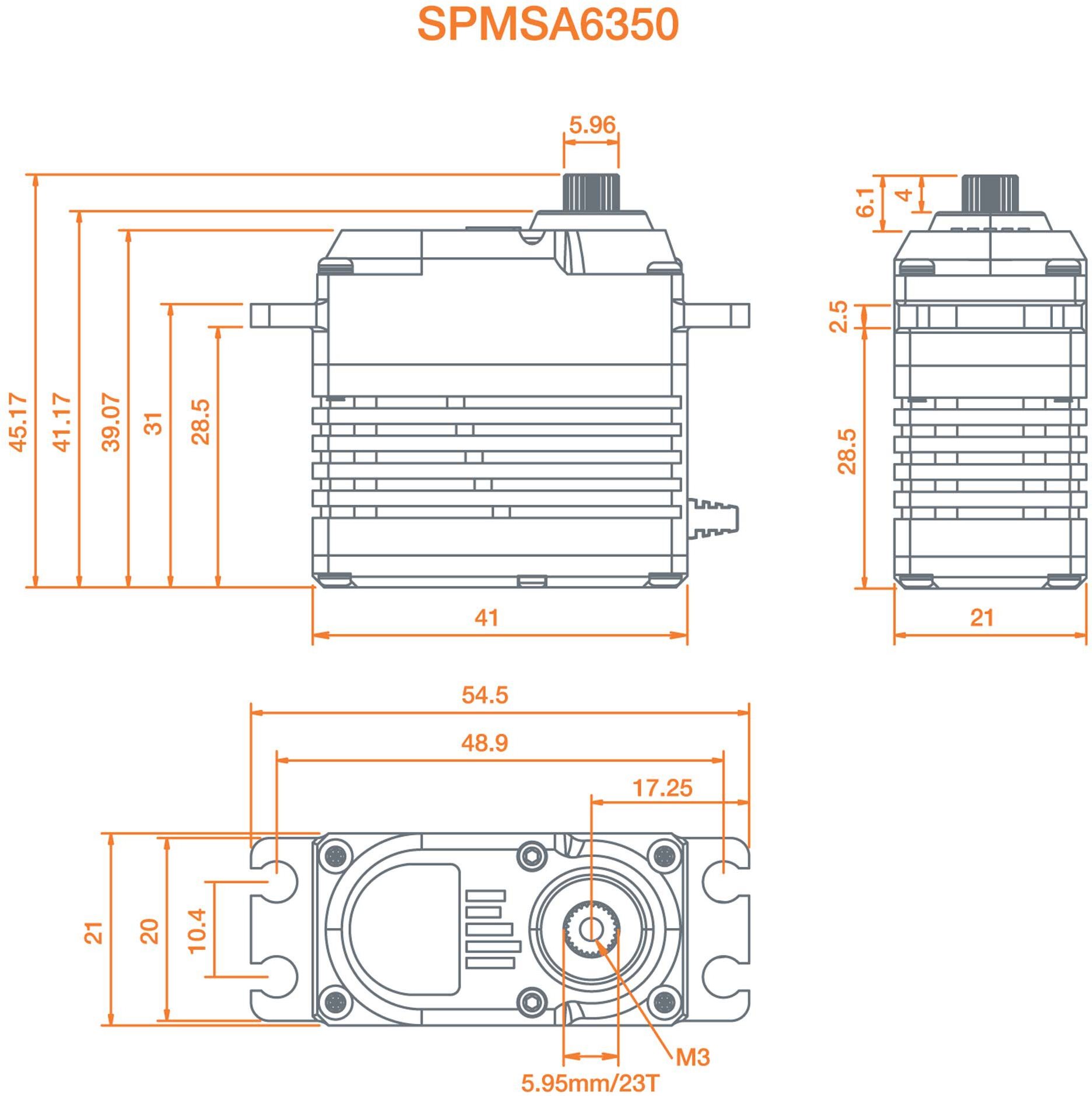

Item Height: 1.61" (41 mm)

Item Length: 1.61" (41 mm)

Item Weight: 3 oz (85g)

Item Width: 0.83" (21 mm)

Servo Operating Voltage: 4.8 - 8.4V (HV)

Servo Size Category: Standard

Servo Speed: 0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V

Servo Type: Digital

Spline Count: 23 - Tooth

Torque: 576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V
