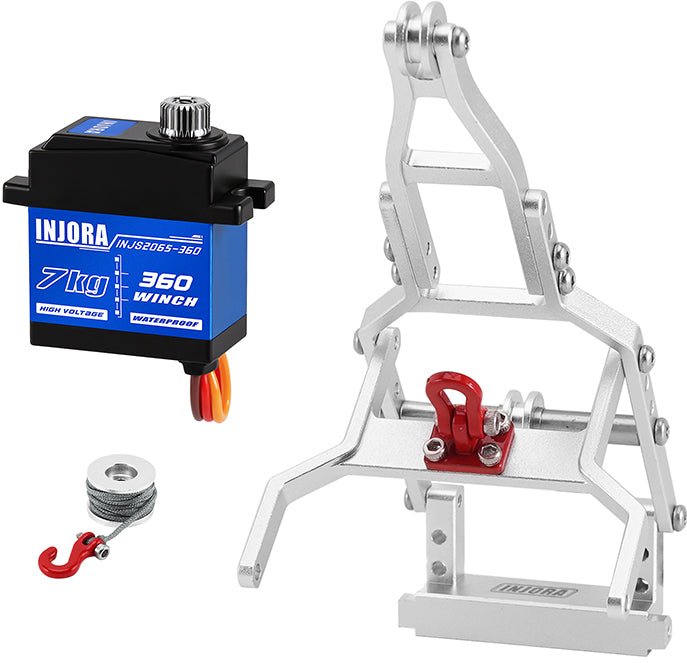

INJORA INJS2065-360 Waterproof 7KG Winch Servo & Tow Truck Crane Kit for 1/18 TRX4M
Note: Chassis: Compatible only with TRX4M stock chassis, INJORA TRX4M Universal Chassis (4M-89 & 4M-111).
Body: Fits INJORA IR40 and IR60 bodies. If you're using a different body, make sure there's enough space to install it.
Tx & Rx: Not compatible with the stock TRX4M transmitter and receiver. Your receiver must have a free channel so you can use a knob on the transmitter to control the winch servo separately.
Features:Powerful 7KG Torque – Strong winch servo handles tough recovery jobs with ease
IP66 Waterproof Design – Built to perform in wet and muddy conditions
Overload Protection – Smart current cutoff helps prevent damage under heavy load
CNC Aluminum Construction – Precision machined crane offers durability and premium scale detail
Red Tow Hook Included – Adds functionality and a bold visual touch
Enhanced Visual Appeal – Instantly boosts your rig's realism and trail presence
Winch Servo Specifications:Part Number: INJS2065-360
Output Spline: 25T
Dead band: 2µs
Neutral Position: 1500µs/330hz
Motor: Core Motor
Voltage Range: 4.8V-8.4V
500-2500µs Angle: 360 Continuous Rotation
Operating Speed (6.0V): 116 rpm
Operating Speed (8.4V): 163 rpm
Stall Torque(6.0V): 6.0 kg.cm
Stall Torque(8.4V): 7.0 kg.cm
Dimensions: 23*13*25.8mm
Weight: 20g
Connector Wire Length: JR 300mm
Bearing: 1BB
Crane Kit Specifications:Part Number: 4M-115
Material: Aluminum
Color: Black, Silver
Weight: 32g
Winch Spool: 25T
Rope Length: Approx. 53cm
