Motor Overview:

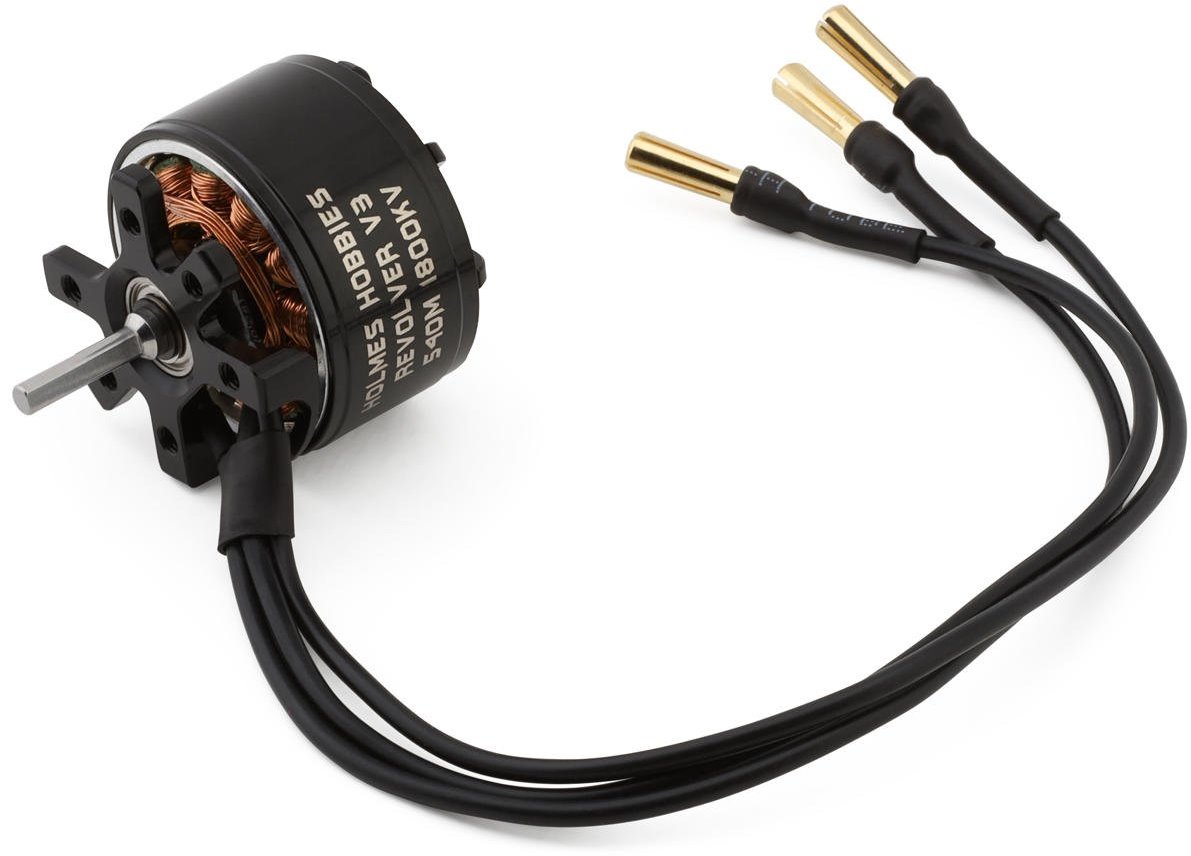

Holmes Hobbies Revolver V3 540M Sensorless Snubnose Brushless Outrunner Motor. brings unmatched torque and slow speed control in a small and lightweight package. Designed to offer incredible low-speed control for high performance Comp rock crawlers that are looking for a lightweight motor without sacrificing torque and buttery low-speed control!
The Revolver V3 540M features the exclusive Holmes chrome-plated magnets that offer buttery smooth industry-leading startup without sacrificing torque, drag brake and static hold! Fitted with the V3 ultralight housing, precision magnet retention assembly and a standard 540 1/8" D shaft output to fit most common R/C pinion gears.
NOTE:
To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.
Designed for rigs up to 7.5 pounds, but can be run on heavier rigs with proper gearing.
540 Snubnose is NOT recommended for "rock racers" and 2-speed vehicles, such as the TRX4.
Features:
Original Holmes magnetics and housing design
Perfect for competition rigs in need of a compact and lightweight high-performance motor
Small and light, yet higher torque than 540 brushed motors
V3 ultralight housing
Supreme low resistance
Monster torque levels with a compact design
Chrome plated magnets
Precision magnet retention assembly
Standard 540 1/8" D shaft output
Specifications:
Type: Brushless Sensorless
kV Rating: 1800kV
Input Voltage: 2-4S (7.4-14.8V) LiPo
Diameter: 1.4in (35.56mm)
Length: 1.2in (31mm)
Weight: 106g (3.73oz)
Poles: 14
Stator: 1.102x0.62in (28x16mm)
Connector: 4mm Bullets
Includes:
(1) Revolver V3 540M Snubnose Sensorless Brushless Outrunner Motor
