ESC Overview:

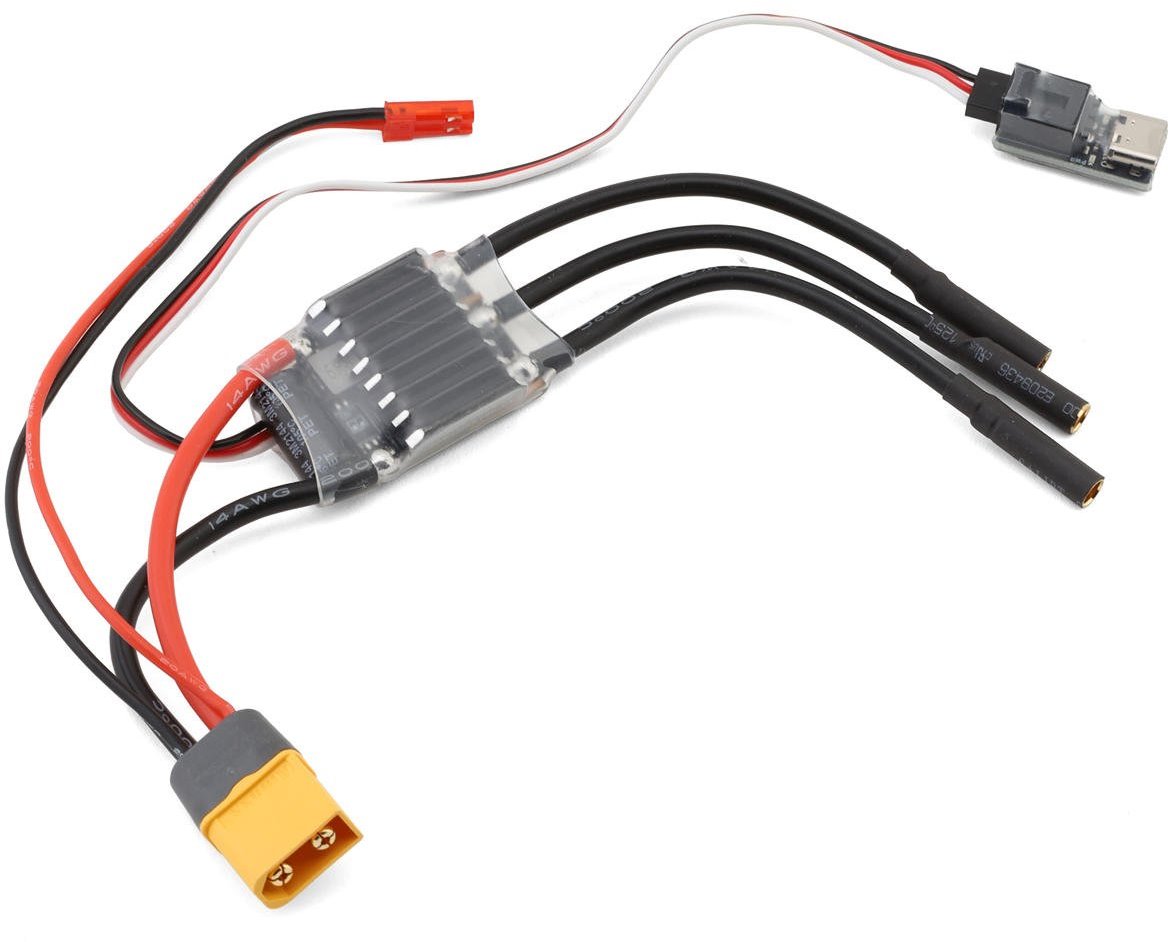

Holmes Hobbies CrawlMaster ESC (Electronic Speed Controller). The CrawlMaster Mini ESC is designed to fulfill the needs of comp RC Rock Crawlers looking for a small, yet powerful and versatile ESC! It harnesses the power of 32 bit technology to offer the smooth, quiet, and torque-dense driving you desire in an extra small package! The ESC comes pre-soldered and ready to plug and go! It is conformal coated for water resistance, but Holmes Hobbies recommends extra coating with CowRC's Cow-Formal coat (CPP-C46011344 - Sold Separately) if you plan to submerge the ESC.
Features:
32 bit technology
Exclusive Sinewave Startup (like FOC) but open system and compatible with all motors
Silent operation with most motors, inaudible switching frequency
Intelligent RPM lock at low speed for unmatched control when it matters most
Regular throttle above low speed operation for torque control and less broken parts at speed
Overcurrent, temperature, stalled rotor, and throttle loss protection
Automatic cell detection and low voltage protection for LiPo battery
Ultra smooth throttle and strongest drag brake out of the box
Specifications:
Input Voltage: 2-4S lipo (20V max)
Internal BEC: 3A - 7.4V
Length: 39mm
Width: 26mm
Height: 11m
Weight: 39g
Connector Type: XT60
Includes:
(1) CrawlMaster Mini V3 Rock Crawler Brushless ESC
(1) USB programmer
(1) Manual
Recommended Use:
1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc.
8lb limit, subject to gearing, driving style, terrain, etc.
1800kV motor limit for 4S use
NOT recommended for two-speed vehicles, rock racers, tow rigs, and other high load installations
