Features

Axial® AS-1 servo with servo saver

Dynamite® 7.4V 350mAh 30C LiPo battery

Dynamite® 180-size, 88T Brushed Electric Motor

Sensible 1967 Chevrolet C10 Truck body

2 brilliant LEDs in front bumper for night driving

Real, full-time 4-wheel drive

3-Link front and 4-link rear suspension for optimum handling

Worm drive gears for front and rear axles that add ground clearance

Sensible steel frame rails for additional strength

Hinged body system for easy access to on-board parts

Full ball bearing drivetrain

Certified wheels modeled after 1:1 Technique Wheels

Certified tires modeled after 1:1 BF Goodrich Tires





Overview
The detailed, ready-to-run 1967 Chevrolet C10 Truck is the latest model in the popular SCX24™ series from Axial® Racing. Its compact, flexible 1/24 scale size opens up almost any environment to spur-of-the-moment RC crawling explorations. When it's time for a break at work, established a challenge course with products on your desk for the SCX24™ Chevrolet C10 Truck to work out. Any space at home can also become the setting for amazing feats and contests. If you'd rather run outdoors, go for it! Collect some twigs and marble-size rocks, dig a couple of holes, and quickly you'll have a challenging path for fresh air adventuring. Your truck's water-resistant electronic devices conserve you from having to stress over wet track conditions when you crawl.

With its reasonable steel chassis frame rails, steel front and rear axles, and steel dogbones, this model has the strength to provide Axial®-quality crawling efficiency even in 1/24 scale. It's created to keep right on going through rough tracks and hard climbs up. The SCX24™ 1967 Chevrolet C10 comes ready-to-run with all of the electronic devices, transmitter, receiver, servos, motor, ESC, batteries and battery charger included.





Needed to Complete

Absolutely nothing — whatever required is included in the box.

What's in the Box?

(1) Axial® SCX24™ 1967 Chevrolet C10 Truck 1/24 Scale RTR

(1) Axial® AX-4 2.4GHz Radio System

(1) Axial® AS-1 Servo

(1) Axial® AE-6 ESC/Receiver Combination

(1) USB Charger (DYNC1062)

(1) Dynamite® 88T 030 Brushed Electric Motor

(1) Dynamite® 350mAh 2S LiPo 7.4V Battery Pack (DYNB0012)

(4) “AA” Batteries for the Transmitter

(1) Product Handbook














SMALL SCALE, BIG PERFORMANCE
You anticipate strong efficiency from Axial® and the SCX24™ 1967 Chevrolet C10 delivers, with engineering and equipment that pulls the best capacity from its compact size. The included Dynamite™ 88T brushed electric motor supplies the torque you need to get up and over the majority of obstacles. And regardless of the measurements, it's a pretty capable rock crawler, too! We have actually also included extra suspension links for changing your wheelbase length.









HINGED BODY SYSTEM
The hinged body system provides easy access to on-board parts. You can rapidly reach the battery and chassis by getting rid of 2 body clips and swinging the body up.




EVERYTHING IS INCLUDED!
The SCX24™ includes whatever you need to start. The product is fully assembled, and we have actually included batteries for the transmitter, and a LiPo battery pack and USB battery charger.








AX-4 2.4Ghz TRANSMITTER
The AX-4 transmitter includes a throttle trim knob for low, medium, and high speed setting, a switch for steering servo reversing, steering dual rate, a switch for third channel applications (aux port on the ESC/Receiver), steering trim, battery level sign, a bind button, and on/off switch. The AE-6 ESC/Receiver includes a jumper for setting one of 2 brake choices (brakes, or immediate reverse), 2 LED light ports, an auxiliary port (channel 3), a channel 2 port, and a guiding servo port.




FRONT AND REAR SOLID AXLES
The front and rear axles include a 2 piece, formed plastic strong axle style. For optimum handling, the SCX24™ suspension includes a three-link front and four-link rear setup.

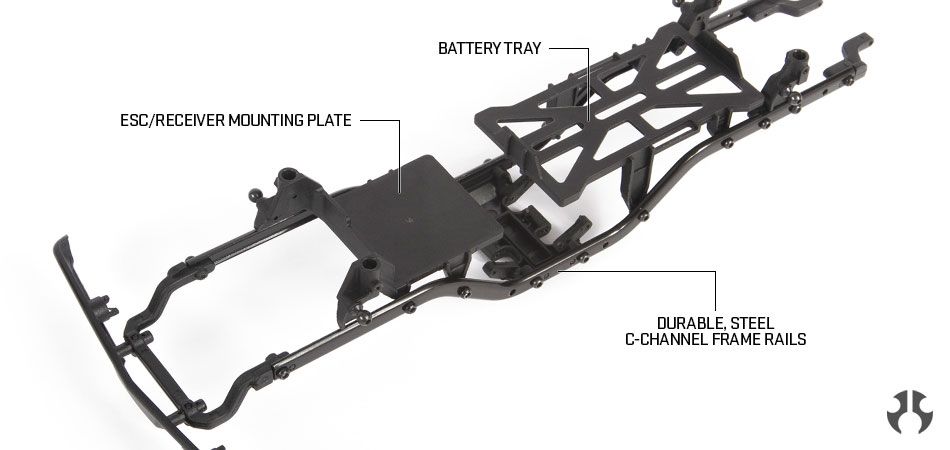

STEEL C-CHANNEL CHASSIS FRAME RAILS
Just like the 1/10th scale SCX10™ platform, the SCX24™ chassis features rugged and sturdy steel c-channel frame rails with bracing to keep whatever undamaged and aligned.




DYNAMITE 88T BRUSHED MOTOR
The Dynamite 88T brushed electric motor offers the right amount of torque to assist rise high climbs up. It's mated to a steel motor mount to keep flex to a minimum, which assists protect the gears.








WORM GEARS
The front and rear differentials each home a worm screw and worm gear setup to get the power to the axles and produce higher ground clearance.




DURABLE STEEL AXLES
Steel front and rear axles, front stub axles along with steel dogbones supply strength and sturdiness to keep things running throughout hard climbs up and rough tracks.








SPLINED DRIVE SHAFTS
The front and rear drive shafts are splined and sleeved to permit optimal suspension travel while keeping the power to the wheels.




COILOVER SHOCK ABSORBERS
Even at this little scale, the combination of coilover shocks with simulated tanks and durable plastic suspension links delivers the crawling efficiency you have actually understood and expect from Axial. #AXIALPERFORMANCE








LED LIGHTS INCLUDED
2 brilliant LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.




METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES
The MR307 Hole is a fresh take on the classic hole-wheel style that dominated early off road racing. Just like the Double Standard and NV, the Hole includes a simulated beadlock ring by way of a strategically put under-cut on the outer lip of the wheel. BFGoodrich Krawler™ T/A® KX tires are the winner of more rock-crawling championships than all other tires integrated (Race specification tire, Years 2004 through 2008). The Axial version catches the very same aggressive look you have actually been awaiting in a smaller 1/24 scale version.








FULL BALL BEARINGS
Just because the SCX24™ is smaller sized in size doesn't mean the features need to follow suit. No bushings found here, rather the drivetrain is freely spinning on sealed cartridge bearings throughout the entire car.




AXIAL AS-1 SERVO
Installed just above the front axle is the Axial AS-1 servo, with a servo saver that allows for steering accuracy, while also offering defense for the servo gears in the event of a bind or effect.








©2020 Horizon Hobby, LLC. Axial, the Axial logo, SCX10, SCX24, Dynamite, and the Horizon Hobby logo are hallmarks or signed up hallmarks of Horizon Hobby, LLC. General Motors Trademarks are utilized under license to Horizon Hobby, LLC. BFGoodrich and the BFGoodrich logo are hallmarks of Michelin Lifestyle Limited, utilized under license. Technique Race Wheels and associated logos are residential or commercial property of Technique Race Wheels, utilized under license. All other hallmarks, service marks and logos are residential or commercial property of their particular owners.

NOTE: Model revealed. Some images might vary from the actual product.











Requirements

Approximate Assembly Time: No assembly required

Ball Bearings: Full set

Batteries: 7.4V 350mAh 30C 2S LiPo

Body: Trimmed and painted Axial 1967 Chevrolet C10 pickup

Brakes: Integrated with ESC

Bushing Product: Metal

Charger: USB

Chassis: Stamped steel rails

Completion Level: Ready-To-Run

Differential: Worm gear 16T/4T

Drivetrain: 4WD

Ground Clearance: 1.06" (27mm)

Height: 3.6" (93mm)

Length: 8.6" (220mm)

Motor Size: 180

Motor Type: Brushed, Brushed 88T

Pinion: 10T

Radio: Axial 2.4GHz 2-channel

Scale: 1/24

Servos: Axial AS-1 micro

Shock Type: Plastic body, coil over, friction .9-1.3" (24-33.4mm)

Speed Control: ESC/Receiver, forward & reverse

Stimulate Gear: 55T

Suspension: Solid axle, 3-link front, 4-link rear

Tire Diameter: 1.88" (48mm)

Tire Tread: Nitto Trail Grappler M/T

Track: Front and Rear 3.9" (99.5mm), distance from center of tires determined side-to-side

Vehicle Type: Pickup Truck, Pickup

Water-Resistant: Yes

Weight: 8.0 oz (0.22kg)

Wheel Diameter: 1.0" (26mm)

Wheel Type: Plastic, black in color

Wheel Width: .48" (12.4mm)

Wheelbase: 5.2" (133.2mm)

Width: 3.9" (100mm)
