Ultra Power Up120ac Touch 240W Dual Port Multi-Chemistry Ac/Dc Charger

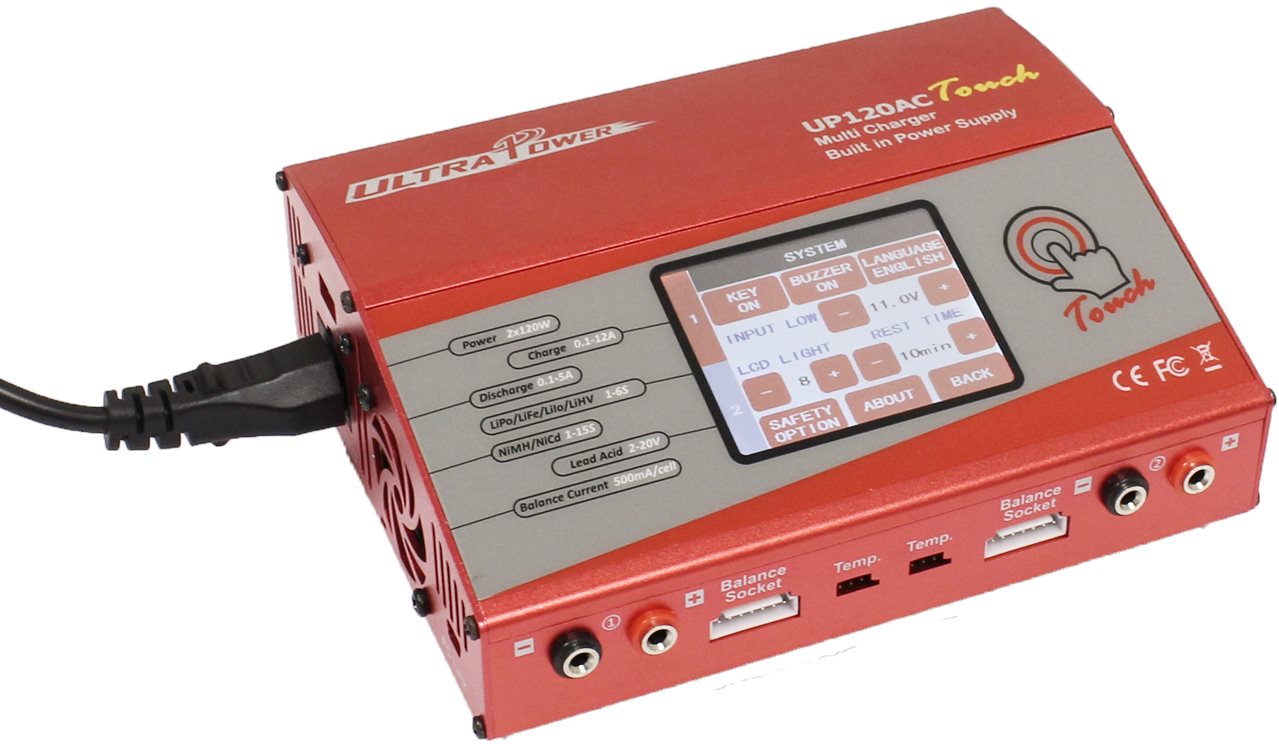

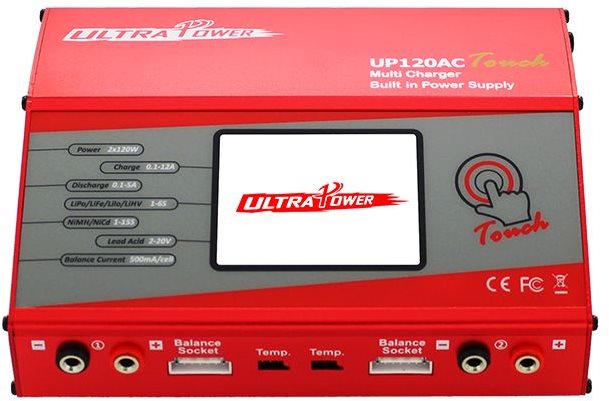

The UP120AC Touch Battery charger is a twin AC/DC Touch Screen battery charger with 120 watts per output. Each channel is capable of charging all types batteries and includes a dual-fan cooling system and an internal sensing unit for managing fan speed, internal cell balancers, touch screen display screen and crucial caution and safety functions. The UP120AC can also be utilized as a power supply to power other devices and supply approximately 300 Watts.

*Charges 1-6 cell LiPo, LiFe and Li-ION, 1-15 cell NiCd and NiMH and 2-20V lead acid batteries

*Quick charge, balance charge and storage charge modes for lithium batteries

*Automatically controls existing rate during charging and discharging process.

*2 independent balancing ports for lithium batteries

*5 user adjustable pre-sets per output

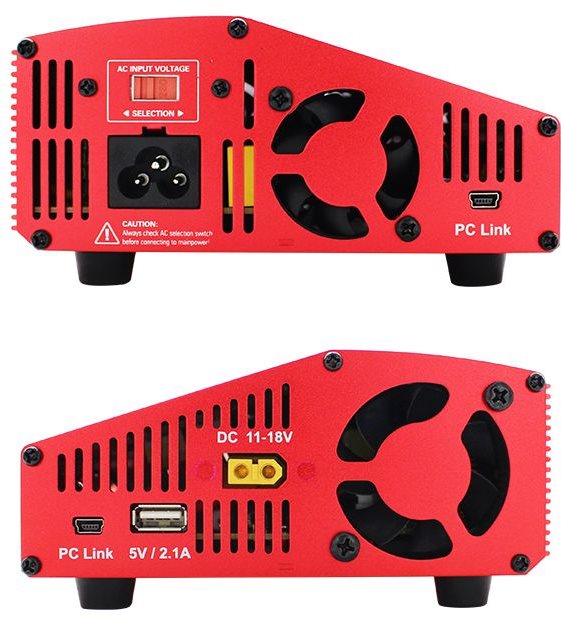

*2 fan cooling system with internal sensing unit for managing fan speed

*Batteries can be set to immediately charge/discharge or discharge/charge approximately an optimum of 10 cycles.

*Automatic charge termination if battery temperature level gets too high

*Temperature level probe is needed and need to be purchased independently

*PC-based program can analyze the attributes of each battery through a USB port, graph of voltage, existing and capacity curves with individual voltage of each cell in a lithium pack can be shown on a PC

*PC-LINK USB adaptor is needed and need to be purchased separately.

Input voltage: AC 110V or 220V / DC 11.0-18.0V

Charge power: 2x120W (240W)

Discharge power: 2x10W (20W)

Charge existing {range|variety}: 0.1~10.0A

Discharge current range: 0.1~5.0A

LiIo/LiPo/LiFe/LiHv cell count: 1~6 series

NiCd/NiMH battery cell count: 1 - 15cells

Pb battery voltage: 2V~20V (1-10cells)

Existing drain for stabilizing LiPo: 500mA/cell

Battery data memory: 5 profiles

Specifications:
