Traxxas TRX-4 ASSEMBLY KIT: 4WD C (Traxxas 82016-4 | TRA82016-4)
Due to the impact of the COVID-19/Corona virus, there my be delays in the shipping estimates shown on our site.

We appreciate your understanding and support during these uncertain times.

Top Seller

Model: Traxxas 82016-4
Dist. #: TRA82016-4   SKU: TRA82016-4

Customer Reviews:  5 of 5 (3 Reviews)

Out of stock

Price:  $369.95

This item will earn you 370 reward point(s).
370 points = $7.40 off your next order. Learn More

Updated on Apr 1, 2020 07:27:29 AM

TRX-4 ASSEMBLY KIT: 4WD C...
Easy to follow full-color assembly manual
True-to-scale part illustrations and ruler charts
Valuable assembly ideas and clear illustrations
Trail-tuned XL-5 HV Waterproof Electronic Speed Control
Totally waterproof style
Five drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake / no reverse
Training ModeT - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode - forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode - forward / instant reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set® one-button setup
Big, effective heat sink
Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3S LiPo (7.4-11.1V)
Two stage low voltage security (LVD)
Powerful TitanT 21T reverse rotation motor
Internal cooling fan
Exact, preset equipment mesh changes
Motor retention different from equipment mesh
Portal Axles
Boost ground clearance (3.14")
Eliminate torque twist
Steel equipments
Improve axle geometry and reduce stress on driveshafts
Stiff Steel Frame
1.5mm thick steel frame rails increase torsional rigidity
Innovative style permits 4 wheelbase positions (300mm, 312mm, 324mm, 336mm)
Adjustable rear shock tower positions
Bumpers change fore and aft
Rugged rock rails change for width
Wire routing clips integrated into frame rails
Drivetrain
Full-time shaft driven 4-wheel drive
Hard 6mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel equipment differentials with cable-actuation
Steel equipment transfer case
Innovative Battery Compartments
Hinged battery strap permits quick and easy battery gain access to
No pins to lose
Accommodates various height batteries
Accepts full-size long battery loads
Integrated compartment accepts smaller sized 1/16 scale batteries (with optional strap)
Secondary battery install over front axle for forward weight bias
Two speed high/low variety transmission with remote shifting
Dual horizontal shafts
Twin friction plate slipper clutch
Quickly eliminated for servicing
Steering
Chassis mounted 2075X metal equipment digital servo
Superior 45° guiding angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer
Suspension
Front - 3 link with panhard
Rear - Triangulated 4 link
Pre-assembled heavy-duty rod ends with steel hollow balls
5mm size steel link rods with 4mm threaded ends
Pre-assembled aluminum GTS Shocks
Coilover GTS shocks special to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily change flight height
Silky smooth damping for the most difficult routes
O-ring cap seal and double X-ring shaft seals
Shock oil included in package
Wheels and Tires
1.9" Canyon Trail tires with trail-tuned foam inserts
Hard black scale wheels
Trail tuned S1 rubber substance
12mm steel hex
Tire glue needed
TQiT 2.4GHz 4-channel transmitter
Traxxas Link allowed
Telemetry ready #6533 5-channel micro receiver with failsafe
Immediately stores and loads settings for as much as 30 Traxxas Link allowed designs
Unique Cruise Control function for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
High 13ms frame rate and near-zero latency for responsive control
Patented O-Ring sealed leak-proof receiver box keeps the micro receiver dry
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide covering

Specs:
Length: 20.57 inches (523mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.42lb (2.91kg)
Height: 10.47 inches (266mm)
Wheelbase: 12.28 inches (312mm)
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Method Angle: 63.82°
Departure Angle: 43.22°
Breakover Angle: 58.93°
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Wheel Hex: 12mm
Speed Control: XL-5T HV
Motor (electric): Titan® 21T Reverse Rotation
Differential Type: 4 Equipment, Remote Locking
Transmission: 2-speed Hi-Lo, Remote Shifting
Equipment Pitch: 32

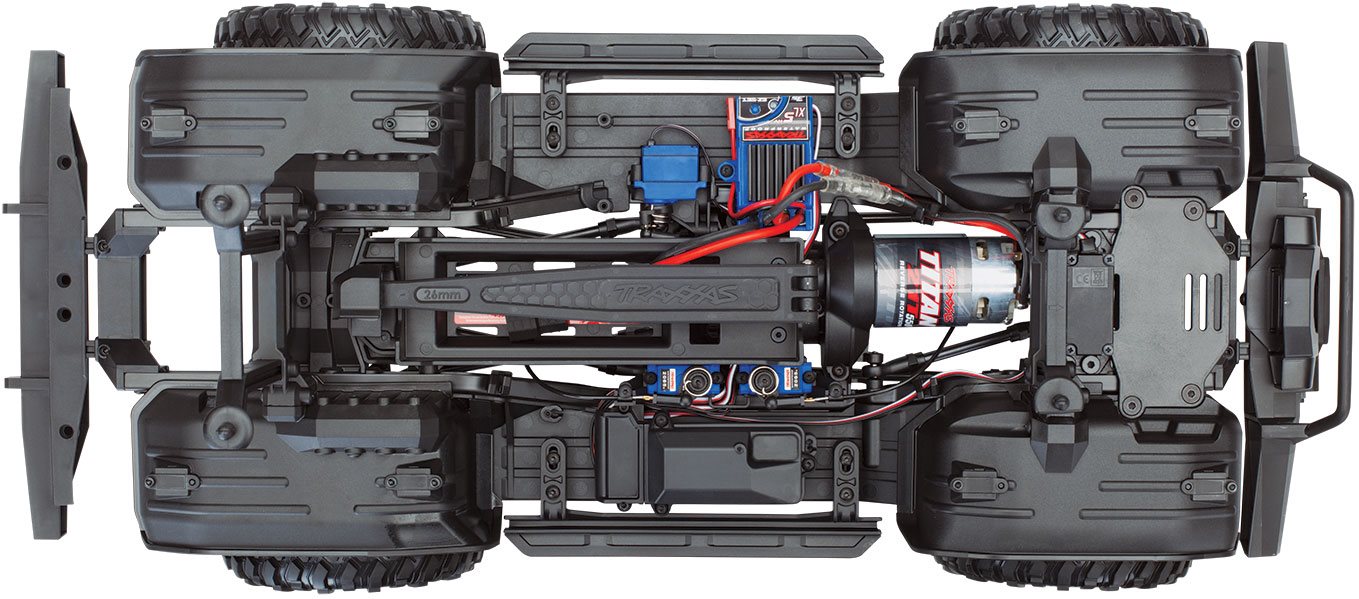

Chassis
Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic "Hill Hold"
Drive System: Shaft-Driven 4WD
Steering: Chassis Mounted 2075X Metal Equipment Servo
Radio System: TQiT 2.4 GHz 4-Channel Transmitter with #6533 Receiver
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H
