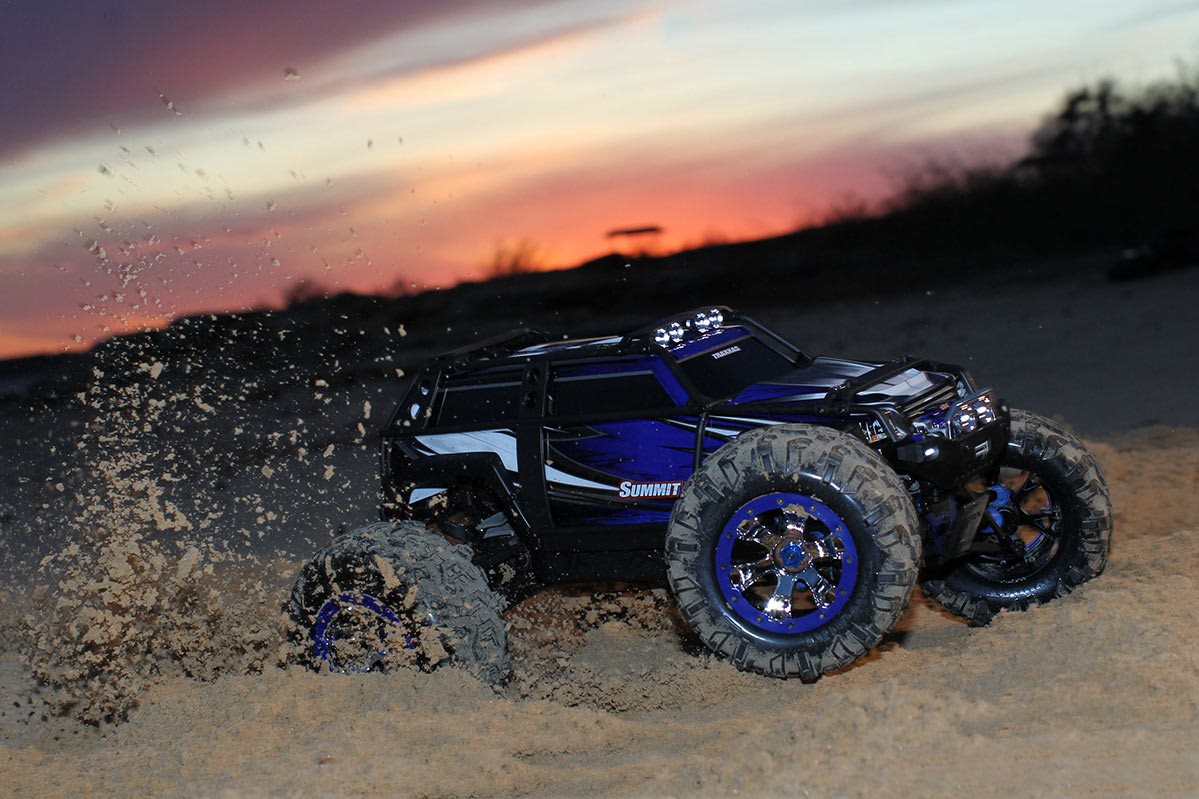

Traxxas 1/10 Summit 4WD RTR TQi 2.4 w/EVX-2 ESC

This is the 2.4GHz radio managed, electric powered, all set to run, 1/10 scale
Traxxas Top Extreme Terrain Monster Truck w/ LED Light set.

**This variation requires Batteries and Charger.**

**Body color and graphics might vary from picture.**

FUNCTIONS:
Chassis: Fiber-composite with composite center skidplate sheild and
    scalable battery compartments that accept 6 and 7 cell sport packs
    and LiPo packs, quick release battery doors and cooling vents
Lighting System: Ten LEDs, four white LEDs in front and 6 red LEDs
    in rear integrated into bumpers with chassis installed circuitry harness
Own: Four wheel shaft drive
Motor: Traxxas Titan 775 10 turn with fan-cooled armature
Radio: Traxxas TQi DSSS 2.4GHz high output with Traxxas Link Wireless
    Module that permits wireless connection to the Traxxas Link
    Application with the Traxxas Link Module (not consisted of, order
    TRAC6511) for instant Bluetooth connectivity to an user-friendly
    hd visual user interface featuring Real-Time
    Telemetry, Customizable Dashboards, Steering/Throttle Exposition,
    Steering/Braking Double Rate, Servo Reversing, Endpoint Change,
    Profile Modification and Sharing (sensing units not consisted of and must be
    bought individually)
    5ch receiver with 3 telemetry ports that allow real-time information to be
    transmitted from design to TQi transmitter
Guiding Servos: Two waterproof digital servos for a total of
    250 oz/in torque and .16 2nd transit time
Radio Box: Waterproof
Electronic Speed Control: Traxxas EVX-2 (TRAM0019) 16.8V forward and
    reverse with patent pending training mode, geared up with Traxxas
    high existing adapters
Shocks: GTR oil filled with hard anodized bodies with titanium
    nitride shafts
Transmission: Brushless all set 2 speed with metal center idler gear
    readily available, remote shifting high-low style with ultra low high-
    torque 75:1 first gear and faster 25:1 2nd gear
Differentials: Front and rear T-Lock remote locking differentials
    can be managed from transmitter
Ball Bearings: Complete set
Wheels: 3.8" (97mm) large, Geode with 17mm hex and removable beadlock
    style sidewall protectors to defend against rock damage and lend
    support to the tire/wheel glue joint
Tires: 7.1" (179mm) diameter Canyon AT tires with angular lugs
    for high traction, 3.8" (96.5mm) large
Hubs: 17mm splined aluminum
Suspension: Sealed pivot ball, ultra long travel
Steering: Double servo bellcrank type
Body: Painted and trimmed lexan with practical tube style ExoCage
    body system
Caster: Adjustable, caster/toe-in refers to the angle of the front
    suspension when seen from the side of the cars and truck in relation to the
    chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
    tires from vertical when when seen from front or behind vehicle

INCLUDES:
Traxxas Top Extreme Terrain Monster Truck, 775 size motor, 2.4GHz
    radio with 2 digital waterproof servos, 5-ch Traxxas Link
    receiver, ESC, painted body, decals and instruction manual

REQUIRES:
Two 7-cell NiMH batteries 3000mAh with Traxxas High-Current
    adapters, or High Current adapter adapters if not using Traxxas
    batteries
Battery Charger: To match picked batteries
Transmitter Batteries: Four AA
Upkeep and track equipment

SPECS:
Lorry-
Length: 22.2" (564mm)
Width: 18.5 (470mm)
Height: 12.6" (320mm)
Wheelbase: 14.8" (377mm)
Weight: 10.9pounds (4.96kg)
Ground Clearance: 4.2" (107mm)
Front Track: 18.5" (470mm)
Rear Track: 18.6" (472mm) external edges of tires side to side
Front Tread: 14.5" (368mm)
Rear Tread: 14.6" (370mm) center of tires side to side
    Body-
Length: 20" (508mm)
Width: 8.1" (205mm)
Height: 6.1" (155mm)

REMARKS:
The 2.4GHz Top RTR is readily available in the following body colors;
    Blue, TRAD05BB
    Green, TRAD05GG
    Black, TRAD05LL
    Red, TRAD05RR

All original bearings utilized in the Top are rubber protected.
    The following list includes the rubber protected bearings and the
    non-shielded DuraTrax brand as a cost-effective alternative.
Duratrax Traxxas
Qty. Size Area Qty Bearing Set Qty Bearing Set
2 6x13mm F.Axle Carrier 1 DTXC1573 1 TRAC5180
2 6x13mm R.Axle Carrier 1 DTXC1573 1 TRAC5180
1 5x8mm Steering 1 DTXC1523 1 TRAC5114
1 5x11mm Steering 1 DTXC1547 1 TRAC5116
4 5x11mm Front Rocker Arms 2 DTXC1547 2 TRAC5116
2 6x13mm Diff Ring 1 DTXC1573 1 TRAC5180
1 8x16mm Diff Gear 1 DTXC1585 1 TRAC5118
1 6x12mm Diff Output 1 DTXC1569 1 TRAC5117
1 5x8mm Carrier Diff 1 DTXC1523 1 TRAC5114
2 5x8mm Locking Diff 1 DTXC1523 1 TRAC5114
12 6x12mm Transmission 1 DTXC1569 1 TRAC5117
4 5x11mm Back Rocker Arms 2 DTXC1547 2 TRAC5116
