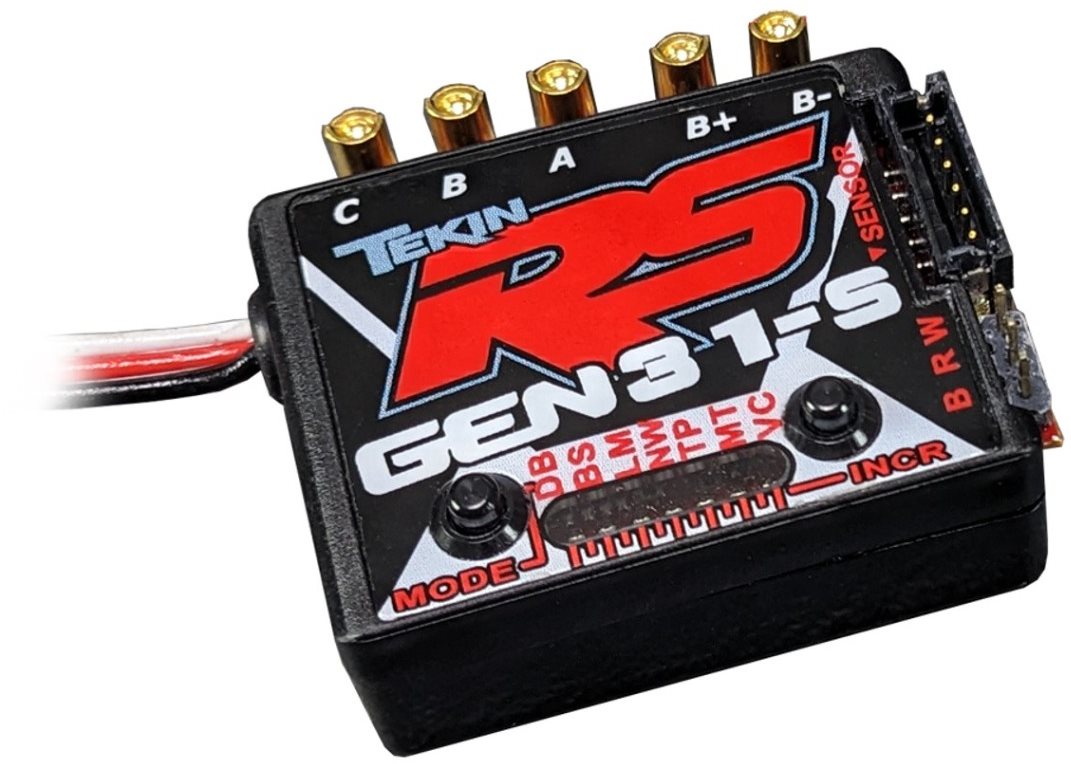

Tekin RS GEN3 1S Brushed/ Brushless Electronic Speed Con
The RS GEN3 1S brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. The built-in Booster increases 1S LiPo voltage to appropriate BEC voltage, meaning you need no extra hardware to run 1S LiPo classes. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 1S gives you the tools to win!
Standard features include an updated HD solder post design for easy soldering, a High Voltage Adjustable BEC and HotWire compatibility for extensive tuning. Next generation components put more power at your disposal and new firmware make the RS GEN3 our smoothest, best-driving RS ever.
Specifications:
- Controls: Forward/Brake/Reverse
- Input Voltage: 1S LiPo / 4cell NiMH-NiCD
- Motor Limit Brushless Mode 1S: 10.5 Turn 2-pole 36mm Can
- Motor Limit Brushed 1S: 12 Turn 36mm Can
- Max Current: 140amps per phase*
- BEC: 6.0v / 7.4v @ 5.5amps
- Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
- Weight: .83oz / 23.5g
*per manufacturer specs
Features:
- Integrated BEC Booster Circuit
- QuickTune One Touch Programming
- HD Gold Plated Solder Post Design
- Adjustable Timing Settings *
- Adjustable Torque Control *
- Custom Power Profiles *
- 3rd Channel Input for On-The-Fly Drag Brake Adjustments
- Adjustable Throttle and Brake Frequencies *
- High Voltage Programmable BEC *
- HotWire Programming Port *
- Data Logging Capability *
- On-Board LED Sensor Checker
- On-Board LED Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs *
- Sensor Plug for Precise Commutation
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control
*requires HotWire sold separately
