Tekin T-250 Standard 1/8 Speed Servo, With Crowbar 20Mm Aluminum Arm

**Additional Technical Info Will Be Included When It Becomes Available.**

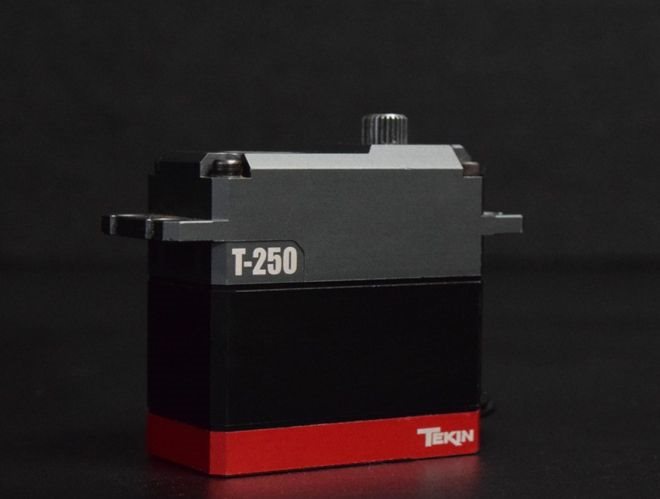

This is the Tekin T-250 High-Speed Servo.

FEATURES:
Developed for 1/10 and 1/8 scale applications
Element-proof and reputable no matter the surface, servo is created
    to handle water, mud and snow with resonable constraints,
    immersing in any liquid is not advised
Precision cut full metal gears
High-torque coreless motor
Digital magnetic position encoder
All aluminum real estate
Overload and thermal defense
ABEC5 rated ball bearings
HDAC, high Density Copper PCB's
Fully programmable when linked to the Tekin Hotwire PC User Interface
    (not consisted of), programmable features include;
    Feel, Mild to Aggressive
    Speed Limit
    Torque (0-100%)
    Torgue Limit
    Direction Normal/Reverse
    Band Select Normal/Narrow
    Center Point
    Travel
    Soft Starting Speed and Torque
    Max Temperature Alarm
    Low Voltage Alarm
    Over Voltage Alarm
    Bind Relief
    Fail Safe Speed and Position
    Set Custom Servo Name

CONSISTS OF:
Tekin T-250 Servo

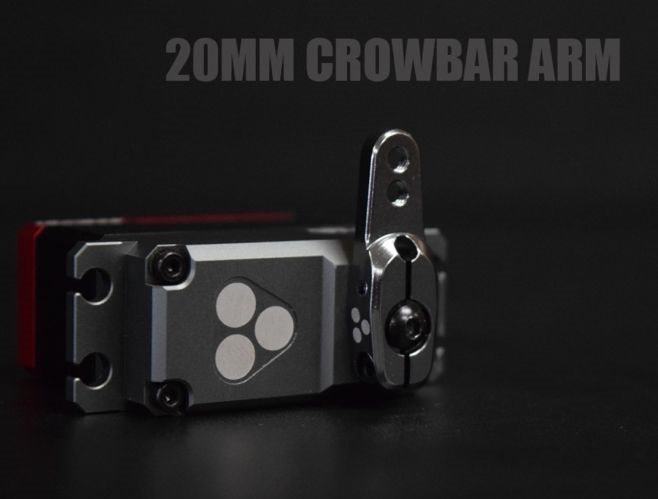

Single-sided 0.79" (20mm) Crowbar Aluminum Arm

SPECS:
Torque: 8.4 7.4 6.0V
310 282 245 oz/in
22.3 20.3 17.6 kg/cm
Dynamic Torque: 449 415 325 oz/in
32.4 29.9 23.4 kg/cm
Speed: 0.07 0.08 0.09sec/60
Input Voltage: 4.8V-8.4V
Measurements: 1.57 x 0.79 x 1.57" (40 x 20 x 40mm)
Mounting Height (Base to Mount Tabs): 1.10" (28.4mm)
Weight: 2.53oz (72g)
Output Spline: 25 tooth
