SSX-125 - Carbon Chassis
Building on Team Corally's decades of success in 1:12 scale pancar racing, the SSX125 embodies the brand's commitment to precision engineering and innovative design. Developed by racers for racers, it's engineered to deliver razor sharp handling and insane corner speed - right out of the box. Join the Team Corally family and discover why racers worldwide trust our relentless pursuit of performance. With the SSX125, you're not just getting a racing machine, you are investing in an evolution of design, heritage, and engineering prowess. Take your place on the podium and let the SSX125 unleash your full potential on the track!

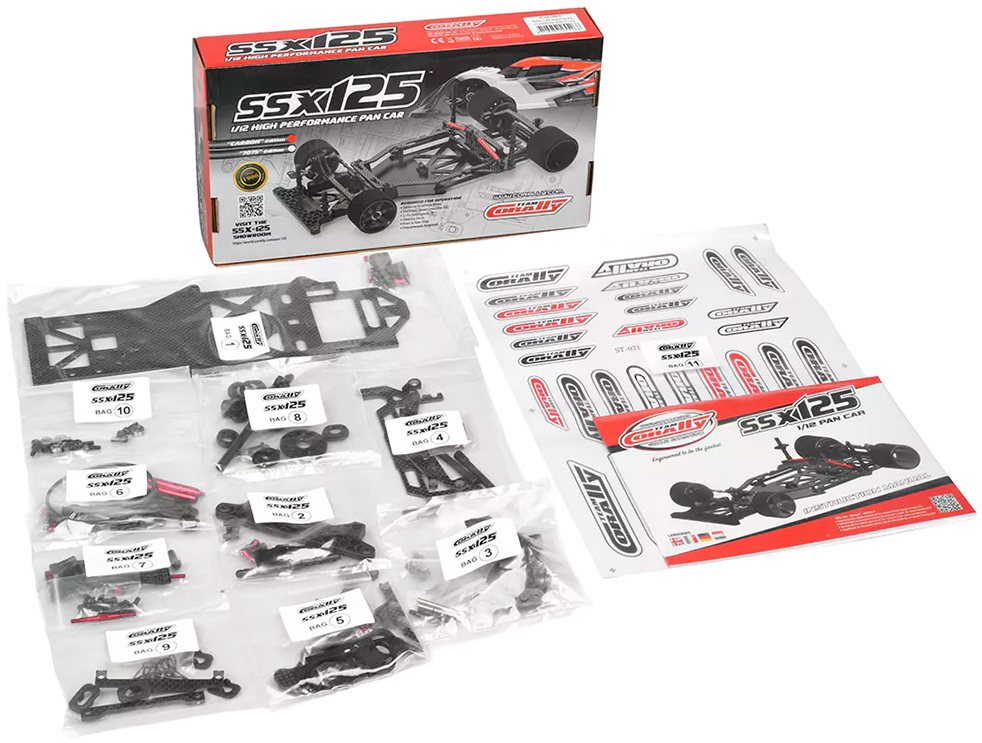

Required to Complete:
- Assembly
- Motor
- ESC
- Servo
- Radio system
- Battery and compatible charger : 1S LiPo setup recommended
- Wheels and Tires
- Body and related materials
Features:
- Ultra Low Center of Gravity: By eliminating traditional design elements like a center shock on top of the battery, the SSX125 significantly lowers its center of gravity. The new rear damper system repositions mass toward the back, resulting in better cornering stability and improved handling under high loads.
- By eliminating traditional design elements like a center shock on top of the battery, the SSX125 significantly lowers its center of gravity. The new rear damper system repositions mass toward the back, resulting in better cornering stability and improved handling under high loads.

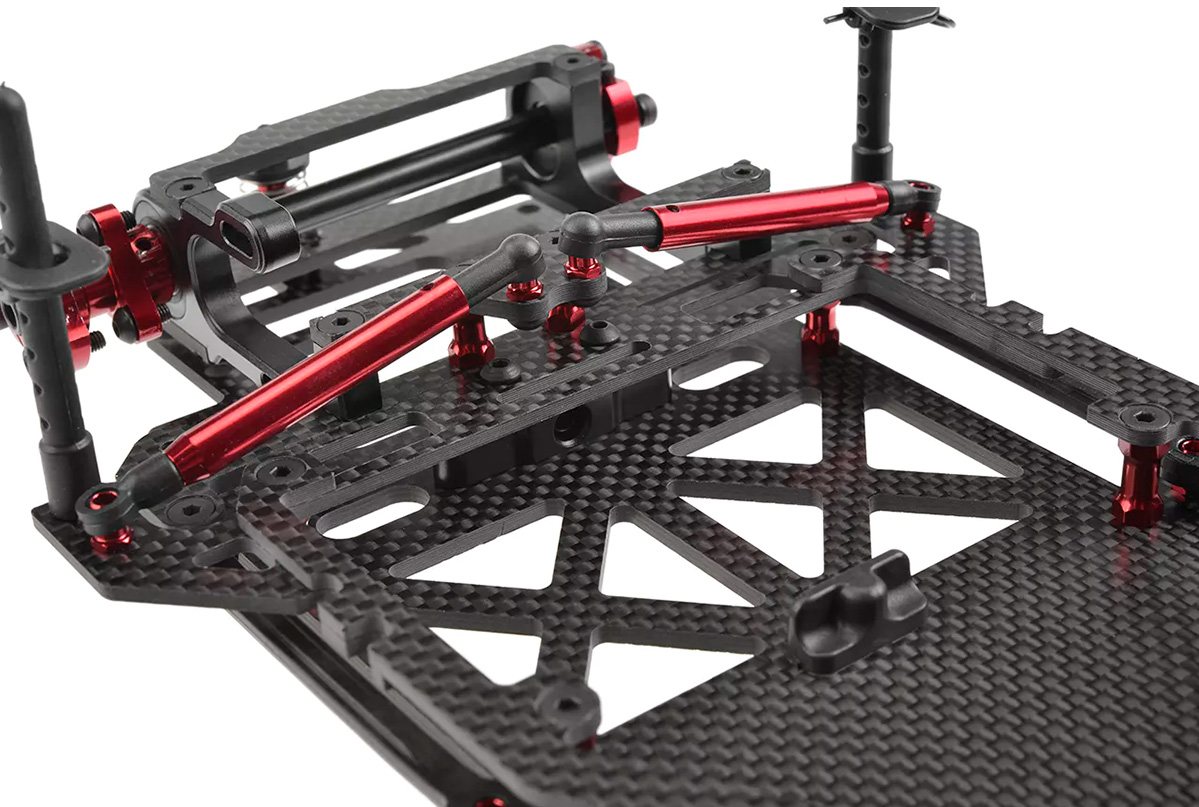

- Adjustable Chassis Flex: Carbon side braces mounted with aluminum posts let you tailor lateral chassis flex to track conditions. Loosen the top screws for more flex on bumpy or loose surfaces, or keep them tight on high-grip tracks for quicker corner exits.
- Rear Damper & Spring: Instead of a center shock, the SSX125 employs a rear pod damper with a friction-based system. A spring pre-load can be set via the top nut, while an O-ring on an aluminum tube handles damping. This modern approach lowers the CG and provides smoother, more stable handling. A convenient set screw behind the damper adjusts rear pod droop without affecting side-to-side movement.
- Side Tube & Spring: A reliable side tube and spring setup offers controlled lateral movement, with preload easily adjusted and different fluids and greases used for customizing the damping effect.
- Adjustable Ackermann: Fine-tune steering characteristics with a simple two-screw system. Increase or decrease the Ackermann effect to control how the front wheels turn relative to each other, optimizing sensitivity and corner speed for any track condition.
- Floating Servo Mount: The SSX125's fully adjustable floating servo mount minimizes interference with chassis flex and ensures the servo is centered. It also accommodates various mini-sized servos, which are standard for 1:12 scale racing.
- Included Kimbrough Servo Saver: Protect your servo from damage while maintaining precise steering input - a must-have when you're competing in tight, high-speed events.
- Solid Axle: Modern 1:12 tracks often have high traction, making a solid axle the best solution. It's lightweight, maintenance-free, and ensures straightforward power transfer.
- Eccentric Plastic Bushings: Adjust ride height quickly and precisely. The composite material also absorbs impacts, acting like a cushion to protect the axle and bearings during collisions.
- Link Suspension: Two composite side links, an aluminum central hinge, and carefully planned geometry provide smooth, precise movement in the rear. This classic setup is proven reliable for 1:12 scale racing.

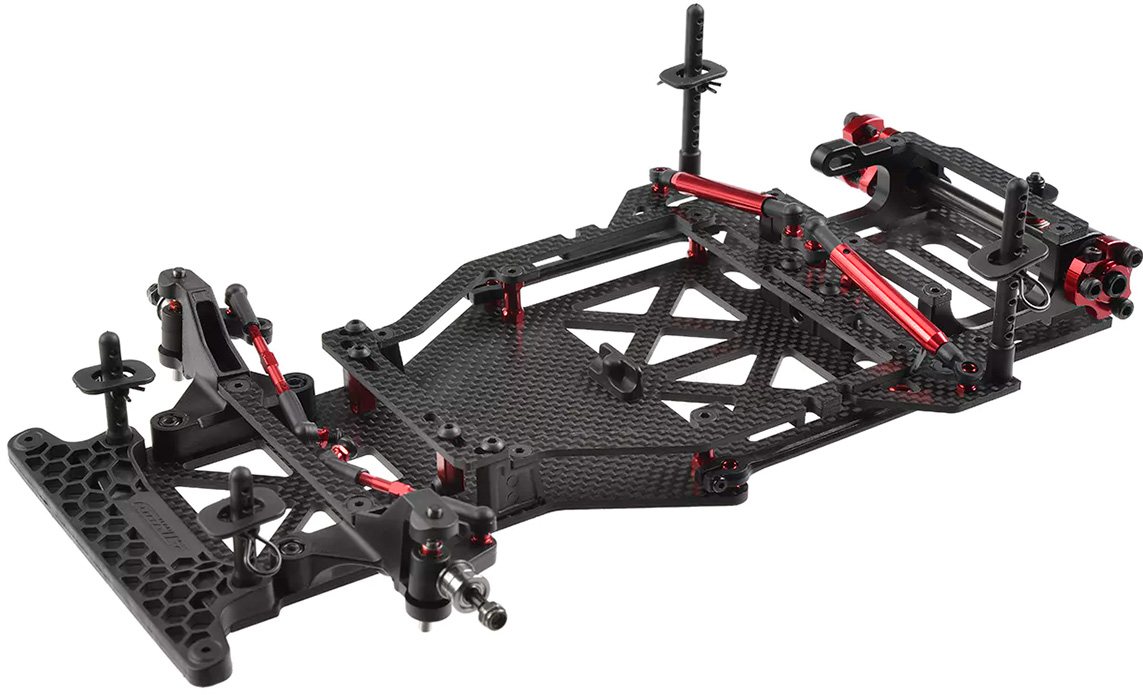

- Premium Chassis, Carbon: Precisely machined with strategically placed cutouts to optimize flex and rigidity. The carbon chassis provides a nimble, responsive driving experience.
- Hassle-Free Maintenance: Pre-cut holes in the chassis expose key screws for quick adjustments. This thoughtful design minimizes disassembly, saving you time on race day.
Specifications:
- Scale: 1/12th
- Recommended Power plant: Brushless with 1S lipo
- Battery Tray Size: 93 x 47 mm
- Recommended Servo: Mini Size
- Spur Gear: 64DP 90T
Item Created: 01/26/2025
