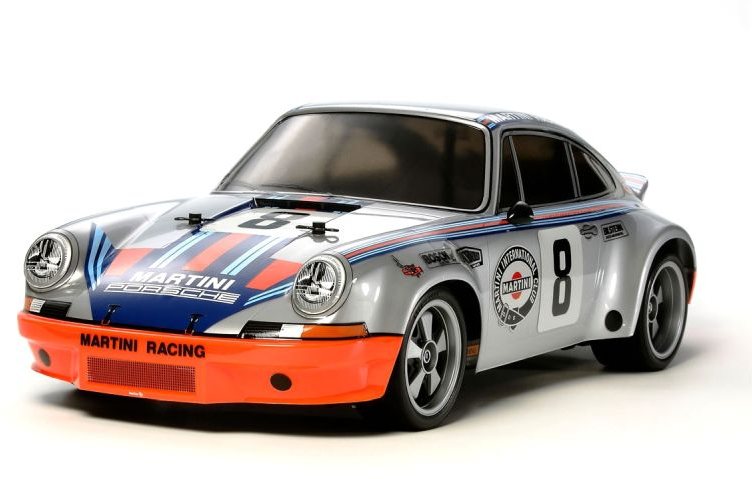

Tamiya Rc Porsche 911 Carrera Rsr, Tt02

This is the Radio Controlled, Electric Powered, 1/10 scale,
TT-02 Porsche 911 Automobilerera RSR On-Road Car Package from Tamiya.

FEATURES:
Chassis: TT-02 ABS resin bathtub type, with skid shaped underside to
    minimize contact with track surface during cornering
Own: Four wheel drive, dogbone

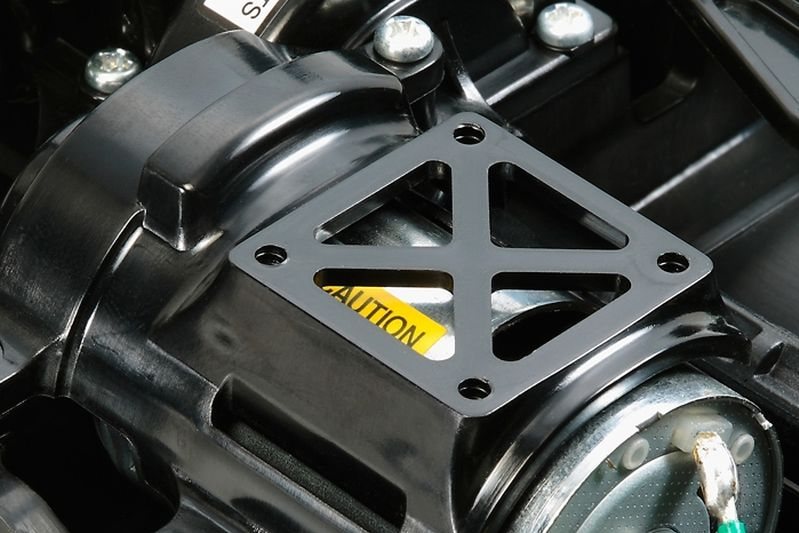

Motor: Torque-Tuned 540 size brushed (380 size motors can be used)
ESC: TEU-105BK with reverse

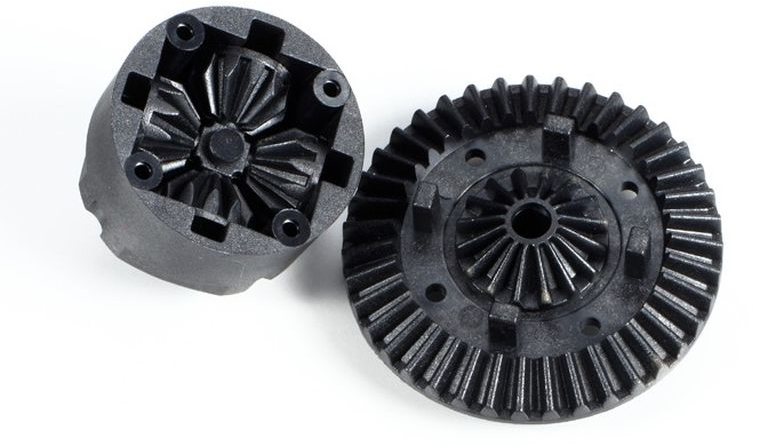

Differential: Gear type
Spur Gear: 70 tooth plastic
Pinion Gear: 22 tooth metal
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil filled)
Tires: Slick rubber 2.5" (64mm) diameter, front width 1.02" (26mm),
    rear width 1.2" (31mm), with foam inserts

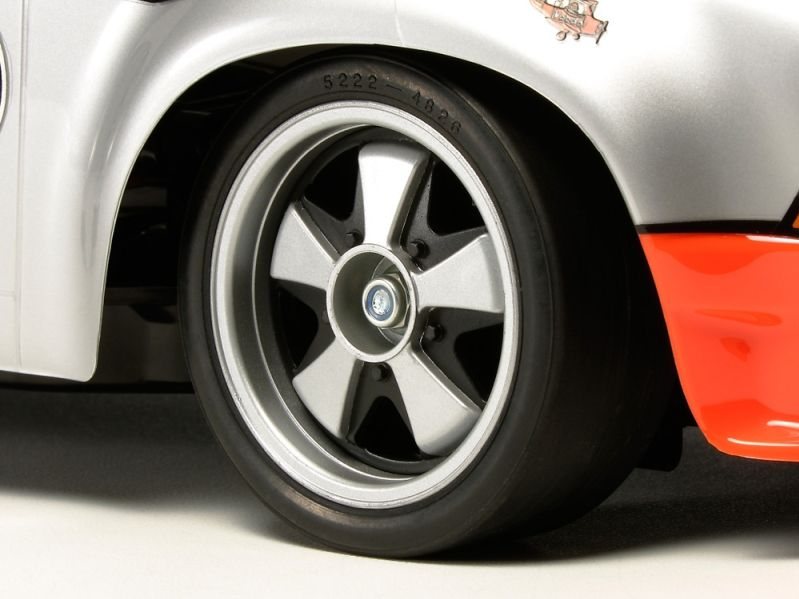

Wheels: Gray plastic 2" (50.8mm) diameter, front width 1" (26mm),
    rear width 1.2" (32mm)

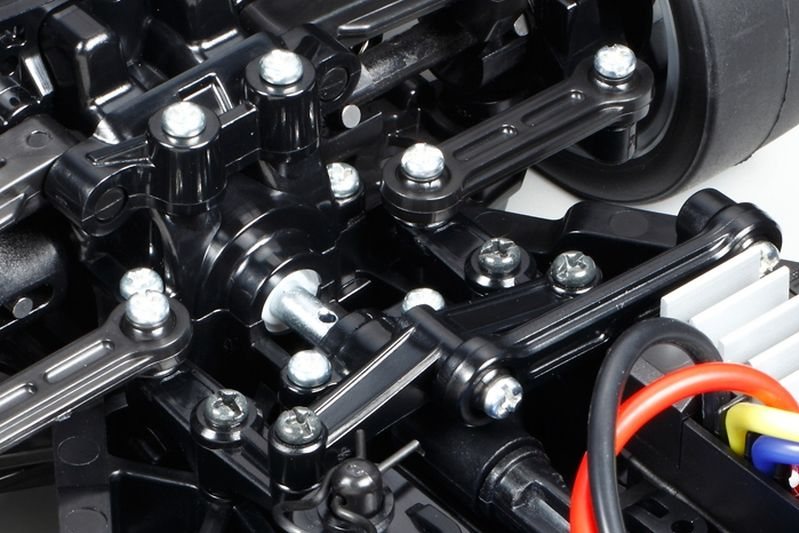

Steering: Bellcrank type
Body: Polycarbonate
Bumper: Front foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
    tires from vertical when viewed from front or behind car
Caster: Adjustable front only, caster/toe-in refers to the angle of
    the front suspension when viewed from the side of the car in
    relation to the chassis

CONSISTS OF:
TT-02 Porsche 911 Carrera RSR with Brushed Motor, ESC, Body, Tires
    Wheels, Foam Inserts, Decals, and Instruction Manual

NEEDS:
Radio: 2-ch with guiding servo

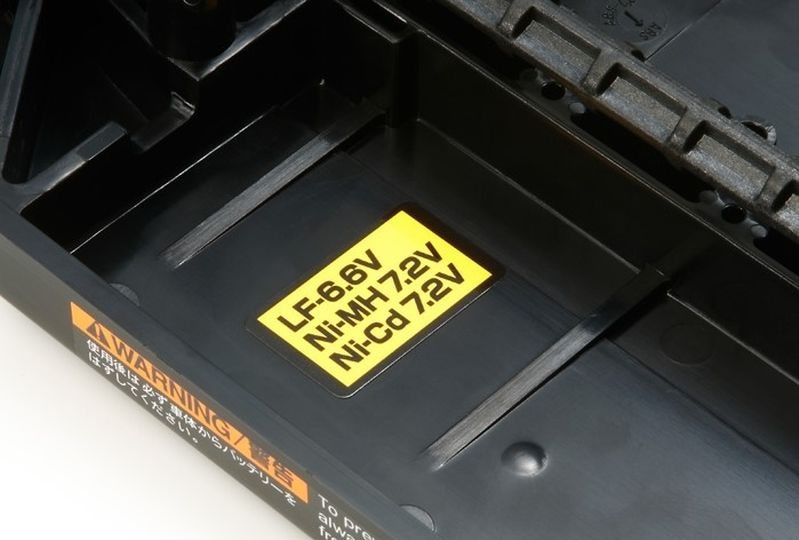

Battery: 7.2V stick pack with standard port
Battery Charger: For selected batery pack
Polycarbonate safe spray or brush-on paint
Track and maintenance devices

SPECIFICATIONS:
Automobile-
Specs such as length, width, height and weight not offered by
    manufacturer
Wheelbase: 9.9" (251mm) - 10.1" (257mm)
    Body-
Length: 18" (457mm)
Width: 8.2" (209mm) at rear wheels, widest point
Height: 4.1" (105mm)

REMARKS:
To upgrade to ball bearings order;
    Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Differential 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
