Tamiya Rc Honda Civic Sir (Eg6), Tt02d Drift Spec

**Extra Technical Details Will Be Included When It Becomes Available.**

This is the 1/10 scale, electric powered, radio controlled,

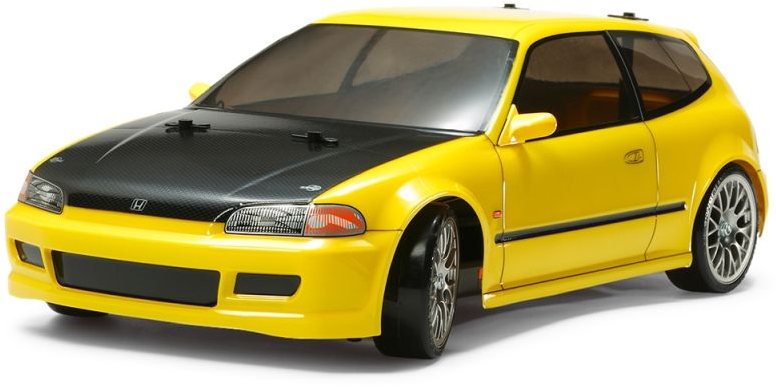

Tamiya TT02D Drift Spec Kit with the Honda Civic SiR (EG6) Body.

FEATURES:
Chassis: Plastic, bath tub type with skid shaped underside to
    lessen contact with the road surface area
Drive: 4 wheel, shaft driven

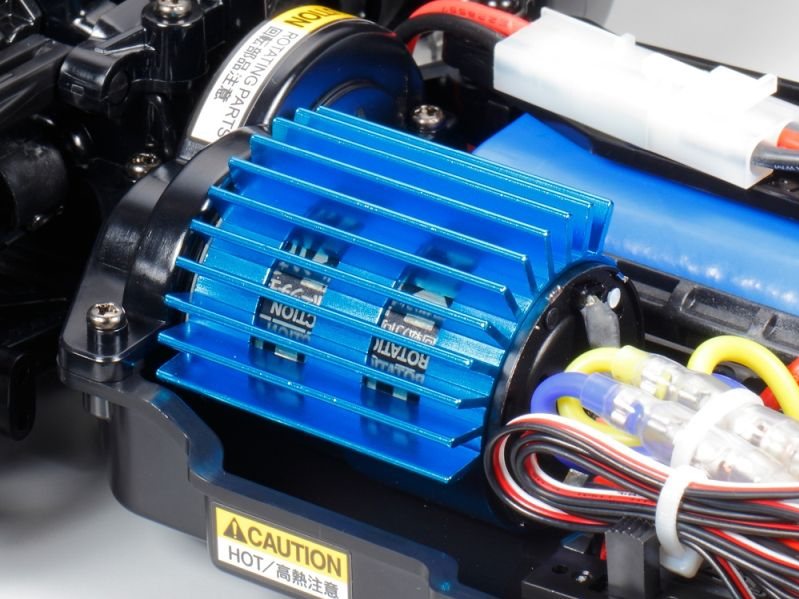

Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE-02S

Differential: Equipment type
Tires: Slick rubber building and construction, Super Driftech 0.94" (24mm) wide
Wheels: mesh type, 1.9" size (48.2mm), 0.94"
    (24mm) wide, 12mm hex, +2° balanced out
Ball Bearings: Shielded

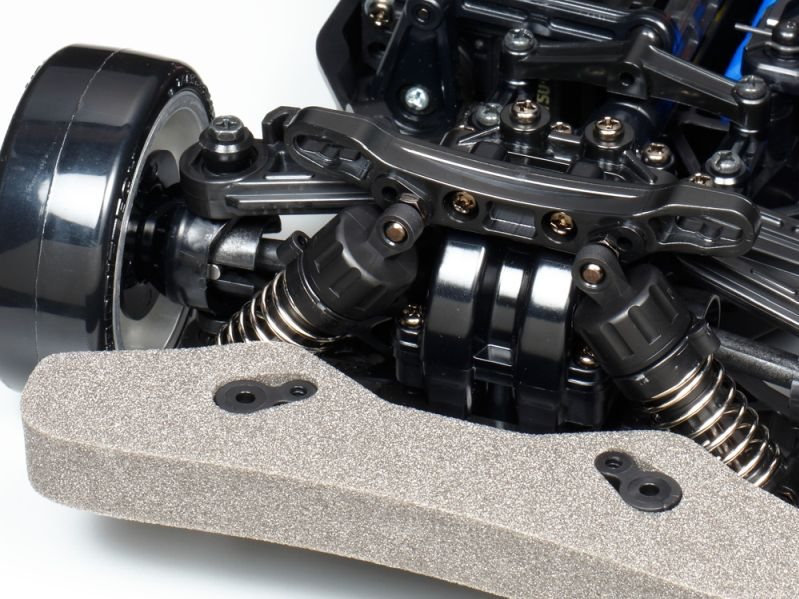

Suspension: Fully independent double wishbone
Shocks: CVA Super Mini oil-filled plastic body
Camber: Non-adjustable, camber refers to the angle of the tops of the
    tires from vertical when viewed from front or behind automobile
Caster: Adjustable, caster/toe-in refers to the angle of the front
    suspension when viewed from the side of the automobile in relation to the
    chassis
Steering: Bellcrank type
Body: Clear untrimmed polycarbonate with decals and window masks,
    separately molded mirrors
Bumper: Front, foam

INCLUDES:
Tamiya TT02D Drift Spec Chassis, with 540 Brushed Motor, Drift Tires,
    Clear Body, 70 tooth Spur Equipment, 22 tooth Pinion, ESC, Decals,
    Window Masks, Instructions and Wheels

NEEDS:
Radio: 2-channel with high speed guiding servo
Battery: 7.2V NiMH
Battery Battery charger: To match selected battery
Structure and track devices
SPECIFICATIONS:
Car
Length: 16.3" (414mm)
Width: 7.3" (185mm)
    Body
Length:
Width:
Height:

REMARKS:
For replacement, Ball Bearings use:
    Qty. Size Place Qty. Bearing Set
2 5x11mm Spur Equipment 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Rear Diff Assembly 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
