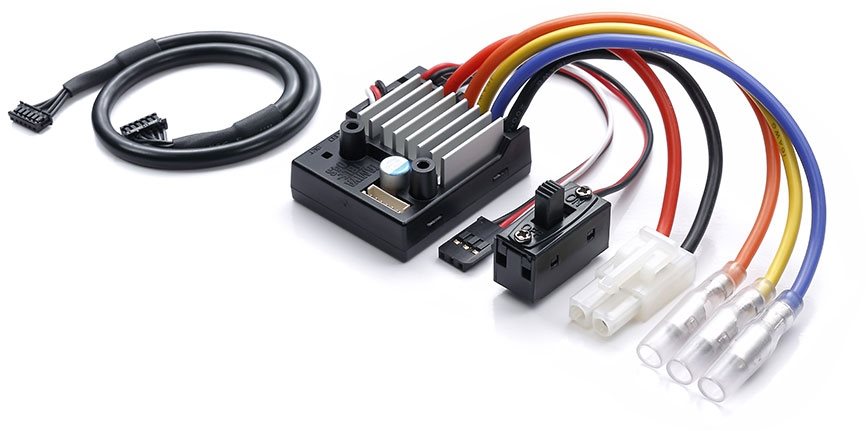

Tamiya Rc Brushless Esc 04S

This ESC is developed for use with Tamiya Brushless Motors (Sensored) 15.5T and over, (Aftermarket brand names 21.5 and over), and also brushed motors 25T and over. High point, neutral brake and brake settings are separately adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is shown by an LED, and the ESC also includes two defense functions. Optimum continuous current: 75A Input voltage: 6.6V - 7.2V Measurements: 41.5mm x 33.4mm x 18mm Weight: 45g (including cable televisions)

Sensored brushless ESC discovers motor rotor positions with accuracy, allowing more effective power supply and smoother motor response.

Compatible with Tamiya brushless motors (sensored) of 21.5+ turns, and Tamiya brushed motors 25 turns and over.

Choose from 10 different settings for both neutral brake and brake, to get your setup simply how you desire it.

Features overheating and overload defense operates to help guarantee that your devices avoids damage.

Weight: 47g (including cable televisions)

Suitable with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.

Dimensions: 41.5 x 33.4 x 18mm

LO/HI Battery Cut-off Info:

LOW & HIGH Battery Low Voltage Protection Feature: LOW battery setting cuts off @ 5.6 volts approximately. (Best for Ni-CD, NI-MH and Li-FE battery chemistry) HIGH battery setting cuts off @ 6.2 volts approximately. (Best for other battery chemistries)

Product Created: 04/01/2021
