Features

Light-weight and resilient polycarbonate, pre-painted and cut, with body install holes already pre-drilled.

Body stickers are based upon those in the original release, and simply need application to finish the body.

Bathtub chassis.

New Parts: Aluminum front uprights and efficient universal shafts are styles acquired from the 2011 re-issue of the Avante (Item 58489).

Planetary equipment differential systems from the original Avante.

Includes 540-Size brushed motor.





Overview
This R/C model assembly kit is an upgraded re-release variation of a 1988 buggy from the Tamiya back brochure, which acquired its make-up from the legendary race-oriented Avante. The forward cockpit body style - and the rear wing - are molded in lightweight polycarbonate and pre-painted black, pre-cut with body install holes pre-made to minimize some preparation work. An ABS plastic monocoque frame is used, with responsive shaft-driven 4WD plus a triple differential setup, four-wheel double wishbone suspension and plenty more - outstanding off-road driving awaits!

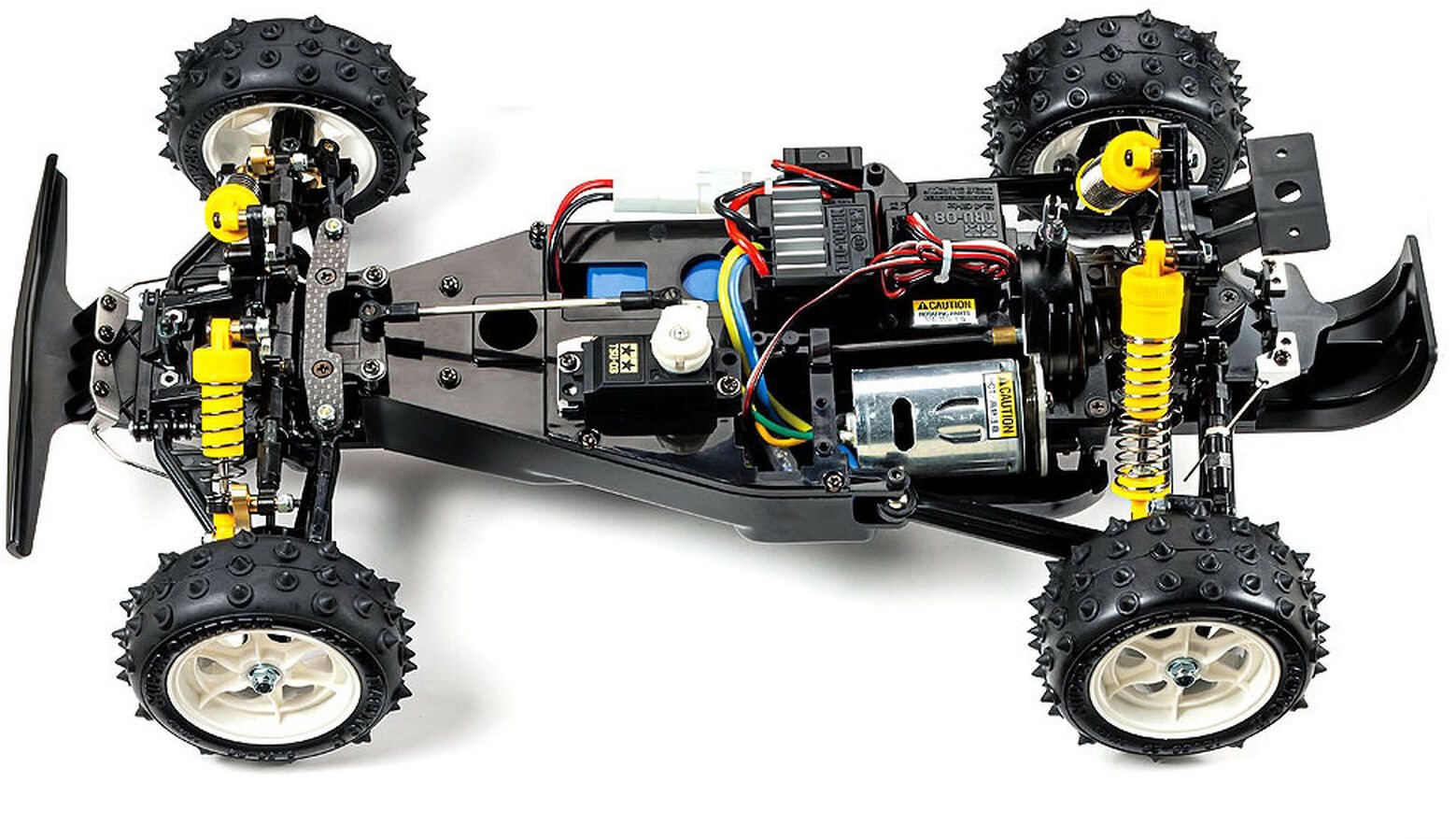

Capable Off-Road Chassis:
This model's resilient ABS plastic monocoque frame protects important R/C equipment and boosts suspension performance with its excellent rigidness. An overall of three differentials are used: little front and rear planetary equipment differentials, and a center differential with ball thrust bearing; front and rear transmissions likewise have upkeep hatches. Universal shafts front and rear make sure smooth, efficient drive and very little worry about parts coming loose due to bumps and shocks, while the Avante-based 4-wheel double wishbone suspension employs plastic lower arms with threaded shaft upper arms that enable quick adjustment of camber. Front uprights are aluminum, and stabilizers are consisted of for the front and rear.









Video Unboxing










Video Review












Front Suspension
The front double wishbone suspension employs aluminum uprights, while universal drive shafts are used front and rear.





Tie Rod Setup
Three-piece steering tie rod setup. The center plate is crafted in 2mm carbon fiber.








Shaft-driven 4WD
Reponsive shaft-driven 4WD is powered by a longitudinally-placed motor, with a ball differential in the drive equipment.





Transmission
Sealed transmissions front and rear house compact planetary equipment differentials which use the Avante style.

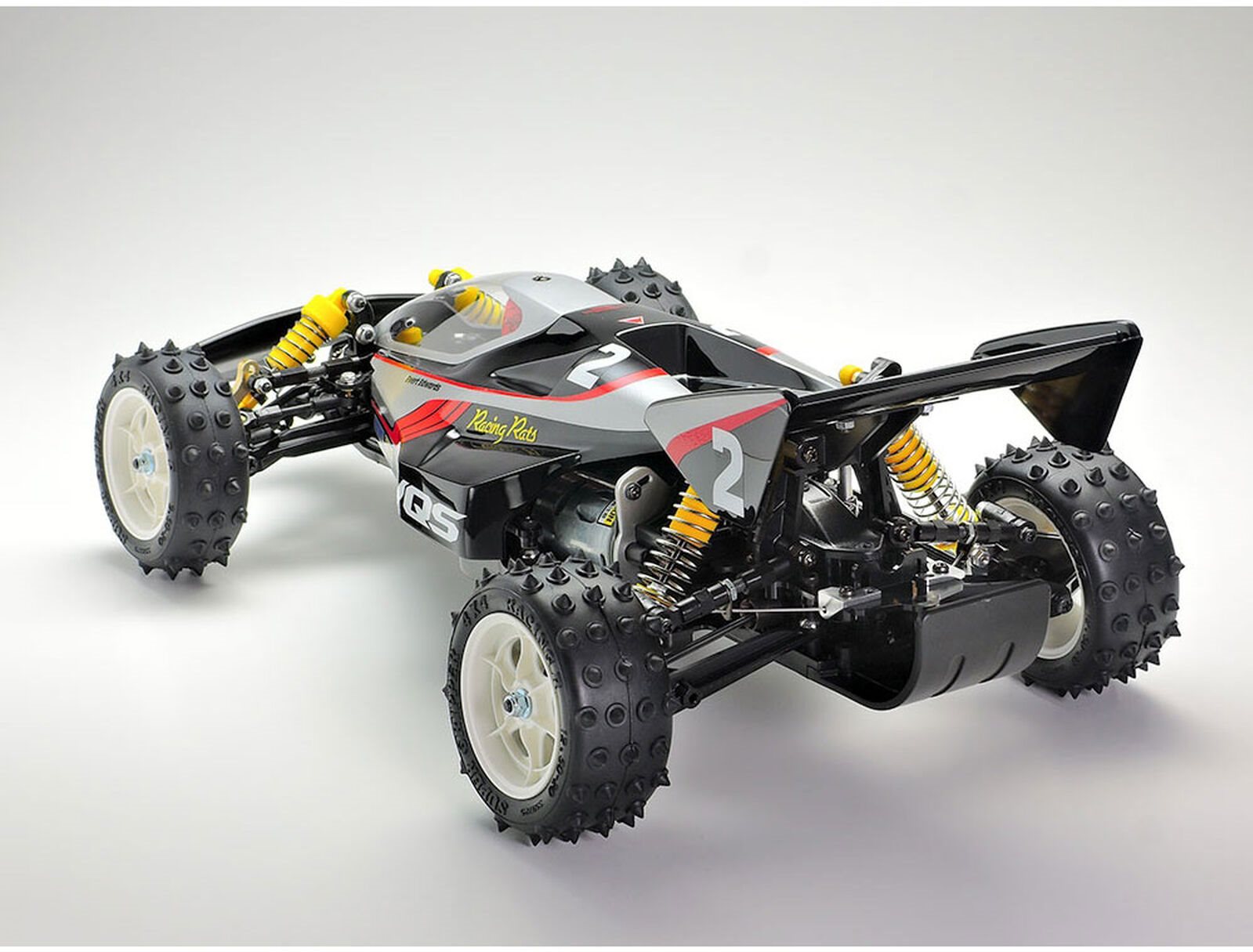

Rear Suspension
The rear suspension setup features long, ball-mounted lower arms. Threaded upper arms (front and rear) enable adjustment of camber.





Bathtub Frame
The monocoque tub frame is a lightweight, resilient style that protects and allows simple access to R/C equipment.









Battery Compartment
Battery modifications are made from the underside. The model works with Tamiya 7.2V Racing Load and LF2200-6.6V battery loads.





Tires and Wheels
Light-weight 6-spoke wheels are coupled with pin spike tires. Front wheels are narrow, and rear wheels are wide styles.





Specifications

Ball Bearings: Includes complete ball bearings

Battery: Sold Separately

Body: Polycarbonate

Battery Charger: Sold Separately

Chassis: ABS Plastic

Completion Level: Set

Drivetrain: 4WD

Motor Size: 540

Motor Type: Brushed

Power Type: Electric

Product Height: 5.9" (150 mm)

Product Length: 17.12" (435 mm)

Product Width: 9.25" (235 mm)

Radio: Sold Separately

Scale: 1/10

Speed Control: Included

Suspension: Totally Independent Double Wishbone

Automobile Type: Buggy

Wheelbase: 10.82" (275 mm)
