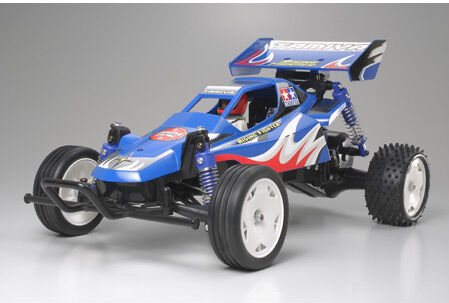

Tamiya 1/10 Rising Fighter Off-Rd Buggy Kit

This is the 1/10 scale radio managed, electrical powered
Tamiya Rising Fighter off-road Racing Buggy Kit.

FEATURES:
Chassis: Monocoque plastic tub style chassis
Drive: Rear wheel drive
Body: ABS resin body and wing molded in blue, motorist figure molded in
    white
Speed Control: Tamiya TEU-101BK forward and reverse Electronic Speed
    Control
Motor: 540 type
Plastic bushings
Shocks: Coil-over friction type with plastic bodies
Transmission: Sealed rear transmission
Differential: Bevel equipment
Transmission: Single speed
Tires: Front, ribbed 1" (26mm) wide,
Rear, spike 1.5" (38mm) wide, both 3.2" (81mm) diameter
Wheels: White one-piece Front, 0.94" (24mm) wide
Rear, 1.4" (35mm) wide, both 2.4" (60mm) diameter
Bumper: Big black plastic front bumper
Suspension: Independent front A-arm and rear rolling stiff axle
Camber Tie Rods: fixed non-adjustable
Steering Tie Rods: adjustable
Steering: 2 guiding rods attach to the servo saver and knuckle arm

INCLUDES:
Tamiya Rising Fighter rolling chassis w/friction shocks, 540 motor,
electronic speed control, molded body tires, wheels, 19 tooth 32
pitch pinion equipment, 50 tooth counter equipment, decal sheet and
building instructions.
REQUIRES:
Radio: 2-Channel with 1 basic servo for guiding
Radio Batteries: (8) AA size
Battery: 6-cell stick pack w/standard port (7-cell won't fit)
Charger: AC/DC Timed or Peak for 6-cell battery
Misc. Items: Building and track devices

SPECIFICATIONS:
CAR-
Length: 16.4" (418mm)
Width: 9.3" (236mm)
Height: 7.4" (187mm)
Weight: 2.2bs (1000g)
    BODY-
Length: 10.6" (270mm)
Width: 5.8" (148mm) ahead of rear wheels (largest point)
2.2" (55mm) ahead of front wheels (thinnest point)
Height: 3" (76mm)

REMARKS:
To upgrade to ball bearings use;
    Qty. Size Place Qty. Bearing Set
1 5x8mm Counter Gear 1 DTXC1523
2 5x11mm Counter Gear 1 DTXC1547
2 5x11mm Transmission 1 DTXC1547
4 5x11mm Front Centers 2 DTXC1547
4 5x11mm Rear Hubs 2 DTXC1547
To paint automobile to match photos on box the following colors are
    needed;
    TS44 Dazzling Blue, TAMR5044
    X-18 Semigloss Black, TAMR1518
    XF-15 Flat Flesh, TAMR1715
