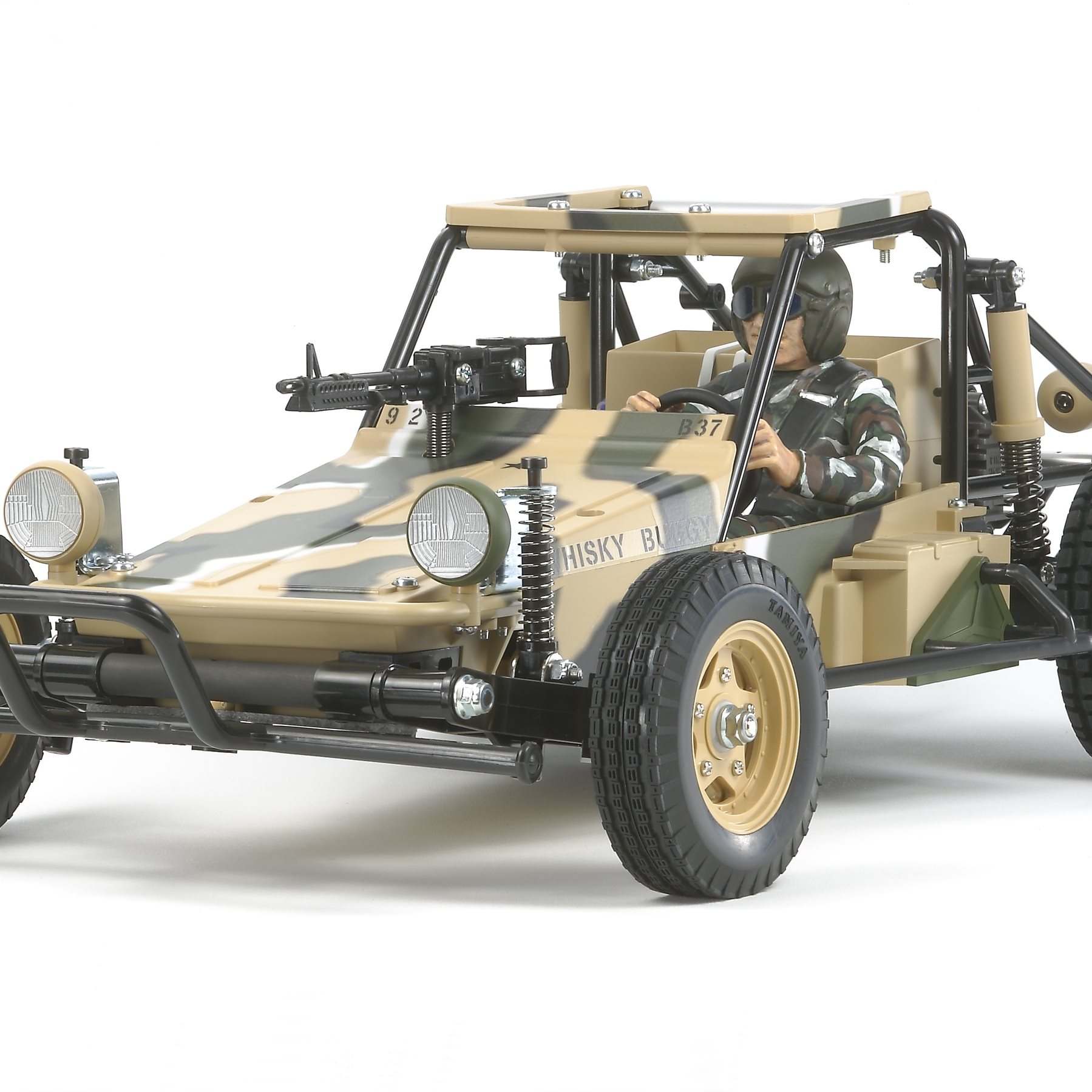

Tamiya 1/10 R/C Fast Attack Vehicle (2011)

This is the electric powered, radio managed 1/10 scale
Quick Attack Off Roadway Vehicle Set from Tamiya.

FEATURES:
Chassis: Tub design ABS resin plastic construction
Own: Rear wheel
Motor: Johnson/Mabuchi 540-J size, brushed
Pinion Gear: 15 tooth
Electronic Speed Control: Tamiya TEU-104BK with reverse
Body: Resin formed in tan
Gearbox: Enclosed
Differential: Bevel gear type
Suspension: Front and rear tracking arm with front coil springs and
    rear shocks
Wheels: Three piece front and rear
Tires: Treaded rubber, off-road
Caster: Non-adjustable, caster/toe-in refers to the angle of the
    front suspension when viewed from the side of the automobile in relation
    to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of
    the tires from vertical when viewed from front or behind car

INCLUDES:
Quick Attack Off Roadway Vehicle Set, 540 Motor, ESC, 15T Pinion Gear,
    Helmeted Driver Figure, Decal Sheet, Tires, Wheels and Instructions

REQUIRES:
Radio: Two-channel with standard servo for guiding
AA Batteries: 8 for transmitter
Battery: 7.2V 6-cell stick pack with standard adapter
Battery Charger: Peak type recommended
Paint, tools and track devices

SPECIFICATIONS:
Length: 16.9" (430mm)
Width: 8.7" (220mm)
Height: 5.9" (150mm)
Weight: 2.64pounds (1200g)

COMMENTS:
To update to ball bearings, usage;
    Qty. Size Location Qty. Bearing Set
1 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Gearbox 1 DTXC1523
1 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Back Axles 1 DTXC1547
4 5x11mm Front Centers 2 DTXC1547
2 5x11mm Back Hubs 1 DTXC1547
