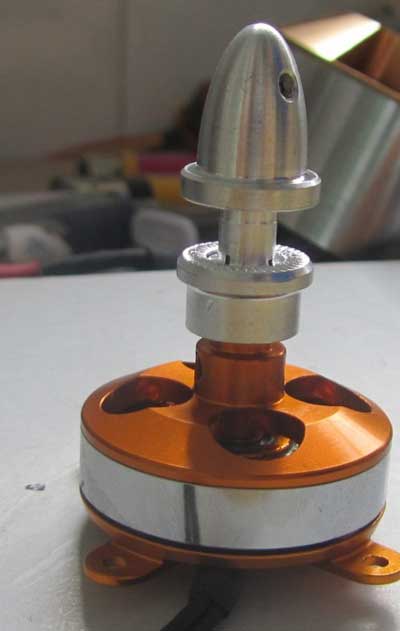

Suppo Model 1400Kv Brushless Outrunner, Long Shaft

PLEASE NOTE: Prop adapter not included.

Ideal for indoor 3D Flight, 220g and under, with 10A speed controller or small Multi-Rotor frames with Hobbywing 6A esc.

Ideal for indoor 3D Flight, 220g and under, with 10A speed controller or small Multi-Rotor frames with Hobbywing 6A esc.

An exceptional motor for airplanes as much as 220 grams (8 oz) using 2 li-poly cells. Really lightweight at 19 grams including important prop saver for APC 8x3.8 SloFly or APC 8x4 E propeller and important firewall install. Great for small 3D airplanes weighing around 6 oz, or aerobatic airplanes as much as 8 oz. Usage with a 10 Amp brushless ESC and small 7.4V lithium batteries in the 400mah - 800mah range.

The motor features a 3mm solidified steel shaft, double ball bearings, important prop saver for APC E props and important firewall install flange. Note that the prop saver is sized for APC props. GWS props will require some adjustment to fit correctly. Countersunk mounting holes have 31mm spacing on centers.

Specifications
LI-Poly Cell:2-3
Ni-MH Cells: 6-10
RPM/V: 1400Kv
Max. performance present: 2-6 Amp
NoLoad current / 0.3 Amp
Existing capacity: 7.5 A/60 s
Max. Efficiency: 74%
Weight with cables: 19g
Measurements (mm): 27.6x11.5

Recomended model weight: 3D 220 g and under
Recomended prop without gearbox: 2xLi 8X4 - 3xLi 7X3.5
