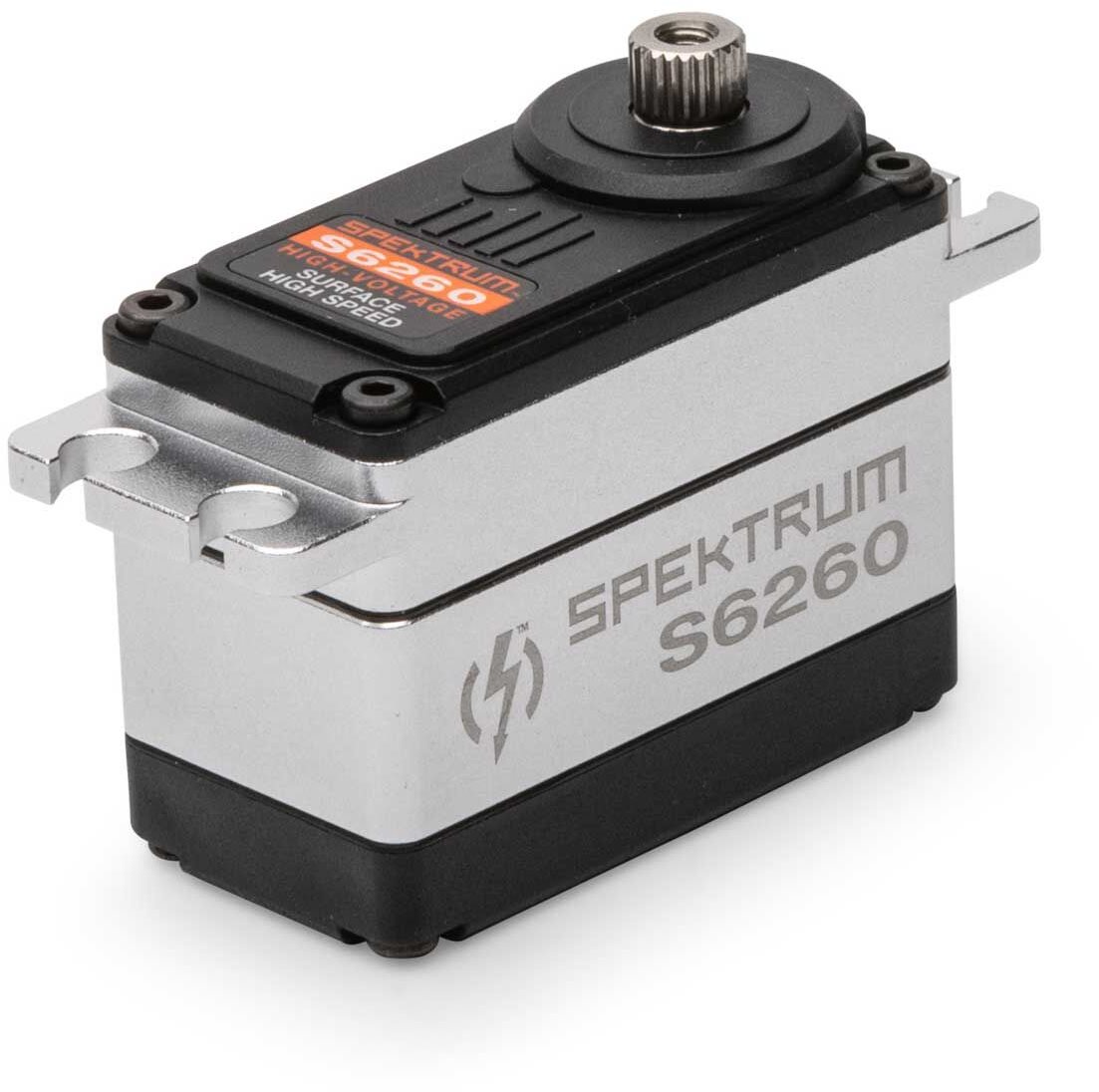

Spektrum S6260 High Speed, HV Dig Servo

Functions

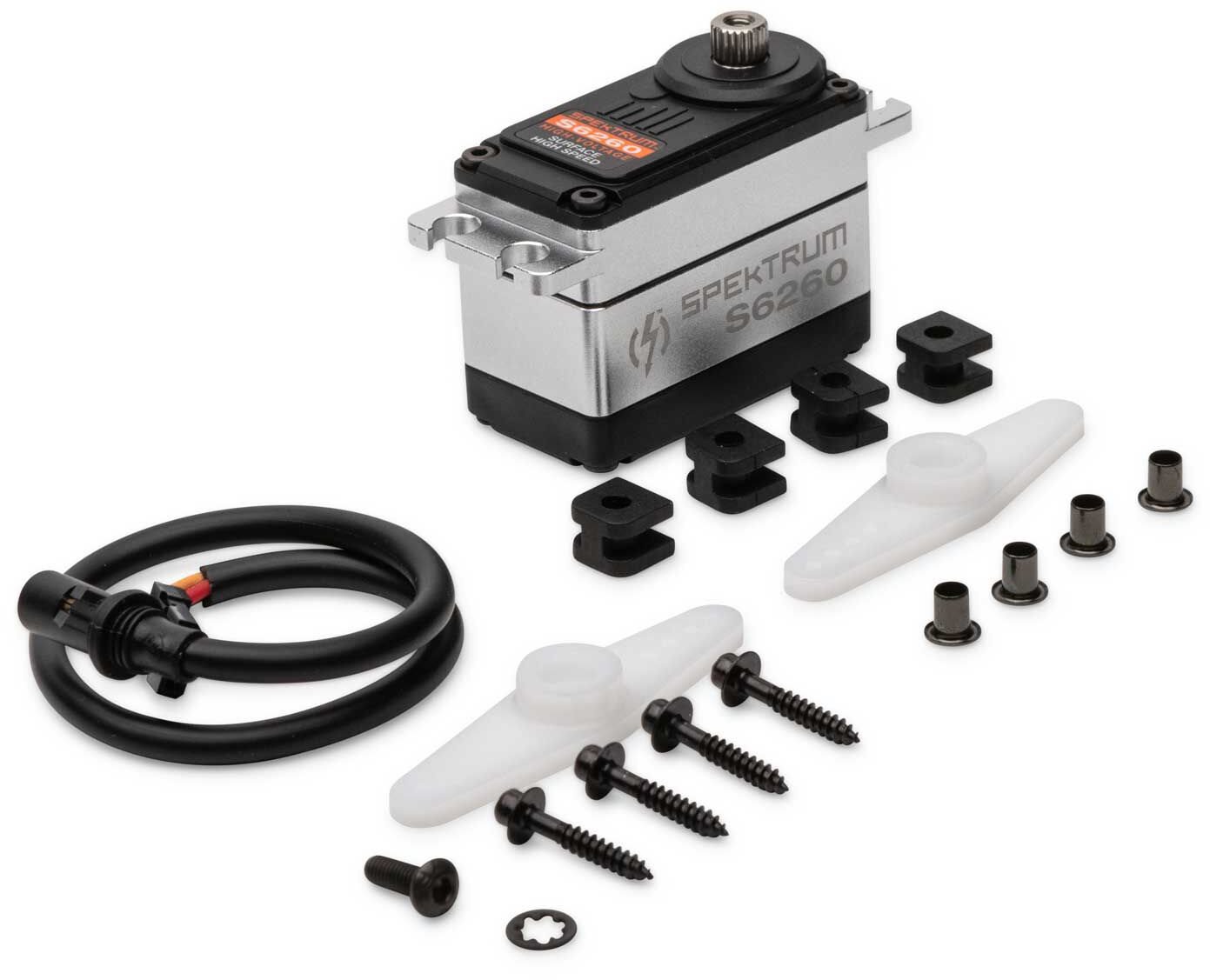

Detachable wire harness with various lengths available7075 Aluminum difficult anodized output shaft/main gear with steel internal gearsAluminum case for good heat dissipationAluminum installing tabsNMB double primary bearings23T output shaft




Introduction


The most recent generation of Spektrum surface servos provides you with the performance you require for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 use high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or beast trucks where area is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications approximately 8.4V, And the S6280 HV and S6290 HV feature all metal case building and construction for the supreme 1/8th scale performance. All these servos include Spektrum innovations like the detachable wire leads that enable custom lead length and ease of upkeep and all metal servo installing tabs to keep them in location through the most extreme conditions.







Specifications


Size Category: Standard
Type: Digital
Application: 1/10 Buggy, Truck, 1/8 Buggy, Truck
Torque: 167 oz-in (12.0kg-cm) @ 6V; 210 oz-in (15.1kg-cm) @ 7.4V; 241 oz-in (17.4kg-cm) @ 8.4V
Speed: 0.08 sec/60 deg @ 6.0V; 0.07 sec/60 deg @ 7.4V; 0.06 sec/60 deg @ 8.4V, at no load

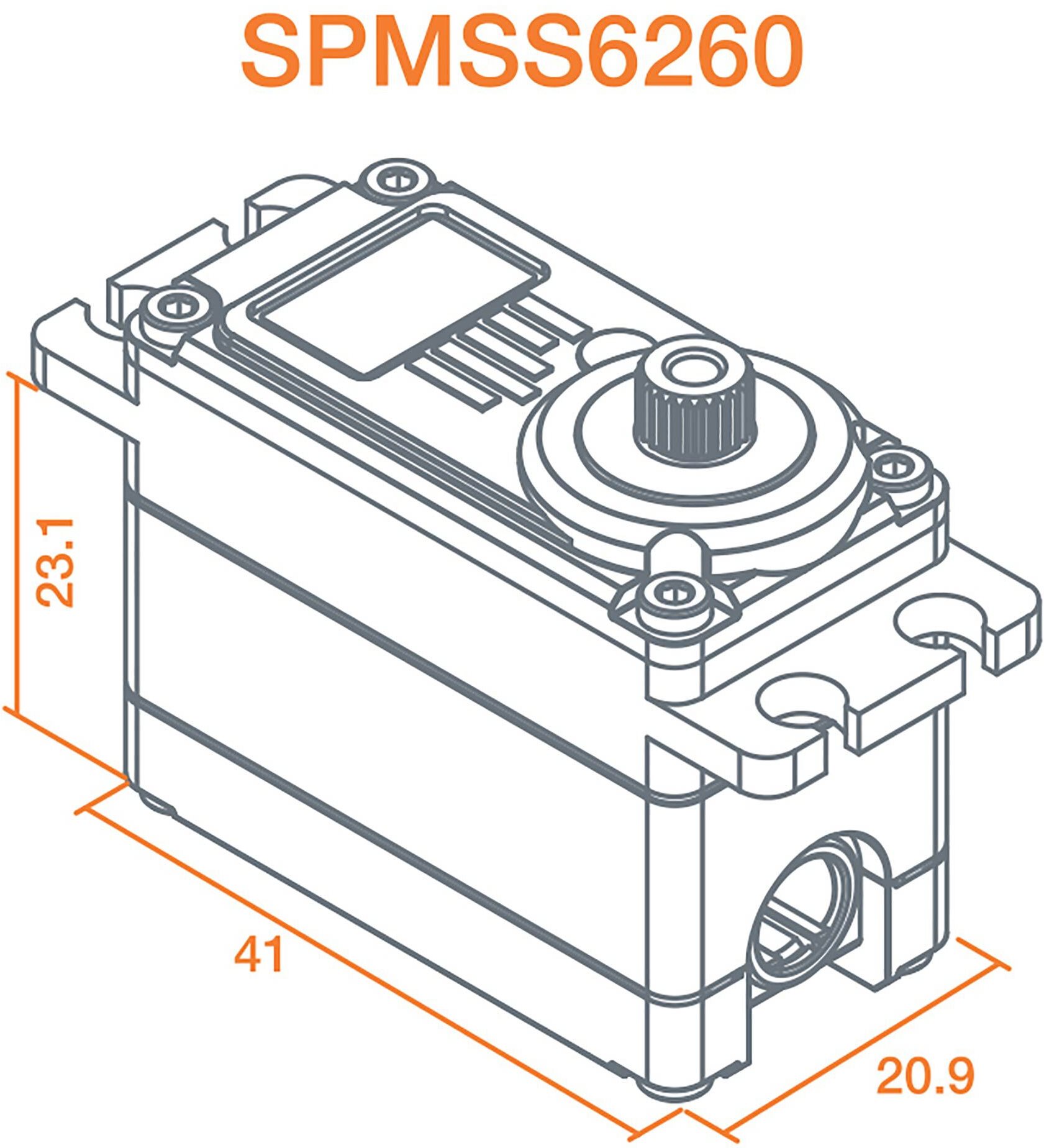

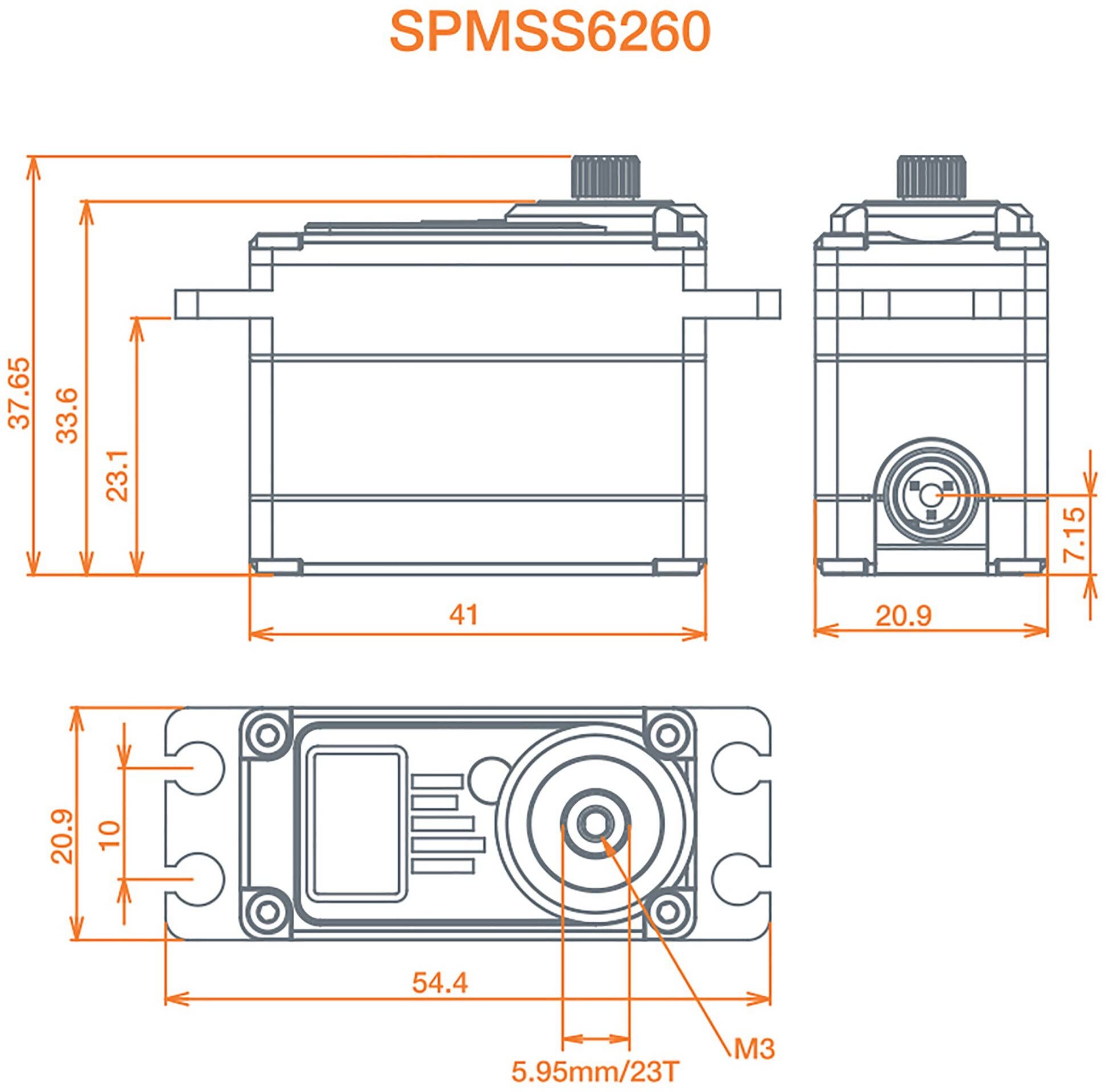

Length: 1.61 in (41mm)
Width: 0.82 in (20.8mm)
Height: 1.25 in (31.8mm)
Weight: 2.3 oz (65.2g)
Bushing Or Bearing: Bearing
Bearing: Double
Motor Type: Coreless
Adapter Type: Z-connector, detachable
Gear Type: Metal
Gear Material: Steel, Aluminum
Existing Draw Idle: 9.8 mA @ 6.0V
Existing Draw Stall: 4900mA @ 6.0V
Voltage: 6.0–8.4V
Deadband: 4µs
