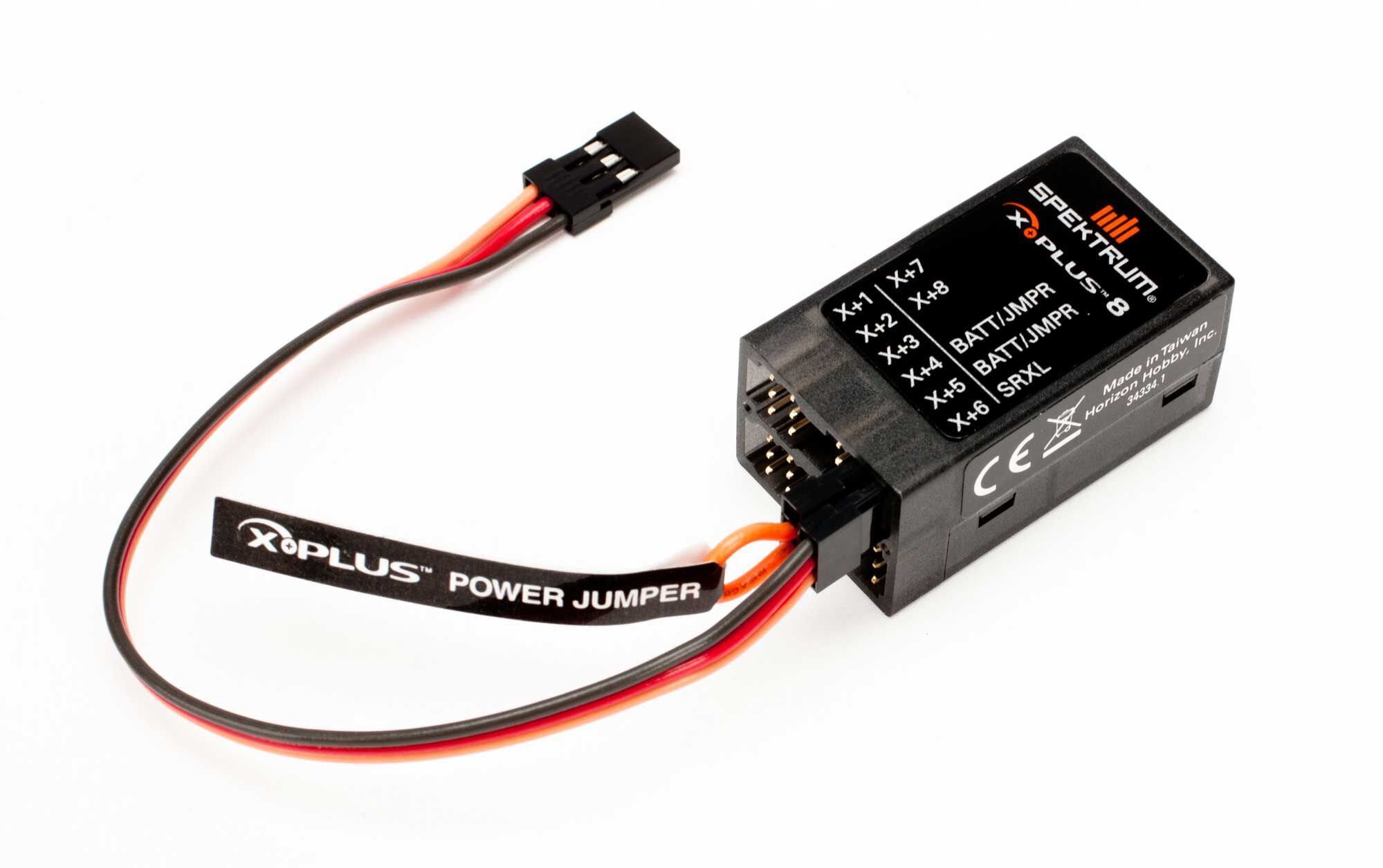

Spektrum X-Plus8 Expansion Module

The X-Plus 8 module is designed to allow growth of as much as 8 servos for non-control surface area functions such as bomb drops, lights, winches, retractable landing gear, and a lot more. The X-Plus 8 works with Spektrum™ X-Plus transmitters and receivers. The X-Plus 8 module offers the choice to power the connected servos by means of double auxiliary battery ports with separate batteries and change harnesses (sold individually) independent of the receiver. The X-Plus 8 module can likewise be powered inclusive of the receiver by utilizing the consisted of jumper through either of the double BATT/JMPR ports.

Applications

Scale modelers with complex airplane, ships, or surface area applications will take pleasure in the easy programs and functions of the X-Plus 8 module using X-Plus suitable transmitters AirWare™ software application. Modelers will have the ability to select 2 position, 3 position or potentiometer change through their X-Plus transmitter. After picking the specific switch or port, AirWare software application will allow the individual servo change of each X-Plus channel's travel adjust, sub trim, reversing, and speed.

Features
8-channel growth
Dual battery ports
Consisted of Jumper offers choice of using receiver power
Enables great tuning of 8 servos on non-critical controls (bomb drops, lights, winches, gear, and so on)

Specs
Height: 0.79 in (20mm)
Length: 1.61 in (41mm)
Design Type: Airplane
Variety of Channels: 8
Voltage Variety: 3.5-9.6V
Weight: 0.42 oz (11.9 g)
Width: 0.91 in (23mm)
