Spektrum H6360 Mid Torque Ultra Speed Heli Tail HV Servo

Overview

Spektrum™ high-voltage, brushless servos provide dependable power and digital accuracy with remarkable efficiency. Finely tuned electronics and software incorporate with powerful brushless motor innovation to offer ultra-smooth, blindingly fast performance more efficiently than servos with conventional motors. Durable servo lead-wire consists of the convenience of a quick-release cable television connection. The all-aluminum case provides the ultimate solution in resilience and heat dissipation. Precision metal equipments satisfy even the most vital heli pilot who desires problem-free control.

The Spektrum H6360 tail servo utilizes this strong structure, to achieve blinding transit speeds of .04 sec with an impressive balance of resilience and value, in addition to the peace-of-mind that advanced error correction and over-current/temperature protection offers. It’s a fantastic function mix that makes this servo an impressive tail-rotor control option for of 550- to 700-class electric and nitro helis.

Specifications

Size Classification: Standard
Type: Digital
Application: Heli Tail
Torque: 104.9 oz-in (7.56 kg-cm) @ 8.4V
Speed: .04 sec/60° @ 8.4V

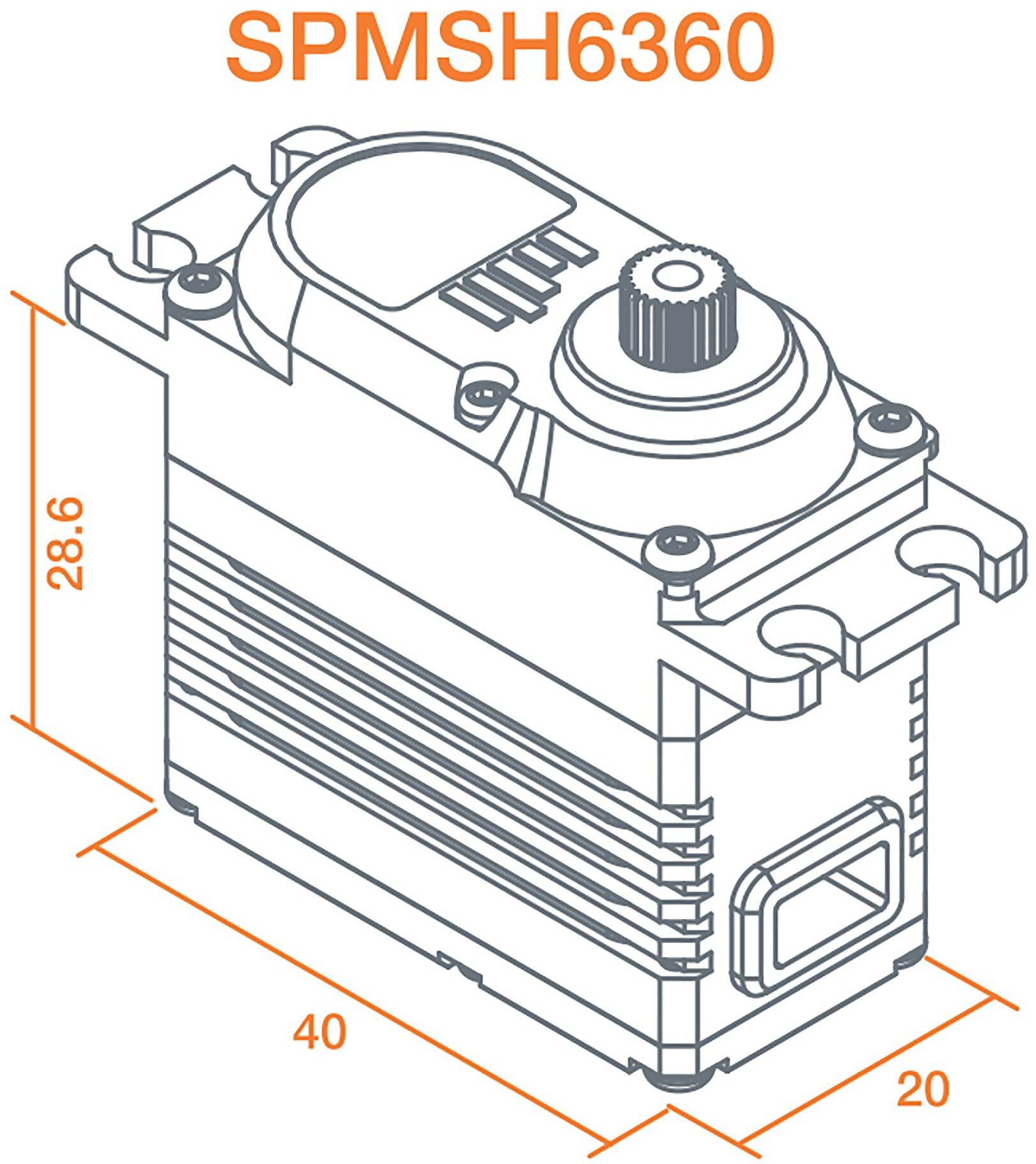

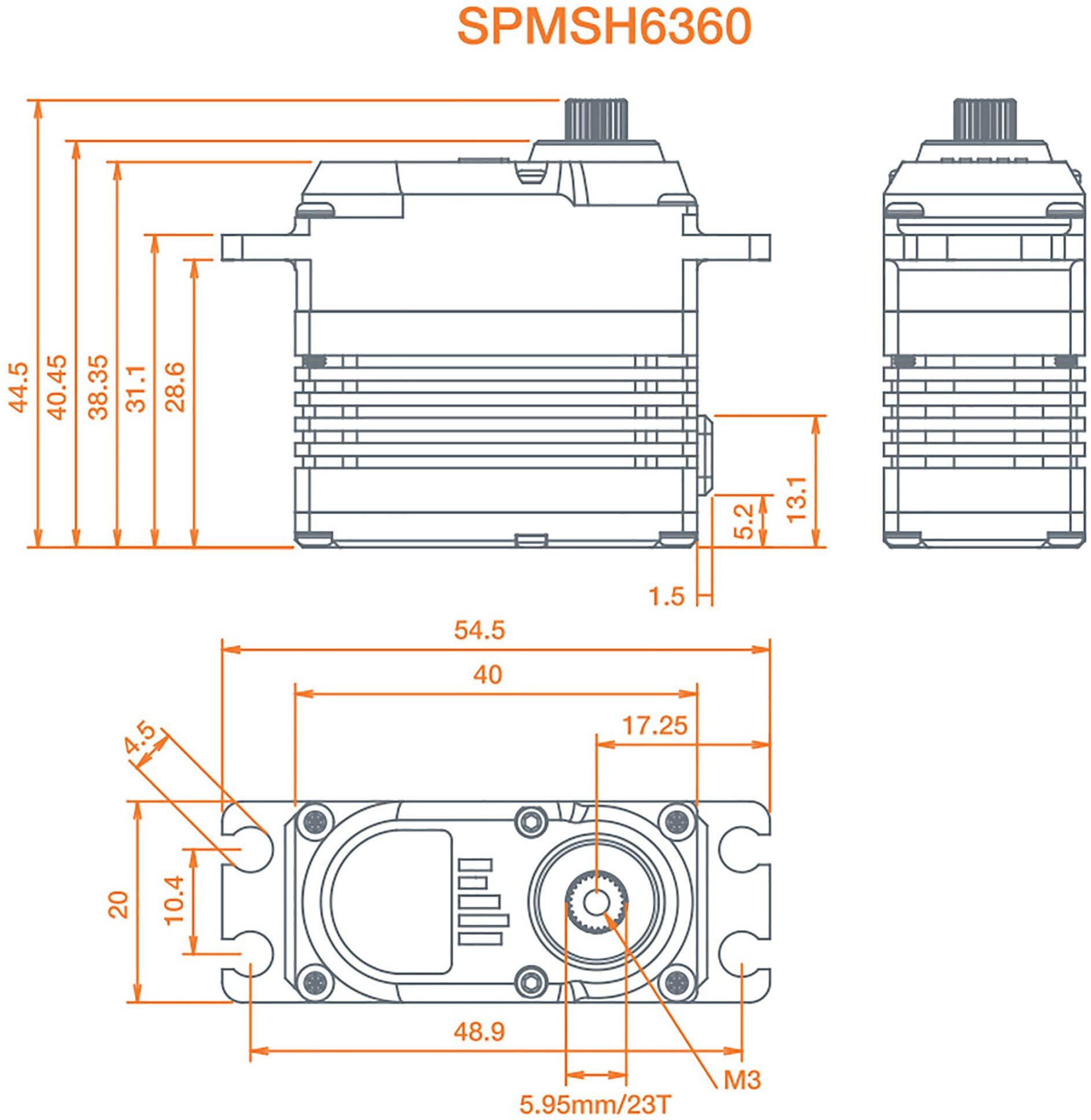

Dimensions (WxLxH): 1.57 x 0.79 x 1.49 in
Length: 1.57 in (40mm)
Width: 0.79 in (20mm)
Height: 1.49 in (37.8mm)
Weight: 2.6 oz (73.6 g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Brushless
Adapter Type: Z-Connector
Equipment Type: Metal
Equipment Material: Metal
Voltage: 6.0-8.4V
Deadband: <1ms
