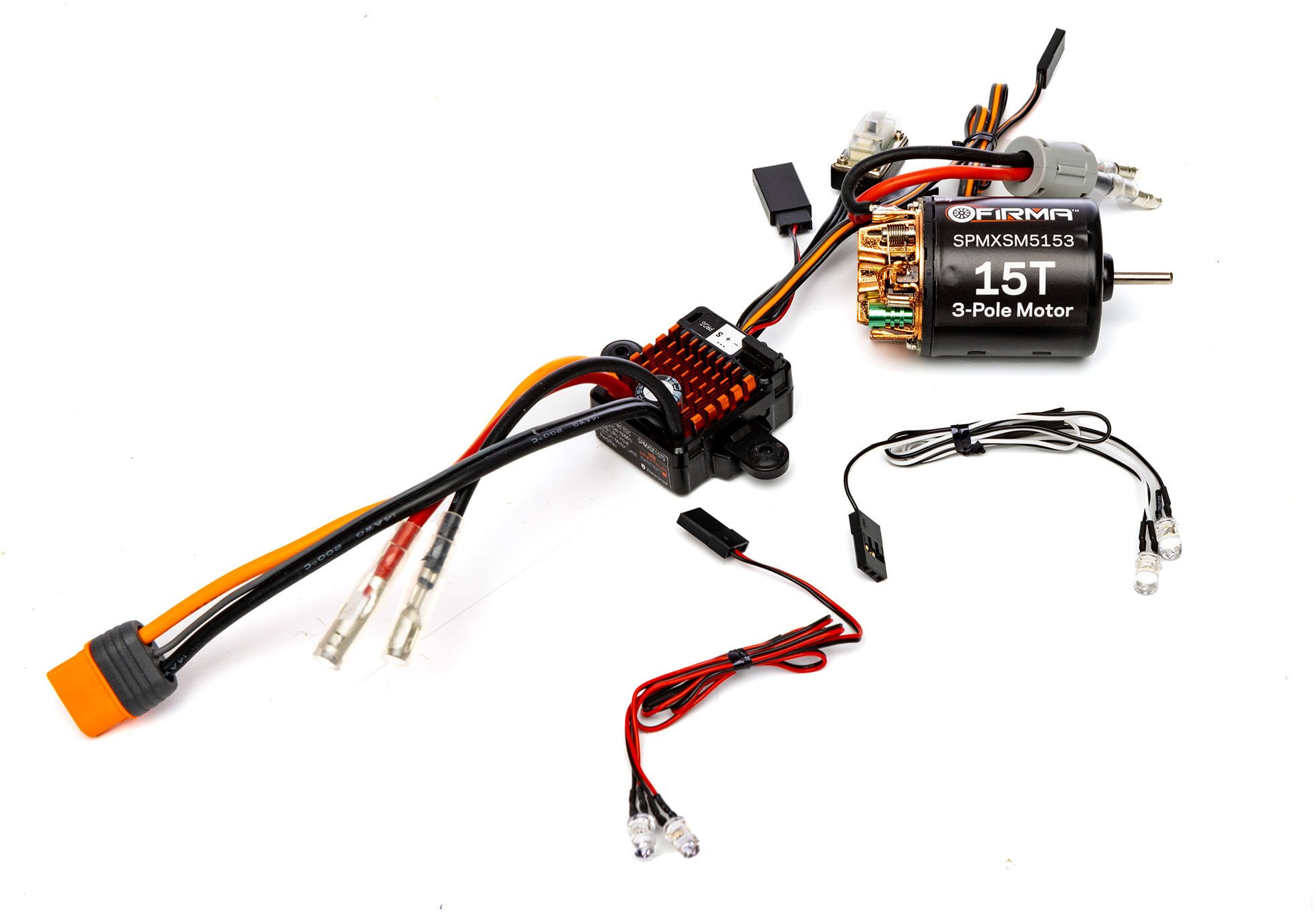

Spektrum Firma 70A Brushed Smart ESC, 2S-3S: IC3 / 15T Brushed Motor Comb

.mediaFeature [padding:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Features

Smart all-in-one telemetry
Complete Smart performance

Supplies Spektrum Smart battery information, input voltage, esc temperature level, esc amperage, RPM, and Text Gen Telemetry information over one wire. No additional sensors required

Consists Of Spektrum 15T Rebuildable Brushed Motor – Exceptional completion option for 1/10 scale on-road and off-road racers running 2S power

Integrated LED light power outputs for easy installation without the requirement of additional receiver ports

Consists Of 2 LED Light Strings (Red and White)

70 Amp continuous power - exceptional for 1/10 scale on-road and off-road racing and 1/10 scale crawlers and scalers

2S-3S LiPo Compatible

Water resistant ESC*

Several choices for easy programs:

Smart ESC Programs Box

SmartLink USB Updating and Programmer application

Programming from Transmitter by means of Text Gen Telemetry

Multi-point defense:

Over-current defense

Automatic LiPo low-voltage cutoff

Thermal defense

Failsafe defense

Established and created by Spektrum™ engineers, in partnership with the market's leading ESC maker

Compact for easy installation in the majority of applications

Ready to install — no soldering required

Aluminum heat sink for high effectiveness

Adjustable high-power BEC (6V or 7.4V, 4amp)

Firmware updatable through the Smart ESC Programs Box

High heat-resistant IC™ connectors, in reverse suitable with EC™ connectors

Minimal 1-year guarantee





Overview
The Spektrum™ Firma 70 amp Brushed Smart ESC and motor combination is water resistant and prepared to utilize in the majority of 1/10th scale RC designs. Featuring programs choices that make it easy to tune for your on-road and off-road racers and bashers.

This ESC and Motor Combination is an excellent choice to complete your 1/10th scale on-road and off-road 2WD racing designs running 2S LiPo power. Lots of speed and tunability for carpet, drift, or asphalt on roadway racing similar to the sturdiness required for 1/10th off-road racing and bashing.

Like every element in the Spektrum™ Smart environment, Firma™ Smart ESCs integrate "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, producing the best-performing RC system for your lorry imaginable.

Firma Smart ESCs do much more than manage power. They operate like a virtual engineer inside your design, supplying a direct course to the important operating information you need to reach peak efficiency. Firma Smart ESCs offer you an additional layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your lorry than ever previously — without setting up extra components that all work individually of each other. You won't need extra wires, modules, or links. A Firma electronic speed control offers a one-wire solution for acquiring telemetry information such as motor existing, temperature level, battery voltage and capacity.

Firma ESCs not just gather the information however also send it to your transmitter in genuine time, instead of just storing it for after-run study. You're able to change settings as required to enhance efficiency on the go. The Firma Smart single-wire telemetry solution has been tested for quality and efficiency by the best brand names in RC. Their decision? Smart technology is both easier and remarkable!

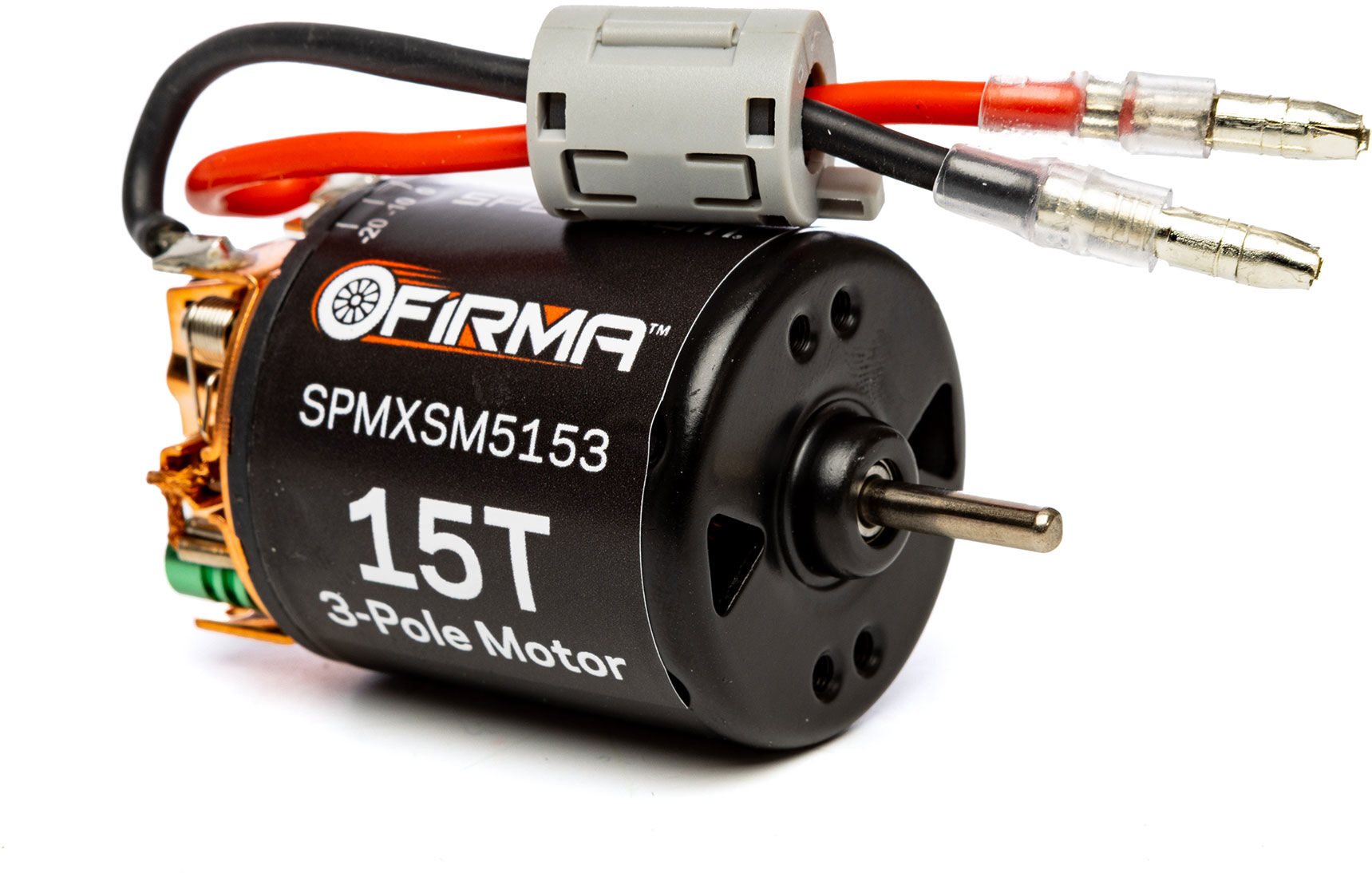

CONSISTS OF SPEKTRUM 15 TURN BRUSHED REBUILDABLE MOTOR WITH ADJUSTABLE TIMING
The Spektrum Firma 3-Pole Rebuildable Brushed Motors offer a remarkable low-priced upgrade for brushed esc equipped 1/10th Racers and Bashers. Featuring completely rebuildable design, remarkable high rpm speed and control, and exceptional efficiency.

Adjustable timing for clockwise and counterclockwise motor rotation

540 can size – best upgrade for the majority of 1/10th scale

Pre-shaped curved face brushes – No break-in period required!

Wires and 3.5mm bullets set up – No soldering required!

Ball bearing supported rotor









PRO-LEVEL DRAG BRAKE ADJUSTMENT
The Spektrum Firma 70 amp Brushed Smart ESC includes a substantial series of drag brake adjustability, allowing for chauffeurs to expertly tune their designs depending upon their driven train and lorry weight. Featuring fine levels of adjustability for Drag Brake Percentage and Drag Brake Rate that is best for tuning your crawlers and scalers for skilled level rock crawling efficiency.




WATERPROOF
The all-weather, water resistant design of Spektrum™ Firma™ Smart ESCs permits them to perform in nearly any terrain under practically any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.







ONE-WIRE TELEMETRY
No requirement to connect several wires, sensors, modules, and links. With Firma™ ESCs, easy one-wire telemetry transmits a vast array of information directly to your transmitter in genuine time, consisting of voltage, temperature level, balance, capacity, and motor existing.*








MULTIPLE PROGRAMMING OPTIONS
Several programs choices are readily available. Using the Smart Firma™ ESC Programs Box, you can quickly change settings on the trail to match driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also readily available. And for those with a Text Gen capable, programs and change of ESC settings can be carried out, right from your Spektrum transmitter, no additional modules or wires required!




SMART TECHNOLOGY BATTERY DATA
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC offers you with the benefit of battery telemetry that's automatically transmitted to your suitable Spektrum radio in genuine time. On your transmitter screen you'll be presented with handy information such as variety of cycles, battery capacity used and staying, individual cell voltage and more!




*Please see handbook for Water resistant Use Guidelines
**See compatibility chart for more information.

Specifications

Adjustable Timing: No

Amperage: 70A

Auto Cutoff: Yes

BEC: Yes

BEC Continous Current: 4A (Shared In Between Receiver and Aux Light Outputs)

BEC Voltage: 6V / 7.4V User Selectable

Brakes: Integrated with ESC

Port Type: IC3,3.5mm Bullet

Forward: Yes

Input Voltage: 2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd

Low-Voltage Cutoff Programmable: Yes

Optimum Burst Current: 200A

Optimum Constant Present: 70A

Motor Limit: 540 / 550 Size Brushed Motors

Motor Type: Brushed

Number of Poles: 3

Item Height: 0.71" (18 mm)

Item Length: 1.41" (36 mm)

Item Weight: 1.76 oz (50 g)

Item Width: 1.18" (30 mm)

Programmable: Yes

Reverse: Yes

Speed Control: Consisted Of

Innovation : Smart

Turns: 15T

Water-Resistant: Yes
