Overview

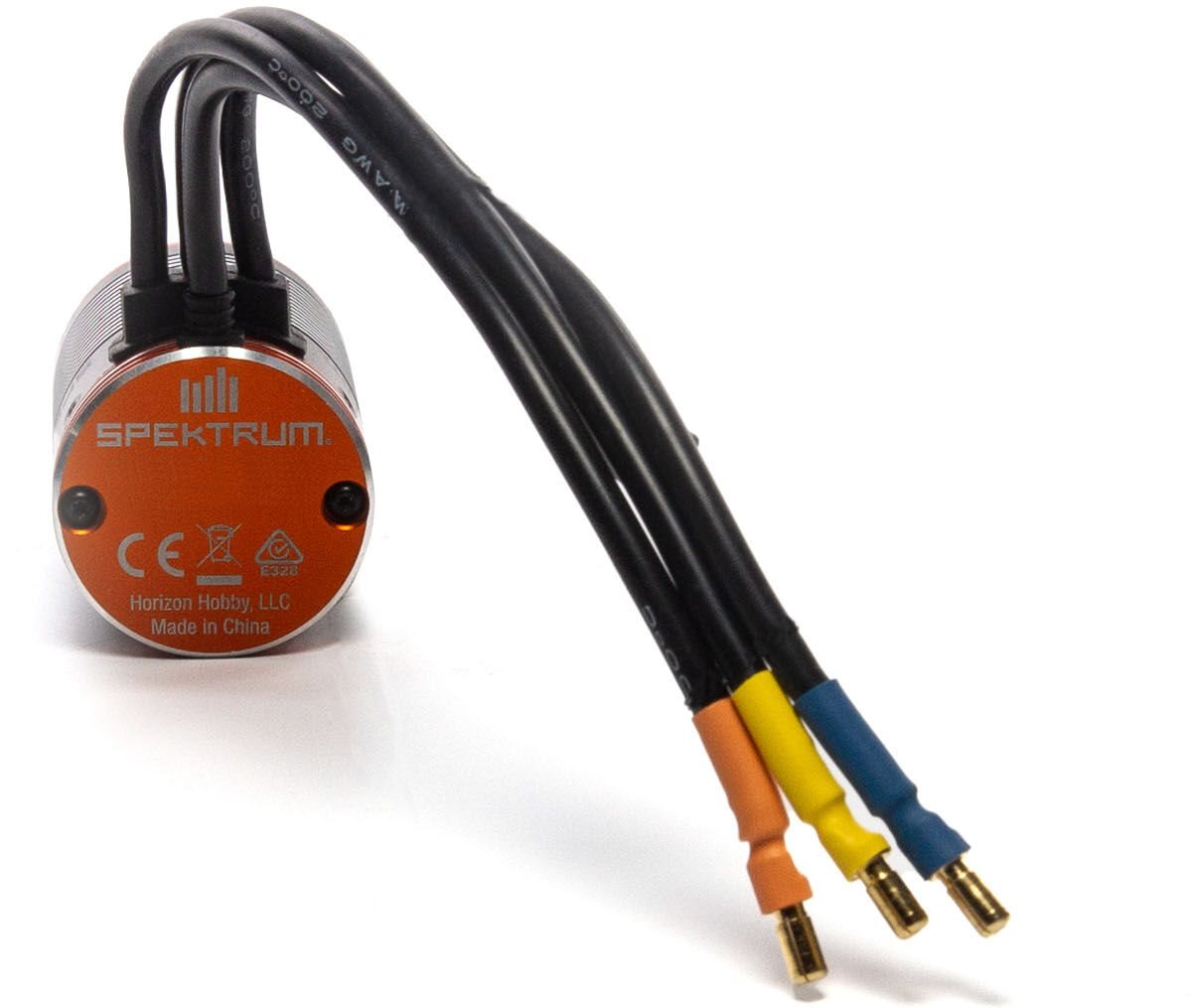

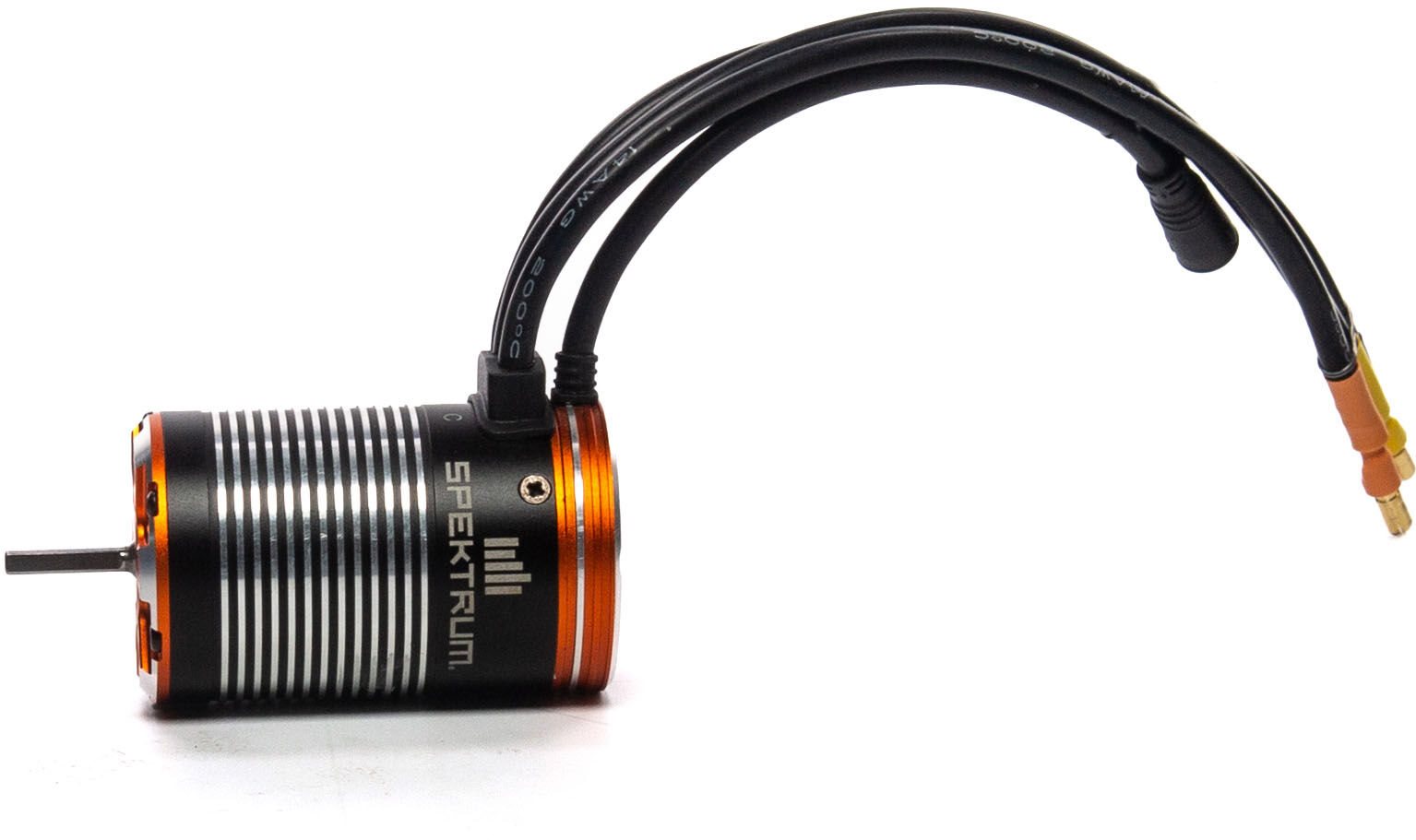

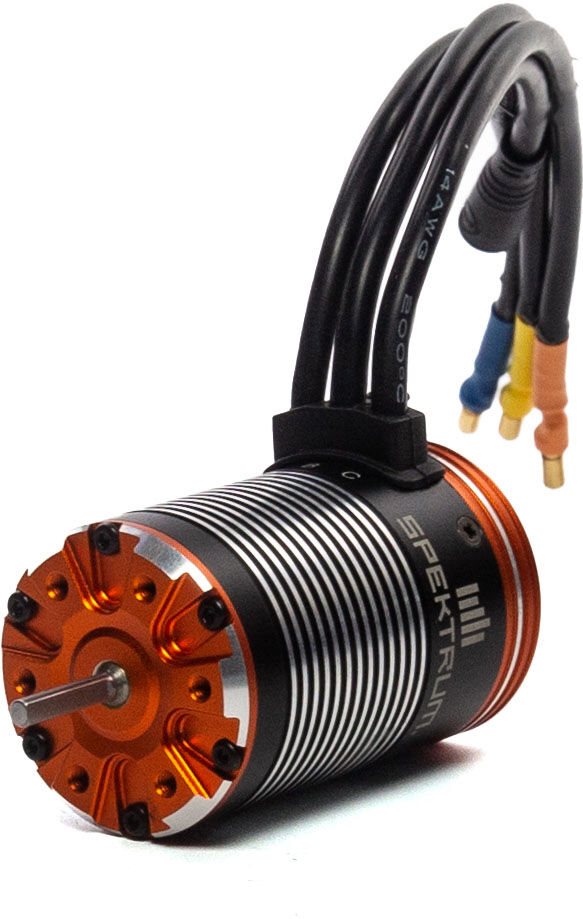

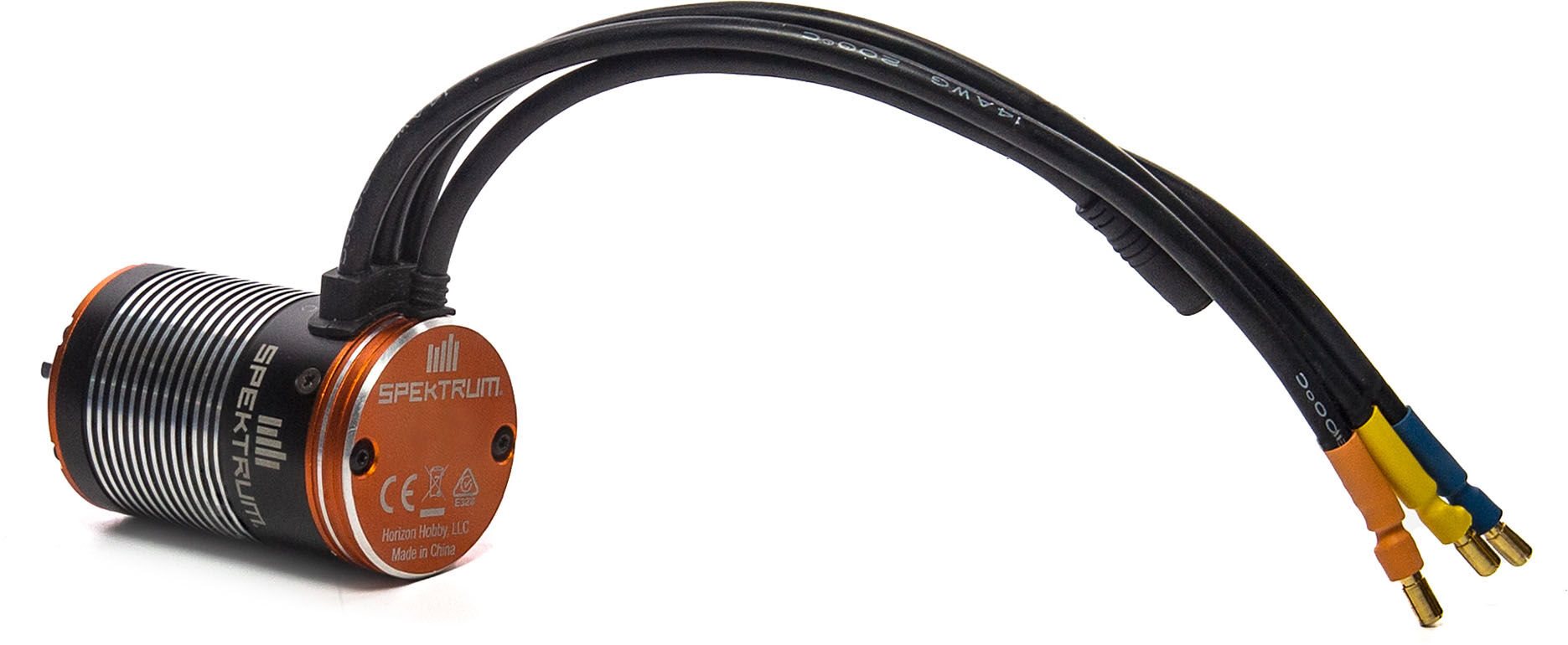

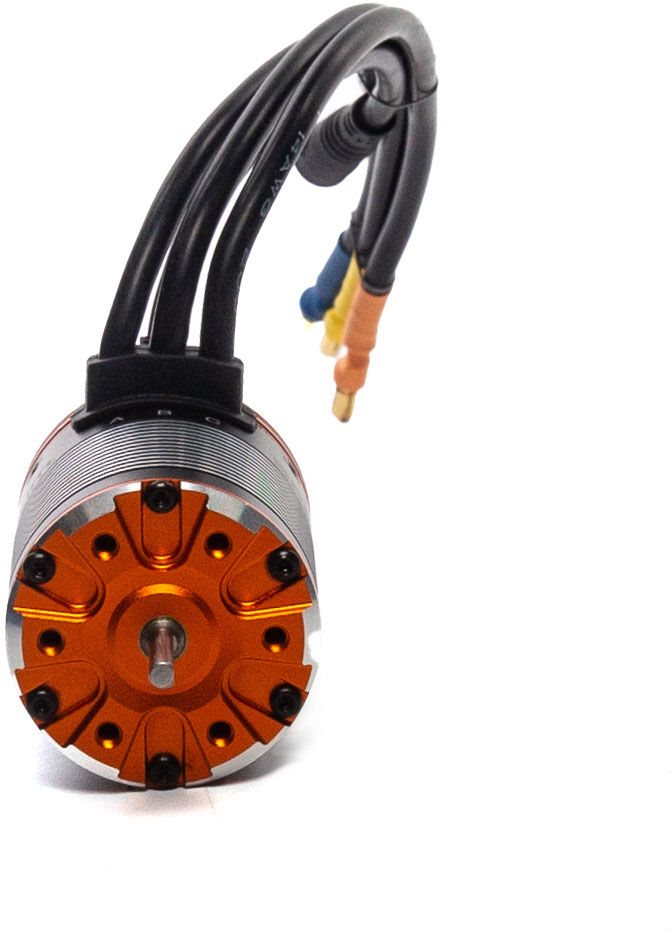

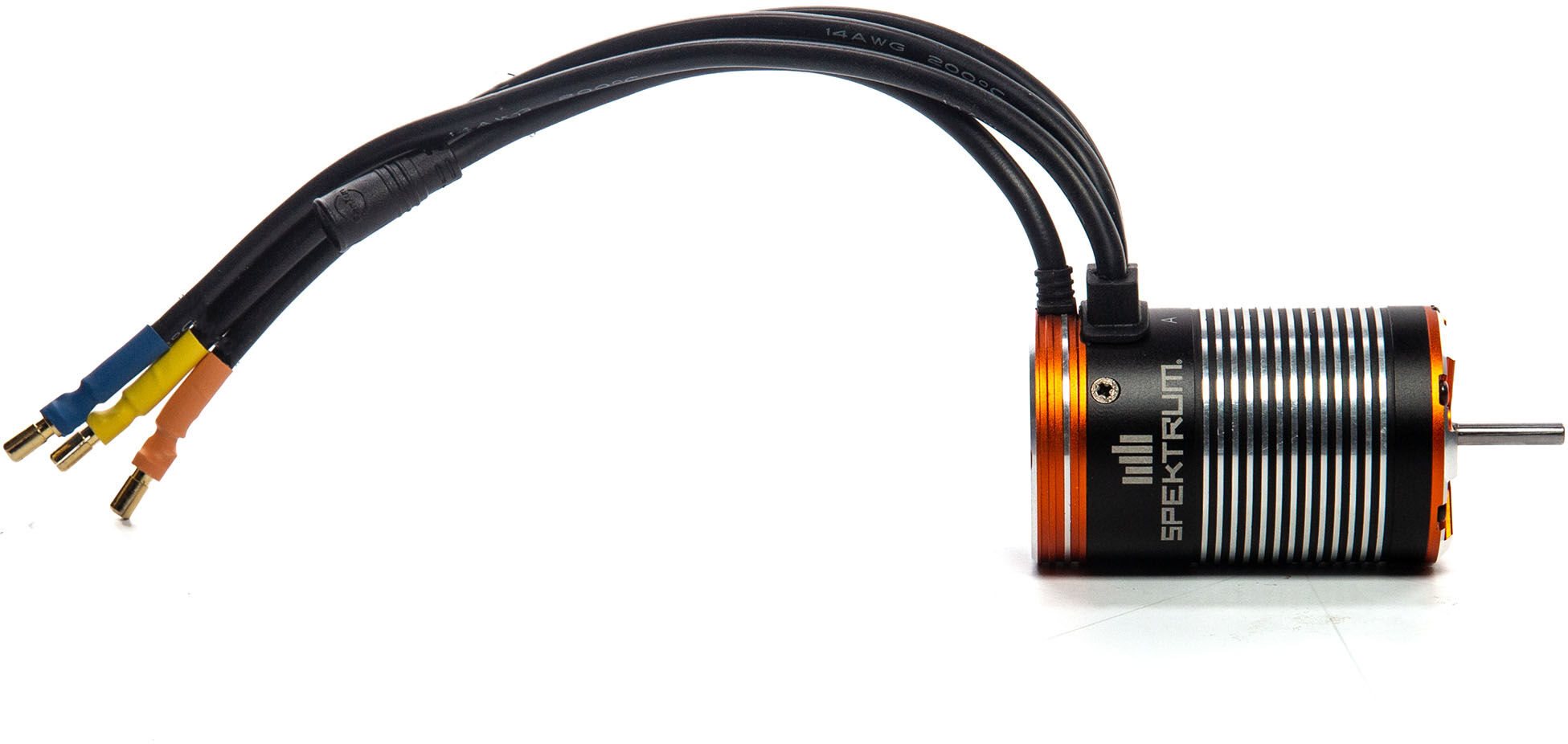

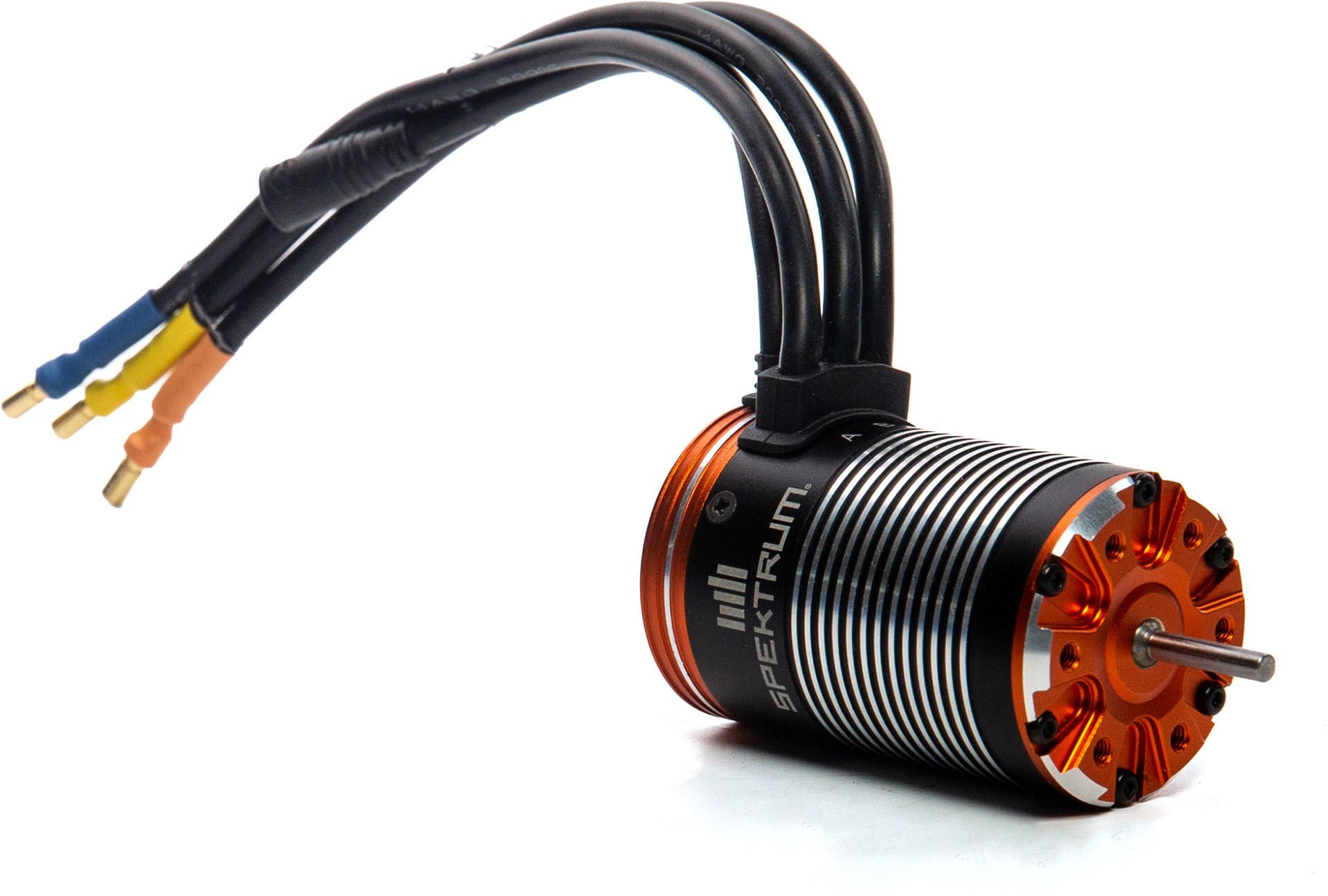

The Firma 1400Kv Sensored brushless motor is a terrific choice for 1/10 scale crawlers, rock racers, and trailers operating on TWO – THREE LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum real estate, insulated high purity copper windings, top quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high resilience and smooth rotation. Preinstalled with 4mm gold plated bullet adapters for simple installation. The Spektrum FIRMA 60A Sensored Brushless Smart Spider ESC is required.





Features

Outstanding upgrade for 540 brushed motors with the exact same diameter and mounting pattern (automobile need to accept pinions with a 1/8" mm bore)

Perfect for low speed, high torque applications such as competition crawlers

High-quality 4-pole sintered rotor

Polarity protection - magnetic encoder inside the motor assurances consistency between three phases' signals and always outputs precise signals indicated by rotor position. When setting up just match wire color to esc adapters

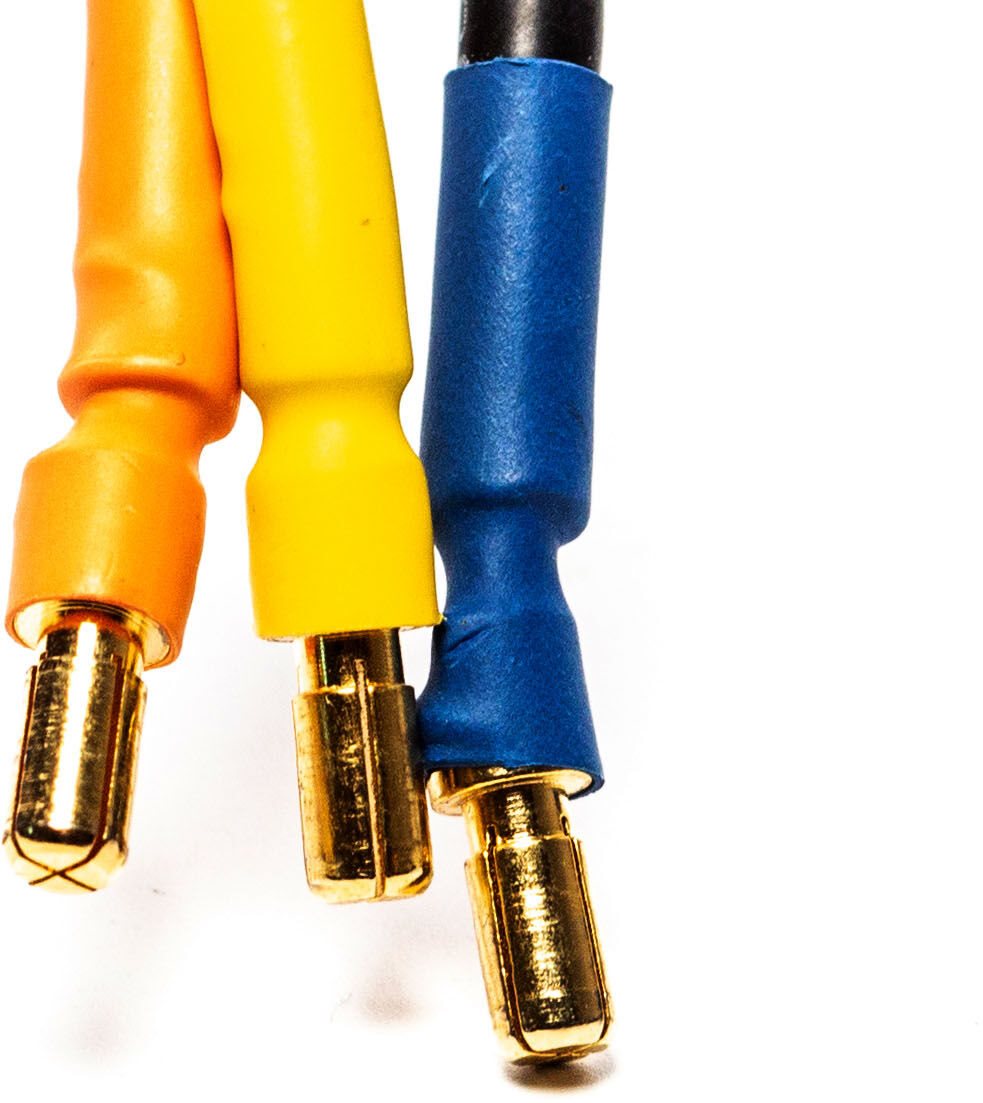

4mm gold plated bullet adapters

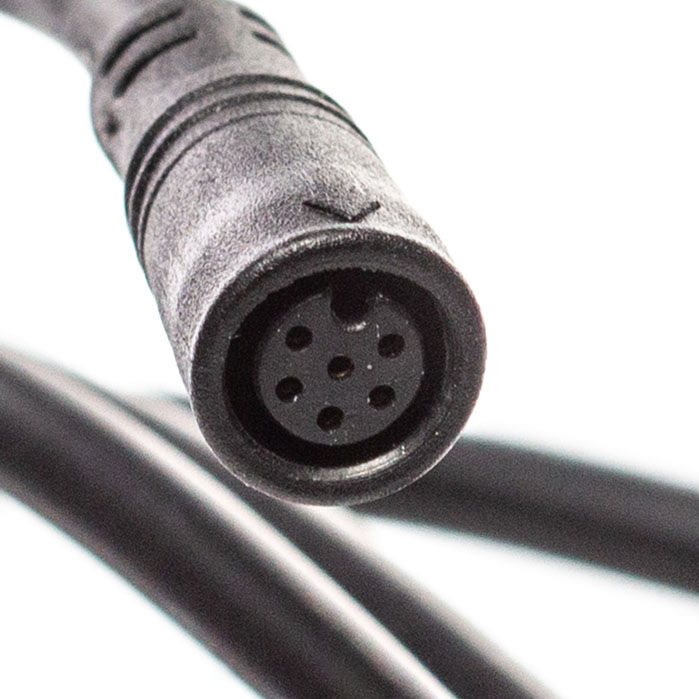

Waterproof sensor wire with locking plug and gasket

High-quality building and construction with precision ball bearings and hardened steel 1/8" shaft



Specifications

Application: 1/10 scale crawlers, rock racers, and trailers operating on 2S-3S LiPo power

Bushing Or Bearing: Bearing

Adapter Type: 4mm Bullet

Forward: Yes

Input Voltage: 7.4 - 11.1V

Maximum Continuous Present: 25A

Motor Type: Brushless - Sensored

Variety of Poles: 4

Outer Size: 1.42" (36 mm)

Product Length: 2.27" (58 mm)

Suggested Speed Control: Spektrum Firma 60A Sensored Brushless Smart Spider ESC

Reverse: Yes

RPM/Volt (Kv): 1400Kv

Shaft Size: 0.125" (3 mm)

Waterproof: Yes
