Item Functions

Smart all-in-one telemetry

High RPM Performance Motor and ESC

Quick, powerful 32-bit ARM M4 processor

Waterproof System

Multiple options for simple programs:

Smart ESC Programming Box

SmartLink USB Upgrading and Developer application

Programming from Transmitter by means of Text Gen Telemetry

Multi-point protection:

Over-current protection

Automatic LiPo low-voltage cutoff

Thermal protection

Failsafe protection

Developed and designed by Spektrum™ engineers, in collaboration with the market's leading ESC producer

Compact for simple installation in a lot of applications

Prepared to install — no soldering needed

Aluminum heat sink for high effectiveness

Consists of Optional Cooling fan

Firmware updatable through the Smart ESC Programming Box

High heat-resistant IC™ adapters, in reverse compatible with EC™ adapters

Minimal 1-year guarantee





Item Overview
The Spektrum Firma Sensored Smart ESC System is specifically sourced to be used with 10th scale Drag and Speed Run designs running two LiPo power. Including sophisticated Smart connection that reports important telemetry data with no additional accessories.

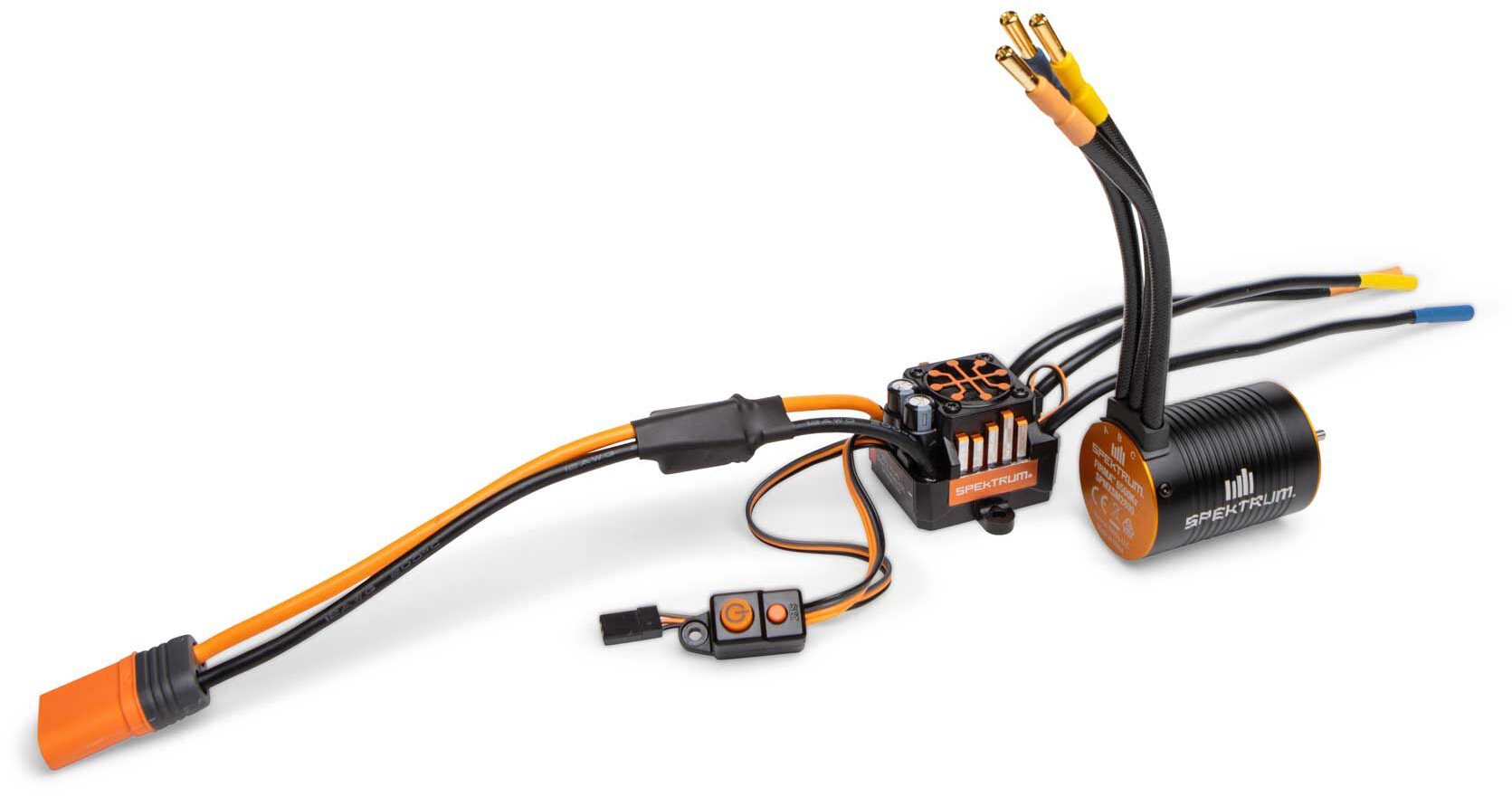

This system is a complete ESC and motor package that consists of a Sensorless 6500kv brushless motor and the Firma 100 Amp Smart ESC, supplying a Smart service for your 1/10 Drag automobile sets and upgrades.
Like every element in the Spektrum™ Smart environment, Firma™ Smart ESCs integrate "plug-and-play" simpleness with the capability to interact with other Smart electronics — together, developing the best-performing RC system for your car imaginable.
Firma Smart ESCs do much more than control power. They work like a virtual engineer inside your model, supplying a direct path to the crucial operating data you require to reach peak efficiency. Firma Smart ESCs offer you an extra layer of self-confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your car than ever previously — without installing additional parts that all work individually of each other. You will not require additional wires, modules, or links. A Firma electronic speed control supplies a one-wire service for acquiring telemetry data such as RPM, temperature level, battery voltage and capacity.
Firma ESCs not only collect the data but also send it to your transmitter in real time, rather of only storing it for after-run study. You have the ability to change settings as needed to increase efficiency on the go. The Firma Smart single-wire telemetry service has been checked for quality and efficiency by the finest brand names in RC. Their verdict? Smart innovation is both easier and superior!











INCLUDES HIGH RPM FIRMA SENSORLESS 6500KV BRUSHLESS MOTOR
The Firma 6500Kv brushless motor includes a big 4-pole 8-magnet rotor style, CNC machined aluminum real estate, insulated high pureness copper windings, premium alloy steel 3.175mm (1/8") output shaft, and accuracy bearings for high toughness and smooth rotation. Preinstalled 4mm gold plated bullet adapters.




PRETUNED FOR DRAG RACING SETUPS
Drop in and get going rapidly and easily on a lot of Drag package and RTR designs such as the Losi ™ 22S No Prep Drag Automobile Roller. And with the advantage of Spektrum Smart Innovation, motorists can utilize the real-time telemetry data to better tune their setup for faster runs.







WATERPROOF
The all-weather, waterproof style of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.




ONE-WIRE TELEMETRY
No requirement to link several wires, sensors, modules, and links. With Firma™ ESCs, easy one-wire telemetry transfers a large range of data directly to your transmitter in real time, including RPM, voltage, temperature level, balance, capability, and speed.*
*See compatibility chart to find out more.








SMART TECHNOLOGY BATTERY DATA
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC supplies you with the advantage of battery telemetry that's immediately transferred to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with practical details such as number of cycles, battery capability used and remaining, specific cell voltage and more!




MULTIPLE PROGRAMMING OPTIONS
Multiple programs options are readily available. Utilizing the Smart Firma™ ESC Programming Box, you can easily change settings on the path to suit driving conditions. An easy-to-use Smart Link USB Upgrading and PC Developer app is also readily available. And for those with a Text Gen capable, programs and modification of ESC settings can be performed, right from your Spektrum transmitter, no extra modules or wires needed!








PROGRAM FROM YOUR SPEKTRUM TRANSMITTER
With the current designs of Spektrum computer system transmitters, motorists can benefit from the Firma Prog text gen menu. This allows you to change any ESC setting or criterion right from your transmitter, on the path, no programs box or Bluetooth interface needed!




Requirements

Adjustable Timing: Yes

Amperage: 100A

Auto Cutoff: Yes

BEC: Yes

BEC Continous Current: 4A

BEC Voltage: 6V, 7.4V Selectable

Brakes: Integral with ESC

Adapter Type: IC5

Forward: Yes

Input Voltage: 2S-3S LiPo / 5-9 Cell NiMH

Low-Voltage Cutoff Programmable: Yes

Maximum Burst Current: 650A

Maximum Constant Existing: 100A

Motor Type: Brushless

External Size: 1.41" (36 mm)

Output Adapter: 4mm Bullet

Overload Security: Yes

Item Height: 1.33" (34 mm)

Item Length: 1.7" (43 mm)

Item Weight: 4.9oz (136g)

Item Width: 1.53" (39 mm)

Programmable: Yes

Reverse: Yes

RPM/Volt (Kv): 6500Kv

Sensored: No

Speed Control: Included

Innovation : Smart

Water-Resistant: Yes
