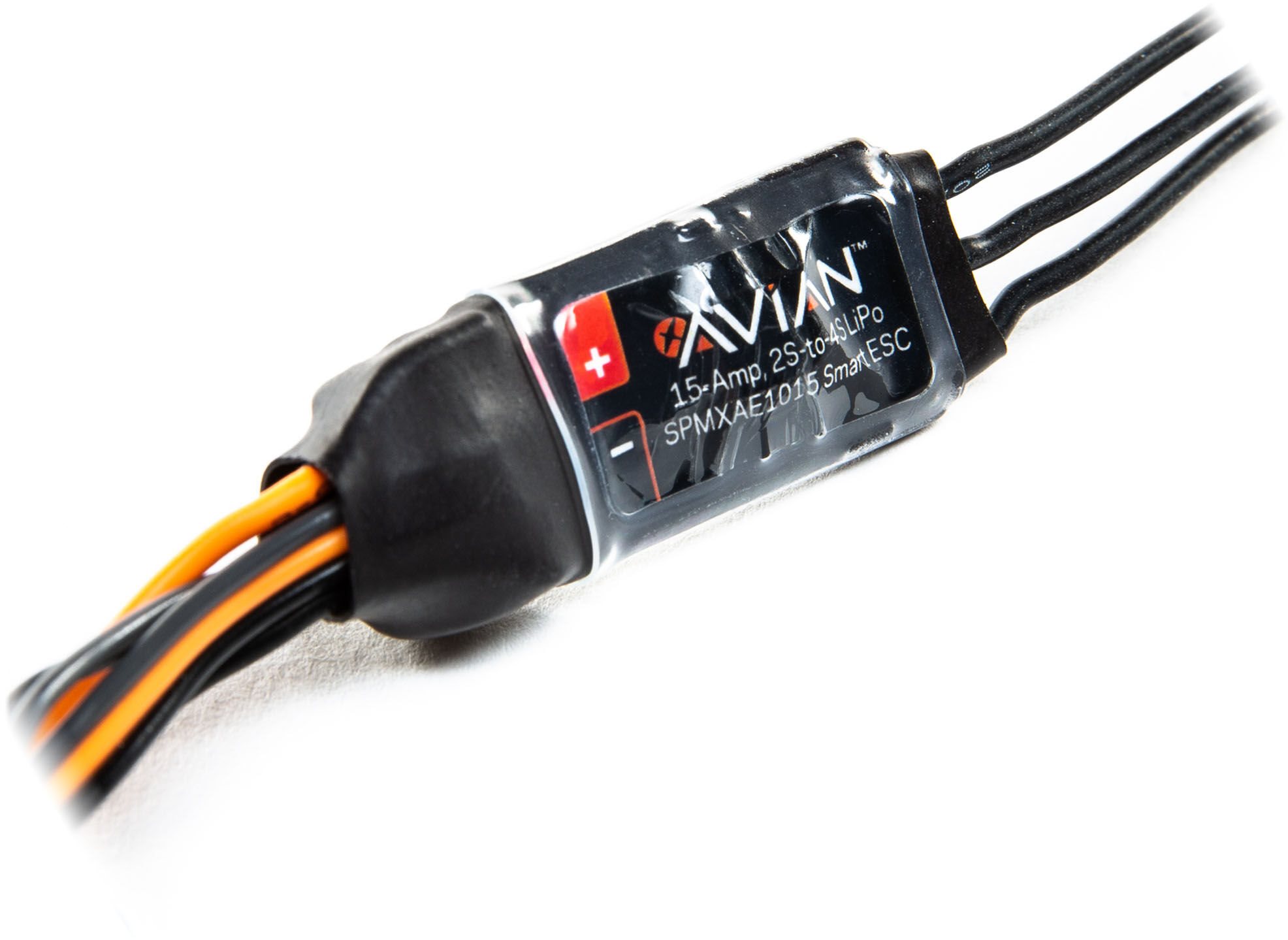

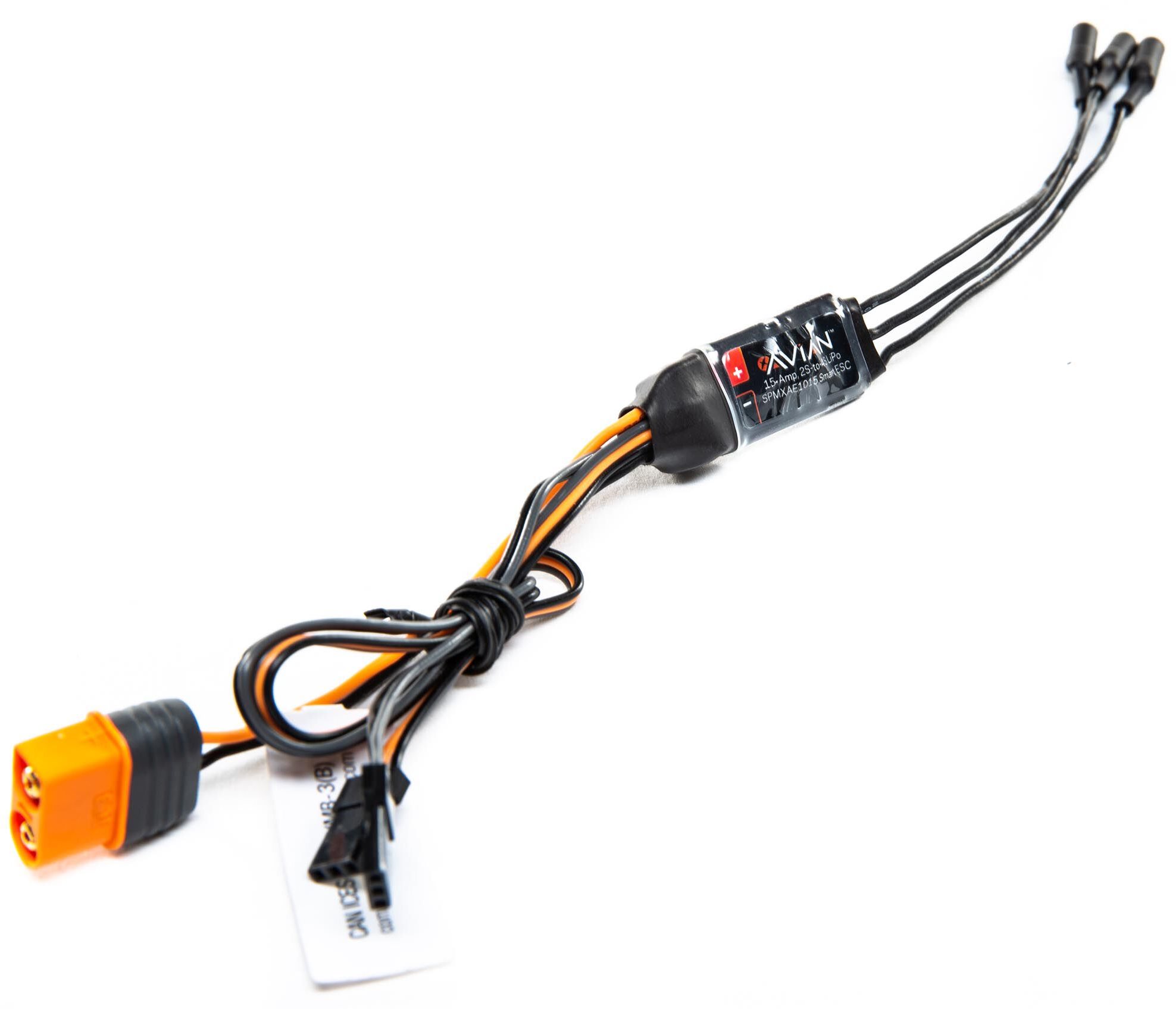

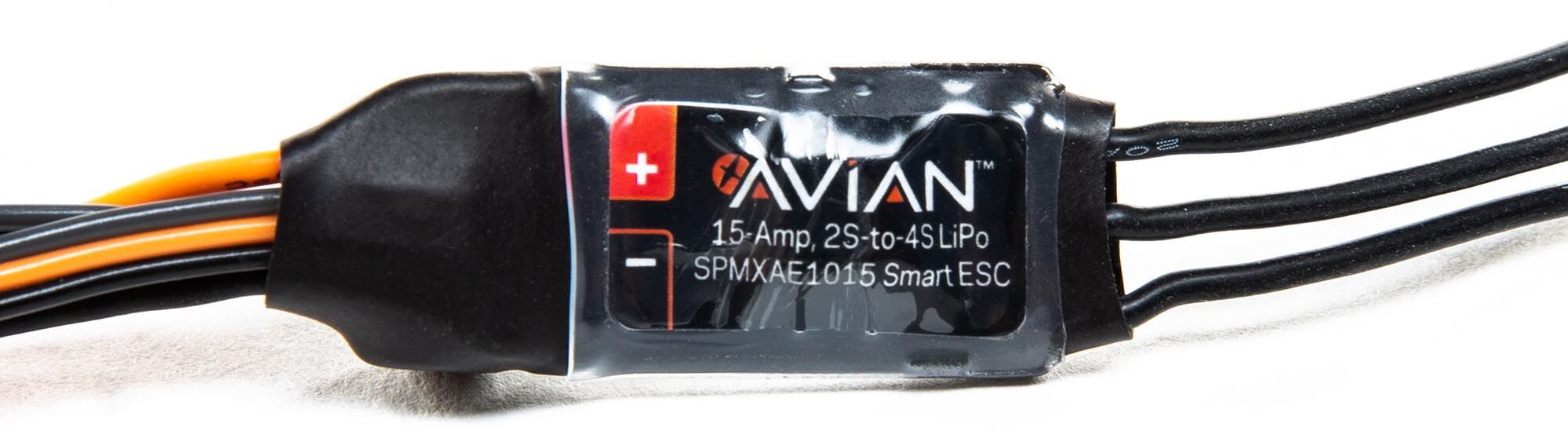

Spektrum Avian 15 Amp Brushless Smart ESC, 3S-4S

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]









Smart Technology — More connected for more self-confidence and control
Spektrum™ Smart Technology has to do with using a higher connection to your hobby. It's an RC community that puts you in complete control while making vital components of your model simpler to use than ever in the past. Smart innovation guarantees that all of your model's electronic devices collaborate effortlessly for the best effectiveness and efficiency. It keeps you familiar with every element's status, boosts your self-confidence in its capabilities, and makes your whole system more responsive and simple to use.
Spektrum radios with Smart functions can download firmware updates instantly utilizing Wi-Fi and can swap setups with suitable radios by means of Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and interacts your charging choices automatically to Smart battery chargers — just connect your pack and press "Start." Smart IC™ series connectors include an innovative data wire that transfers information quickly between Smart components with a single connection. Finally, Smart ESCs not just deliver power however likewise get rid of the hassles from running telemetry. The days of installing and linking numerous wires, sensors, modules and links are over.





Product Features

Smart all-in-one telemetry

Fast, effective 32-bit ARM M4 processor

Multiple alternatives for simple programming:

Smart ESC Programs Box

SmartLink USB Updating and Programmer application

Throttle stick programming

Multi-point security:

Over-current security

Automatic LiPo low-voltage cutoff

Thermal security

Failsafe security

Established and designed by Spektrum™ engineers, in collaboration with the market's leading ESC manufacturer

Compact for simple setup in most applications

Ready to set up — no soldering required

Rugged plastic case

Heat dissipating design

Tabs consisted of for a difficult install

Aluminum heat sink for high effectiveness

Cooling fan

Adjustable high-power BEC

Double BEC power connectors

Firmware updatable through the Smart ESC Programs Box and SmartLink PC application

High heat-resistant IC™ connectors, backwards suitable with EC™ connectors

Restricted 1-year guarantee





Item Summary
Like every element in the Spektrum™ Smart community, Avian™ Smart ESCs integrate "plug-and-play" simpleness with the ability to interact with other Smart electronic devices — together, producing the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than control power. They work like a virtual engineer inside your model, offering a direct course to the vital operating data you require to reach peak efficiency. Avian Smart Air ESCs give you an additional layer of self-confidence that your electronic devices are all operating at their best.
With Avian Smart Air ESCs, you'll be much better connected to your aircraft than ever in the past — without installing extra components that all work separately of each other. You will not require extra wires, modules, or links. An Avian electronic speed control supplies a one-wire option for obtaining telemetry data such as present, voltage, cell balance, temperature level and RPM.
Avian ESCs not just gather the data however likewise send it to your transmitter in genuine time, rather of just keeping it for after-run study. You're able to change settings as required to increase efficiency on the go. The Avian Smart single-wire telemetry option has actually been checked for quality and efficiency by the best brand names in RC. Their decision? Smart innovation is both simpler and superior!





Needed to Complete

Spektrum™ Airplane Receiver

Spektrum Smart Technology LiPo Battery

Spektrum Transmitter

What's in package?

(1) Spektrum™ Avian™ Smart ESC

(1) Spektrum Smart sticker label sheet

(1) Item Manual










Spektrum™ Smart Technology










One-Wire Telemetry
No requirement to connect numerous wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transfers a large range of data straight to your transmitter in genuine time, consisting of present, voltage, cell balance, temperature level and RPM.








EC3™/EC5™ Backwards Suitable
Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground approximately supply a more solid connection, higher heat resistance, and simple and easy setup. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and send battery telemetry data. EC3™ and EC5™ connectors are likewise suitable with Avian ESCs for standard operation and ESC telemetry.




Smart Technology Battery Data
When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC supplies you with the benefit of battery telemetry that's automatically sent to your radio in genuine time. On your transmitter screen you'll exist with practical information such as number of cycles, battery capability used and remaining, specific cell voltage and more!








Multiple Programs Options
Multiple programming alternatives are offered. Throttle stick programming can be used with absolutely nothing more required. Using the Smart ESC Programs Box, you can quickly alter settings at the field to fit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is likewise offered.




Fast, Powerful M4 Processor
The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.






Specs

Vehicle Cutoff: Yes

Battery Connector: IC3

Battery Input Lead: 2.9" (75mm) 20AWG

BEC: Yes

BEC Continous Current: 3A

BEC Optimum Burst Current: 12A

BEC Type: Linear

BEC Voltage: 5.2V

Brakes: Yes

Forward: Yes

Height: 0.4" (11mm)

Input Voltage: 2S - FOUR LiPo

Length: 1.4 (35mm)

Low-Voltage Cutoff Programmable: Yes

Optimum Burst Current: 25A

Optimum Continuous Current: 15A

Motor Connector: 2mm Bullet

Motor Output Lead: 3.9" (100mm) 20AWG

Overload Defense: Yes (Thermal security also)

Reverse: No

Type: Air

Weight: 0.6oz (16g)

Width: 0.6" (16mm)
