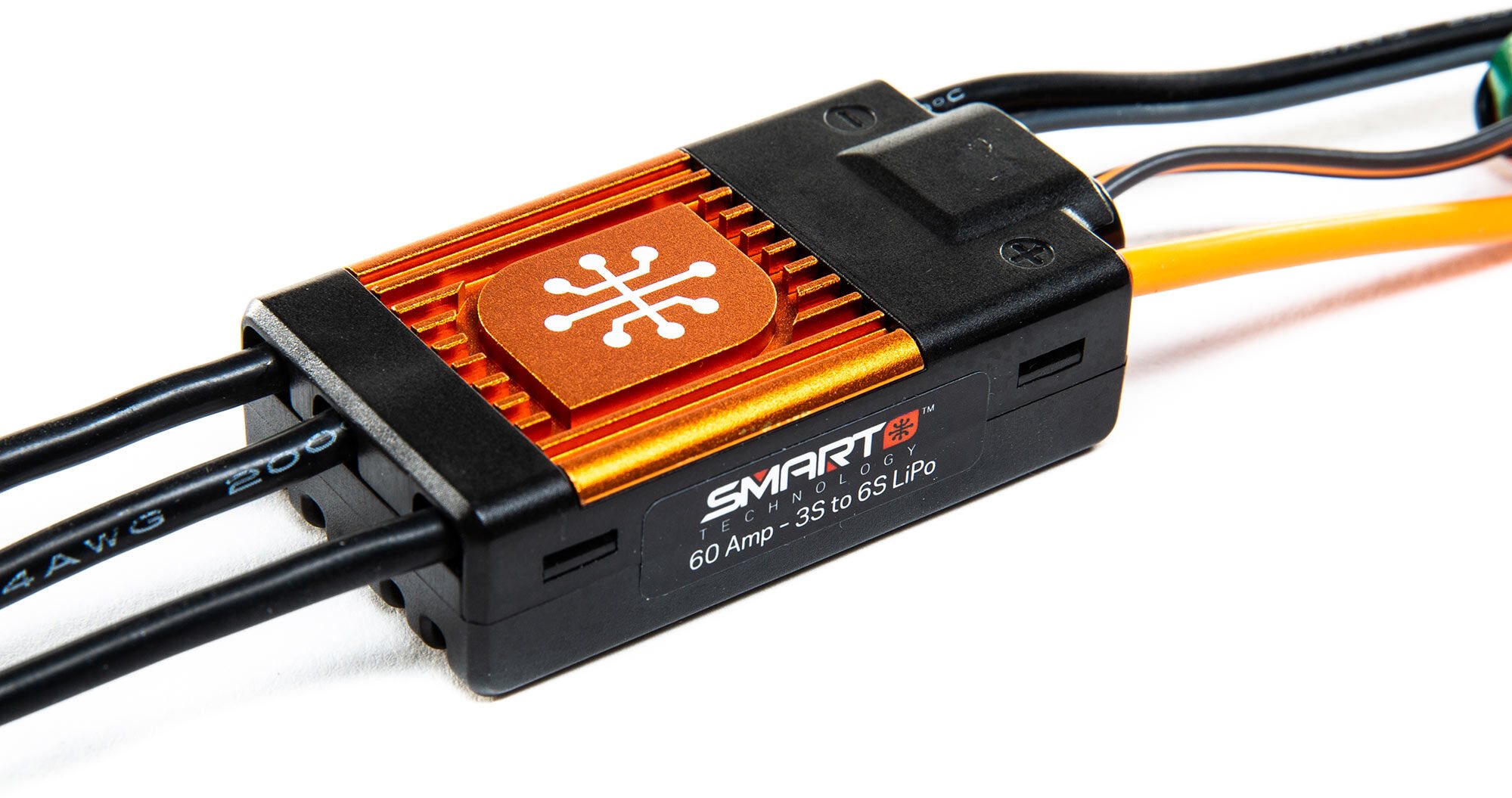

Spektrum Avian 60Amp Smart Esc 6S with IC5

.mediaFeature [padding:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Item Features

Smart all-in-one telemetry

Quick, effective 32-bit ARM M4 processor

Numerous choices for easy programs:

Smart ESC Shows Box

SmartLink USB Upgrading and Programmer application

Throttle stick programs

Multi-point security:

Over-current security

Automatic LiPo low-voltage cutoff

Thermal security

Failsafe security

Developed and created by Spektrum™ engineers, in collaboration with the industry's leading ESC producer

Compact for easy installation in the majority of applications

All set to install — no soldering needed

Heat dissipating style

Double BEC power connectors

Firmware updatable through the Smart ESC Shows Box and SmartLink PC application

High heat-resistant IC™ connectors, backwards suitable with EC™ connectors

Minimal 1-year guarantee





Item Introduction
Like every element in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronic devices — together, developing the best-performing RC system for your airplane imaginable.
Avian Smart Air ESCs do much more than control power. They operate like a virtual engineer inside your design, providing a direct path to the important operating information you need to reach peak performance. Avian Smart Air ESCs offer you an additional layer of confidence that your electronic devices are all operating at their best.
With Avian Smart Air ESCs, you'll be better linked to your airplane than ever before — without setting up extra elements that all work individually of each other. You won't need extra wires, modules, or links. A Bird electronic speed control provides a one-wire service for obtaining telemetry information such as present, voltage, cell balance, temperature and RPM.
Avian ESCs not only collect the information but likewise send it to your transmitter in genuine time, rather of only saving it for after-run research study. You have the ability to adjust settings as required to boost performance on the go. The Avian Smart single-wire telemetry service has been evaluated for quality and performance by the best brand names in RC. Their verdict? Smart innovation is both easier and superior!





Needed to Total

Spektrum™ Aircraft Receiver

Spektrum Smart Technology LiPo Battery

Spektrum Transmitter

What remains in the Box?

(1) Spektrum™ Avian™ Smart ESC

(1) Spektrum Smart sticker sheet

(1) Item Handbook










Spektrum™ Smart Technology










One-Wire Telemetry
No need to link several wires, sensing units, modules, and links. With Avian™ ESCs, easy one-wire telemetry transmits a vast array of information straight to your transmitter in genuine time, including present, voltage, cell balance, temperature and RPM.








EC3™/EC5™ Backwards Suitable
Avian™ ESCs include IC™ series battery connectors. The IC series of connectors are created from the ground up to supply a more solid connection, greater heat resistance, and effortless installation. When utilized with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can get and transmit battery telemetry information. EC3™ and EC5™ connectors are likewise suitable with Avian ESCs for fundamental operation and ESC telemetry.




Smart Technology Battery Data
When utilized with a Spektrum™ Smart LiPo battery, your Avian™ ESC provides you with the advantage of battery telemetry that's automatically transferred to your radio in genuine time. On your transmitter screen you'll exist with helpful information such as number of cycles, battery portion, specific cell voltage and more!








Numerous Shows Options
Numerous programs choices are available. Throttle stick programs can be utilized with nothing more required. Utilizing the Smart ESC Shows Box, you can easily alter settings at the field to fit flying conditions. An easy-to-use Smart Link USB Upgrading and Programmer app is likewise available.




Quick, Effective M4 Processor
The Avian ESCs' 32-bit M4 processor produces greater resolution signal input and more accurate motor output.








Smart ESC Thrust Reversing
Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This permits pilots to use the power system for increased movement on the ground in addition to acting as a brake for models needing more runway to land. This function requires a Smart suitable Spektrum Transmitter and Receiver and needs to be activated with in the ESC criteria.



On-Screen ESC Programming
Avian ESCs now come upgraded to enable pilots to set any ESC parameter, right from their Spektrum Transmitter, through the Avian Prog telemetry screen. This makes it simpler to make quick setting modifications, changes and experimentation to make the most of power output or efficiency , right on the flight line, no extra boxes or modules needed! This function requires a Smart telemetry suitable Spektrum Transmitter and Receiver.






How To Program Your Avian ESC And Setup Thrust Reverse From Your Transmitter





Specifications

Adjustable Timing: Yes

Car Cutoff: Yes

Battery Input Lead: 3.9" (100mm) 14AWG

BEC Continous Current: 7A

BEC Optimum Burst Current: 20A

BEC Type: Switching

BEC Voltage: 6V/7.2V adjustable

Brakes: Yes

Adapter Type: IC5

Forward: Yes

Input Voltage: 3S - 6S LiPo

Low-Voltage Cutoff Programmable: Yes

Optimum Burst Current: 80A

Optimum Continuous Present: 60A

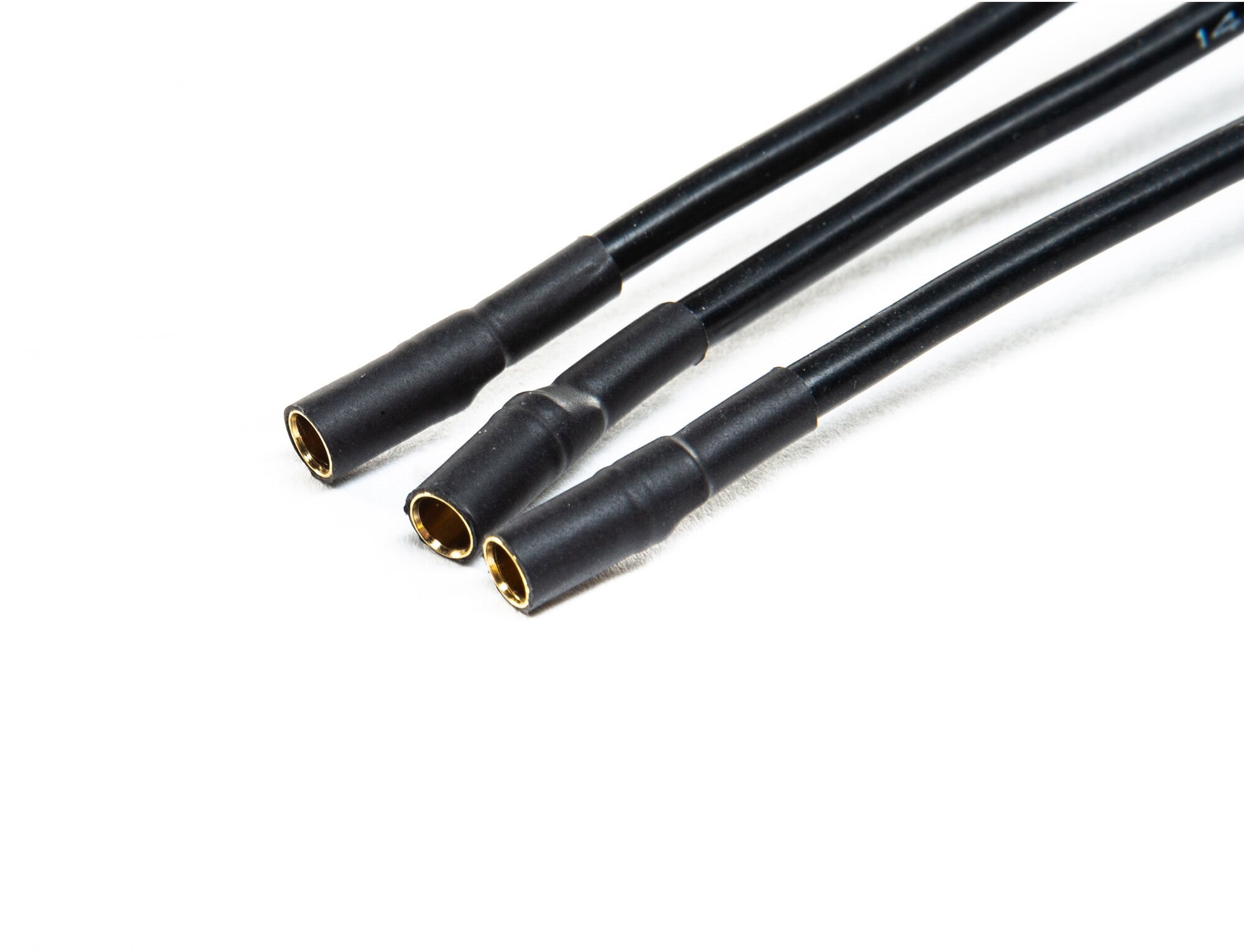

Motor Output Lead: 3.9" (100mm) 14AWG

Item Height: 0.6" (15 mm)

Item Length: 2.3" (58 mm)

Item Weight: 2.0oz (56g)

Item Width: 1.2" (30 mm)

Programmable: Yes

Reverse: Yes

Technology : Smart
