Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Designs
The mix of remarkable performance, high dependability and easy to use functions makes the Spektrum Avian Brushless Motors an outstanding choice for your next airplane task. Plus, the large selection indicates there's Avian Brushless motor that's perfect for whatever the application, consisting of brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your plane with a Bird motor to enhance your Smart Innovation equipped models!





Key Benefits

Quick Acceleration and Extreme Torque: Skillfully engineered to provide quick, smooth and exact acceleration and power.

Reliable and Essentially Maintenance-free: Geared up with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.

Excellent Cooling: Engineered to help air flow move through the motor for efficient cooling throughout and after flight.





Features

Light-weight design

Powerful and resilient Rare-Earth Neodymium magnets

14-pole stator for smooth and exact propulsion

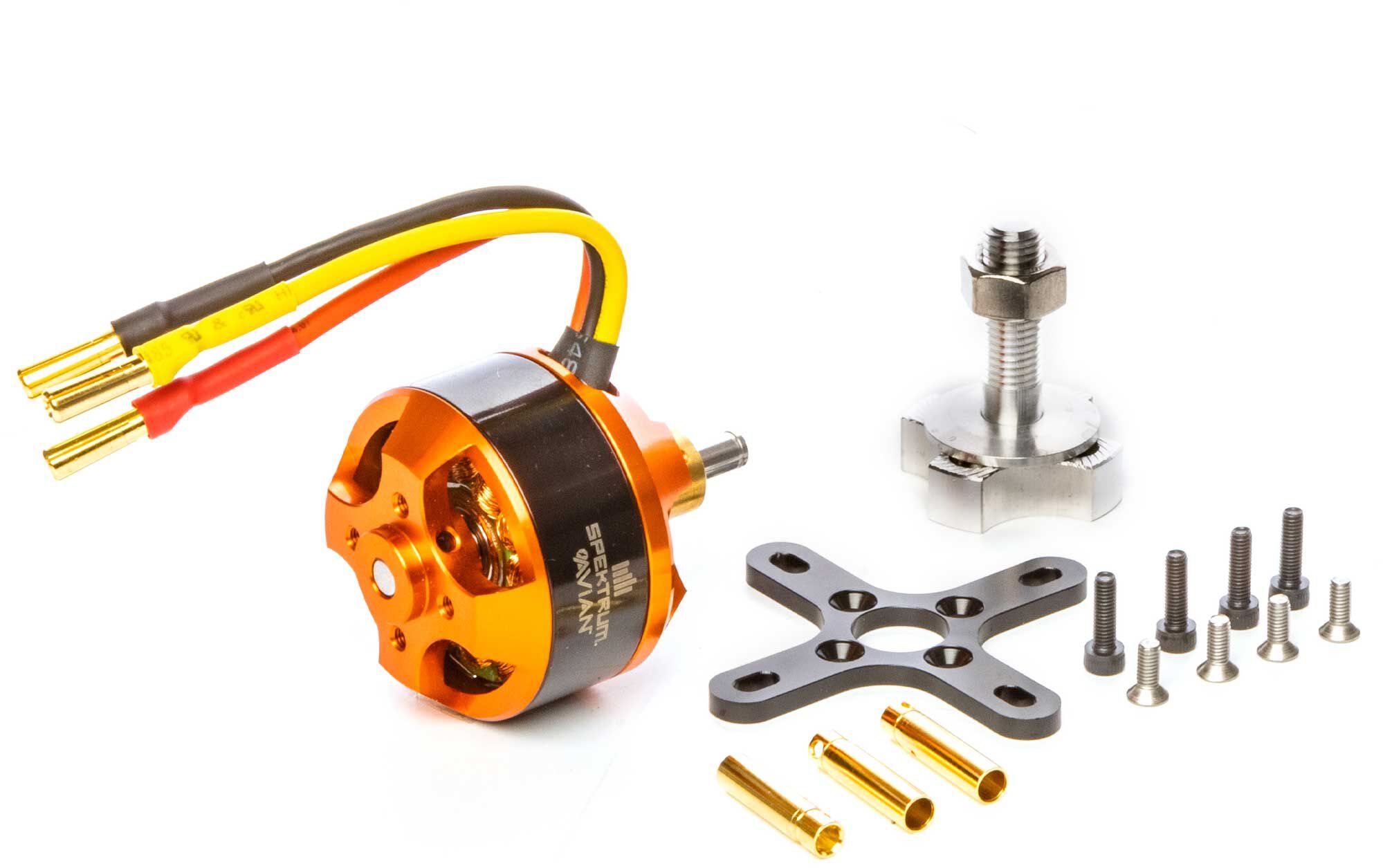

Includes all needed hardware: preinstalled gold plated bullet ports, aluminum motor mount, prop adapter and female ESC ports

Perfect match for the Spektrum Smart Avian 45 amp ESC

Perfect electrical conversion upgrade for .25 size glow combustion power systems





Essential Specs

Suggested Voltage Range – 11.1-14.8V / 3-4S LiPo

Suggested Propeller Range – 11x8.5 to 12x6 Electric Prop

Suggested Model Flying weight – 3D 1360g (3 lbs) - Sport 2040g (4.5 lbs)

Max Wattage – 375w

Max Current – Max Burst Amps (50A) Max Continuous Amps (45A)



Specs

Input Voltage: 11.1-14.5V (3-4S LiPo)

Maximum Burst Current: 50A

Maximum Continuous Existing: 45A

Motor Type: Brushless

Number of Poles: 14

Outer Diameter: 1.7" (43 mm)

Item Length: 1.6" (41 mm)

Item Weight: 4.4oz (125g)

RPM/Volt (Kv): 1000

Shaft Diameter: 0.2" (5 mm)

Shaft Length: 0.67" (17 mm)
