Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of remarkable performance, high reliability and user-friendly functions makes the Spektrum Avian Brushless Motors an excellent option for your next airplane job. Plus, the large selection indicates there's Avian Brushless motor that's perfect for whatever the application, including brushed-to-brushless upgrades along with combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Innovation geared up models!





Key Benefits

Fast Velocity and Extreme Torque: Expertly engineered to provide quick, smooth and exact acceleration and power.

Reliable and Practically Upkeep Free: Geared up with double-shielded sealed bearings, accuracy well balanced motor bell and gold-plated bullet connectors.

Excellent Cooling: Engineered to help air flow relocation through the motor for effective cooling throughout and after flight.





Features

Light-weight design

Powerful and long lasting Rare-Earth Neodymium magnets

14-pole stator for smooth and exact propulsion

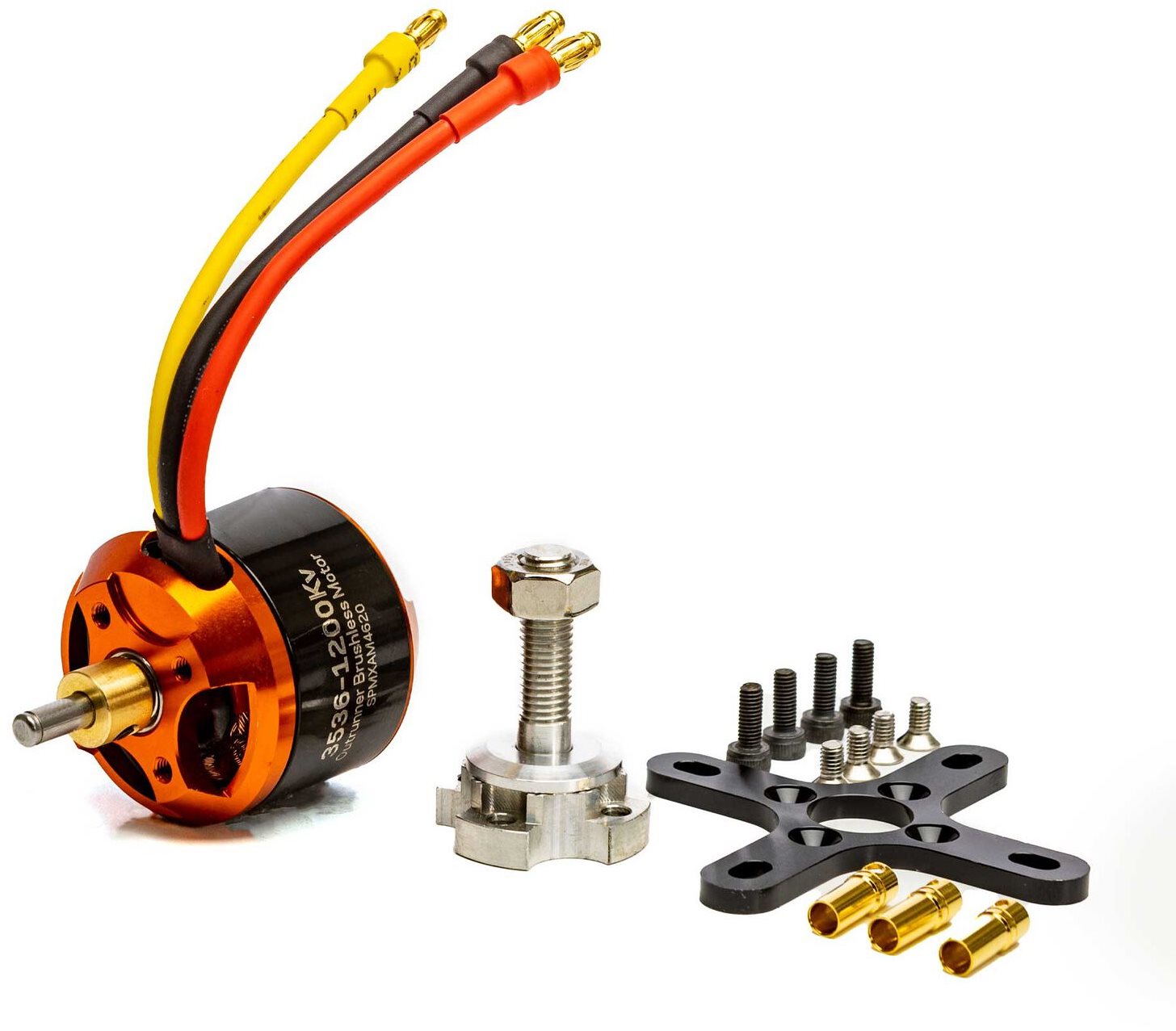

Includes all needed hardware: preinstalled gold plated bullet ports, aluminum motor install, prop adapter and female ESC ports

Perfect match for the Spektrum Smart Avian 45 amp ESC

Perfect electric conversion upgrade for .15 size radiance combustion power systems





Important Specs

Recommended Voltage Range – 11.1v - 14.8V / 3-4S LiPo

Recommended Prop Range – 10x7 to 11x7 Electric Prop

Recommended Design Flying weight – 3D 1135g (2.5 lbs) - Sport 1815g (4 lbs)

Max Wattage – 310w

Max Current – Max Burst Amps (45A) Max Continuous Amps (35A)



Requirements

Application: Sport airplanes as much as 4lbs (1815g) and 3D airplanes as much as 2.5lbs (1135g)

Bearing: Yes

Connector Type: 3.5mm Bullet

Forward: Yes

Input Voltage: 11.1v - 14.8V / 3-4S LiPo

Optimum Burst Current: 45A

Optimum Continuous Current: 35A

Motor Size: 3536-1200Kv

Motor Type: Brushless - Outrunner

Variety of Poles: 14

Outer Size: 1.37" (35 mm)

Product Length: 1.42" (36 mm)

Product Weight: 3.6oz (102g)

Recommended Prop Range: 10x7 to 11x7 Electric Prop

RPM/Volt (Kv): 1200

Shaft Size: 0.16" (4 mm)

Shaft Length: 0.65" (17 mm)
