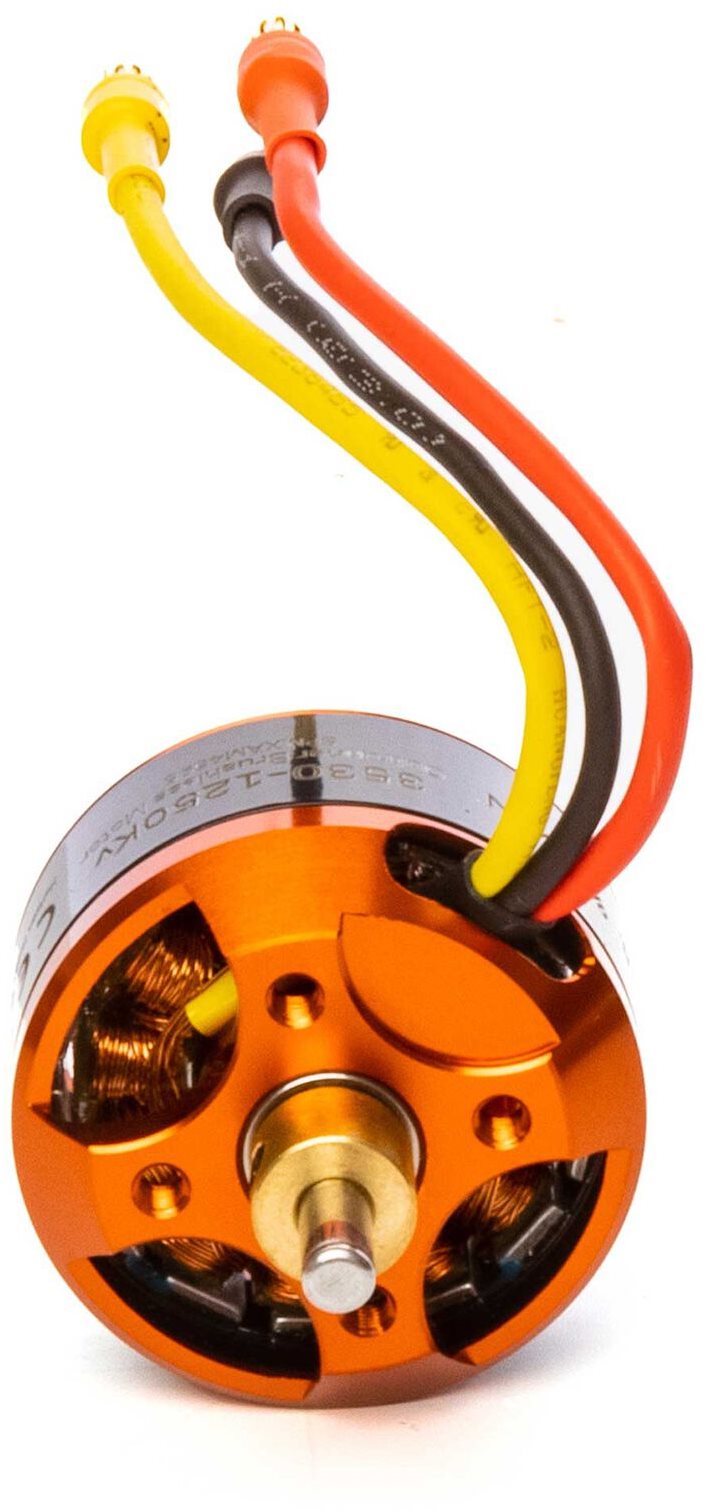

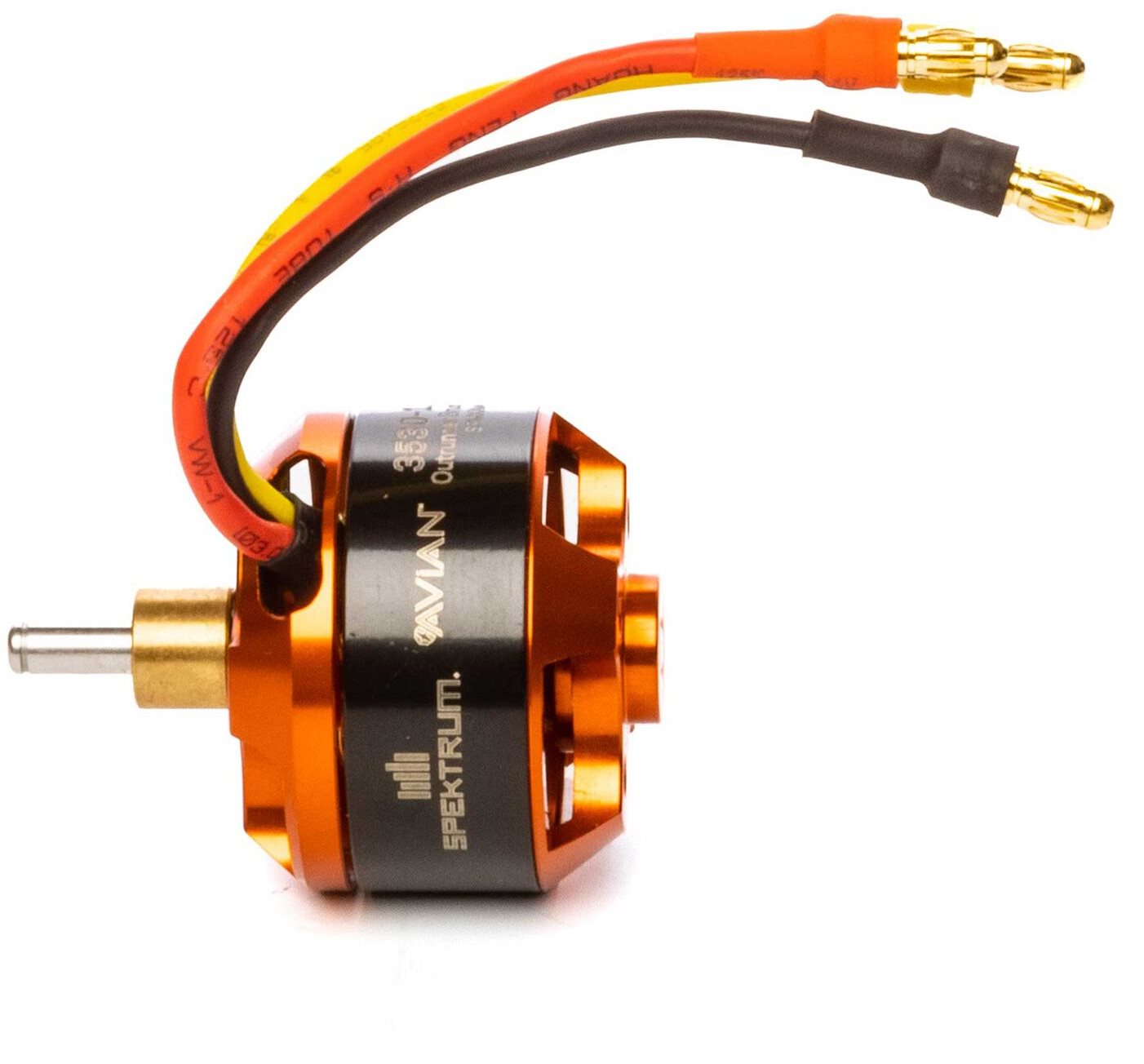

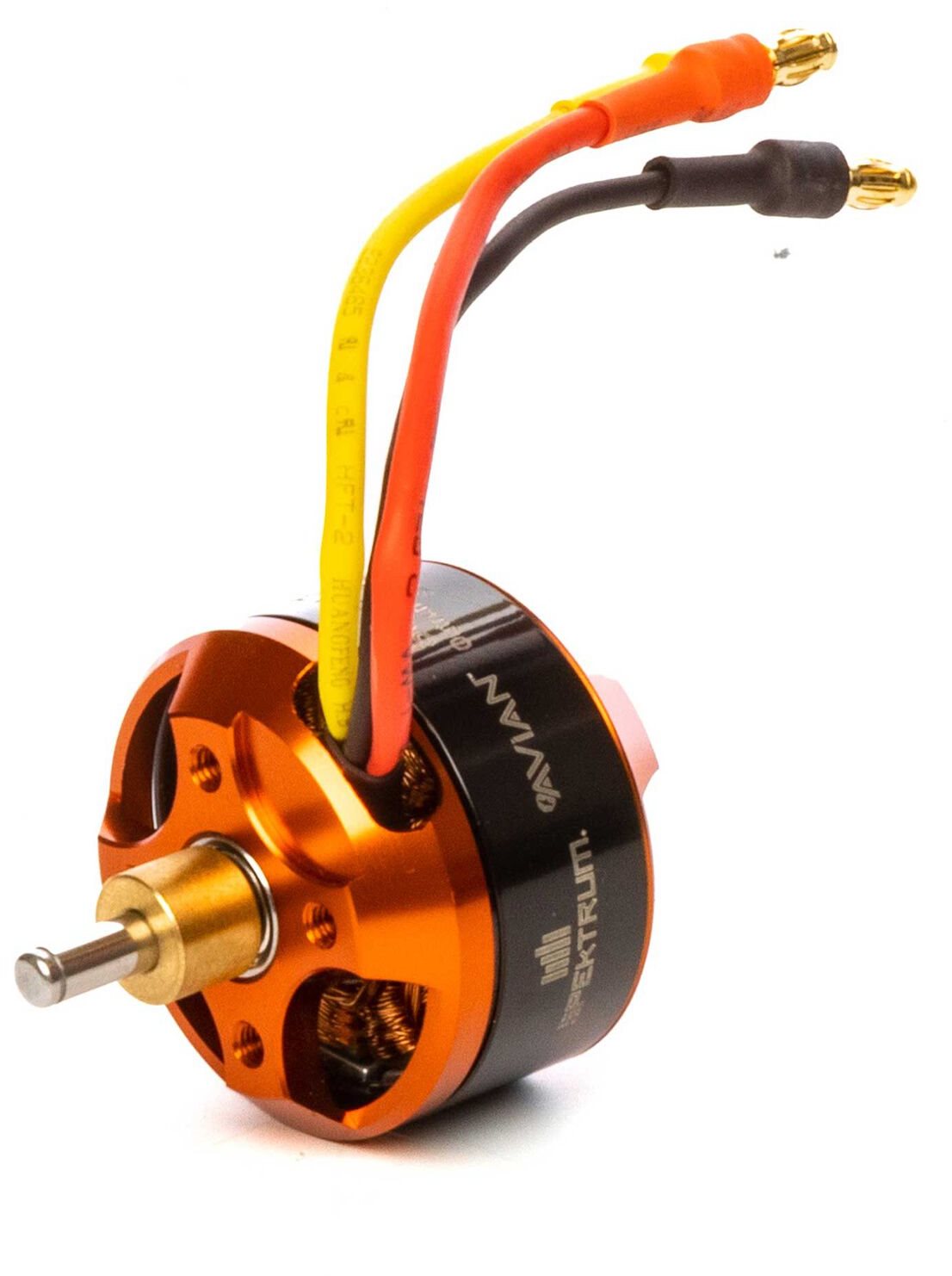

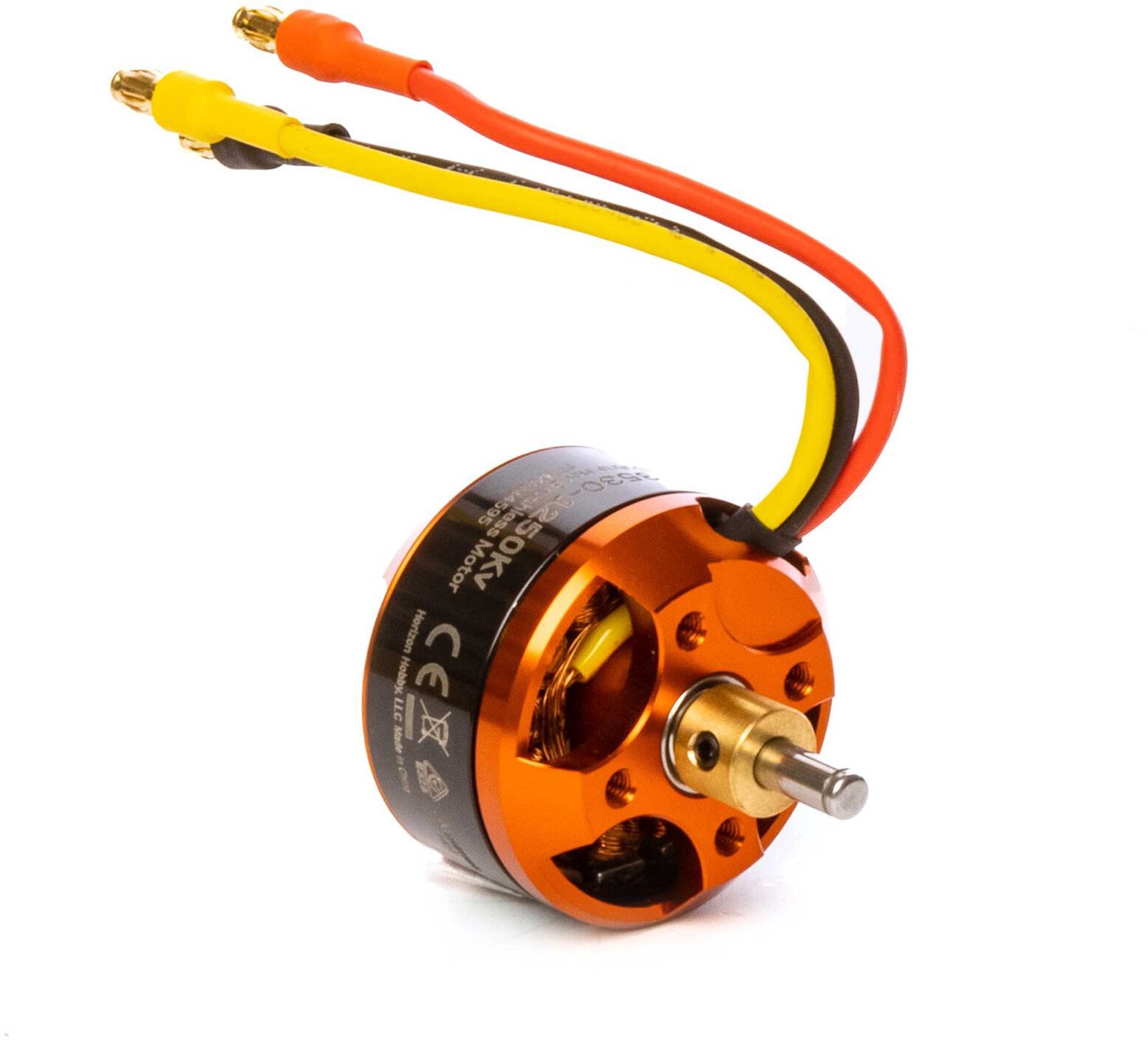

Spektrum Avian 3530-1250Kv Outrunner Brushless Motor

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Require to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of exceptional efficiency, high dependability and easy to use features makes the Spektrum Avian Brushless Motors an outstanding option for your next aircraft project. Plus, the broad selection suggests there's Avian Brushless motor that's perfect for whatever the application, including brushed-to-brushless upgrades in addition to combustion-to-electric conversions. Equip your airplane with a Bird motor to compliment your Smart Technology geared up models!





Key Benefits

Fast Velocity and Extreme Torque: Expertly engineered to deliver quickly, smooth and precise velocity and power.

Reliable and Practically Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.

Excellent Cooling: Engineered to help airflow move through the motor for effective cooling during and after flight.





Features

Lightweight style

Effective and long lasting Rare-Earth Neodymium magnets

14-pole stator for smooth and precise propulsion

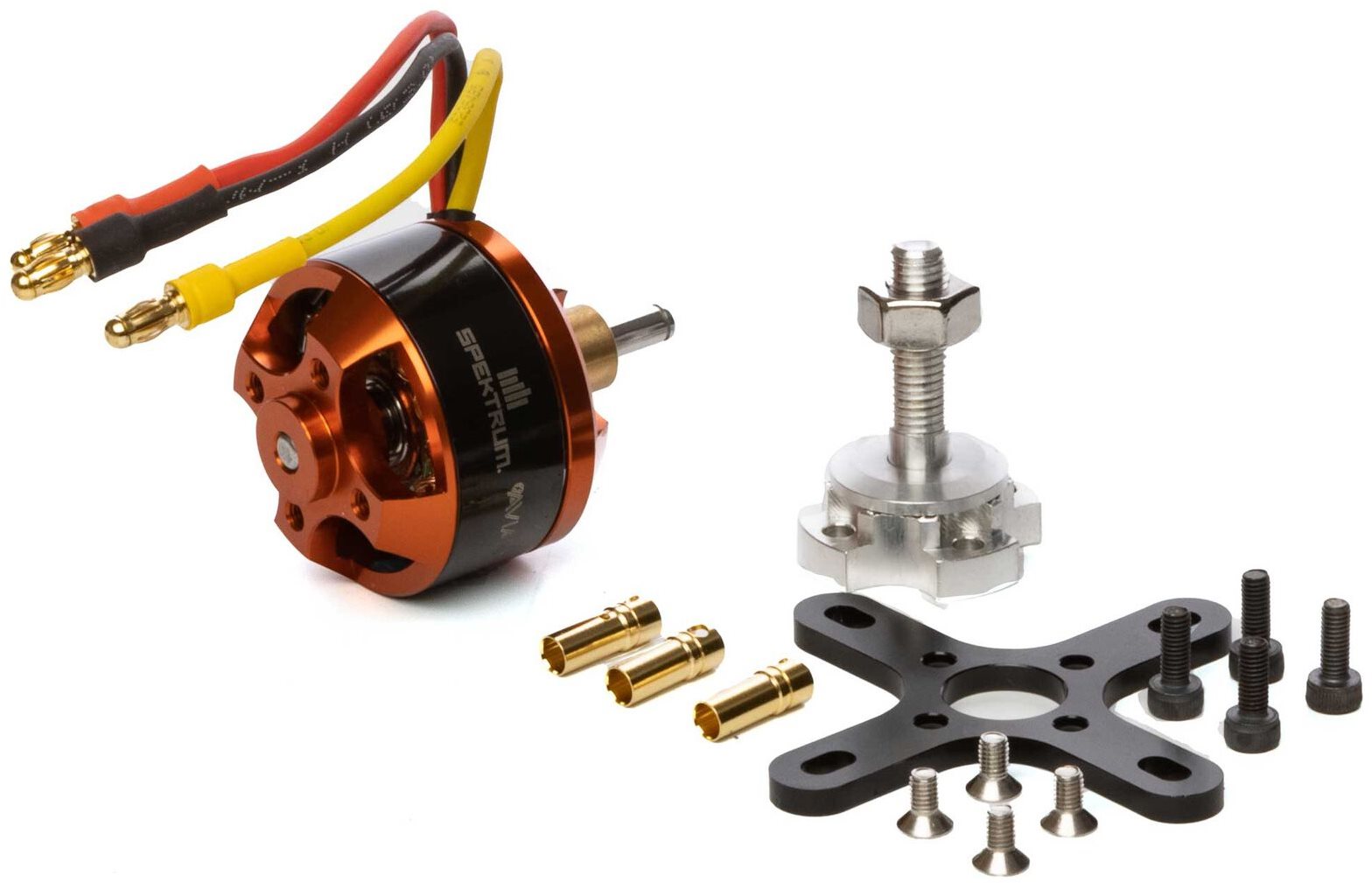

Consists of all required hardware: preinstalled gold plated bullet connectors, aluminum motor install, prop adapter and female ESC connectors

Perfect match for the Spektrum Smart Avian 30 amp ESC

Perfect electrical conversion upgrade for .10 size glow combustion power systems





Crucial Specs

Advised Voltage Range – 7.4-11.1V / 2-3S LiPo

Advised Propeller Range – 10x4.5 to 10x7 Electric Prop

Advised Model Flying weight – 3D 905g (2 lbs) - Sport 1360g (3 lbs)

Max Wattage – 220w

Max Current – Max Burst Amps (35A) Max Continuous Amps (30A)



Requirements

Port Type: 3.5mm Bullet

Input Voltage: 7.4 - 11.1V (2 - 3S LiPo)

Optimum Burst Current: 35A

Optimum Continuous Current: 30A

Motor Type: Brushless - Outrunner

Number of Poles: 14

External Size: 1.38" (35 mm)

Item Length: 1.18" (30 mm)

Item Weight: 2.5oz (71g)

Advised Prop Range: 10x4.5 - 10x7 electrical

RPM/Volt (Kv): 1250

Shaft Size: 0.16" (4 mm)

Shaft Length: 0.65" (17 mm)
