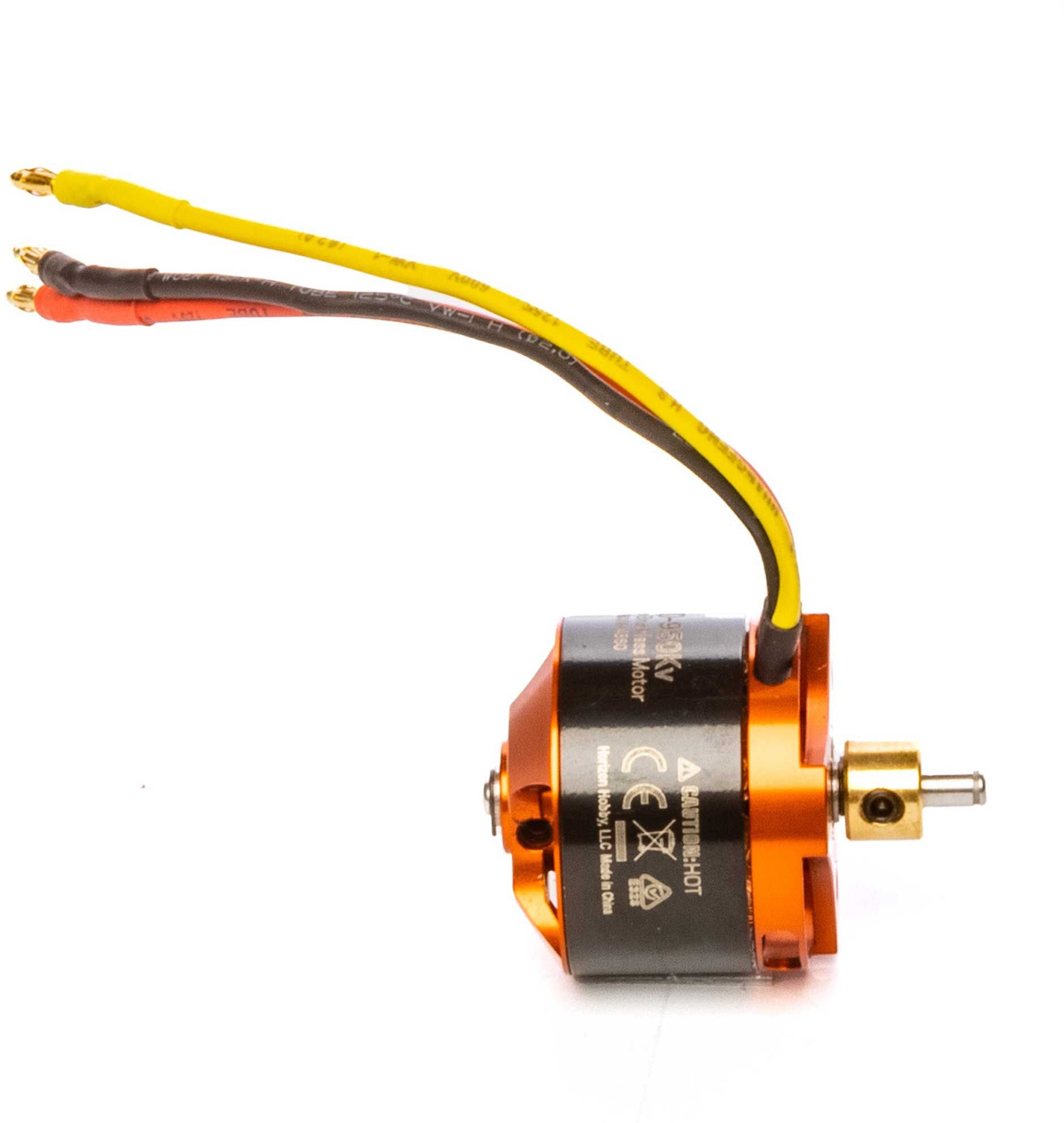

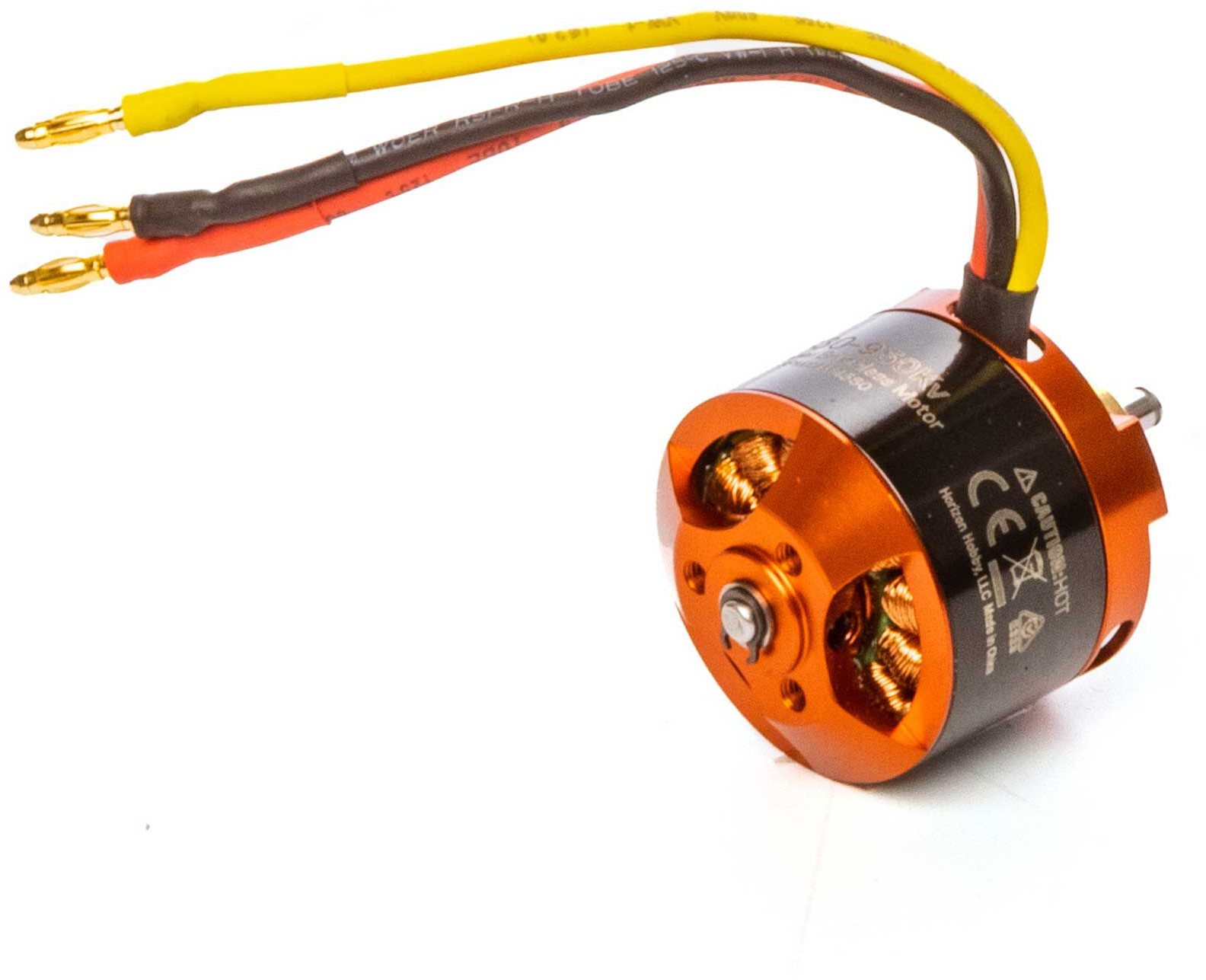

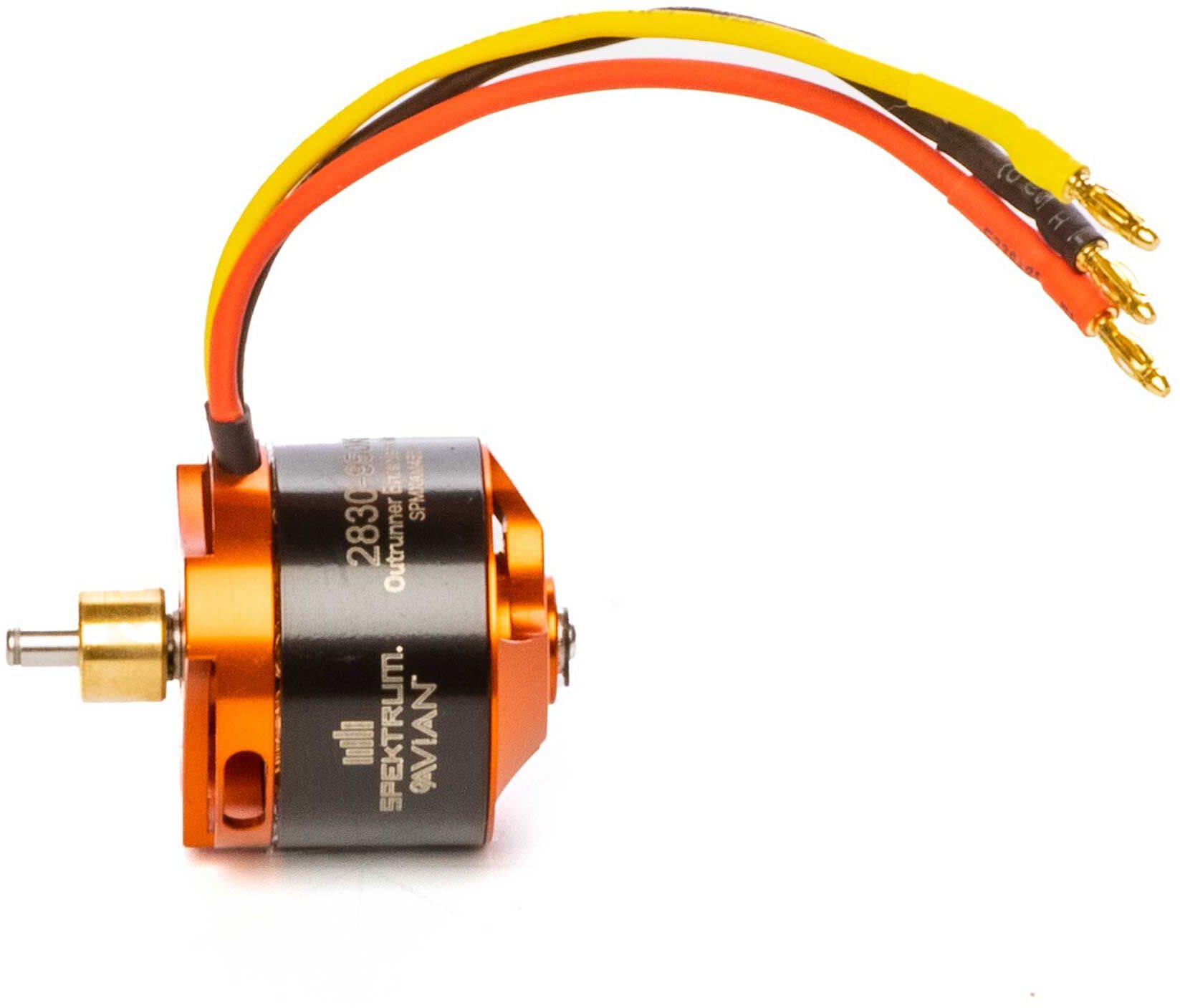

Spektrum Avian 2830-950Kv Outrunner Brushless Motor

.mediaFeature [padding:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Require to the Skies with Spektrum Bird Brushless Motors for Fixed-wing Designs
The mix of remarkable performance, high reliability and easy to use features makes the Spektrum Bird Brushless Motors an excellent choice for your next airplane task. Plus, the large choice implies there's Bird Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades in addition to combustion-to-electric conversions. Equip your aircraft with an Avian motor to match your Smart Technology equipped models!





Key Advantages

Rapid Acceleration and Extreme Torque: Expertly engineered to deliver quickly, smooth and exact velocity and power.

Reliable and Practically Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.

Excellent Cooling: Engineered to assist airflow relocation through the motor for effective cooling during and after flight.





Features

Light-weight style

Powerful and durable Rare-Earth Neodymium magnets

14-pole stator for smooth and exact propulsion

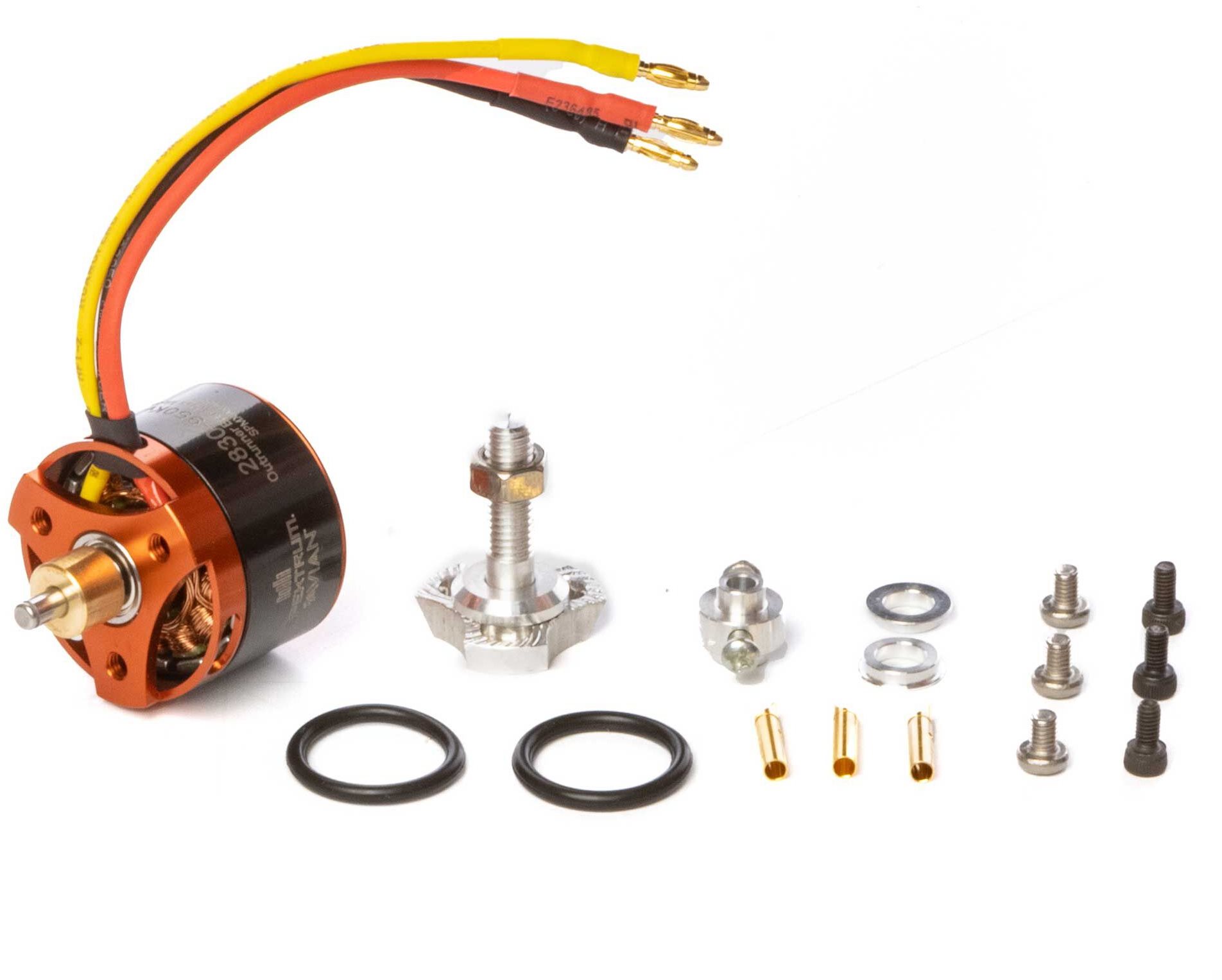

Includes all needed hardware: preinstalled gold plated bullet ports, aluminum motor install, prop adapter and female ESC ports

Perfect match for the Spektrum Smart Bird 30 amp ESC





Crucial Specs

Recommended Voltage Range – 7.4-11.1V / 2-3S LiPo

Recommended Propeller Range – 8x6 to 10x4.5 Slow-fly Prop

Recommended Model Flying weight – 3D 565g (20 oz) - Sport 905g (32 oz)

Max Wattage – 160w

Max Current – Max Burst Amps (20A) Max Continuous Amps (14A)



Specs

Application: For Sport aircrafts as much as 32oz (905g) and 3D aircrafts as much as 20oz(565g)

Input Voltage: 7.4-11.1V (2-3S LiPo)

Maximum Burst Current: 20A

Maximum Continuous Current: 14A

Motor Type: Brushless - Outrunner

Variety of Poles: 14

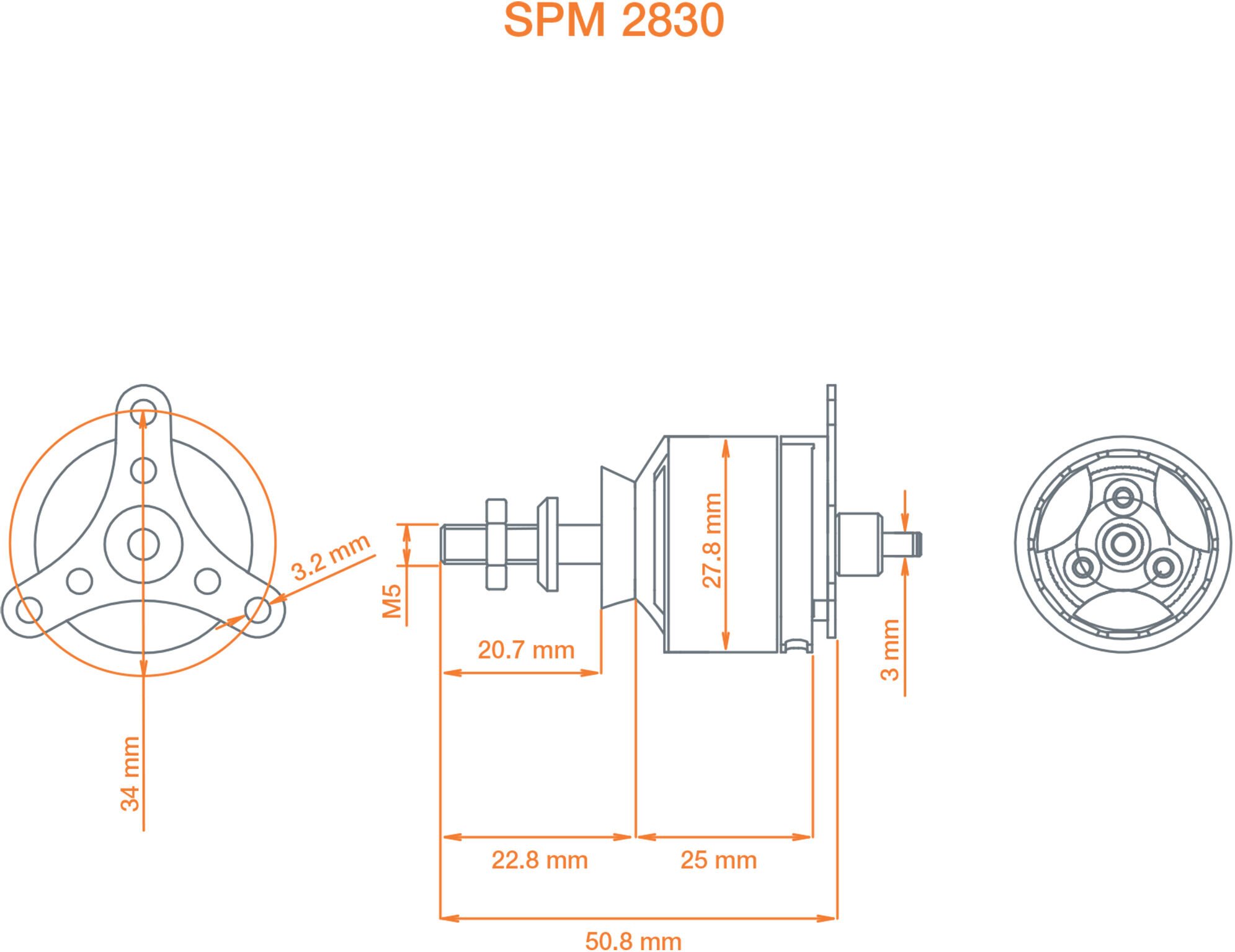

External Size: 1.1" (28 mm)

Item Length: 1.18" (30 mm)

Item Weight: 1.91oz (54g)

Recommended Prop Range: 8x6 - 10x4 sluggish fly

RPM/Volt (Kv): 950 rpm/V

Shaft Size: 0.12" (3 mm)

Shaft Length: 0.47" (12 mm)

Voltage: 7.4-11.1V / 2-3S
