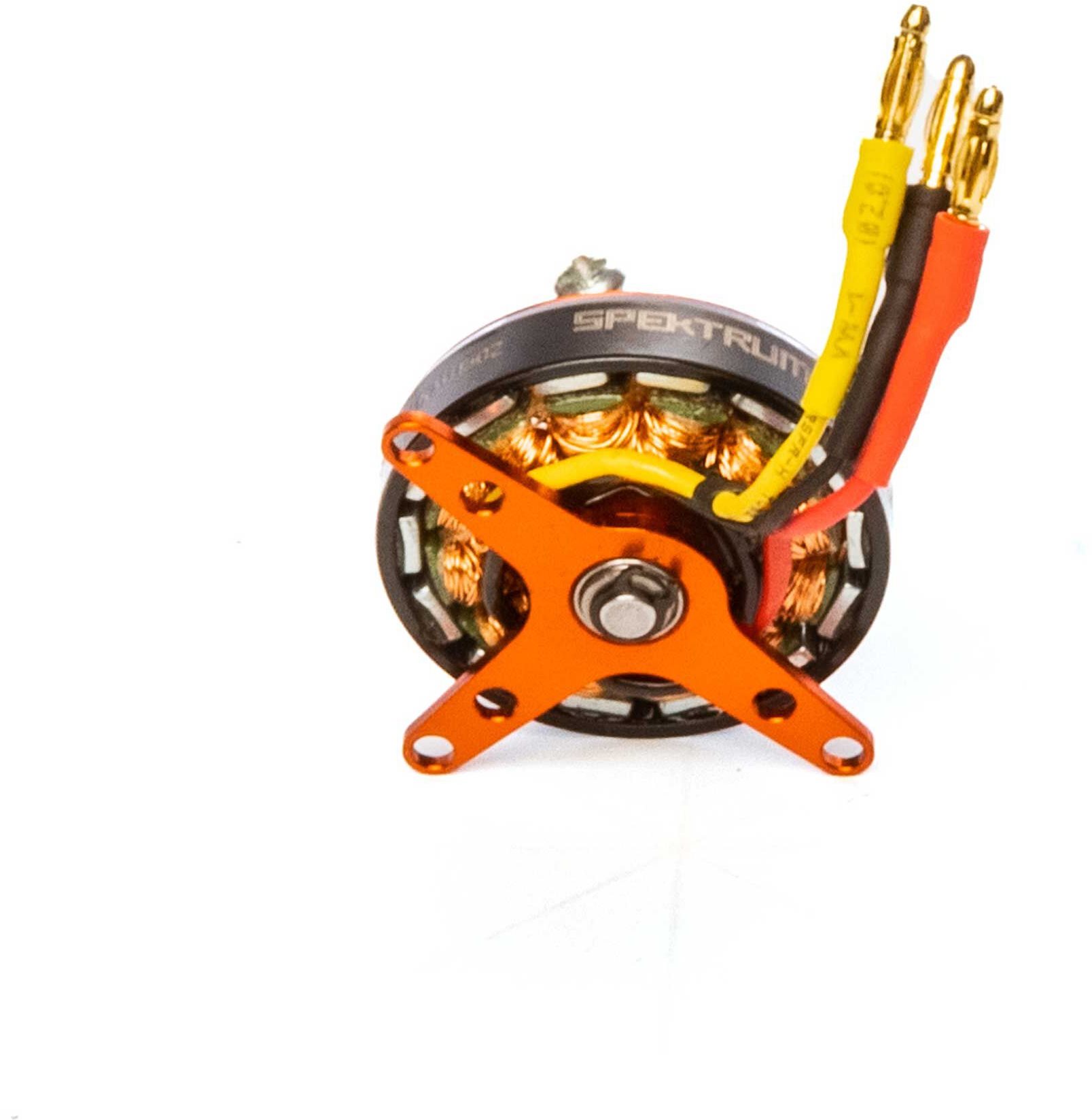

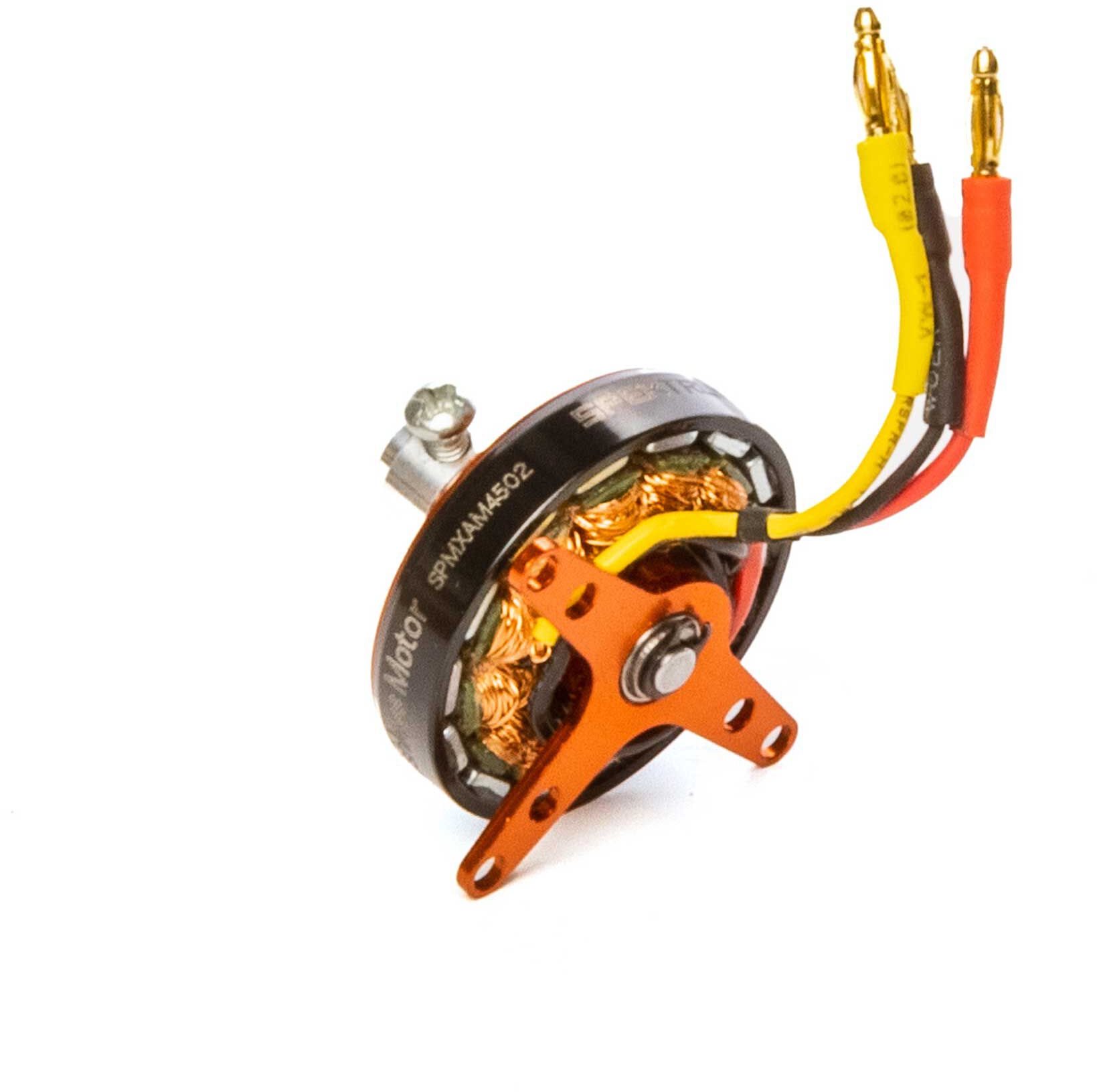

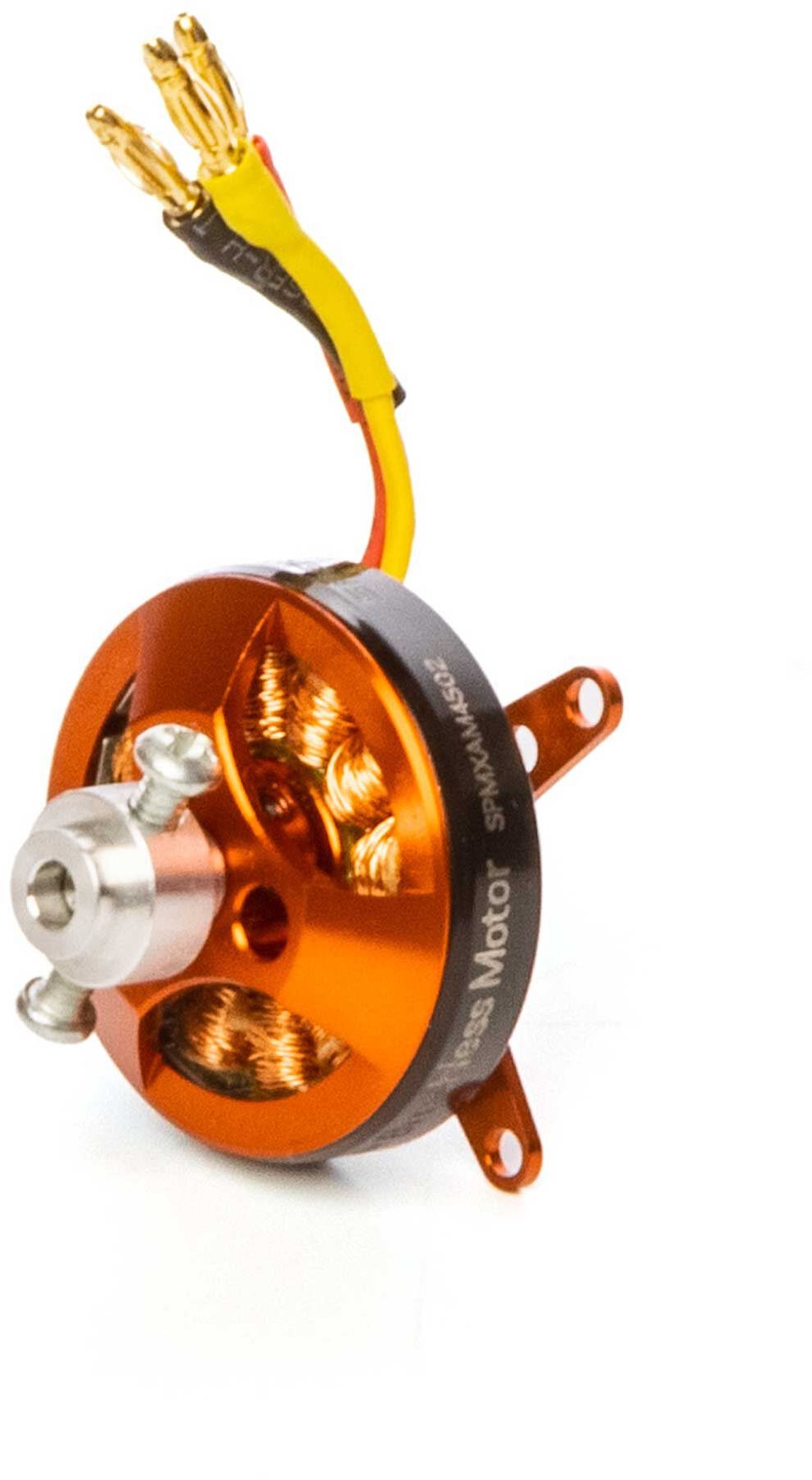

Spektrum Avian 2813-1750Kv Outrunner Brushless Motor

.mediaFeature [padding:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Require to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The mix of exceptional efficiency, high dependability and easy to use features makes the Spektrum Avian Brushless Motors an outstanding choice for your next aircraft job. Plus, the wide choice implies there's Avian Brushless motor that's ideal for whatever the application, consisting of brushed-to-brushless upgrades in addition to combustion-to-electric conversions. Equip your aircraft with an Avian motor to compliment your Smart Innovation geared up models!





Key Benefits

Fast Velocity and Extreme Torque: Skillfully crafted to deliver quickly, smooth and precise velocity and power.

Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, accuracy well balanced motor bell and gold-plated bullet connectors.

Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.





Features

Light-weight design

Effective and resilient Rare-Earth Neodymium magnets

14-pole stator for smooth and precise propulsion

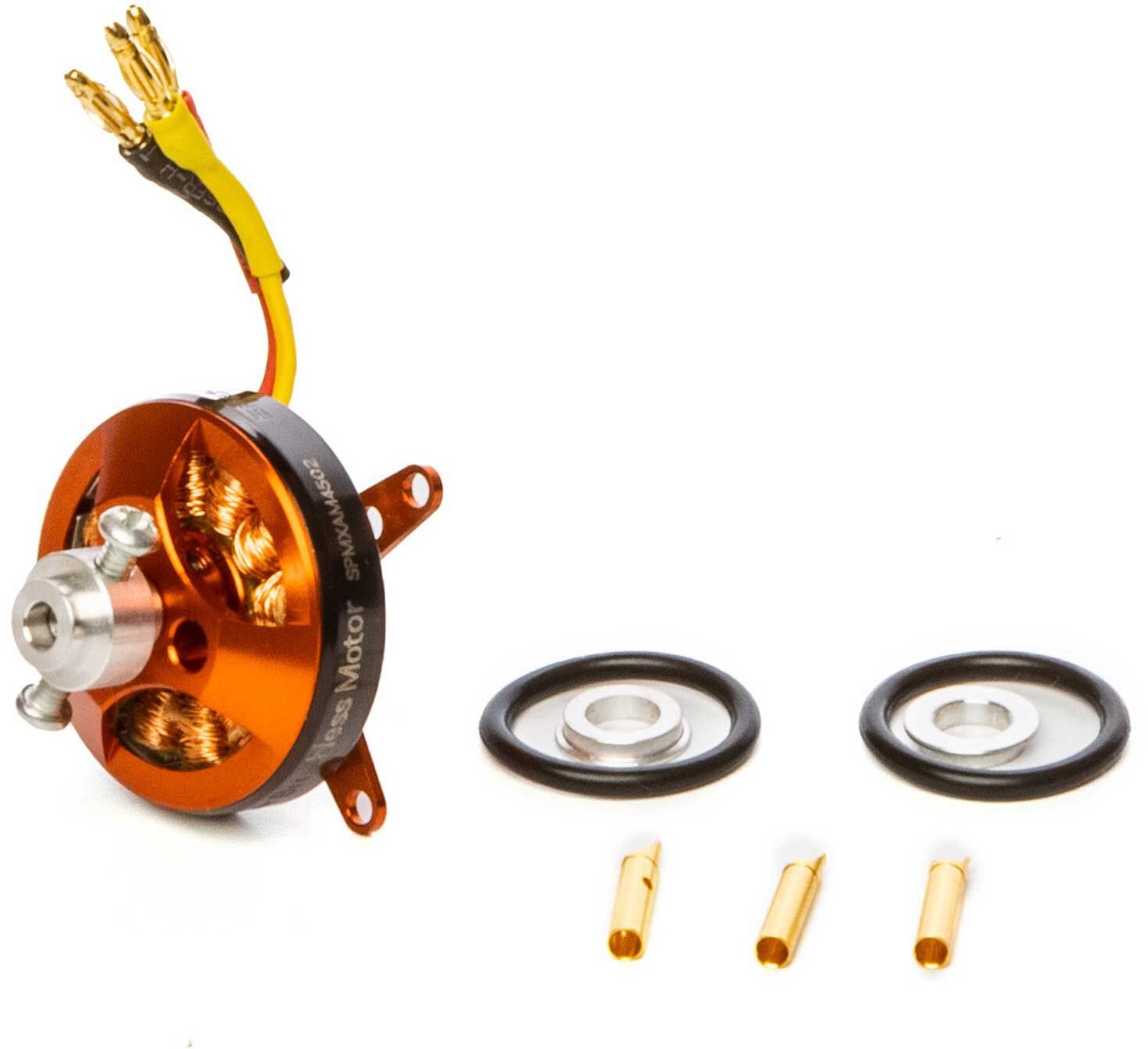

Consists of all required hardware: preinstalled gold plated bullet adapters, aluminum motor install, prop adapter and female ESC adapters

Perfect match for the Spektrum Smart Avian 15 amp ESC





Important Specifications

Advised Voltage Range – 7.4-11.1V / 2-3S LiPo

Advised Propeller Range – 7x6 to 8x4 Slow-fly Prop

Advised Design Flying weight – 140g (5 oz) 3D - 225g (8 oz) Sport

Max Wattage – 60w

Max Current – Max Burst Amps (12A) Max Constant Amps (8A)



Specifications

Battery Input Lead: 1.57" (40mm)

BEC Continous Current: 60w

BEC Optimum Burst Current: 100w

Connector Type: 2mm Bullet

Idle Current (Io): 0.5A

Input Voltage: 7.4V - 11.1V (2 - Three LiPo)

Variety Of Poles: 14

Outer Size: 1.1" (28 mm)

Product Length: 0.51" (13 mm)

Product Weight: 0.38oz (10.7g) motor just, 0.44oz (12.4g) motor, install & prop adapter

Recommended Prop Range: 7x6 to 8x4 Slow-fly Prop

Advised Speed Control: 6A

RPM/Volt (Kv): 2400/7.4V

Shaft Size: 3" (76 mm)
