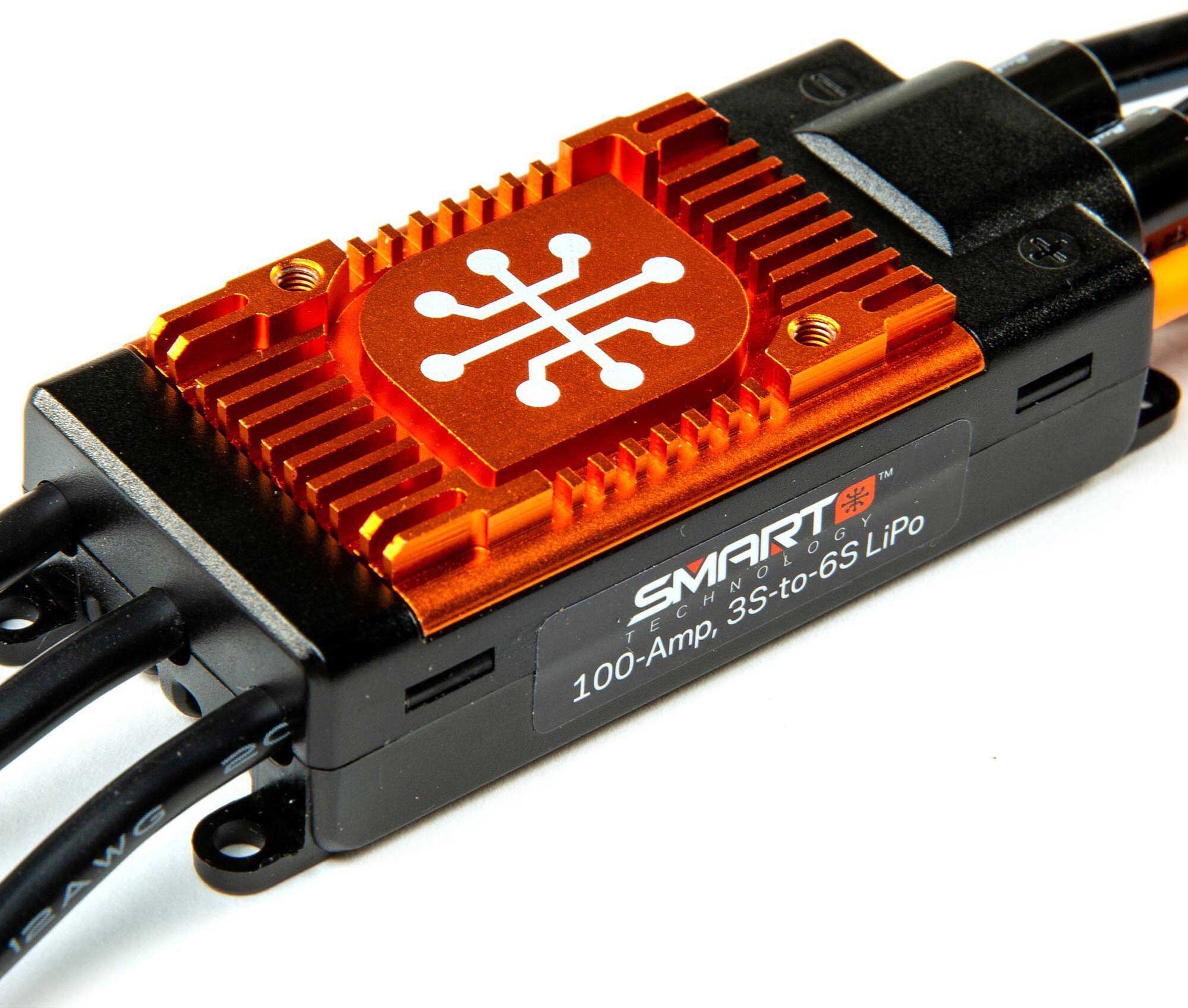

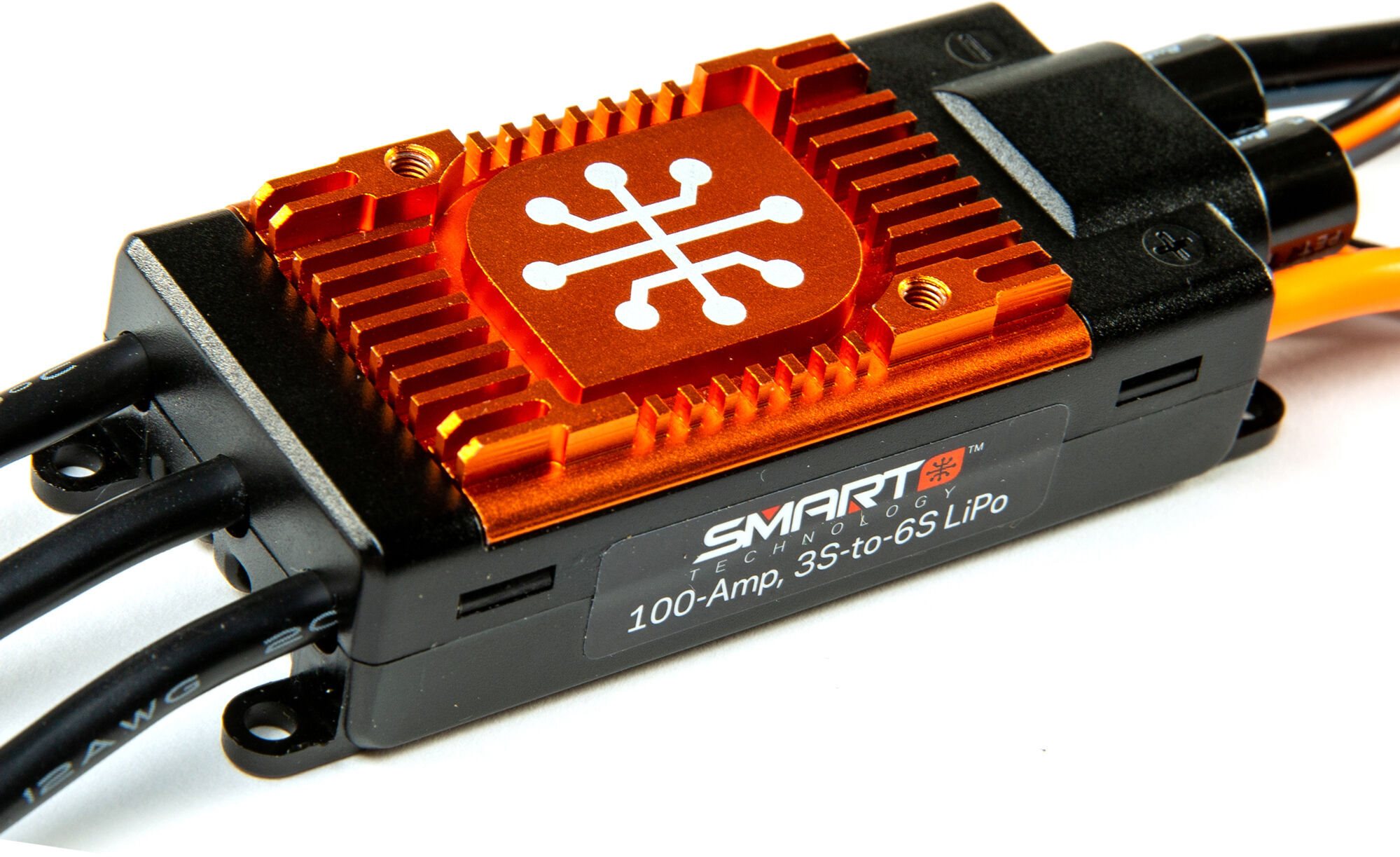

Spektrum Avian 100Amp Brushless Smart ESC, 3-6S Ver. A

.mediaFeature [padding:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



SPMXAE1100A Specs

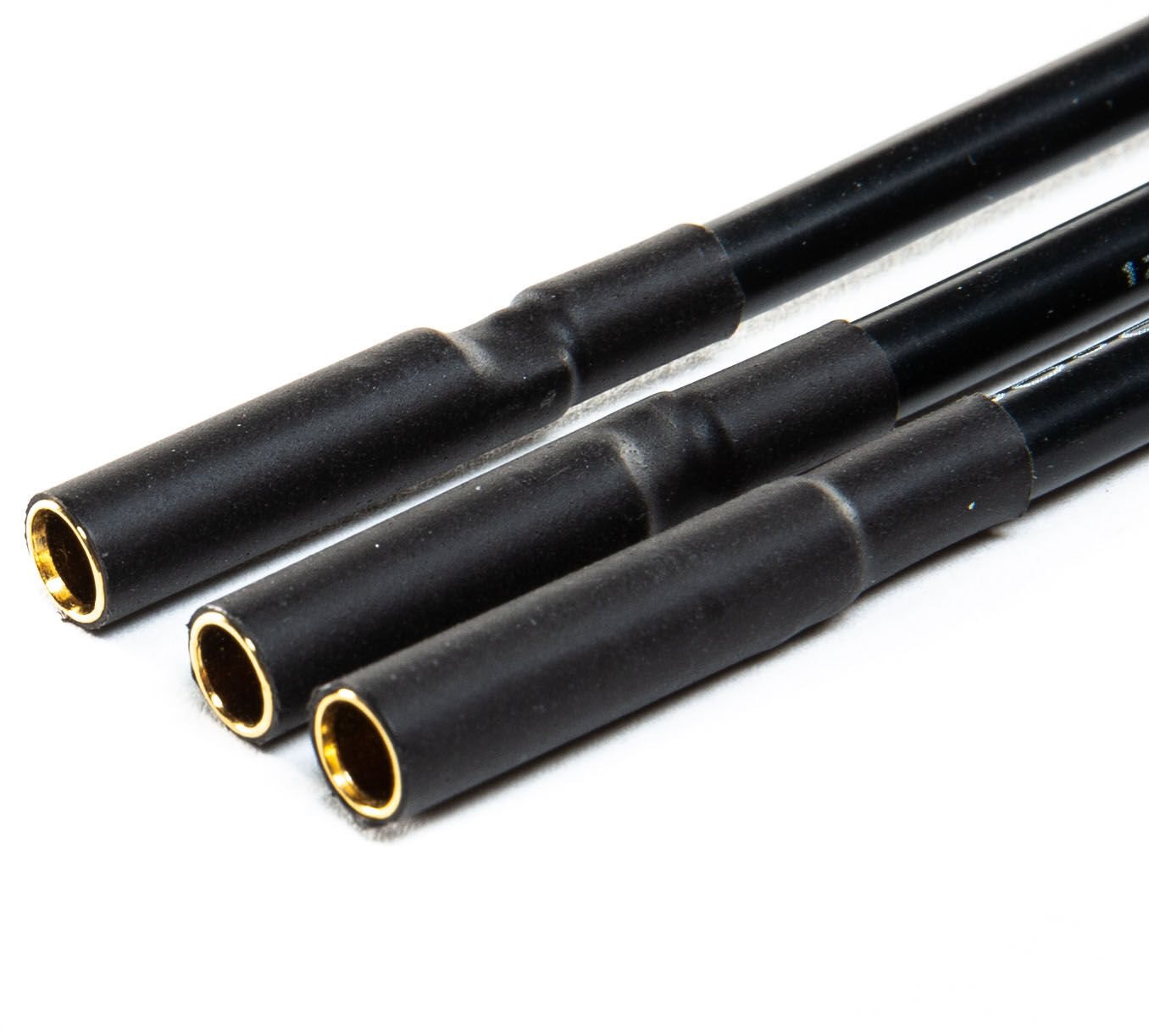

Motor Output Leads: 5.12 in (130mm) 12AWG with 4.0mm bullet adapter

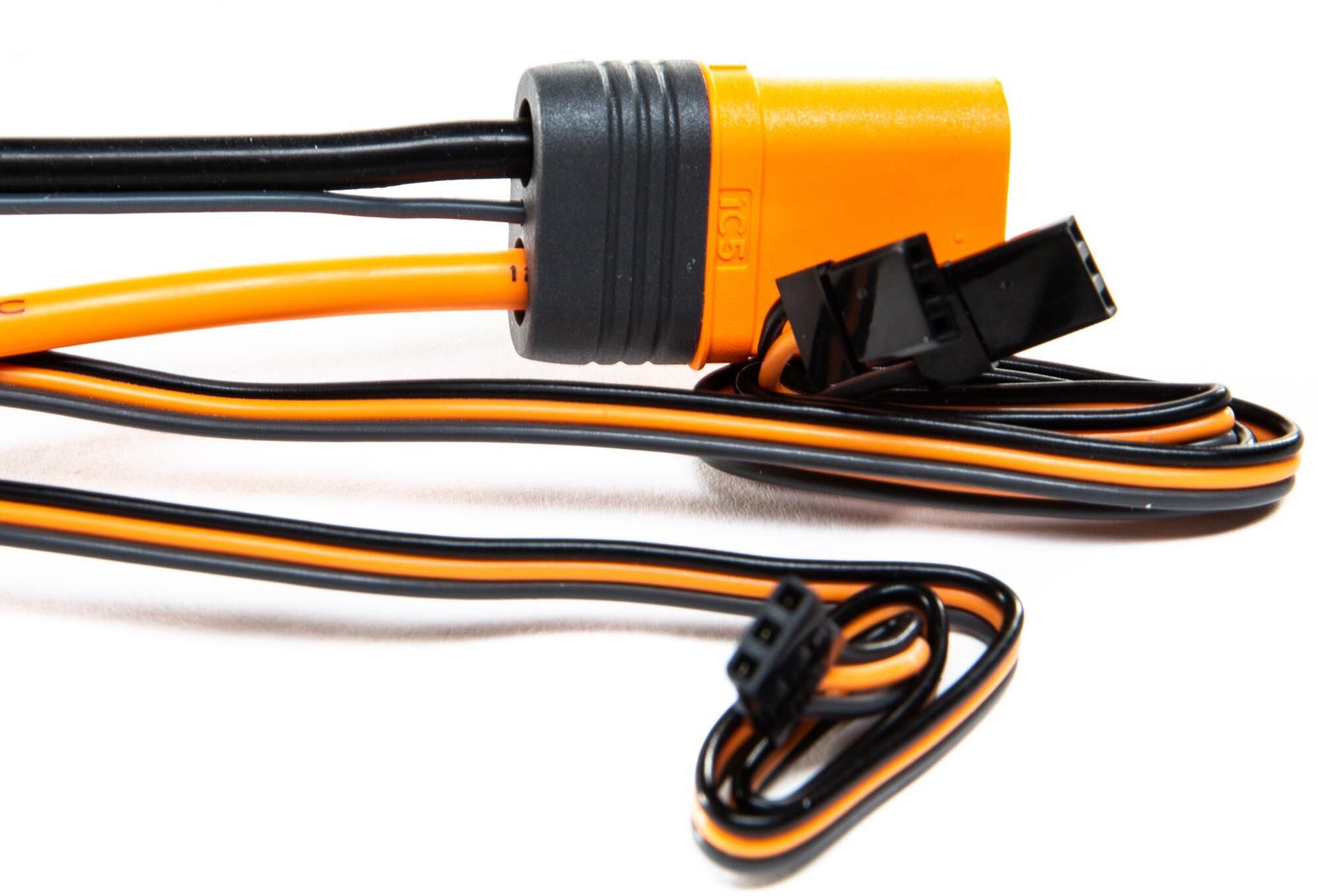

Battery Input Leads: 15.75 in (400mm) 12AWG with IC5 adapter

Throttle Lead: 17.71 in (450mm) standard gauge with servo adapter





Product Features

Smart all-in-one telemetry

Quick, powerful 32-bit ARM M4 processor

Multiple choices for easy shows:

Smart ESC Shows Box

SmartLink USB Updating and Programmer application

Throttle stick shows

Multi-point protection:

Over-current protection

Automatic LiPo low-voltage cutoff

Thermal protection

Failsafe protection

Established and developed by Spektrum™ engineers, in partnership with the market's leading ESC producer

Compact for easy installation in a lot of applications

All set to install — no soldering required

Rugged plastic case

Heat dissipating design

Tabs included for a tough install

Aluminum heat sink for high performance

Adjustable high-power BEC

Double BEC power connectors

Firmware updatable through the Smart ESC Shows Box and SmartLink PC application

High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

Limited 1-year guarantee





Product Summary
Like every component in the Spektrum™ Smart environment, Avian™ Smart ESCs integrate "plug-and-play" simpleness with the capability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than manage power. They work like a virtual engineer inside your design, supplying a direct course to the essential operating data you require to reach peak efficiency. Avian Smart Air ESCs provide you an extra layer of self-confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be much better linked to your aircraft than ever in the past — without installing additional parts that all work independently of each other. You won't require additional wires, modules, or links. An Avian electronic speed control supplies a one-wire service for acquiring telemetry data such as existing, voltage, cell balance, temperature and RPM.
Avian ESCs not only collect the data but likewise send it to your transmitter in genuine time, instead of only saving it for after-run study. You have the ability to adjust settings as needed to enhance efficiency on the go. The Avian Smart single-wire telemetry service has been tested for quality and efficiency by the finest brand names in RC. Their decision? Smart technology is both simpler and exceptional!










Spektrum™ Smart Innovation










One-Wire Telemetry
No need to connect several wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry sends a large range of data directly to your transmitter in actual time, including existing, voltage, cell balance, temperature and RPM.








EC3™/EC5™ In Reverse Suitable
Avian™ ESCs include IC™ series battery connectors. The IC series of connectors are developed from the ground up to offer a more solid connection, higher heat resistance, and uncomplicated installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and send battery telemetry data. EC3™ and EC5™ connectors are likewise compatible with Avian ESCs for standard operation and ESC telemetry.




Smart Innovation Battery Data
When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC supplies you with the benefit of battery telemetry that's automatically transferred to your radio in genuine time. On your transmitter screen you'll be presented with handy details such as variety of cycles, battery percentage, individual cell voltage and more!








Multiple Shows Options
Multiple shows choices are readily available. Throttle stick shows can be used with absolutely nothing more needed. Using the Smart ESC Shows Box, you can easily change settings at the field to fit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is likewise readily available.




Quick, Effective M4 Processor
The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more precise motor output.




Specs

Vehicle Cutoff: Yes

Battery Input Lead: 15.75in (400mm) 12AWG with IC5 adapter

BEC: Yes

BEC Continous Current: 8A

BEC Optimum Burst Current: 25A

BEC Type: Change

BEC Voltage: 6V/7.4V/8.4V adjustable

Brakes: Yes

Forward: Yes

Input Voltage: 3S - 6S LiPo

Low-Voltage Cutoff Programmable: Yes

Optimum Burst Current: 120A

Optimum Continuous Current: 100A

Motor Output Lead: 5.12in (130mm) 12AWG with 4.0mm bullet adapter

Product Height: 1.3" (33 mm)

Product Length: 3" (76 mm)

Product Weight: 4.4oz (126g)

Product Width: 1.4" (36 mm)

Programmable: Yes

Reverse: No

Innovation : Smart
