Features

High Voltage (HV) capable (4.8-8.4v input variety)

Completely suited for sport and fitness instructor type model aircraft requiring basic size servos

Outstanding performance and worth for its class (8.3kg-cm and .17 sec/60° @8.4v)

Low wear and securely fit together all metal gear train

Dual bearing supported drive train assists take full advantage of smooth operation

Operating Frequency: 200hz to 333hz

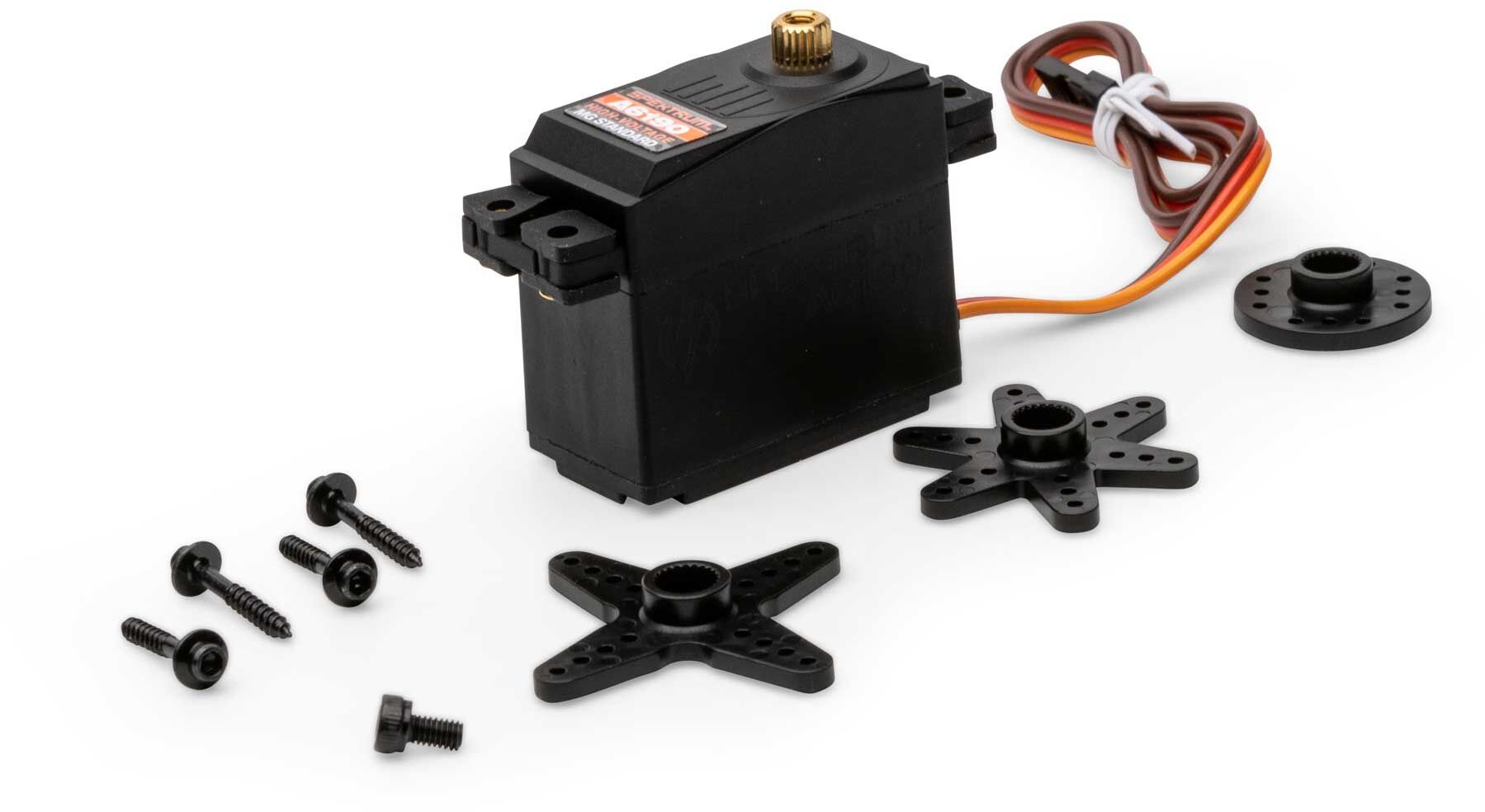

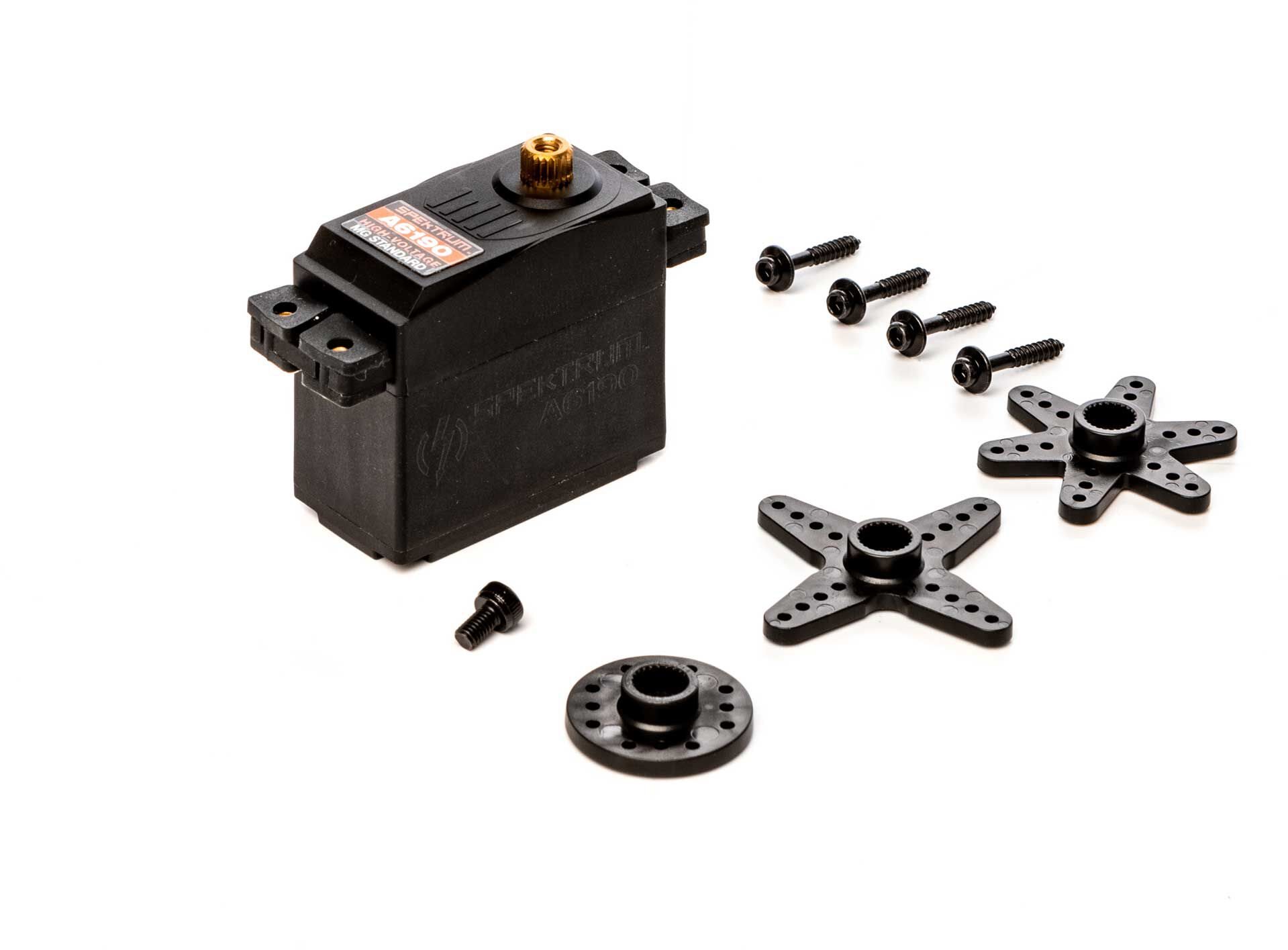

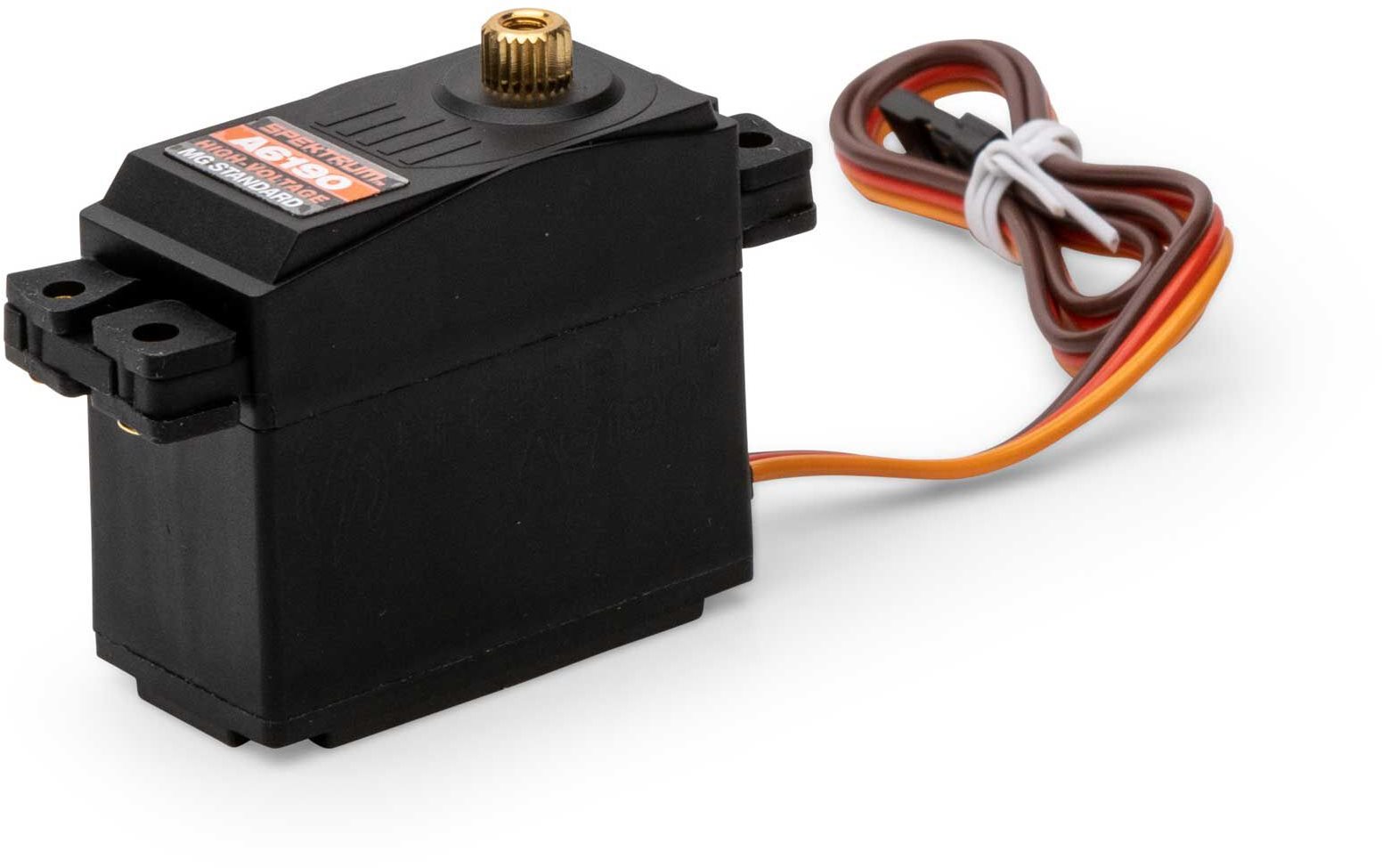

A6190 Standard Metal Equipment HV Digital Servo
The Spektrum A6190 Metal Equipment High Voltage Digital servo uses remarkable performance for pilots trying to find an excellent worth basic size servo for their Sport and Trainer aircraft. High voltage capable, the A6190 can produce 8.3kg-cm (115 in-oz) of torque at 0.17 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a 5-pole ferrite motor and is supported by double ball bearings for smooth operation. It also features low deadband and exact position control. Like all Spektrum servos, the A6190 delivers dependability, consistency and performance that are second to none.



Specifications

Bearing: Dual BB

Bushing Or Bearing: Bearing

Deadband: <>

Equipment Type: Metal

Input Voltage: 4.8V-8.4V

Maximum Servo Torque: 40-99 oz-in

Overload Defense: No

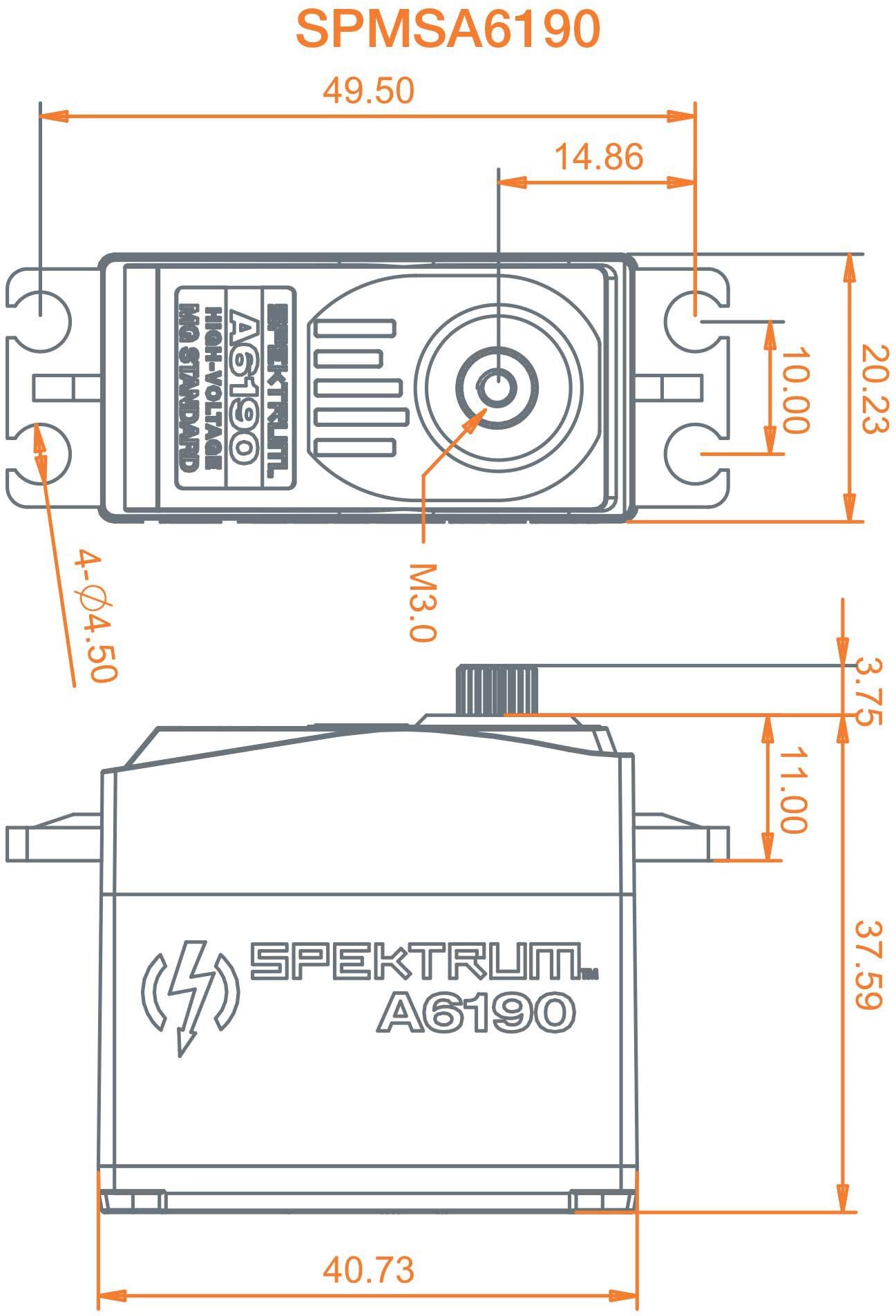

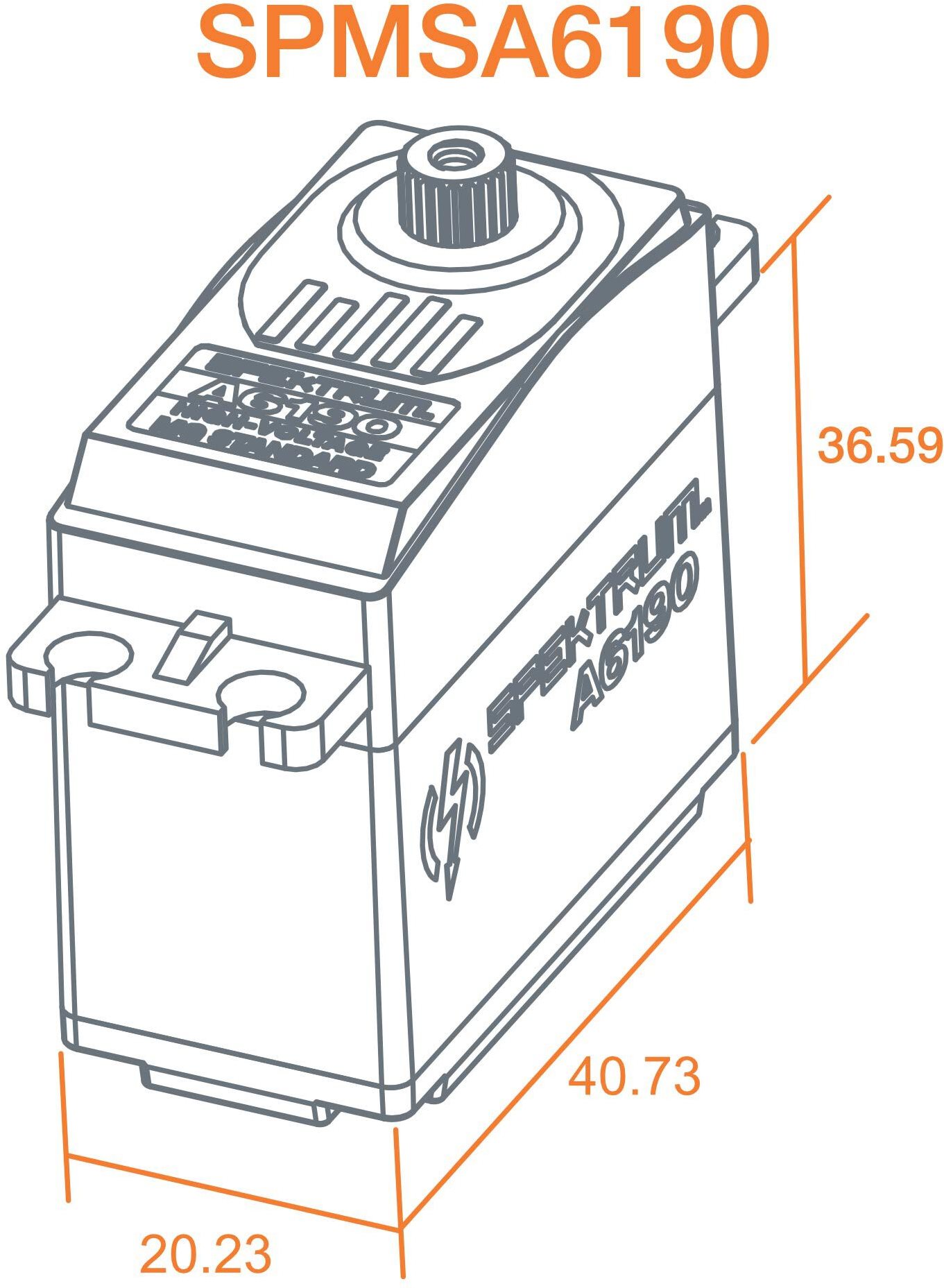

Product Height: 1.58" (40 mm)

Product Length: 1.47" (37 mm)

Product Weight: 1.9 oz (54g)

Product Width: 0.78" (20 mm)

Programmable: No

Servo Operating Voltage: 4.8 - 8.4V (HV)

Servo Size Category: Standard

Servo Speed: 0.22 sec/60 deg @ 6.0V; 0.17 sec/60 deg @ 7.4V; 0.13 sec/60 deg @ 8.4V

Servo Type: Digital

Spline Count: 23 - Tooth

Torque: 90 oz-in (6.48kg-cm) @ 6.0V; 98 oz-in (7kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V
