Features

High Voltage (HV) capable (4.8 8.4v input range)

Mini size is perfectly fit for parkflyer and sport size design airplane

Class leading efficiency (9.6kg cm and .094 sec/60° @8.4v)

Aluminum servo case helps keep running temperatures low

Low wear and securely fit together all metal gear train

Bearing supported drive train helps make the most of smooth operation

Over Present and Temperature protection

Operating Frequency: 200hz to 333hz





A5080 Mid Torque Mid Speed Mini Digital HV MG Servo

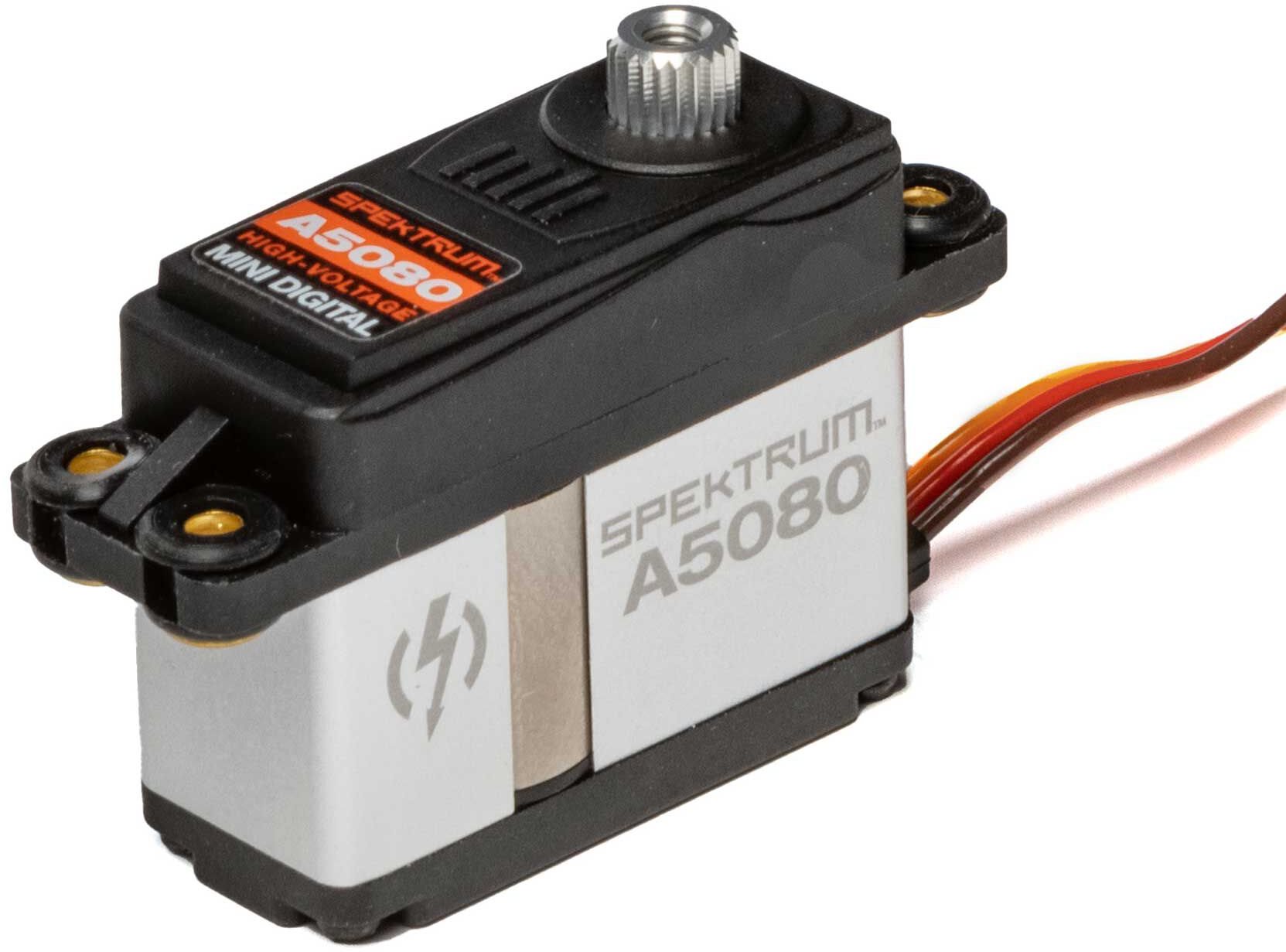

The Spektrum™ A5080 digital mini metal gear servo provides extraordinary efficiency for smaller sized sport size airplane (25-32 size) and specialty airplane applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center area case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 provides reliability, consistency and efficiency that are second to none.



Specifications

Bearing: Single BB

Bushing Or Bearing: Bearing

Deadband: <>

Gear Type: Metal

Input Voltage: 4.8V-8.4V

Product: Aluminium

Maximum Servo Torque: 100-199 oz-in

Motor Type: Brushed

Overload Protection: No

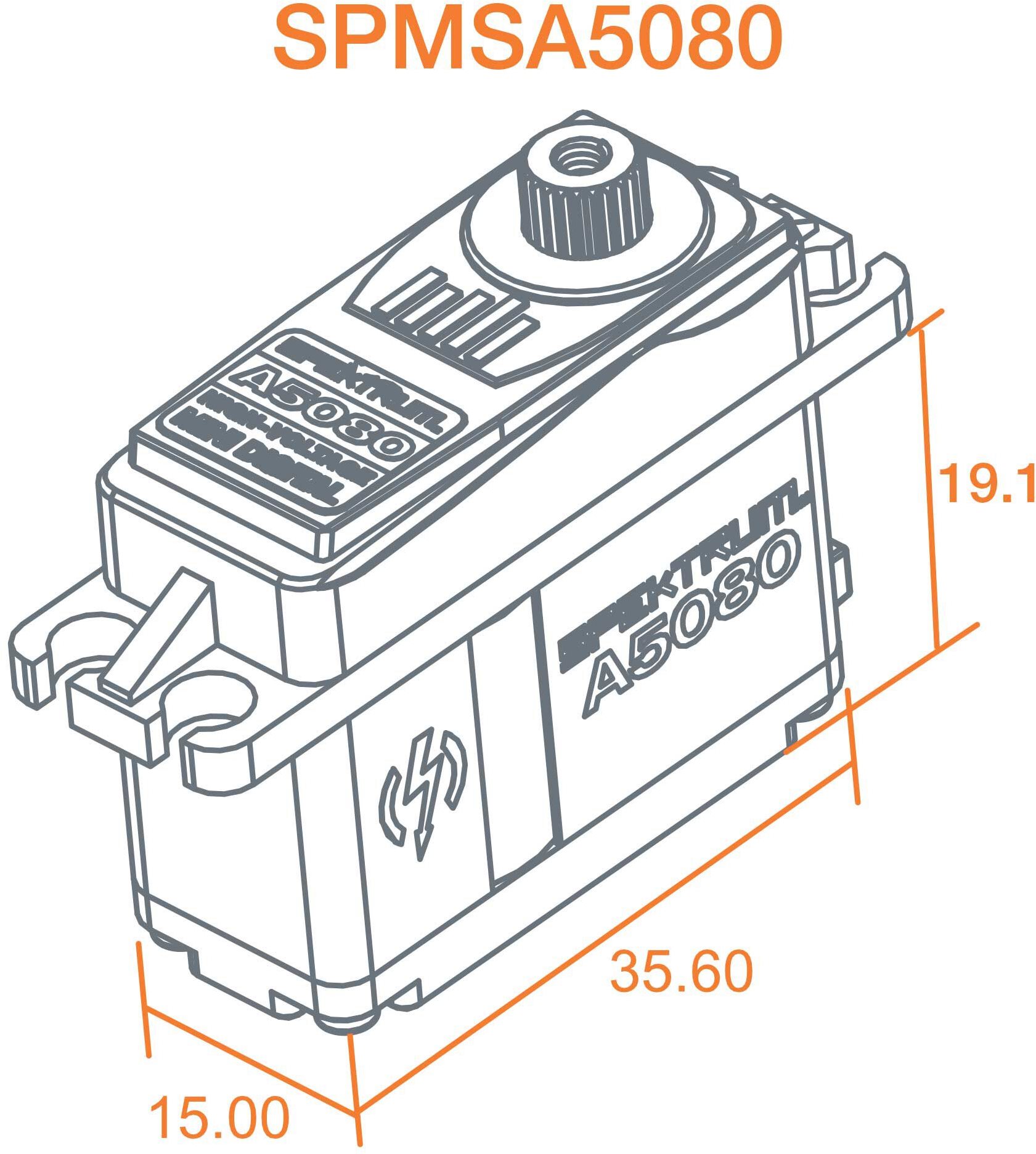

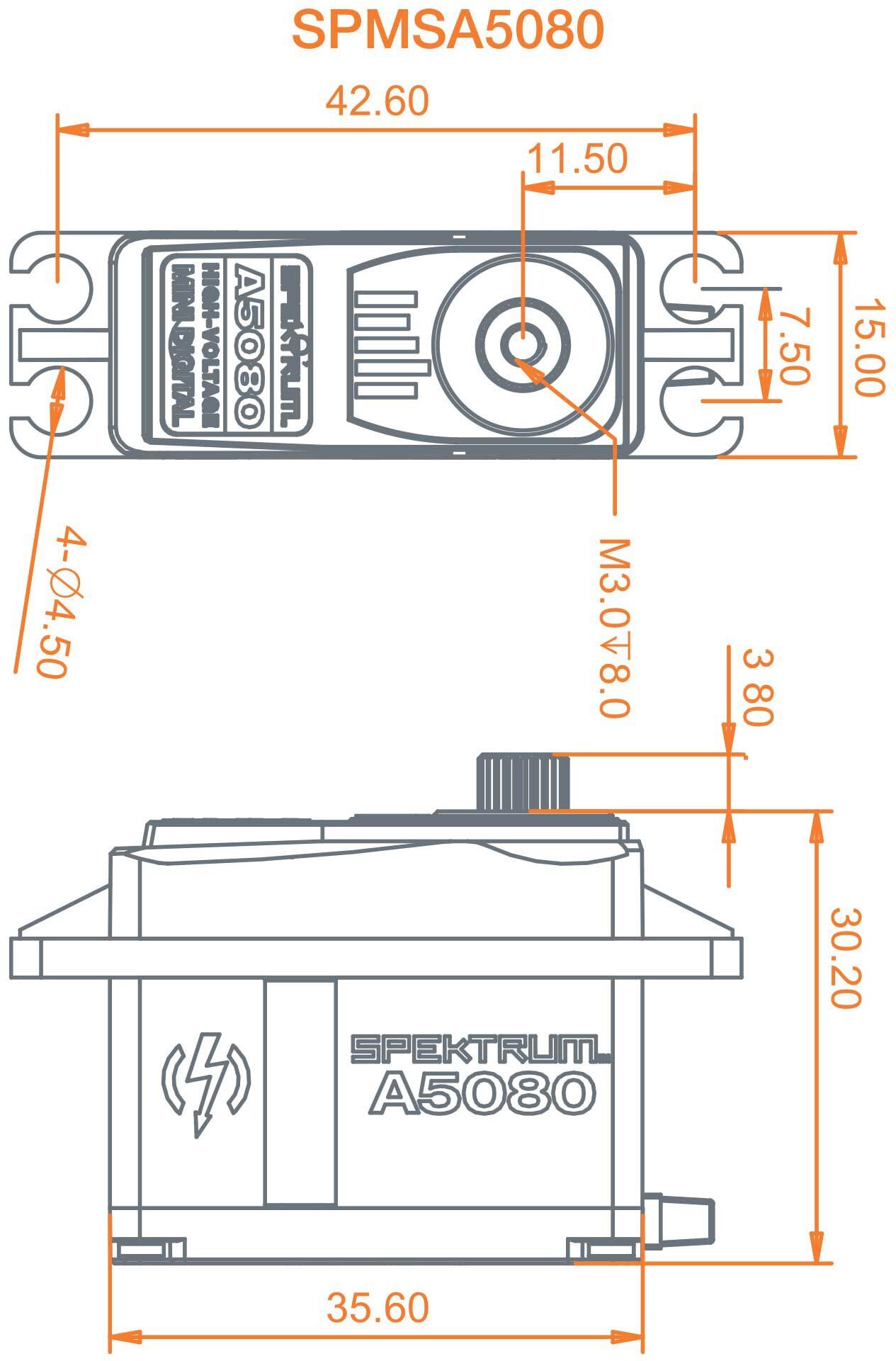

Product Height: 1.18" (30 mm)

Product Length: 1.4" (36 mm)

Product Weight: 1.2 oz (34g)

Product Width: 0.59" (15 mm)

Programmable: No

Servo Operating Voltage: 4.8 - 8.4V (HV)

Servo Size Classification: Mini and Micro

Servo Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V

Servo Type: Digital

Spline Count: 23 - Tooth

Torque: 110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V
