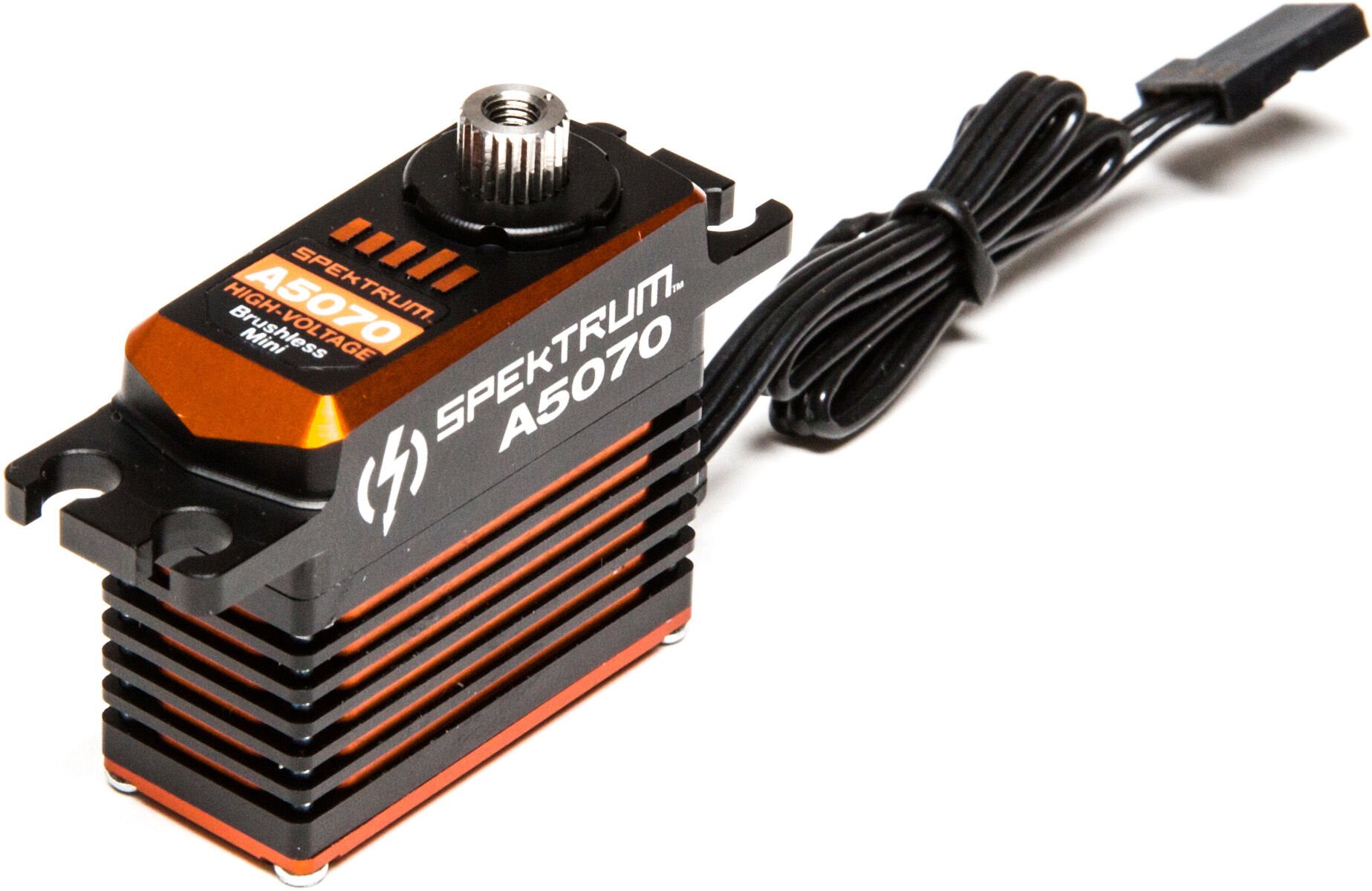

Spektrum A5070 High Torque High Speed Mini MG HV Servo

Key Includes
- High torque both on HV and non-HV applications
- Allows BECs of adjustable BEC ESCs to be set greater to increase performance
- Function as a heat sink for the motor and ESC
- Low deadband, high resolution, with outstanding holding torque for unrivaled performance
- Long lasting high performance surface
Spektrum high-voltage, brushless servos deliver reliable power and digital precision with amazing effectiveness. Carefully tuned electronic devices and software incorporate with powerful brushless motor innovation to provide ultra-smooth, high-speed performance more effectively than servos with conventional motors. The all-aluminum case offers the supreme option in toughness and heat dissipation, while precision metal equipments finish a fulfillment bundle even the most crucial pilot can appreciate.

The Spektrum A5070 mini servo utilizes this solid foundation to accomplish a tremendous 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of toughness, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection deals. It’s an impressive function mix that makes this magnificent servo an impressive plane or heli servo choice.

Specifications

Size Classification: Minis and Micros
Type: Digital
Application: Aircraft or Heli
Torque: 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
Speed: 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V

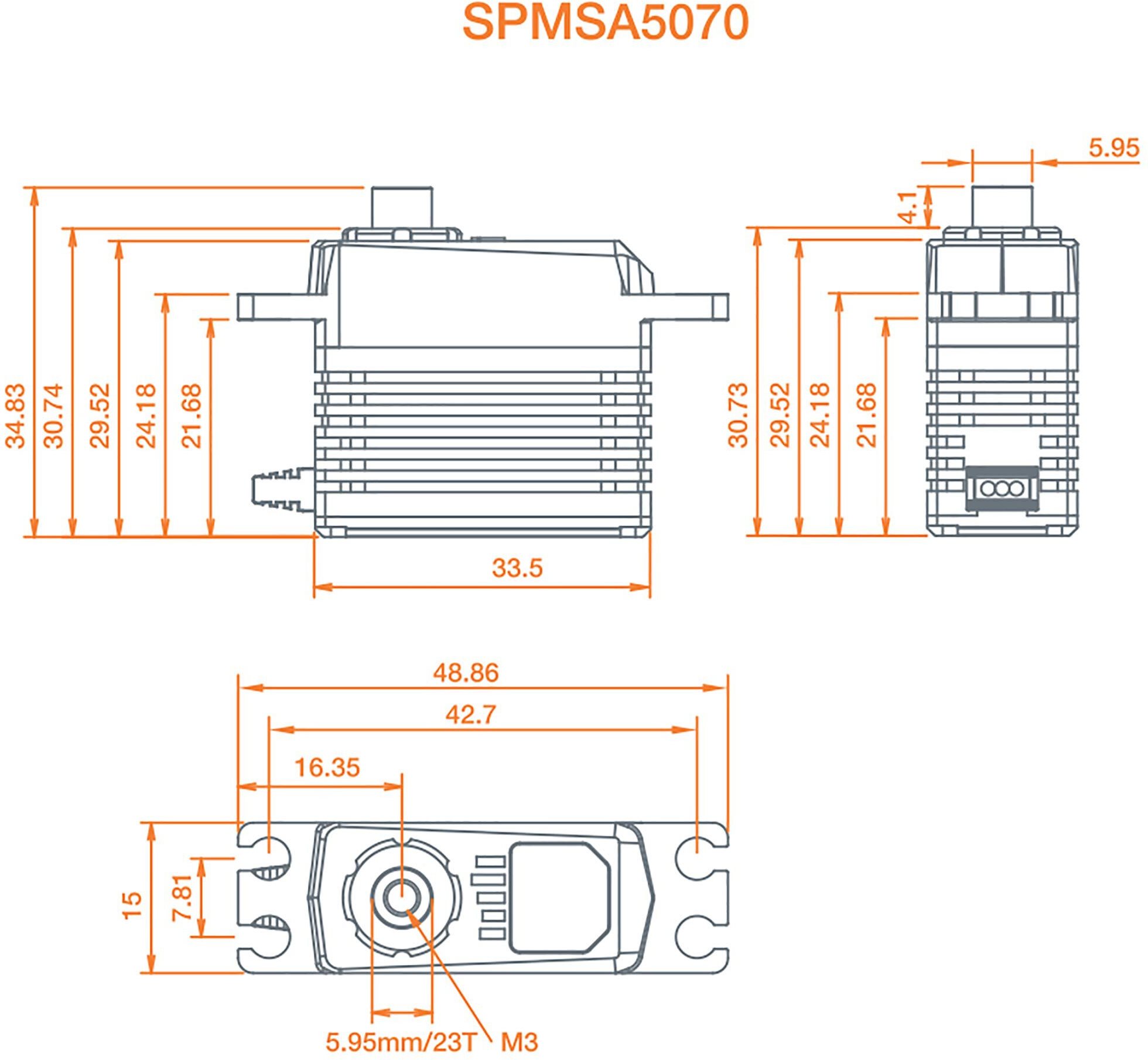

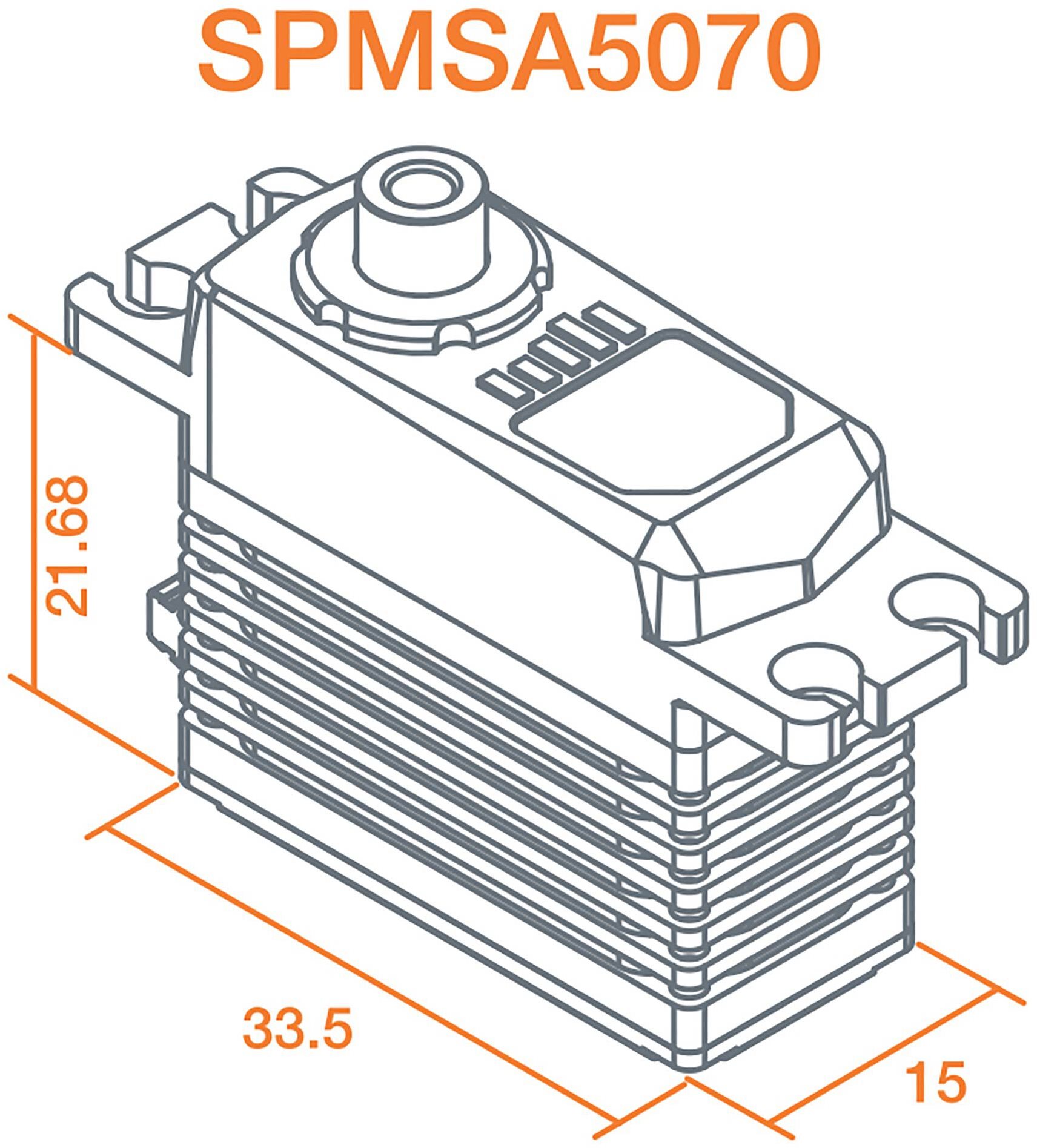

Length: 1.32 in (33.5mm)
Width: 0.59 in (14.9mm)
Height: 1.16 in (29.4mm)
Weight: 1.4 oz (40g)
Bushing Or Bearing: Bearing
Bearing: Double
Motor Type: Brushless
Adapter Type: Z-Connector
Equipment Material: Metal
Voltage: 6.0V to 8.4V
Deadband: 2µs
