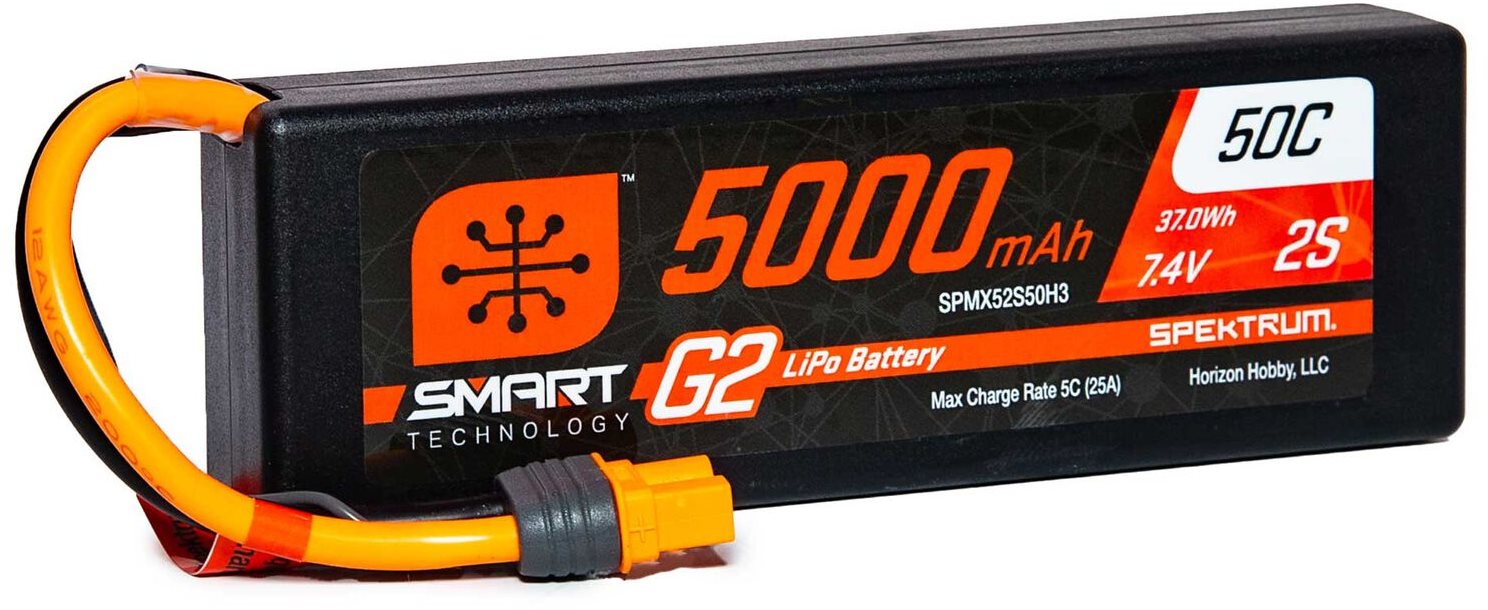

Spektrum 5000mAh 2S 7.4V Smart G2

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Overview
Drivers and pilots enjoy even more Smart benefits when utilizing Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. New "Generation 2" features make these LiPo packs — featuring a 50C continuous discharge ranking for high performance and durability — even easier and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it a lot easier to balance charge your LiPo batteries. Stabilizing info travels through the distinct data wire of each Smart G2 battery's ingenious IC3® or IC5® adapter. As an outcome, only a single connection is required — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge instantly to a safe storage voltage of 3.90V after 72 hours of lack of exercise. The benefits include longer battery life, better performance over the life of the pack, and the comfort that originates from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own choices. G2 batteries likewise use a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 30C soft-case LiPo packs likewise include thicker internal metal side plates. These plates improve heat dissipation and provide more defense for the cells versus leaks throughout rough landings or in comparable impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging choices for a Spektrum™ Smart G2 battery up until you want to. When a Smart G2 LiPo battery is linked to a Spektrum™ Smart charger, its distinct charging parameters and health info upload to the charger from the battery's integrated memory microchip. Through the charger you can see and set choices such as charge rates, so all that's needed to charge the pack is connecting it to your Smart charger. Smart technology looks after the rest.
Spektrum™ Smart G2 50C LiPo batteries store a wide array of essential info, including:

Battery Brand

Battery Type

Battery Capacity

Battery C Score

Private Cell Voltage

Battery Temperature level

Charge/Discharge Cycles

Spektrum™ Smart G2 LiPo 50C batteries likewise preserve a mistake log including the variety of over-heat, over-discharge and over-charge occurrences. This data can be valuable in ensuring that the battery you've picked is right for the application. Ingenious Spektrum™ Smart G2 LiPo 50C batteries are so simple to use, they almost take care of themselves. It's simple to attain peak battery performance, reliability and durability with Smart G2 technology!
Note: G2 batteries require making use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.





Features

Easier and safer to use

Effective 50C continuous discharge ranking to deliver high performance and durability

Balance charge through the IC3® or IC5® adapter data wire — with only one connection, no balance lead needed

Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance

Thicker internal metal side plates protect cells and improve heat dissipation

Integrated microchip stores distinct parameters for each battery

IC3® and IC5® ports are likewise suitable with EC3™ and EC5™ designs

Spektrum™ G2 Smart Charger needed (or earlier Smart Charger with G2 update)












Smart Battery Technology — One Smart Connection
When linked to a Spektrum™ Smart charger, a Smart G2 battery's distinct parameters, health, and balancing info upload instantly from its memory microchip through the IC3® or IC5® adapter's data wire. To charge and balance the pack, you just link it to your Smart charger. Safe charging begins instantly, and no separate balance lead is required.




Data Rich
An integrated microchip allows each Smart G2 battery to save important info such as battery brand name, chemistry, cell count, capacity, variety of charging cycles, variety of discharges, C ranking, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy occasions such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed choice about each battery when you are getting your equipment all set to go out and have fun.








Smart Auto Storage Discharge
Spektrum™ Smart G2 batteries virtually take care of themselves. G2 batteries come from the factory programmed to instantly discharge to a safe storage voltage of 3.90V after 72 hours of lack of exercise. The results are longer battery life, better performance over the life of the pack and comfort that your Smart battery comes maintenance-free. The battery's Auto Storage settings can be altered by the user based on choices.




Simple and Quick
Preset charge, discharge, and storage parameters are instantly communicated from your Spektrum™ Smart G2 battery to your Smart charger, making charging as basic as plugging in the pack. Charge rate of individual batteries can likewise be user-customized, allowing you to take full advantage of packs with faster charge ratings. The battery's integrated microchip keeps in mind the last charging rate you set, so the next time you plug it in, these settings will instantly take effect.










IC3® and IC5® Connectors
The ingenious Smart connection is enabled by a microchip set up in every battery, which feeds the battery's distinct info through a data cable to its IC adapter. Spektrum™ Smart IC3® and IC5® ports have actually been developed from the ground up to provide a more strong connection, greater heat resistance, and uncomplicated installation. IC ports are likewise backwards suitable with EC ports so you can use Smart batteries with older systems. Smart G2 batteries can be charged only with Smart battery chargers.





Specs

Application: Surface area

Battery Balance Connector: G2 Smart

Battery Type: LiPo (3.7V per cell)

Battery Voltage: 7.4V

Capacity: 5000mAh

Charge Protection Circuitry: Yes

Connector Type: IC3

Hard Case: Yes

Optimum Burst Discharge Rate: 50C

Optimum Charge Rate: 5C

Normal/Standard Charge Current: 5A

Normal/Standard Charge Rate: 1C

Variety of Cells: 2

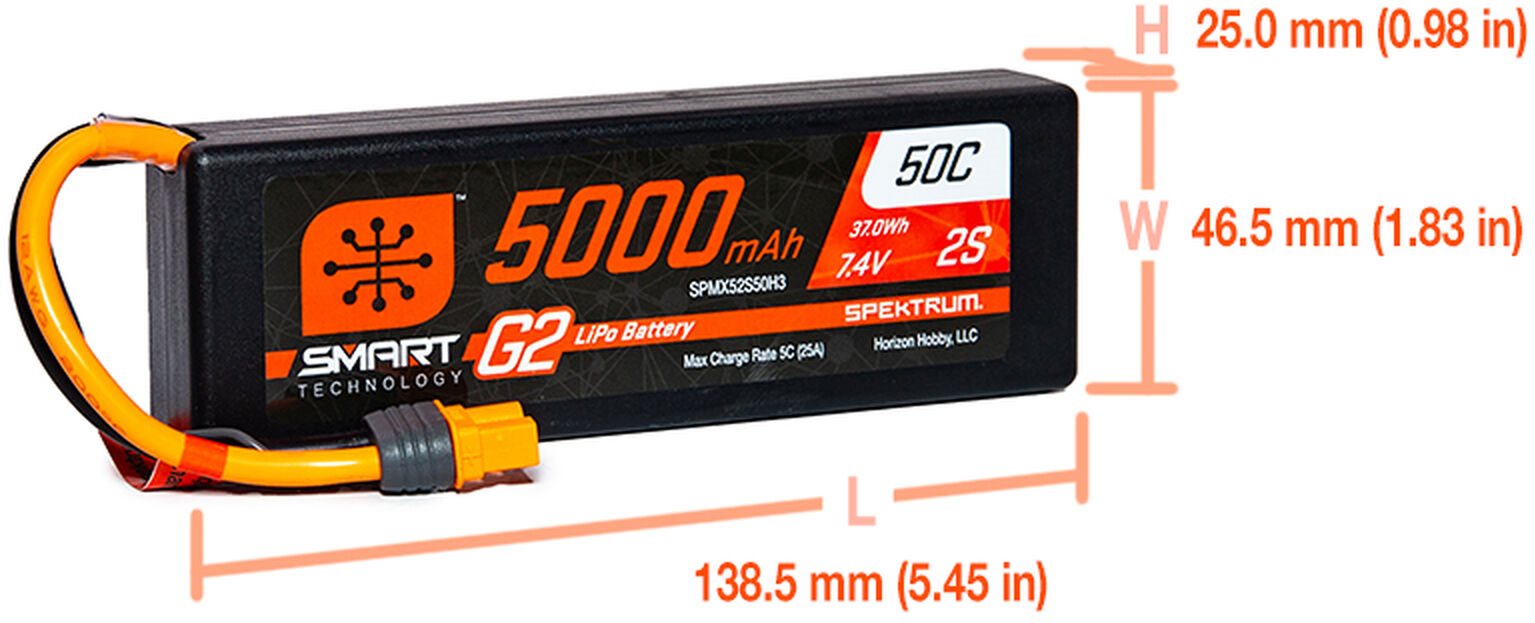

Product Height: 0.98" (25 mm)

Product Length: 5.45" (138 mm)

Product Weight: 10.58oz (300g)

Product Width: 1.8" (46 mm)

Watt Hours: 37

Wire Gauge: 12 AWG
