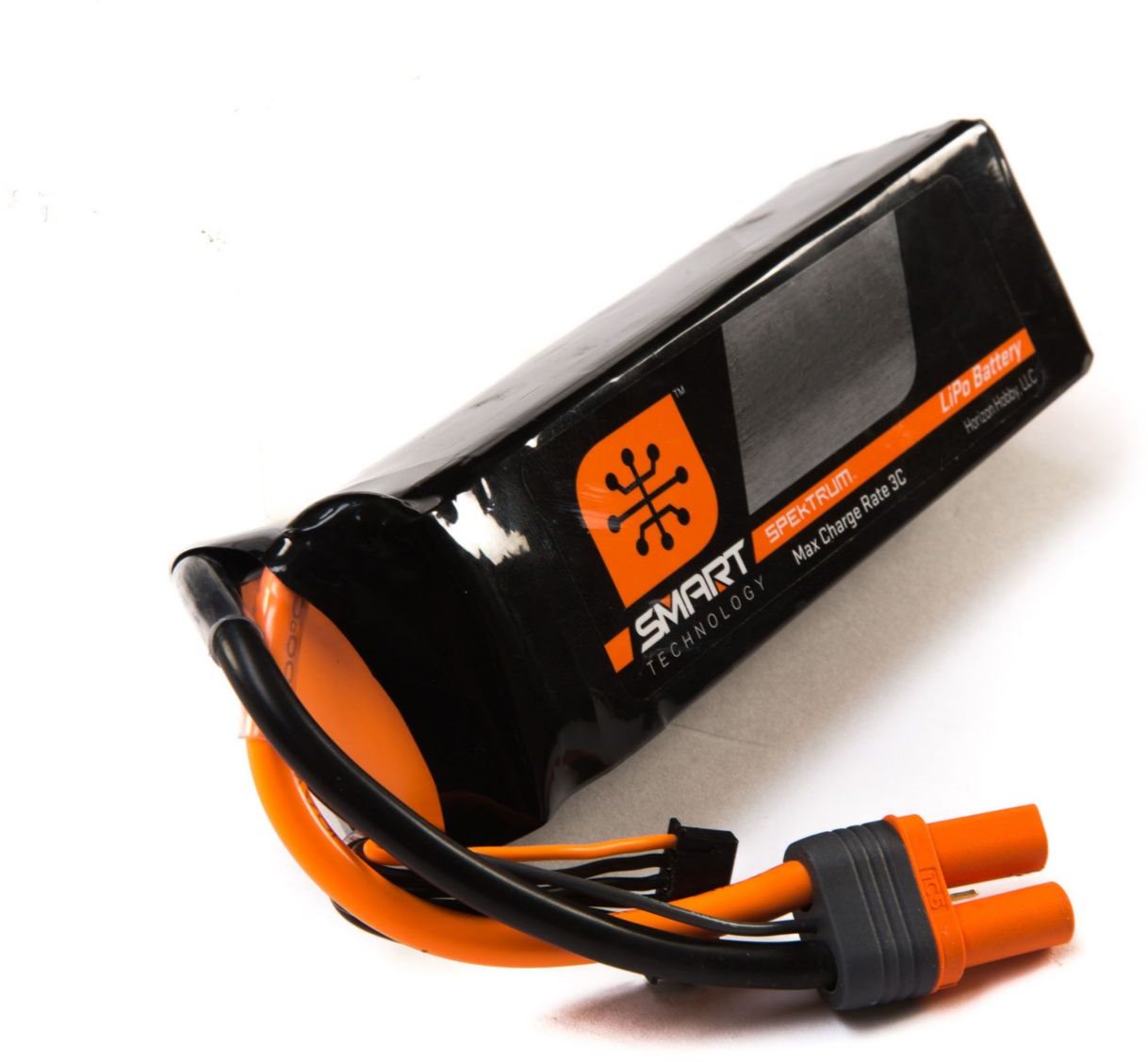

Spektrum 5000mah 6S 22.2V Smart LiPo 30C; IC5

Secret Includes
-Spektrum Smart Innovation Makes Charging and Maintaining Batteries Easy
-Integrated Microship Stores Unique Specifications for Each Battery
-New IC3 and IC5 Connectors are Compatible with EC3 and EC5
-Conserve Time and Hassle, while Improving Battery Life
-Smart Discharge Allows Batteries to Automatically Release to a Safe Voltage
Smart™ Innovation Introduction
LiPo batteries with Spektrum Smart™ innovation virtually take care of themselves. When integrated with a Spektrum™ Smart Battery Battery charger, the special parameters, history of the battery and more are all offered the immediate it’s linked. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to fulfill your precise charging requirements. But the crowning feature of a Spektrum Smart LiPo battery is that it can be set to safely self-discharge to storage condition. That’s a Smart Battery pack!

Spektrum Smart innovation has to do with offering a greater connection to your pastime. It’s a connection that puts you in total control, makes you more aware and more positive about the ability of your equipment—all the while making your pastime easier. The combined outcome will make you want everything about your pastime was “smarter.” Spektrum Smart LiPo Batteries belong of a broad series of Smart innovation items now available.

Feature Introduction
You’ll never need to set charge preferences for a Spektrum Smart battery up until you want to. When a Spektrum Smart LiPo battery is linked to a Spektrum Smart battery charger, special parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the battery charger, you can see and set preferences, such as charge rates, so that all you need to do to charge the pack each time is press the battery charger “Start” button. Smart innovation takes care of the rest.

Every Smart LiPo battery is factory assembled with the next-generation IC3™ or IC5™ output connector that’s easily suitable with older devices equipped with robust EC3™ and EC5™ connectors. You can utilize Smart Batteries with older systems, but only when linked to a Spektrum Smart gadget will all the benefits of Smart innovation become obvious.

Spektrum Smart LiPo Batteries Shop Unique Data, such as:
-Battery Brand
-Battery Type
-Battery Capacity
-Battery C Rating
-Person Cell Voltage
-Battery Temperature
-Charge/Discharge Cycles
Spektrum Smart LiPo batteries likewise maintain an error log consisting of the number of over-heat, over-discharge and over-charge incidents which can be practical information in guaranteeing that the battery you’ve chosen is right for the application. A Smart Battery publishes its charge parameters to a Spektrum Smart Battery charger automatically making charging as basic as pressing the “Start” button. The charge rate of every Smart Battery is personalized, enabling you to take full advantage of packs with faster charge ratings.

Smart Battery Innovation
When linked to a Spektrum Smart battery charger, special parameters and health of your Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the battery charger, you can set and tape-record preferred settings, such as charge rates and self-discharge choices, so that all you need to do to charge the pack is press the “start” button. Smart innovation will take care of the rest. Every Smart LiPo battery is factory assembled with the next-generation IC3™ and IC5™ output connector that utilizes an information transfer wire to relay saved information to your Smart Chargers.



Data Rich
An incorporated microchip enables each Smart Battery to save essential information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature level, and internal resistance. Additionally, each battery will save a log of unhealthy occasions such as over-charge, over-discharge, and over-temperature. This enables you to make the most educated decision about each battery when you are getting your equipment ready for a day at the field or the track.



Simple and Quick
Pre-programmed charge, discharge, and storage parameters are automatically passed on to a Spektrum Smart Battery charger making charging as basic as pressing the “start” button. Charge rate of individual batteries can be user personalized enabling you to take full advantage of packs with faster charge rankings. The integrated microchip on each battery will keep in mind the last charging rate you set, so the next time you plug it in, these settings will automatically occupy so all you need to do is press “Start.” Another feature that the Smart microchip enables is single-connection balance charge. When you plug in your IC3 or IC5 connector to the battery charger, individual cell voltage is automatically passed on to the Smart battery charger and enables you to balance charge without fussing with standard balance connectors.

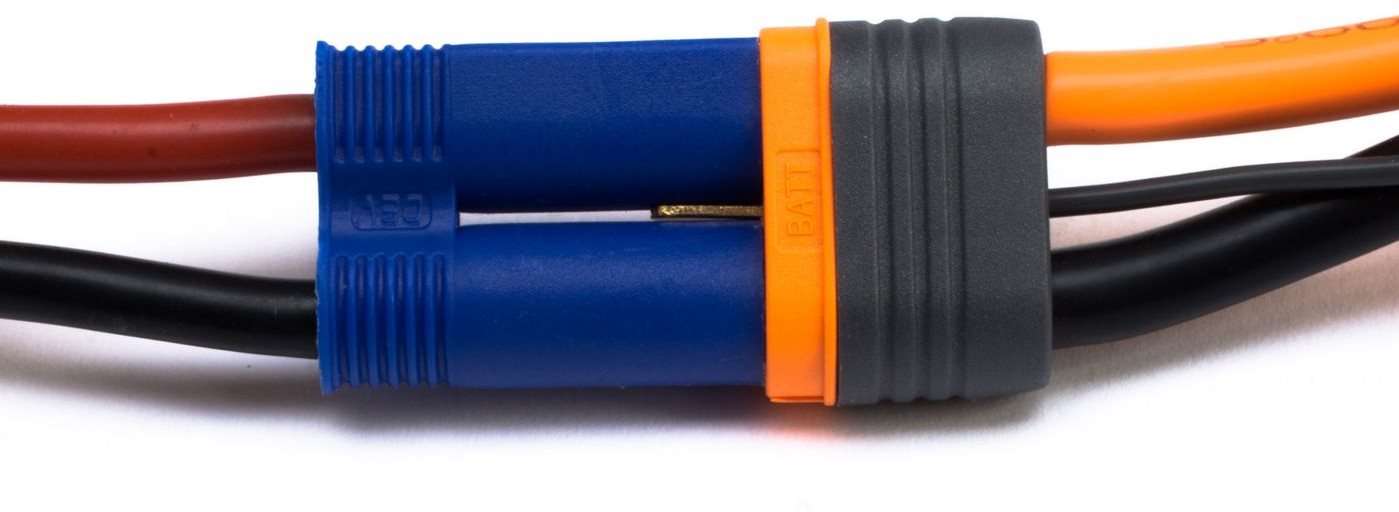

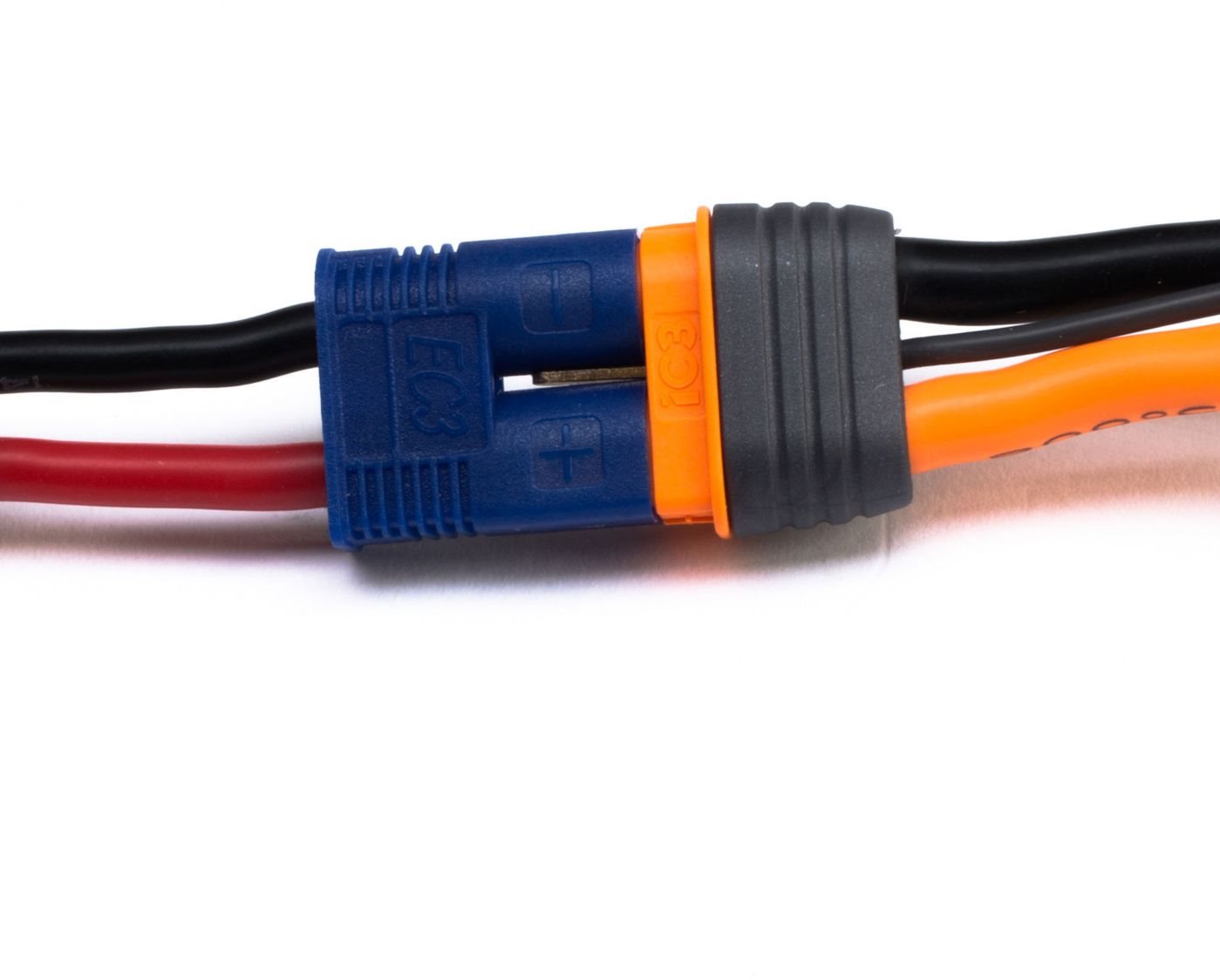

New IC3 & IC5 Connectors
The innovative Smart connection is made possible by an installed microchip on every battery, feeding the special information through an information cable television to the new IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to offer a more solid connection, higher heat resistance, and simple and easy setup. For those utilizing the popular EC3 and EC5 connectors, there’s no need to worry. The IC connector series is entirely in reverse suitable with existing connectors so you can utilize Smart Batteries with older systems, but only when linked to a Spektrum Smart gadget are all the benefits of Smart innovation obvious.



Smart Discharge
LiPo batteries with Spektrum Smart™ innovation virtually take care of themselves. When set with a Spektrum Smart Battery Charger, Smart Batteries will automatically release to your predetermined storage voltage when they are delegated rest for a time period you choose, in between 12 and 240 hours. This feature will assist to extend the life of your Smart Batteries by preventing your batteries from sitting totally charged for a prolonged time period, which can damage the chemical integrity of Lithium Polymer cells. This special feature results in longer battery life span and better efficiency over the life of the pack.


Specifications

Type: Smart LiPo
Capacity: 5000 mAh
Voltage: 22.2V
Connector Type: IC5
Cell Size: 3.7V
Variety of Cells: 6
Weight: 1.44 pounds. (655g)
Measurements (WxLxH): 5.9 x 1.9 x 2.0 in. (151 x 47 x 52mm)
Length: 5.9 in. (151mm)
Width: 1.9 in. (47mm)
Height: 2.0 in. (52mm)
Application: Aircraft
Optimum Constant Discharge
: 30C
