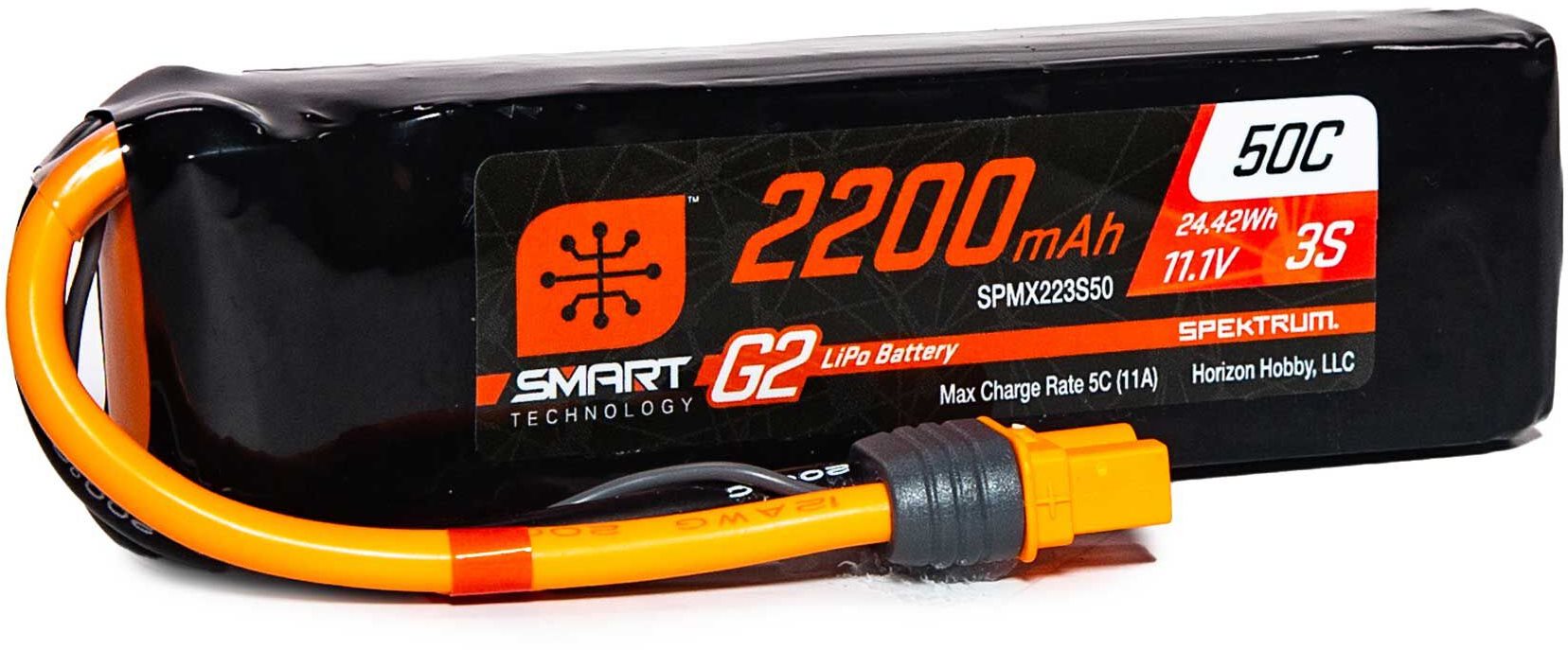

Spektrum 2200mAh 3S 11.1V Smart G2

.mediaFeature [padding:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Overview
Chauffeurs and pilots enjoy much more Smart benefits when using Spektrum™ Smart G2 50C LiPo batteries to power their cars. New "Generation 2" features make these LiPo loads — featuring a 50C constant discharge ranking for high efficiency and durability — even easier and much safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 innovation makes it much easier to stabilize charge your LiPo batteries. Stabilizing information journeys through the distinct information wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is required — no different balance lead is required.
Smart G2 batteries come from the factory configured to discharge automatically to a safe storage voltage of 3.90V after 72 hours of lack of exercise. The advantages consist of longer battery life, much better efficiency over the life of the pack, and the assurance that originates from understanding your Smart battery is maintenance-free. You can change the battery's Car Storage settings based on your own preferences. G2 batteries likewise use a storage discharge rate that's 3 times faster than the previous G1 Smart batteries.
Smart G2 30C soft-case LiPo packs likewise consist of thicker internal metal side plates. These plates enhance heat dissipation and provide more security for the cells versus punctures during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never ever have to set your own charging preferences for a Spektrum™ Smart G2 battery until you wish to. When a Smart G2 LiPo battery is linked to a Spektrum™ Smart charger, its distinct charging criteria and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can see and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart innovation takes care of the rest.
Spektrum™ Smart G2 50C LiPo batteries store a wide variety of vital information, consisting of:

Battery Brand name

Battery Type

Battery Capacity

Battery C Rating

Individual Cell Voltage

Battery Temperature level

Charge/Discharge Cycles

Spektrum™ Smart G2 LiPo 50C batteries likewise preserve a mistake log consisting of the variety of over-heat, over-discharge and over-charge occurrences. This information can be practical in guaranteeing that the battery you've picked is best for the application. Ingenious Spektrum™ Smart G2 LiPo 50C batteries are so easy to use, they almost take care of themselves. It's easy to attain peak battery efficiency, dependability and durability with Smart G2 technology!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.





Features

Easier and much safer to use

Effective 50C constant discharge ranking to provide high efficiency and durability

Balance charge through the IC3® or IC5® connector information wire — with only one connection, no balance lead required

Faster Car Discharge at up to 1.5A to safe storage voltage for long battery life and enhanced efficiency

Thicker internal metal side plates safeguard cells and enhance heat dissipation

Integrated microchip stores distinct criteria for each battery

IC3® and IC5® adapters are likewise suitable with EC3™ and EC5™ designs

Spektrum™ G2 Smart Charger required (or earlier Smart Charger with G2 update)












Smart Battery Technology — One Smart Connection
When linked to a Spektrum™ Smart charger, a Smart G2 battery's distinct criteria, health, and balancing information upload automatically from its memory microchip through the IC3® or IC5® connector's information wire. To charge and stabilize the pack, you merely link it to your Smart charger. Safe charging starts automatically, and no different balance lead is required.




Data Rich
An integrated microchip permits each Smart G2 battery to conserve essential information such as battery brand, chemistry, cell count, capability, variety of charging cycles, variety of discharges, C ranking, battery temperature level, and internal resistance. Furthermore, each battery will conserve a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This permits you to make the most educated decision about each battery when you are getting your equipment ready to go out and have fun.








Smart Auto Storage Discharge
Spektrum™ Smart G2 batteries practically take care of themselves. G2 batteries come from the factory configured to automatically discharge to a safe storage voltage of 3.90V after 72 hours of lack of exercise. The outcomes are longer battery life, much better efficiency over the life of the pack and assurance that your Smart battery comes maintenance-free. The battery's Car Storage settings can be changed by the user based on preferences.




Simple and Quick
Predetermined charge, discharge, and storage criteria are automatically passed on from your Spektrum™ Smart G2 battery to your Smart charger, making charging as easy as plugging in the pack. Charge rate of individual batteries can likewise be user-customized, enabling you to take full advantage of packs with faster charge ratings. The battery's integrated microchip keeps in mind the last charging rate you set, so the next time you plug it in, these settings will automatically work.










IC3® and IC5® Connectors
The innovative Smart connection is enabled by a microchip set up in every battery, which feeds the battery's distinct information through an information cable to its IC connector. Spektrum™ Smart IC3® and IC5® adapters have actually been created from the ground up to provide a more solid connection, higher heat resistance, and uncomplicated installation. IC adapters are likewise in reverse suitable with EC adapters so you can use Smart batteries with older systems. Smart G2 batteries can be charged only with Smart chargers.





Specifications

Application: Aircraft

Battery Balance Adapter: G2 Smart

Battery Type: LiPo (3.7V per cell)

Battery Voltage: 11.1V

Capacity: 2200mAh

Charge Defense Circuitry: Yes

Adapter Type: IC3

Difficult Case: No

Optimum Burst Discharge Rate: 50C

Optimum Charge Rate: 5C

Normal/Standard Charge Current: 2.2A

Normal/Standard Charge Rate: 1C

Number of Cells: 3

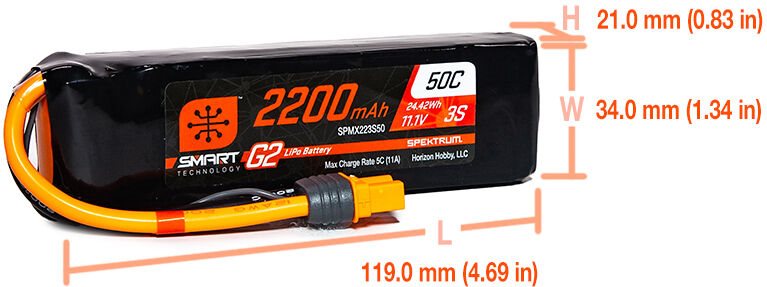

Product Height: 0.83" (21 mm)

Product Length: 4.68" (119 mm)

Product Weight: 7.4 oz (210g)

Product Width: 1.33" (34 mm)

Technology : Smart

Watt Hours: 24.42

Wire Gauge: 12 AWG
