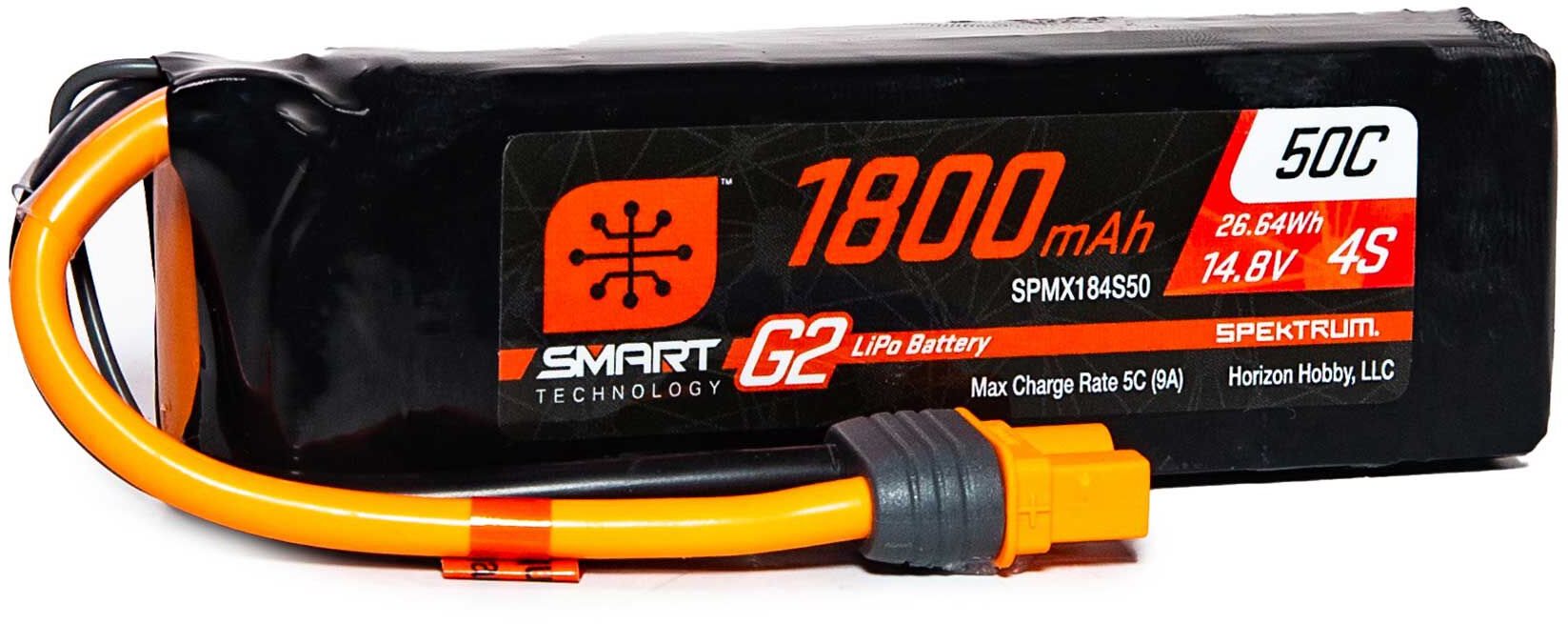

Spektrum 14.8V 1800mAh 4S 50C Smart G2 LiPo Battery: IC3

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Overview
Drivers and pilots take pleasure in much more Smart benefits when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. New "Generation 2" functions make these LiPo loads — featuring a 50C continuous discharge score for high efficiency and durability — even easier and much safer to utilize together with your Smart charger.
For example, Spektrum™ Smart G2 innovation makes it much easier to stabilize charge your LiPo batteries. Balancing info travels through the special data wire of each Smart G2 battery's ingenious IC3® or IC5® port. As a result, just a single connection is required — no different balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of lack of exercise. The advantages consist of longer battery life, much better efficiency over the life of the pack, and the comfort that originates from knowing your Smart battery is maintenance-free. You can change the battery's Vehicle Storage settings based on your own choices. G2 batteries also provide a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 30C soft-case LiPo packs also consist of thicker internal metal side plates. These plates improve heat dissipation and supply more defense for the cells versus leaks during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging choices for a Spektrum™ Smart G2 battery until you wish to. When a Smart G2 LiPo battery is connected to a Spektrum™ Smart battery charger, its special charging criteria and health info upload to the battery charger from the battery's integrated memory microchip. Through the battery charger you can view and set choices such as charge rates, so all that's required to charge the pack is connecting it to your Smart battery charger. Smart innovation takes care of the rest.
Spektrum™ Smart G2 50C LiPo batteries keep a wide range of essential info, consisting of:

Battery Brand name

Battery Type

Battery Capability

Battery C Ranking

Specific Cell Voltage

Battery Temperature level

Charge/Discharge Cycles

Spektrum™ Smart G2 LiPo 50C batteries also keep an error log consisting of the variety of over-heat, over-discharge and over-charge incidents. This data can be practical in assuring that the battery you have actually selected is right for the application. Innovative Spektrum™ Smart G2 LiPo 50C batteries are so easy to utilize, they nearly look after themselves. It's easy to attain peak battery efficiency, reliability and durability with Smart G2 technology!
Note: G2 batteries need making use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 upgrade (offered at spektrumrc.com).





Features

Simpler and much safer to utilize

Powerful 50C continuous discharge score to deliver high efficiency and durability

Balance charge through the IC3® or IC5® port data wire — with just one connection, no balance lead required

Faster Vehicle Discharge at as much as 1.5A to safe storage voltage for long battery life and enhanced efficiency

Thicker internal metal side plates safeguard cells and improve heat dissipation

Integrated microchip stores special criteria for each battery

IC3® and IC5® connectors are also compatible with EC3™ and EC5™ designs

Spektrum™ G2 Smart Charger required (or earlier Smart Charger with G2 upgrade, offered at spektrumrc.com)












Smart Battery Innovation — One Smart Connection
When connected to a Spektrum™ Smart battery charger, a Smart G2 battery's special criteria, health, and stabilizing info upload automatically from its memory microchip through the IC3® or IC5® port's data wire. To charge and stabilize the pack, you just link it to your Smart battery charger. Safe charging starts automatically, and no different balance lead is required.




Data Rich
An incorporated microchip permits each Smart G2 battery to conserve essential info such as battery brand name, chemistry, cell count, capacity, variety of charging cycles, variety of discharges, C score, battery temperature level, and internal resistance. Furthermore, each battery will conserve a log of unhealthy occasions such as over-charge, over-discharge, and over-temperature. This permits you to make the most informed decision about each battery when you are getting your equipment ready to go out and have fun.








Smart Auto Storage Discharge
Spektrum™ Smart G2 batteries practically look after themselves. G2 batteries come from the factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of lack of exercise. The outcomes are longer battery life, much better efficiency over the life of the pack and comfort that your Smart battery comes maintenance-free. The battery's Vehicle Storage settings can be changed by the user based on choices.




Simple and Quick
Pre-programmed charge, discharge, and storage criteria are automatically passed on from your Spektrum™ Smart G2 battery to your Smart battery charger, making charging as easy as plugging in the pack. Charge rate of specific batteries can also be user-customized, permitting you to make the most of packs with faster charge ratings. The battery's integrated microchip keeps in mind the last charging rate you set, so the next time you plug it in, these settings will automatically take effect.










IC3® and IC5® Connectors
The ingenious Smart connection is made possible by a microchip set up in every battery, which feeds the battery's special info through an information cable to its IC port. Spektrum™ Smart IC3® and IC5® connectors have been created from the ground up to supply a more solid connection, higher heat resistance, and simple and easy installation. IC connectors are also in reverse compatible with EC connectors so you can utilize Smart batteries with older systems. Smart G2 batteries can be charged just with Smart battery chargers.





Requirements

Application: Aircraft

Battery Balance Port: G2 Smart

Battery Type: LiPo (3.7V per cell)

Battery Voltage: 14.8V

Capability: 1800mAh

Charge Protection Circuitry: Yes

Port Type: IC3

Difficult Case: No

Optimum Burst Discharge Rate: 50C

Optimum Charge Rate: 5C

Normal/Standard Charge Current: 1.8A

Normal/Standard Charge Rate: 1C

Variety of Cells: 4

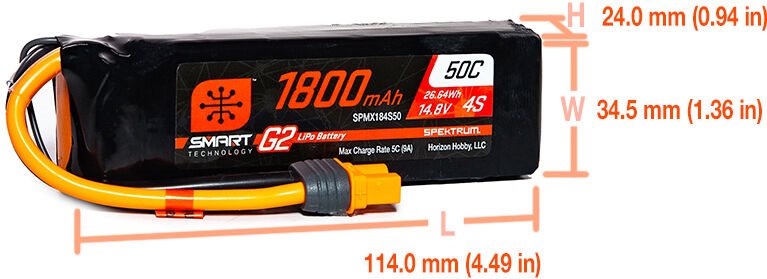

Item Height: 0.94" (24 mm)

Item Length: 4.48" (114 mm)

Item Weight: 7.40oz (210g)

Item Width: 1.35" (34 mm)

Watt Hours: 26.64

Wire Gauge: 12 AWG
