Model: Savox SB2280SG
Dist. #: SAVSB2280SG
SKU: SAVSB2280SG
Be the first to review this product. (Write Review)
Out of stock
|
|
|
|
|
This item will earn you 142 reward point(s).
142 points = $2.84 off your next order. Learn More
|
Updated on Dec 8, 2024 08:28:26 AM

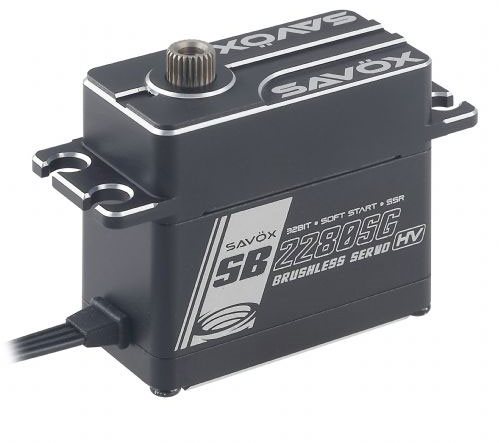

High Voltage Brushless Steel Gear Monster Torque Servo with Soft Start, 0.12sec / 833.2oz @ 8.4V
The Savox SB-2280SGP High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.
Features:
- Unique steel gear train.
- Capable of HV operation.
- Brushless motor for smooth operation and efficiency.
- Ideal for 1/8 buggies, crawlers, and large-scale aircraft.
Specifications:
- Torque @ 6V—40.0kg-cm/555.5oz-in
- Torque @ 7.4V—50.0kg-cm/694.4oz-in
- Torque @ 8.4V—60.0kg-cm/833.2oz-in
- Speed @ 6V—0.17 sec/60°
- Speed @ 7.4V—0.14 sec/60°
- Speed @ 8.4V—0.12 sec/60°

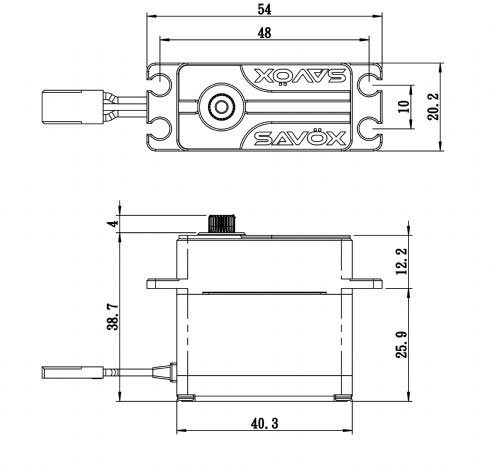

- Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
- Weight: 83g
Technical Specs:
- Operating Temperature: 14°—122°F (-10°—50°C)
- Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V, 8400mA @8.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
- Wire Length: 300 ∓ 5mm
- Output Gear Spline: 25 Tooth
- Operating Travel: 100° (1000—2000µsecond)
- Neutral Position: 1500µsecond
- Pulse Width Range: 800—2200µsecond
- Maximum Travel: Appx 130° (900—2100µsecond)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
Item Created: 12/04/2024
- Savox High Voltage Brushless Steel Gear Monster Torque Servo With Soft
