RPM Esc Cage For The Castle Mamba X 8S Esc & The Traxxas X-Maxx (RPM 70562 | RPM70562)

Model: RPM 70562
Dist. #: RPM70562   SKU: RPM70562

Be the first to review this product. (Write Review)

Shipping: In Stock For Shipping
Store Pickup:

South Jordan, UT
Ship To Store - Pick up in 2 to 3 days..

Price:  $15.39

This item will earn you 15 reward point(s).
15 points = $0.30 off your next order. Learn More

Updated on Sep 3, 2025 12:21:42 PM

Esc Cage For The Castle Mamba X 8S Esc & The Traxxas X-Maxx...

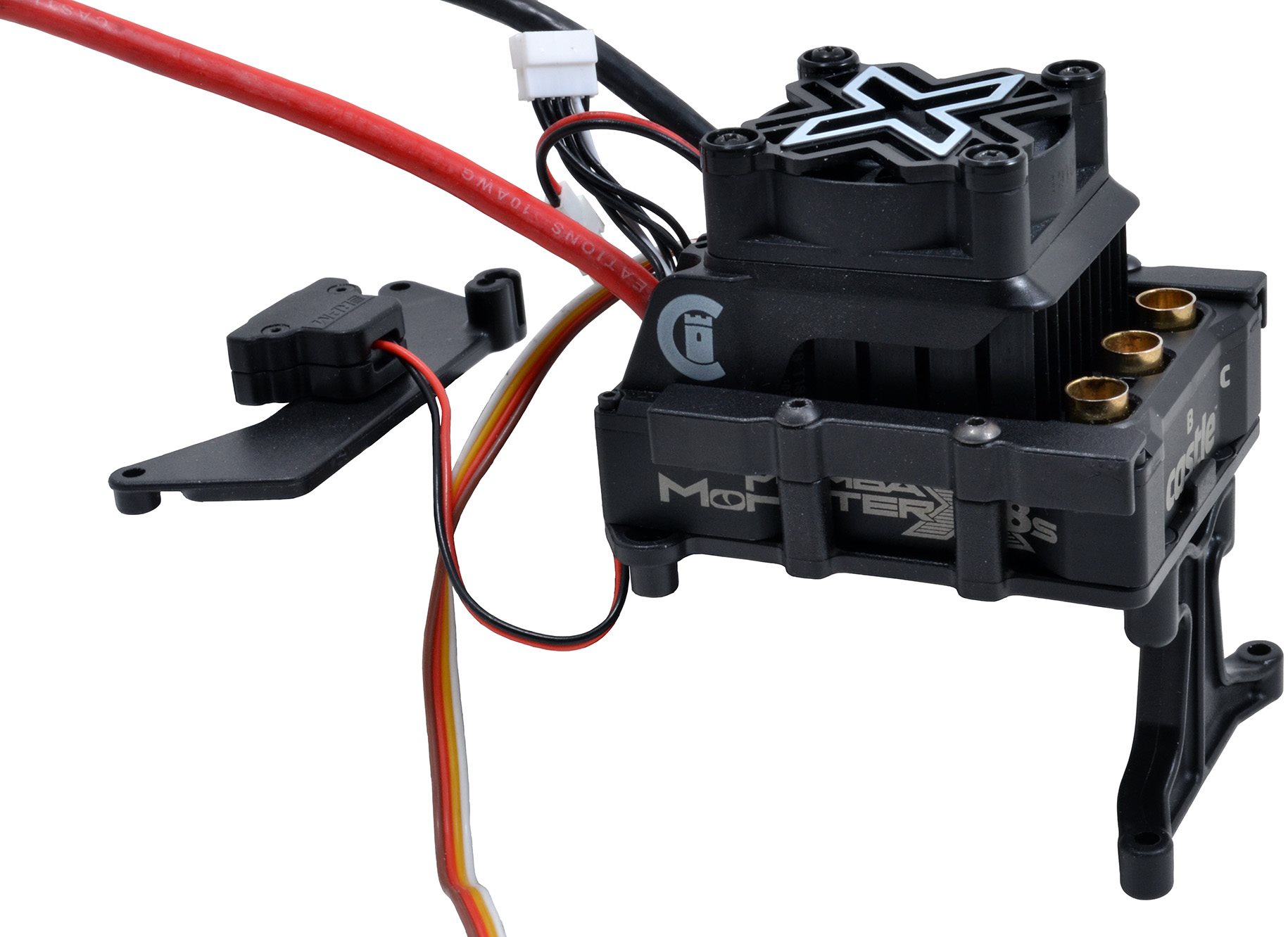

ESC Cage for the Castle Mamba X 8S ESC & the Traxxas X-Maxx

Unlike other aftermarket ESC plates that need double-sided tape, the RPM ESC Cage for the Traxxas X-Maxx and the Castle Mamba X 8S ESC offers a solid, positive mount to keep your new and important Castle Mamba-X 8S ESC in place. Double clamp plates lock the ESC in place so even an enormous slam won't eject the ESC. Furthermore, it enables the ESC to be kept up or without a fan. It frames the ESC body only, leaving the fan complimentary for easy removal for wet running. In addition, we left the front and back of the ESC available to enable important air movement, helping to keep the ESC cool. Also consisted of is a framed on / off switch mount and antenna relocation plate.

Each RPM ESC Cage is formed in black and made from our extremely difficult blend of engineering grade nylons. Each ESC Cage is backed by our limited life time guarantee versus breakage. Don't trust your financial investment to double-sided tape or zip ties.

Tech Notes: The RPM ESC Cage for the Mamba X 8S ESC deals with Castle ESCs from the following Castle part numbers #010-0165-00 & #010-0165-01. Our ESC Cage has actually been evaluated and guaranteed to fit the Traxxas X-Maxx running the stock Traxxas Receiver Box Lid #7724 and #7714 Chassis Support Braces.

Motor and Motor Mount Notes: If the Castle Mamba X 8S ESC is utilized with a stock or stock replacement motor, no more aftermarket parts are required. Big block motors need an aftermarket motor mount. RPM has actually evaluated and guarantees the fit of our ESC Cage with motors with an optimum length of 4.44" (112.7mm) such as the Castle #060-0064-00 2028-800KV sensored motor however only when utilized with an Afrolucha #18010 motor mount. Any motor mount will work as long as the distance from the rear chassis mounting screws to the motor mounting surface is no much shorter than .126" (3.2mm) or if the motor is much shorter than 4" (101.6mm).

Product Created: 12/22/2020
