Onyx 80W AC/DC Charger

Model: Onyx ONXC4101
Dist. #: ONXC4101 SKU: ONXC4101

Be the first to review this product. (Write Review)

Out of stock

Price:

$67.99

This item will earn you 68 reward point(s).
68 points = $1.36 off your next order. Learn More

Updated on Sep 25, 2025 04:37:31 PM

80W AC/DC Charger...

Secret Includes

Charges LiPo, Li-Ion, LiFe, NiCd, NiMH and Pb batteries

0.1 - 6A adjustable charge existing

Brief circuit, over existing, reverse polarity, low input voltage and over temperature level defense

Banana plug to EC3 adapter included

JST_XH balance adapter included

Charges 1S-6S LiPo, LiFe, and Li-Ion Cells

100-240V Air Conditioning (50/60Hz) or 11-18V DC input voltage

2A, 10W discharge power

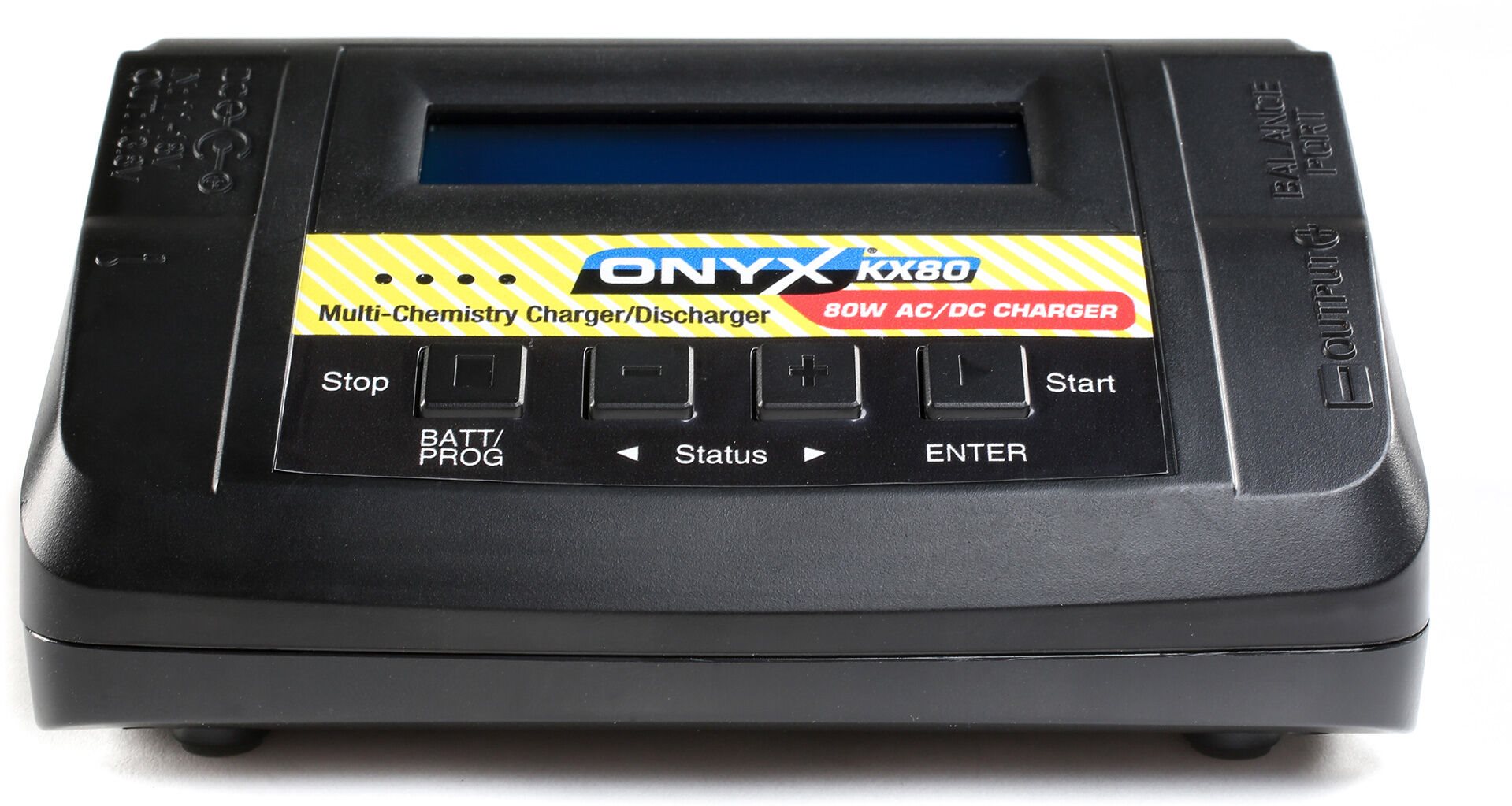

Easy user interface with 2-line LCD screen

Overview
A small, light-weight, compact charger and discharger with the latest digital technology. It provides you the capability to charge all your different battery loads with power and security. The charger has a cargo terminal with incorporated balancer. Experience clear and simple operation with the big screen and 4 control buttons.

The incorporated balancer can manage up to 6 cells during an ongoing operation.

Specifications

Ampere Meter: Yes - on main LCD display

Battery Balance Connector: JST_XH

Battery Temperature Tracking: Yes (Temperature sensor not included)

Battery Type: 1-6S LiPo/LiFe/LiIon; 1-15C NiMH/NiCd; 1-10C Pb, LiFe (3.3V per cell), LiIon (3.3V per cell), LiPo (3.7V per cell), NiCd (1.2V per cell), NiMH (1.2V per cell), Pb (2.0V per cell)

Circuit Breaker: Yes

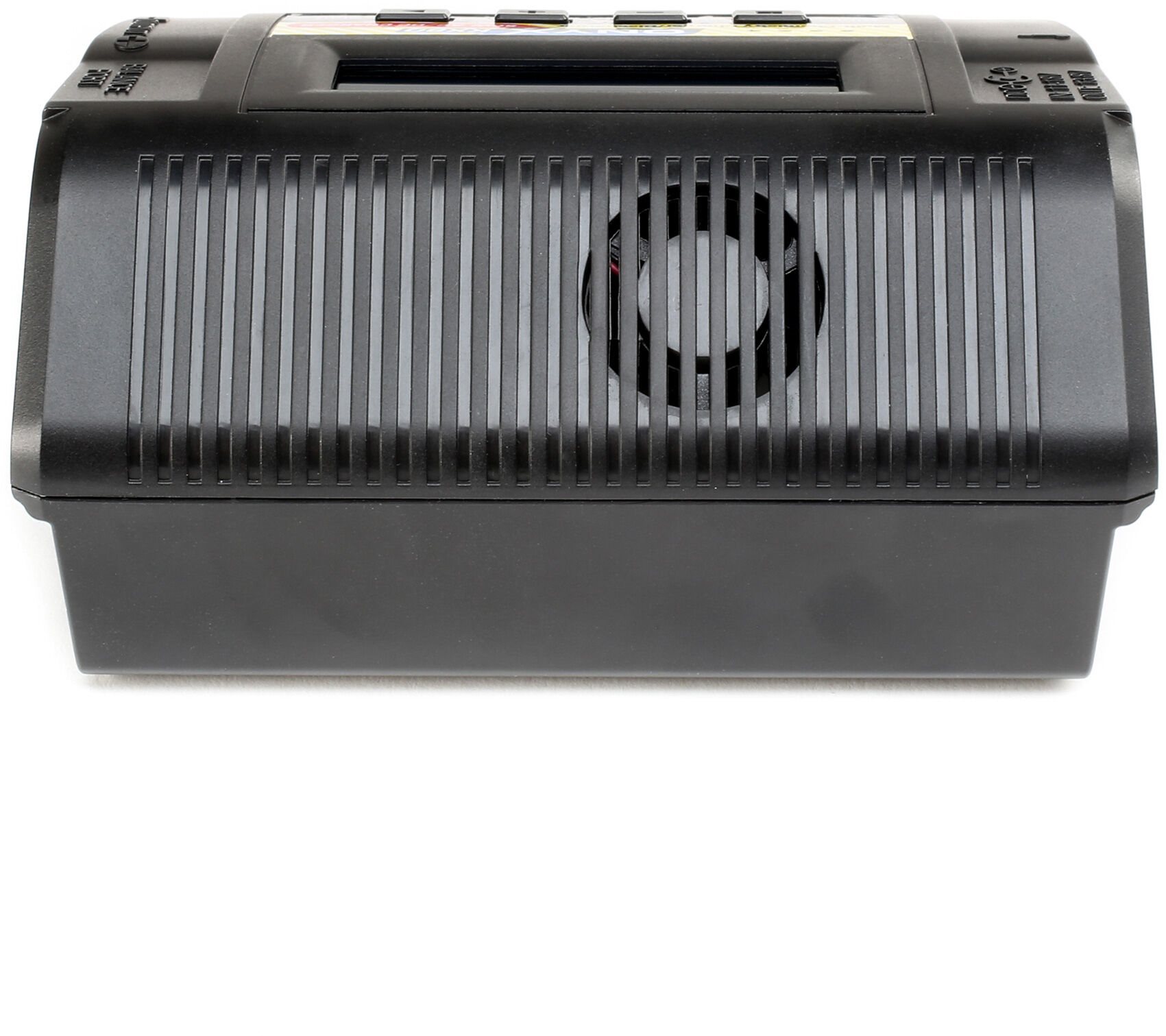

Cooling Technique: Fan

Release: 0.1-2.0A

Display: LCD - 2 Line x 16 Characters

Fuse: No

Height: 48.0mm (1.89 in)

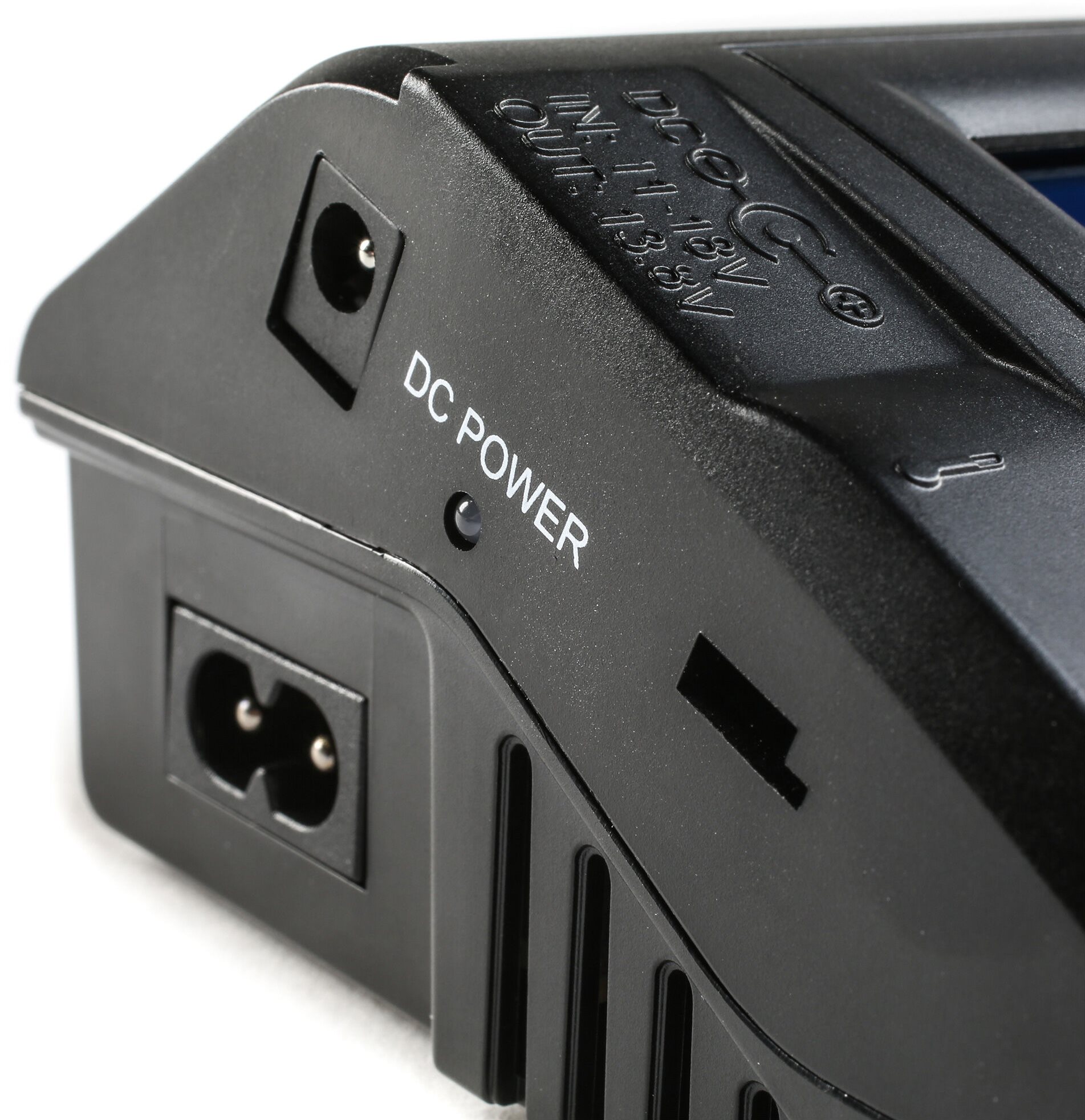

Input Connector: Air Conditioning cable, removable, North American plug, DC cable, removable, alligator clips

Input Voltage: 100-240V Air Conditioning or 11-18V DC

Integrated Balancing: Yes - Internal Balancer & External Adapter

Length: 138.0mm (5.43 in)

Low Input Voltage Protection: Yes

Model Memory: 10 battery settings

Normal/Standard Charge Rate: 0.1-6.0A

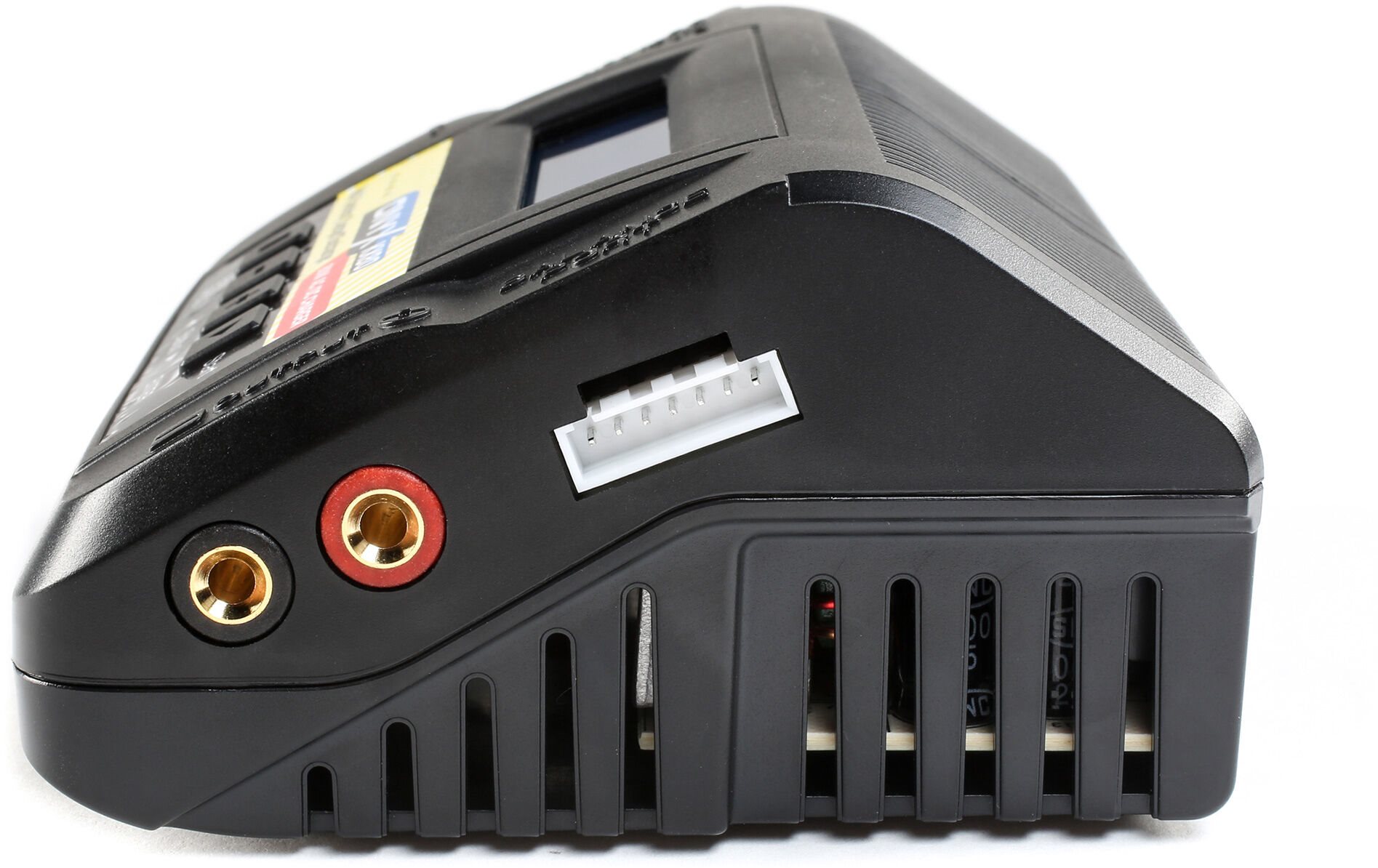

Output Connector: Banana Plug to EC3

Over Present Protection: Yes

PC Connectivity: No

PC Required: No

Peak Detection: Yes

Reverse Polarity Protection: Yes

Security Timer: No

Selectable Charge Rate: Yes - Incremental (0.1A Increments)

Short Circuit Protection: Yes

Software application Updates: No

Thermal Protection: Yes

Voltage Meter: Yes - on main LCD display

Width: 140.0mm (5.51 in)
