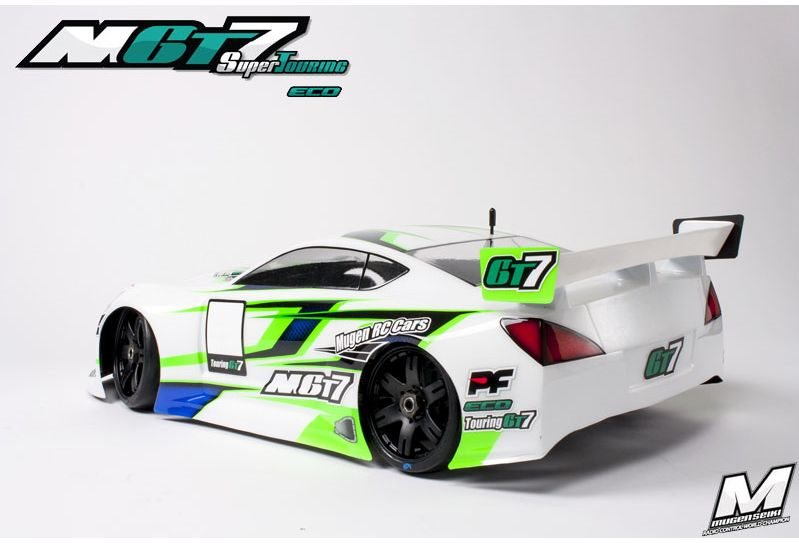

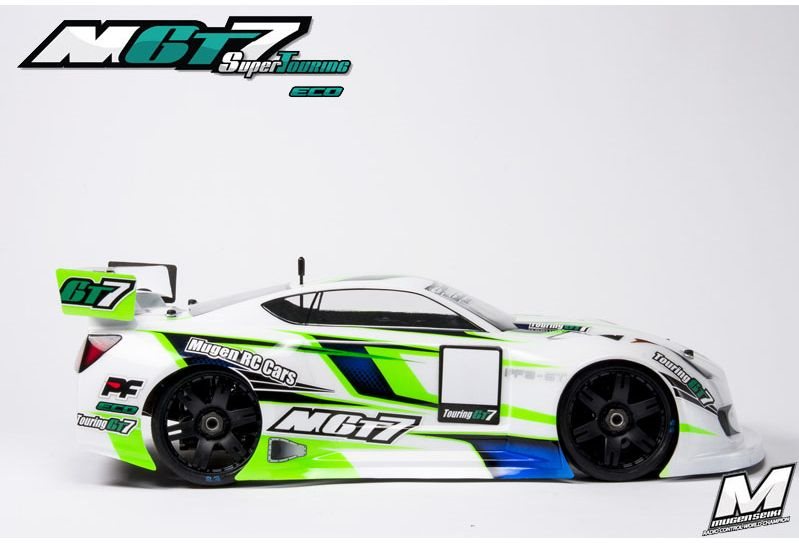

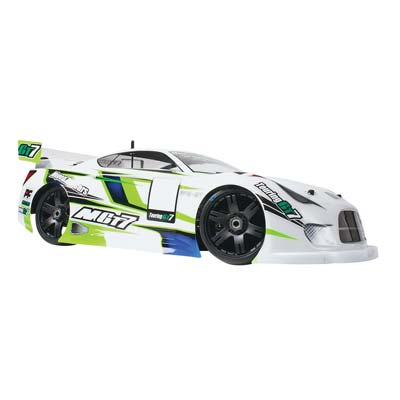

Mugen Seiki Racing MGT7E 1/8 GT On-Road Electric Kit

This is the Radio Controlled, Electric Powered, 1/8 scale
MGT7E On-Road GT Vehicle Package from Mugen.

**Additional Technical Information Will Be Included When It Becomes Available.**

FEATURES:
Chassis: A7075 aluminum, 0.12" (3mm) thick
Own: 4 wheel with CVA driveshafts
Differentials: Oil-filled straight cut 12T bevel gears, 42T conical
    gears
Shocks: 16mm oil-filled, difficult anodized bodies, specially designed
    springs, 3.5mm diameter shafts
Shock Towers: A7075 aluminum, 0.16" (4mm) thick
Suspension:
    with 0.20" (5mm) thick A7075 aluminum lower mounts for enhanced
    geometry
Battery Tray: Accepts 2 2S LiPo batteries in a staggered installing
    position, or a single FOUR LiPo
Motor Installs: Strong moving type, freshly designed to remove
    flex and gear mesh problems
Front Bumper: Plastic with foam protector
Camber Tie Rods: Adjustable, Camber describes the angle at which the
    tires sit vertically
Steering Tie Rods: Adjustable, Caster/Toe-in is the angle at which
    the tires point inward as seen from above
Body Installs: Adjustable to permit fitting of the majority of 1/8 scale on-road
    bodies

CONSISTS OF:
MGT7E On-Road GT Electric Vehicle Package with Instruction Manual

NEEDS:
Radio: 2-channel with high-speed steering servo
Motor:
ESC:
Battery:
Battery Charger: To match chosen battery
LiPo charging bag, upkeep and track devices

SPECS:
Length: 19.4" (494mm)
Width: 12" (305mm)
Wheelbase: 12.8 (325mm)
Weight: 7.27 lbs (3300 g) approximate. w/battery
Gear Ratio: 8.27

REMARKS:
For Replacement Ball Bearings usage:
    Qty. Size Location Qty. Bearing Set
