OS Motors Muffler Extension 35mm E-402

This is an Exhaust Extension for the
E-4010 OSMG2838, E4020 OSMG2840, & 744B Mufflers

This extends the muffler out from the crankcase of the engine by 1.38" (35mm)

FEATURES:
Natural Colored Muffler Extension

CONSISTS OF:

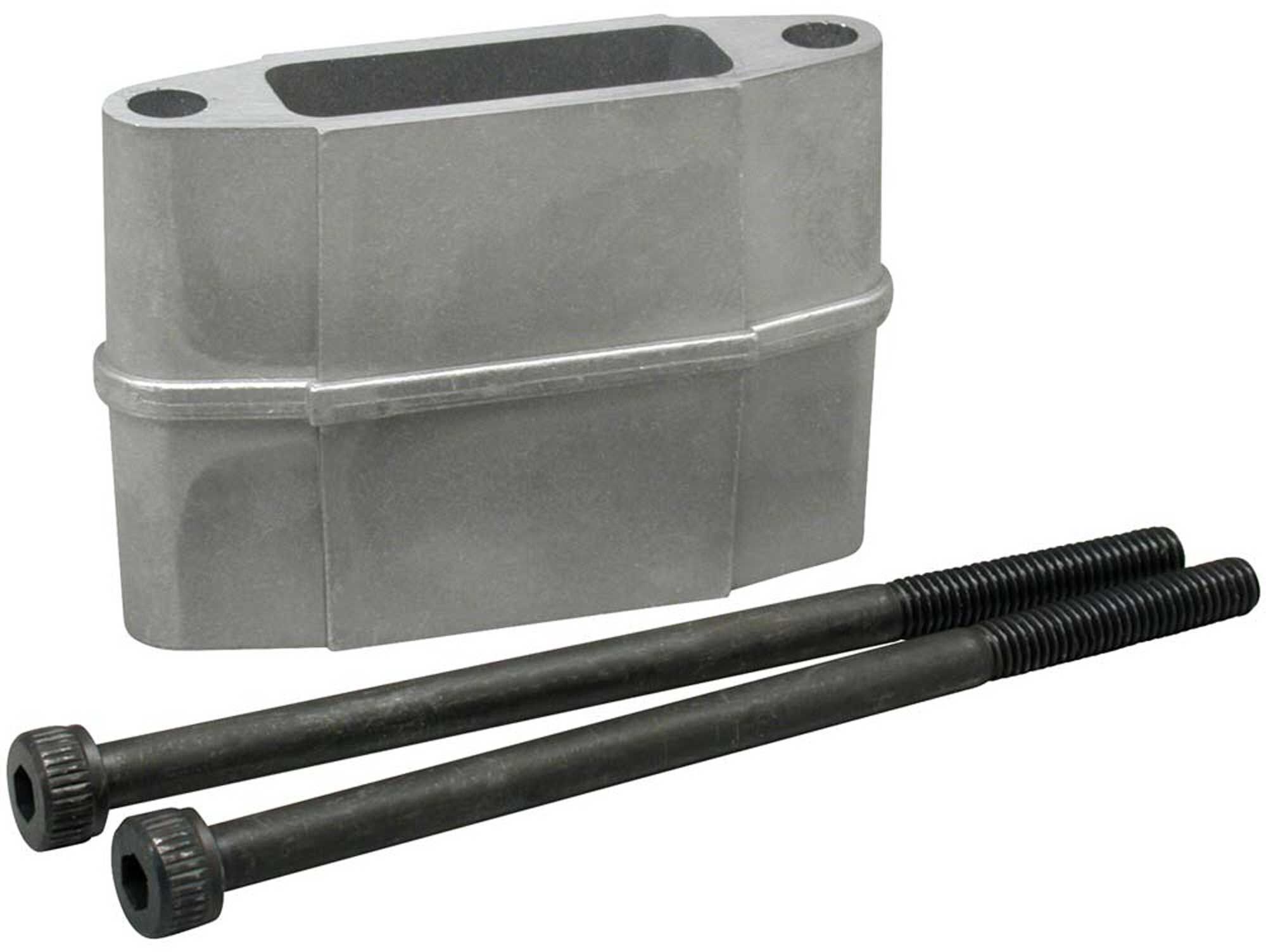

One Cast Aluminum Exhaust Extension
2 M4x70 Bolts w/.7 pitch threads

REQUIRES:
Engine and E-4010, E-4020, or 744B Muffler

SPECIFICATIONS:
Length: 35mm (1.38 in)
Width: 52mm (2.05 in)
Height: 14mm (.551 in)
Mounting Hole Centers: 43mm (1.63 in)
Port Dimensions: Width: 28mm
Height: 8mm

REMARKS:
Other muffler extensions use: OSMG2582 15mm
OSMG2598 90°
