OS Motors Muffler 871 10-15FP/LA

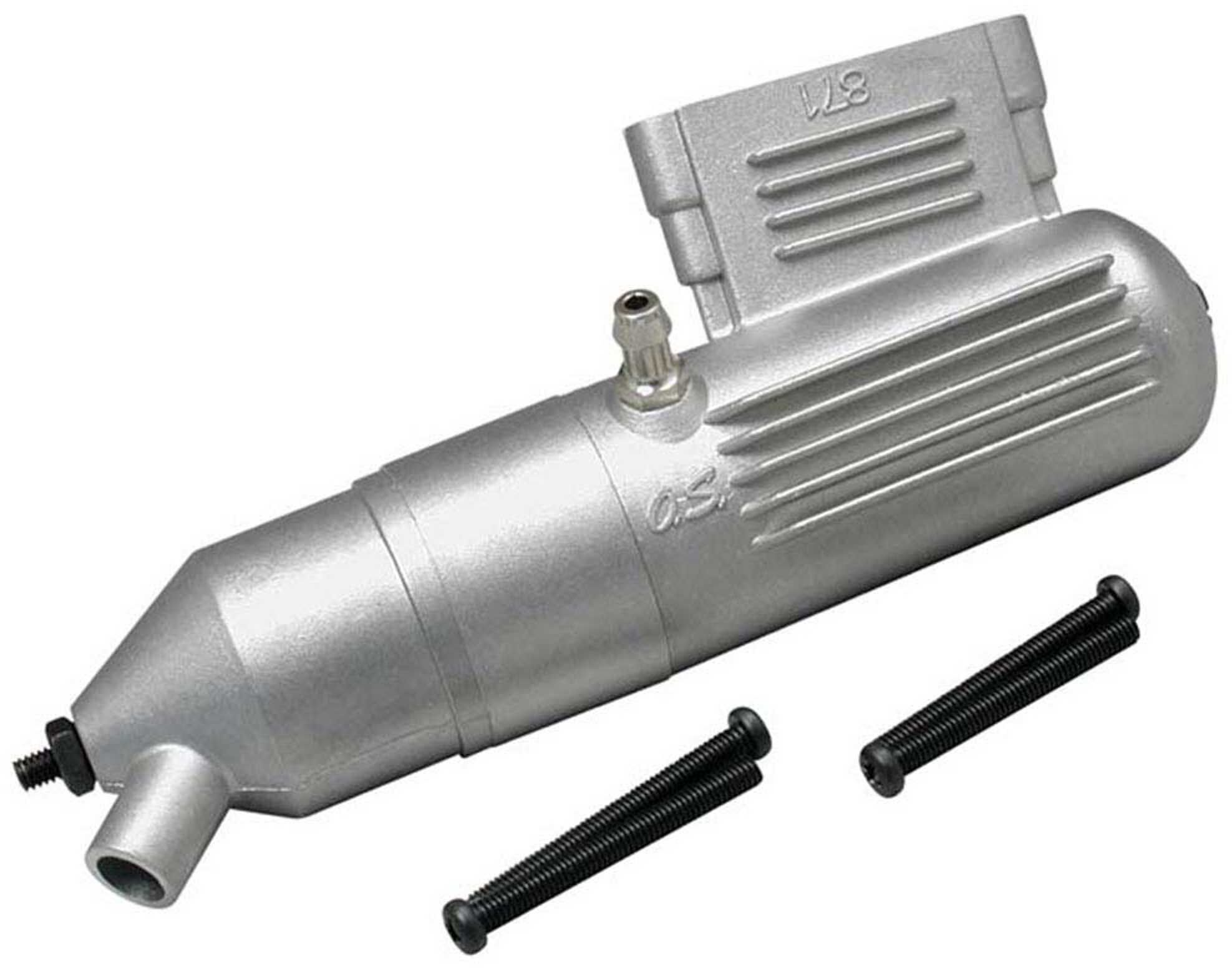

This is the OS Max #871 Muffler for 10 & 15FP, 15LA, 12-15 CZ and CV series
engines. It includes an adjustable outlet to fit numerous applications.

FEATURES:
Aluminum building
Adjustable exhaust outlet on rear of muffler
Pressure fitting(installed)

CONSISTS OF:
One total #871 muffler w/pre-installed pressure nipple
Four 2.5mm x 24mm screws, for installing muffler to engine OSMG6882

NEEDS:
Phillips screwdriver for setup

SPECS:
Overall length: 95.3mm (3.75")
center to center of installing holes: 27.5mm (1.085")
rectangle-shaped exhaust port: 4.8mm (.192") x 22.2mm (.876")
weight: 39.5g (1.4oz)

COMMENTS:
May fit other .10-.15 size engines that share the same exhaust
measurements as the OS Max engines.

For 11.5mm extenstion usage OSMG2584
For 90° adapter usage OSMG2596
