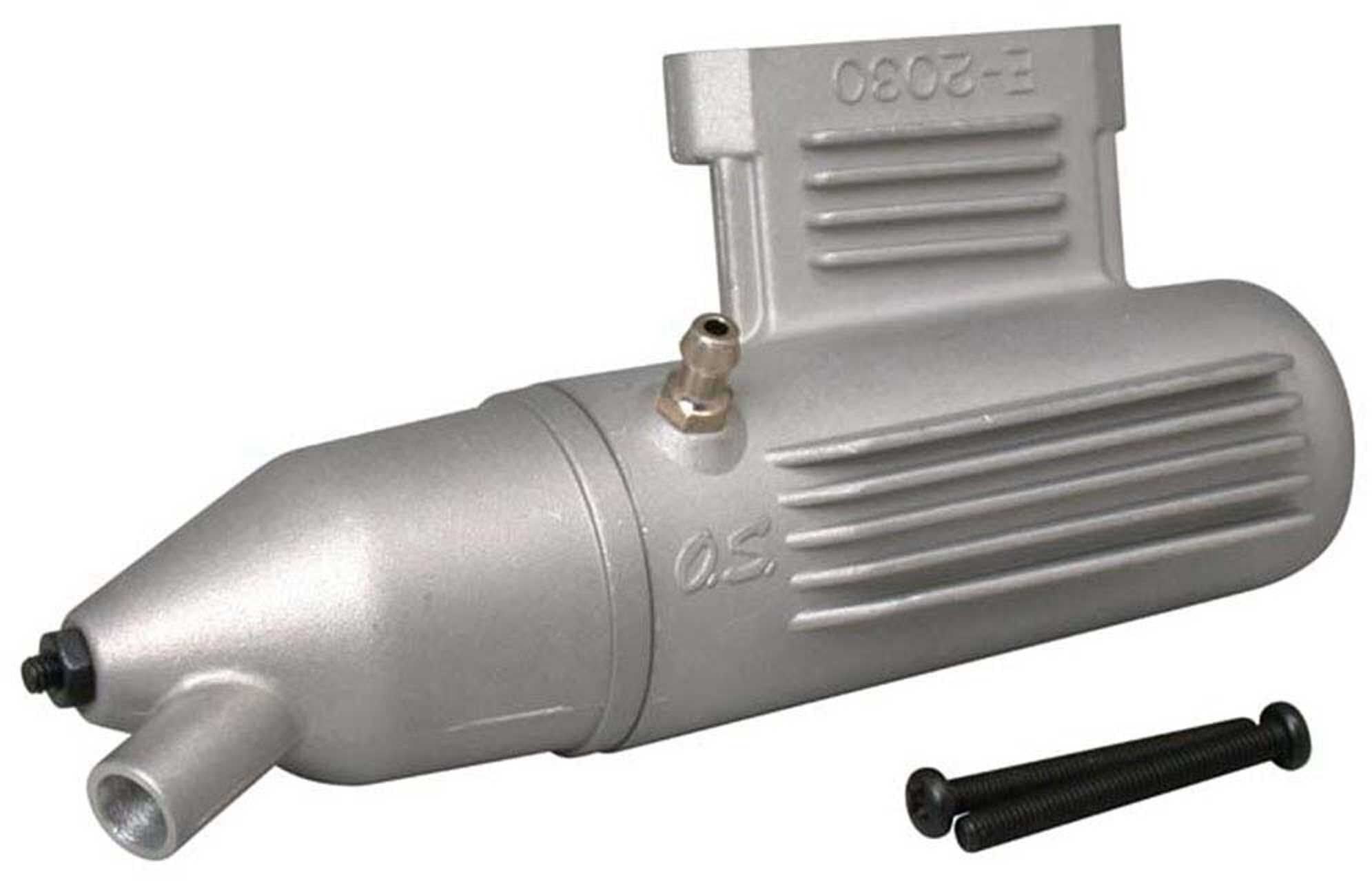

OS Motors Muffler E-2030 .20-.25 FP

This is the OS Max E-2030 Muffler for the 20 & 25FP and the 25LA series
engines. It features an adjustable outlet to fit various applications.

FEATURES:
Aluminum building and construction
Adjustable exhaust outlet on rear of muffler
Pressure fitting(set up)

CONSISTS OF:
One complete E-2030 muffler
2 3mm x 27mm screws, for installing muffler to engine

REQUIRES:
Phillips screwdriver for setup

SPECS:
Overall length: 103mm (4.06")
center to center of installing holes: 32mm (1.26")
rectangular exhaust port: 6mm (.24") x 26mm (.1.03")
weight: 64.5g (2.3oz)

COMMENTS:
This muffler changes the #842 OS Max muffler.
For muffler gasket use OSMG6012
