OS Motors Motor Mount 15 LA

This is the Radial Mount Set for the O.S. Max 15LA and 15FP Engines.
    This install bolts to the firewall software of a model airplane
and holds the engine in place.

FEATURES:
Constructed of aluminum alloy to resist breaks and bends.

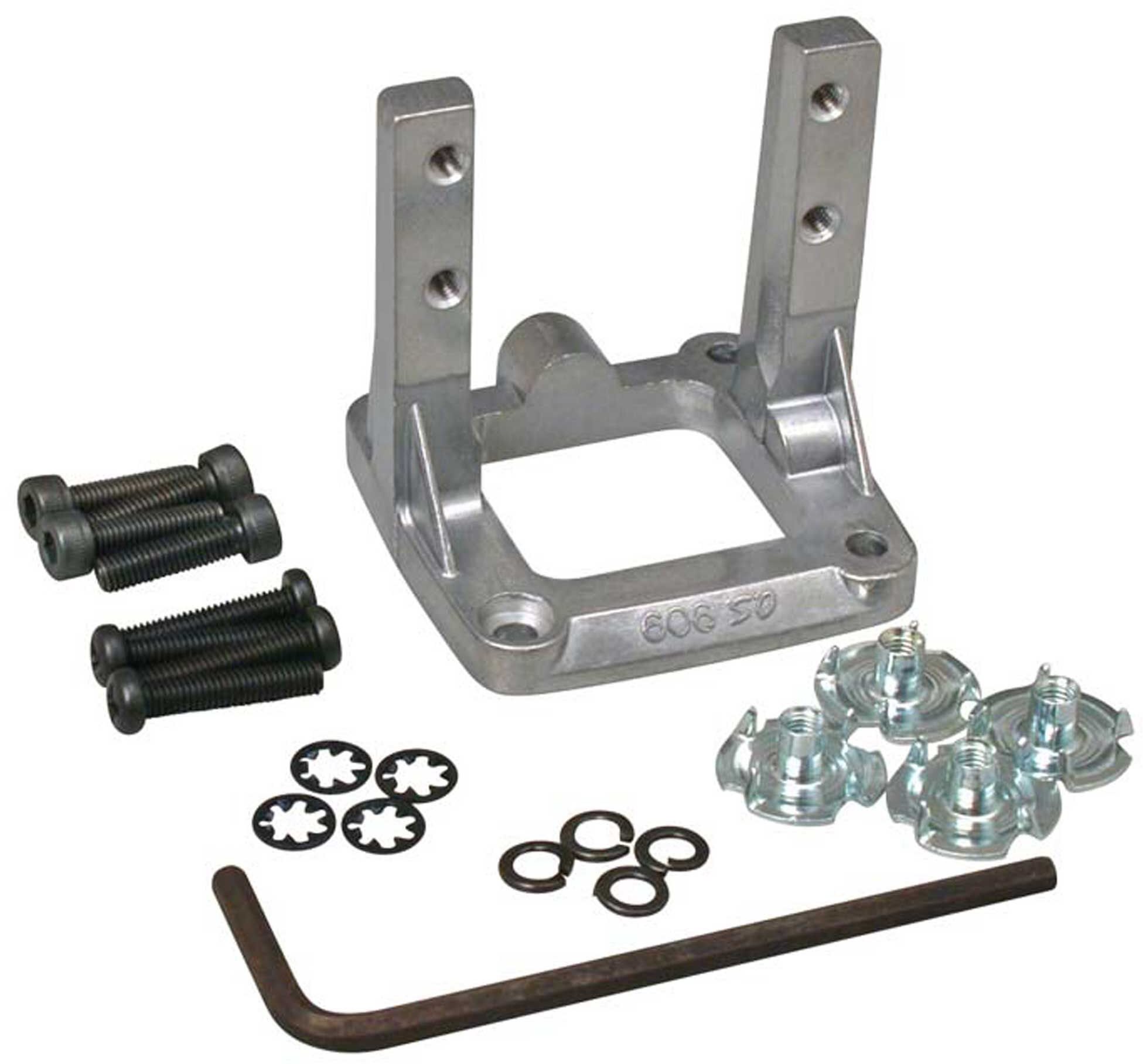

INCLUDES:
One Radial Mount Set for the O.S. Max 15LA and 15FP Engines.
Four M3x15 screws, 3mm lock washers and blind nuts for firewall software
    installation.
Four M3x12 screws and 3mm spring washers to install engine.
One 2.6mm allen wrench.

REQUIRES:
Setting up on firewall software of model airplane and bolting engine in place.

SPECS:
Length: 1.63" (41.5mm) from backplate to end of mounting tabs
Width: 1.57" (40mm)
Height: 1.55" (39.5mm)
Mounting holes on-center on the same side: 0.59" (15mm)
Mounting holes on-center on the opposite side: 1.34" (34mm)
